ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22 22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features:
Power Supply:
VDD = 1.2V Typical
VDDQ =
1.2V Typical
VPP =
2.5V Typical
VDDSPD =
2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB:
Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free

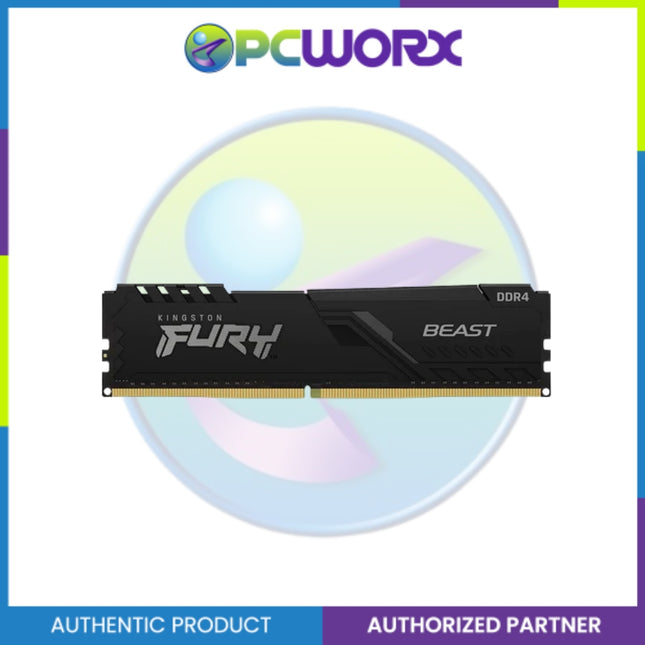

Kingston FURY Beast DDR4 Memory
The Kingston FURY™ Beast DDR4 provides a powerful performance boost for gaming, video editing and rendering with speeds up to 3733MT/s*. This cost-effective upgrade is available in 2666MT/s–3733MT/s speeds, CL15–19 latencies, single module capacities of 4GB–32GB, and kit capacities of 8GB–128GB. It features Plug N Play automatic overclocking at 2666MT/s1 and is both Intel® XMP-ready, XMP Certified and Ready for AMD Ryzen™. FURY Beast DDR4 stays cool with its stylish, low-profile heat spreader. 100% tested at speed and backed by a lifetime warranty, it’s an easy, worry-free upgrade for your Intel or AMD-based system.
SPECIFICATIONS
RAM
16 GB DDR4
Memory Speed
3200 MHz
Brand
Kingston
Series
Kingston FURY Beast DDR4 Memory
Item model number
KF432C16BB1/16
Operating System
Intel XMP,Ryzen
Item Weight
1.27 ounces
Product Dimensions
5.25 x 1.34 x 0.28 inches
Item Dimensions LxWxH
5.25 x 1.34 x 0.28 inches
Color
Black
Computer Memory Type
DIMM
Voltage
1.35 Volts
Batteries
1 Lithium Ion batteries required.
Manufacturer
Kingston
Kingston FURY Beast DDR4 Memory
The Kingston FURY™ Beast DDR4 provides a powerful performance boost for gaming, video editing and rendering with speeds up to 3733MT/s*. This cost-effective upgrade is available in 2666MT/s–3733MT/s speeds, CL15–19 latencies, single module capacities of 4GB–32GB, and kit capacities of 8GB–128GB. It features Plug N Play automatic overclocking at 2666MT/s1 and is both Intel® XMP-ready, XMP Certified and Ready for AMD Ryzen™. FURY Beast DDR4 stays cool with its stylish, low-profile heat spreader. 100% tested at speed and backed by a lifetime warranty, it’s an easy, worry-free upgrade for your Intel or AMD-based system.
Features
Cost-efficient, high-performance DDR4 upgrade
Speeds up to 3733MT/s* and kit capacity up to 128GB
Intel® XMP-ready and XMP Certified
Ready for AMD Ryzen™
Low-profile heat spreader design
Plug N Play functionality at 2666MT/s*1
High-performance, cost-effective upgrade
Kingston FURY Beast DDR4 is the perfect choice for a system builder, or someone looking for an upgrade to jump start their sluggish system.
Intel® XMP-Ready and XMP Certified
Designed to maximize the performance of our memory modules our engineers have predefined Intel Extreme Memory Profiles to reach speeds up to 3733MT/s*.
Ready for AMD Ryzen™
Get memory that’s Ready for Ryzen and will seamlessly integrate with your AMD-based system. A reliable, compatible performance boost for your build.
Low-profile heat spreader
The sleek-looking heat spreader is a great upgrade for your battle station’s style.
Plug N Play – Automatic overclocking at 2666MT/s*1
A simple and easy Plug N Play upgrade, Kingston FURY Beast DDR4 will auto-overclock itself to the highest listed speed allowed by the system BIOS.
Specifications
Product:

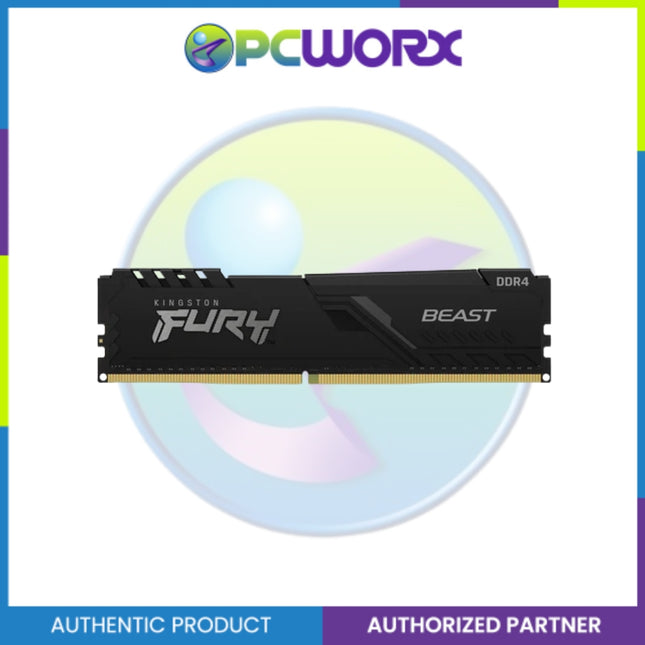

Kingston Fury Beast 8GB DDR4 3200MHz CL16 DIMM
Model Number:
KF432C16BB/8WP
Capacity:
8GB (1 x 8GB module)
Type:
DDR4
Speed:
3200MHz (PC4-25600)
CAS Latency:
CL16
Timing:
16-18-18
Voltage:
1.35V
Heat Spreader:
Yes, low-profile design
Form Factor:
UDIMM (Unbuffered DIMM)
Compatibility:
Intel XMP-ready and AMD Ryzen-ready
Overclocking:
Plug N Play automatic overclocking to 2666MHz
Operating Temperature:
0°C to 85°C
F4-3600C18D-32GVW
Ripjaws V series DDR4 DRAM memory is designed for sleek aesthetics and performance, making it an ideal choice for building a new PC system or for upgrading your system memory.
• Ripjaws V• DDR4-3600 CL18-22-22-42 1.35V• 32GB (2x16GB)
Specifications:
Memory Type
DDR4
Capacity
32GB (16GBx2)
Multi-Channel Kit
Dual Channel Kit
Tested Speed (XMP/EXPO)
3600 MT/s
Tested Latency (XMP/EXPO)
18-22-22-42
Tested Voltage (XMP/EXPO)
1.35V
Registered/Unbuffered
Unbuffered
Error Checking (ECC)
Non-ECC
SPD Speed (Default)
2133 MT/s
SPD Voltage (Default)
1.20V
Fan Included
No
Features
Intel XMP 2.0 (Extreme Memory Profile) Ready
F4-3600C18D-16GTZR
Trident Z RGBDDR4-3600 CL18-22-22-42 1.35V16GB (2x8GB)
Featuring the award-winning Trident Z heatspreader design, the Trident Z RGB memory series combines vivid RGB lighting with awesome DDR4 DRAM performance.
DDR4 Just Got Better!
Featuring the award-winning Trident Z heatspreader design, the Trident Z RGB memory series combines vivid RGB lighting with awesome DDR4 DRAM performance.
Full Range RGB
The light bar is designed for visual gratification with RGB LED lighting. The default lighting effect sports a fluid wave of rainbow colors. Downloadable software allows additional lighting effects and color customizations, so color match your build and rethink the possibilities with RGB.
Exceptionally Engineered
Trident Z RGB retains the iconic design element of the classic Trident Z series - featuring luxurious hair-line finished aluminum heatspreaders and a signature fin design. The top of the heatsink has been engineered to mount a wider light diffuser for extravagant lighting effects. Look no further for a memory that combines performance and beauty for building a stylish, modern PC!
Trident Z Means Performance
Each memory kit is created with hand-screened ICs through G.SKILL's rigorous selection process and a custom engineered ten-layer PCB for outstanding performance.
Reveal Your Inner Colors
Create a one of a kind PC with the Trident Z RGB memory kit! The best thing about having RGB capability is the ability to choose the colors you want.
Specification
Details
Memory Type
DDR4
Capacity
16GB (8GB x 2)
Multi-Channel Kit
Dual Channel Kit
OC Profile Support
Intel XMP 2.0
Tested Speed (Up To) (XMP)
3600 MT/s
Tested Latency (XMP)
18-22-22-42
Tested Voltage (XMP)
1.35V
Registered/Unbuffered
Unbuffered
Error Checking (ECC)
Non-ECC
SPD Speed (Default)
2133 MT/s
SPD Voltage (Default)
1.20V
Fan Included
No
Warranty
Limited Lifetime
Features
Intel XMP 2.0 (Extreme Memory Profile) Ready
Additional Notes
Memory kits are sold matched; XMP requires BIOS enabling; stability depends on motherboard and CPU compatibility.
F4-3600C18D-16GTZN
Trident Z NeoDDR4-3600 CL18-22-22-42 1.35V16GB (2x8GB)
Engineered and optimized for full compatibility on the latest AMD Ryzen platforms, Trident Z Neo brings unparalleled DRAM memory performance and vibrant RGB lighting to any gaming PC or workstation with latest AMD Ryzen CPUs and AMD DDR4 motherboards.
Engineered and optimized for full compatibility on the latest AMD Ryzen platforms, Trident Z Neo brings unparalleled DRAM memory performance and vibrant RGB lighting to any gaming PC or workstation with latest AMD Ryzen CPUs and AMD DDR4 motherboards.
Optimized DDR4 Performance for AMD Ryzen
Designed for memory performance with the latest AMD Ryzen platforms, Trident Z Neo is optimized to unlock the full potential of the AMD platform to its maximum speed.
Dual-Tone Design
Designed with a contrast of black brushed aluminum and powder-coated silver, the Trident Z Neo dual-toned heatspreader adds power and boldness to your next-gen build.
Sleek Beveled Edge
Inspired by the racing stripes of sports cars and supercars, Trident Z Neo features a beveled edge along the top of the signature tri-fin design with the asymmetrical slant to achieve a sleek and clean look.
Powerful Overclocked Performance
Crafted with hand-screened memory ICs and custom 10-layer PCBs, each and every module is made for maintaining the best signal integrity to achieve fast overclocking performance.
Platform Compatibility
Tested across a wide range of motherboards to strict quality standards, Trident Z Neo memory kits are built for reliability, stability, and compatibility.
Light It Up With RGB Software
Fully control and customize the 8-zone RGB lighting through the downloadable Trident Z Lighting Control software.
Specification
Details
Memory Type
DDR4
Capacity
16GB (8GBx2)
Multi-Channel Kit
Dual Channel Kit
OC Profile Support
Intel XMP 2.0
Tested Speed (Up To) (XMP)
3600 MT/s
Tested Latency (XMP)
18-22-22-42
Tested Voltage (XMP)
1.35V
Registered/Unbuffered
Unbuffered
Error Checking (ECC)
Non-ECC
SPD Speed (Default)
2133 MT/s
SPD Voltage (Default)
1.20V
Fan Included
No
Features
Intel XMP 2.0 (Extreme Memory Profile) Ready
Features
Compact Low-Profile Heatsink Design
Top Quality RAM for High Durability
Higher Performance and Reliability
Works with the Latest AMD Platforms
Supports Intel® XMP 2.0 for easy overclocking
RoHS compliant
SPECIFICATIONS:
Heatsink Color:
White
Speed:
DDR4 3200 MT/s
CAS Latencies:
16-20-20
Module size:
8GB
Operating temperature:
0°C to 85°C
Operating temperature:
0°C to 85°C
Storage temperature:
-20°C to 65°C
Operating voltage:
1.35V
Compatibility:
DDR4 2666 CL19-19-19 at 1.2V
Dimensions (LxWxH):
133.35 x 34 x 5.9mm
Weight:
27.34g
Upgrade your desktop performance with the XPG GAMMIX D35 8GB DDR4-3200 BLACK memory module. Featuring DDR4 technology and an impressive 3200 MHz speed, this memory is designed for high-speed computing and smooth multitasking. With a capacity of 8GB, it’s ideal for gaming, content creation, and other memory-intensive tasks.
With a CAS latency of 16, this module ensures fast data access for quick load times and efficient performance. The 1.35V operating voltage contributes to a more energy-efficient system, providing power savings without compromising speed. The 0°C to 85°C operating temperature range ensures the module maintains optimal performance even under demanding conditions.
The XPG GAMMIX D35 features a sleek black design that fits well with a variety of system builds, making it as stylish as it is functional. Measuring just 133.35 x 34 x 5.9mm, it is a compact solution that fits into most desktop setups with ease. Enhance your system with the XPG GAMMIX D35 8GB DDR4-3200 BLACK for high-speed performance and reliable memory that complements your build.
SPECIFICATIONS
Memory Type:
DDR4
Form Factor:
U-DIMM
Color:
Black
Capacity:
8GB
Speeds:
3200MHz
CAS Latencies:
16
Operating Voltage:
1.35V
Operating Temperature:
0°C to 85°C
Dimensions (L x W x H):
133.35 x 34 x 5.9 mm
Weight:
27.34g
