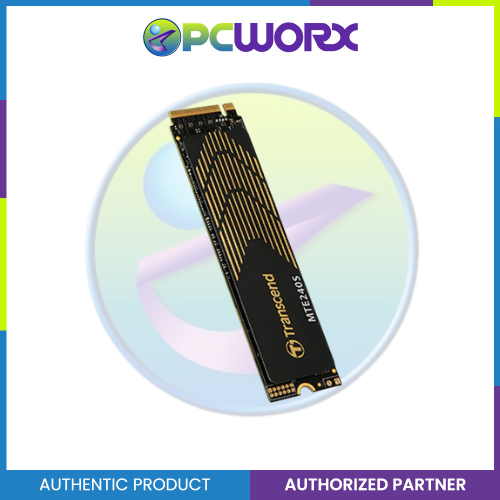

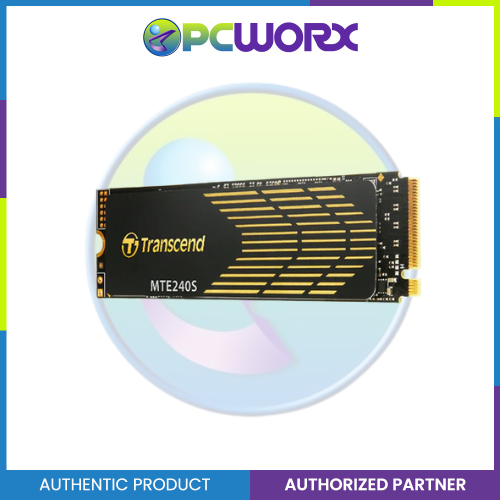

PCIe SSD 240S
Transcend's PCIe® SSD 240S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing of heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen4 x4 interface supported by the latest NVMe® standard, 3D NAND flash memory, a 4-channel controller, and a DRAM cache, the PCIe SSD 240S offers superior transfer speeds that easily beat the competition.
Appearance
| Category | Details |
|---|---|
| Dimensions | Double-sided 80 mm × 22 mm × 3.77 mm (3.15" × 0.87" × 0.15") |
| Weight | 10 g (0.35 oz) |
| Form Factor | M.2 2280 |
Interface
| Category | Details |
|---|---|
| Bus Interface | NVMe PCIe Gen4 x4 |
Storage
| Category | Details |
|---|---|
| Flash Type | 3D NAND flash |
| Capacity | 500 GB / 1 TB |
Operating Environment
| Category | Details |
|---|---|
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V ±5% |
Performance
| Category | 1 TB Model | 500 GB Model |
|---|---|---|
| Sequential Read/Write (CrystalDiskMark) | Up to 3,800 / 3,200 MB/s | Up to 3,800 / 3,200 MB/s |
| 4K Random Read/Write (IOmeter) | Up to 370,000 / 560,000 IOPS | Up to 190,000 / 540,000 IOPS |
| Terabytes Written (TBW) | 1700 TBW | 850 TBW |
| Additional Performance Specs | Details |
|---|---|
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Drive Writes Per Day (DWPD) | 0.95 (5 years) |
System Requirements
| Category | Details |
|---|---|
| Operating System | Microsoft Windows 7 or later |
| Linux Kernel 2.6.31 or later | |
| Connector Requirement | M.2 connector with M key only (B-key not compatible) |
Supported Technologies
| Technology Features |
|---|
| S.M.A.R.T. |
| Advanced Garbage Collection |
| RAID Engine |
| LDPC Coding |
| DRAM Cache |
