Model Name
|

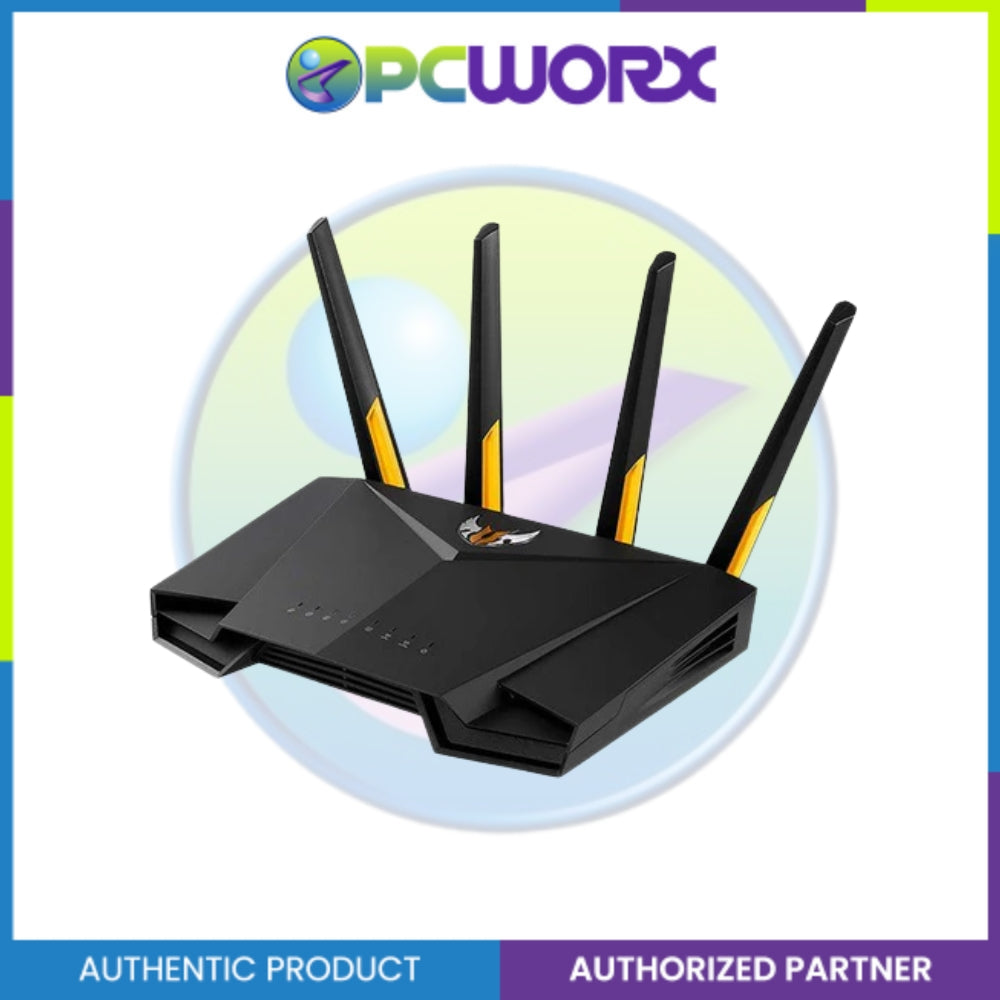

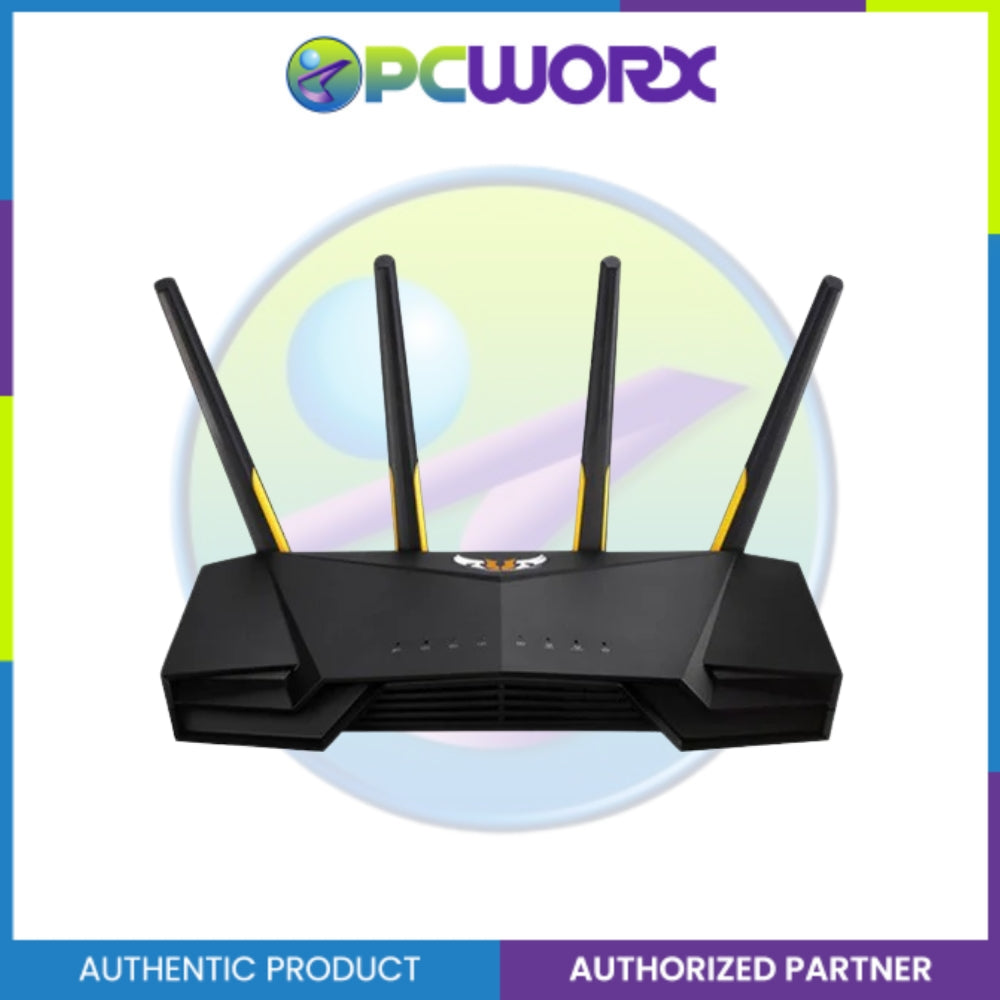

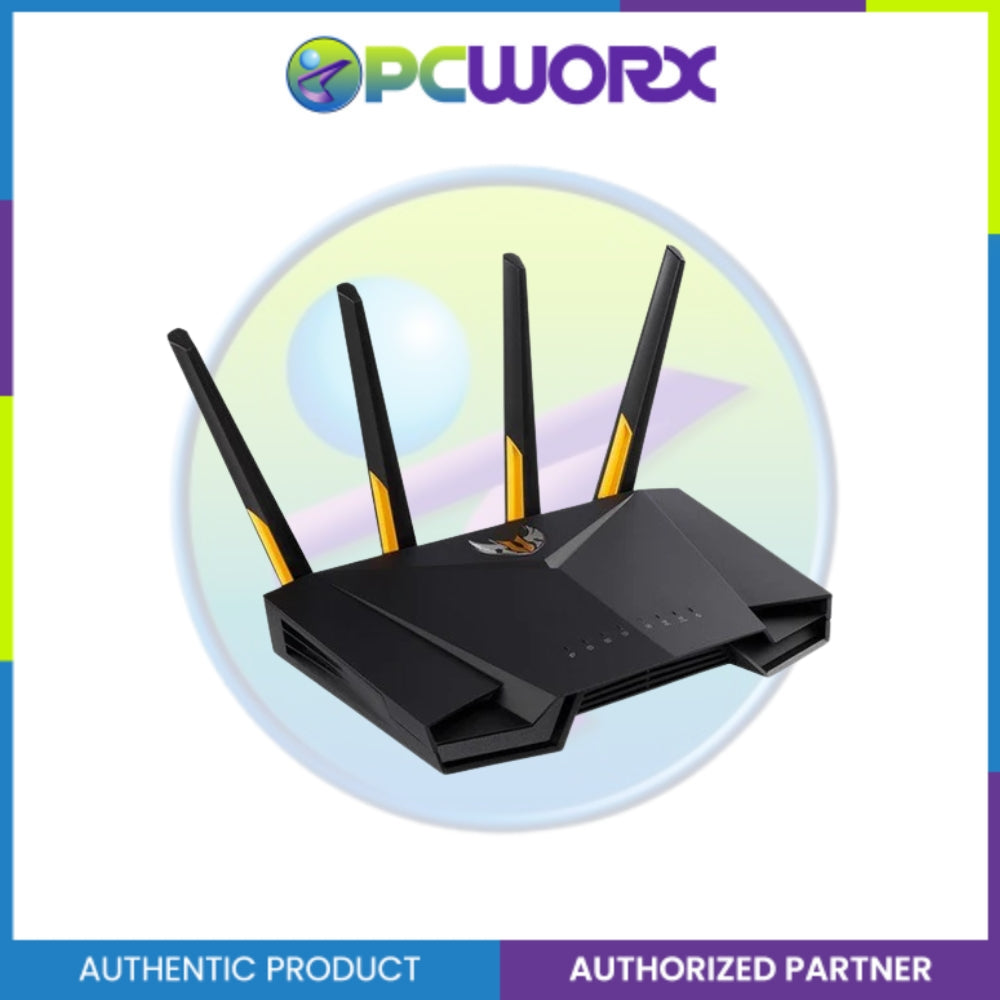

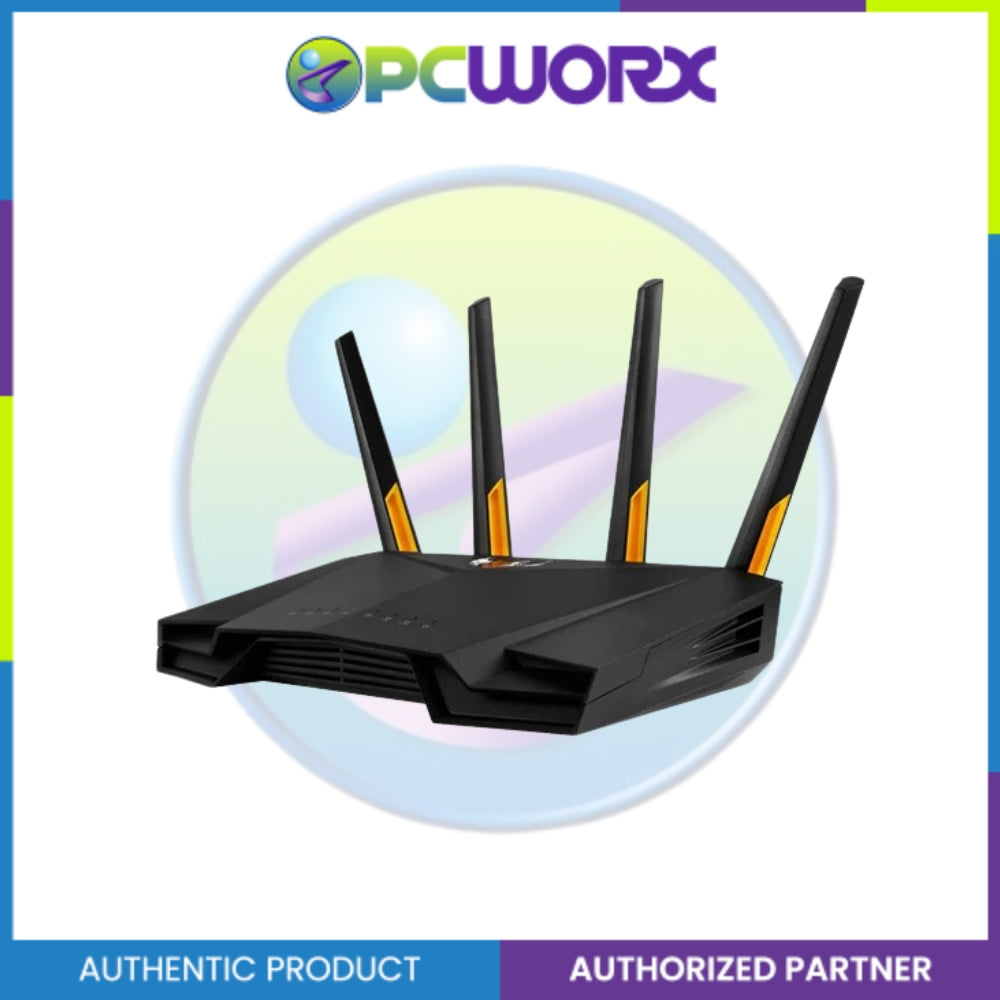

TUF Gaming AX3000
|
|
Network Standard
|
IPv6
IPv4
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
|
|
Product Segment
|
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
|
|
WiFi Data Rate
|
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
802.11g : up to 54 Mbps
802.11b : up to 11 Mbps
802.11a : up to 54 Mbps
|
|
Antenna
|
External antenna x 4
|
|
Transmit / Receive
|
5GHz-1 2x2
2.4GHz 2x2
|
|
Processor
|
1.5 GHz tri-core processor
|
|
Memory
|
256 MB Flash
512 MB RAM
|
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
|
|
Operating Frequency
|
2.4 GHz / 5 GHz
|
|
Operating Mode
|
Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
|
|

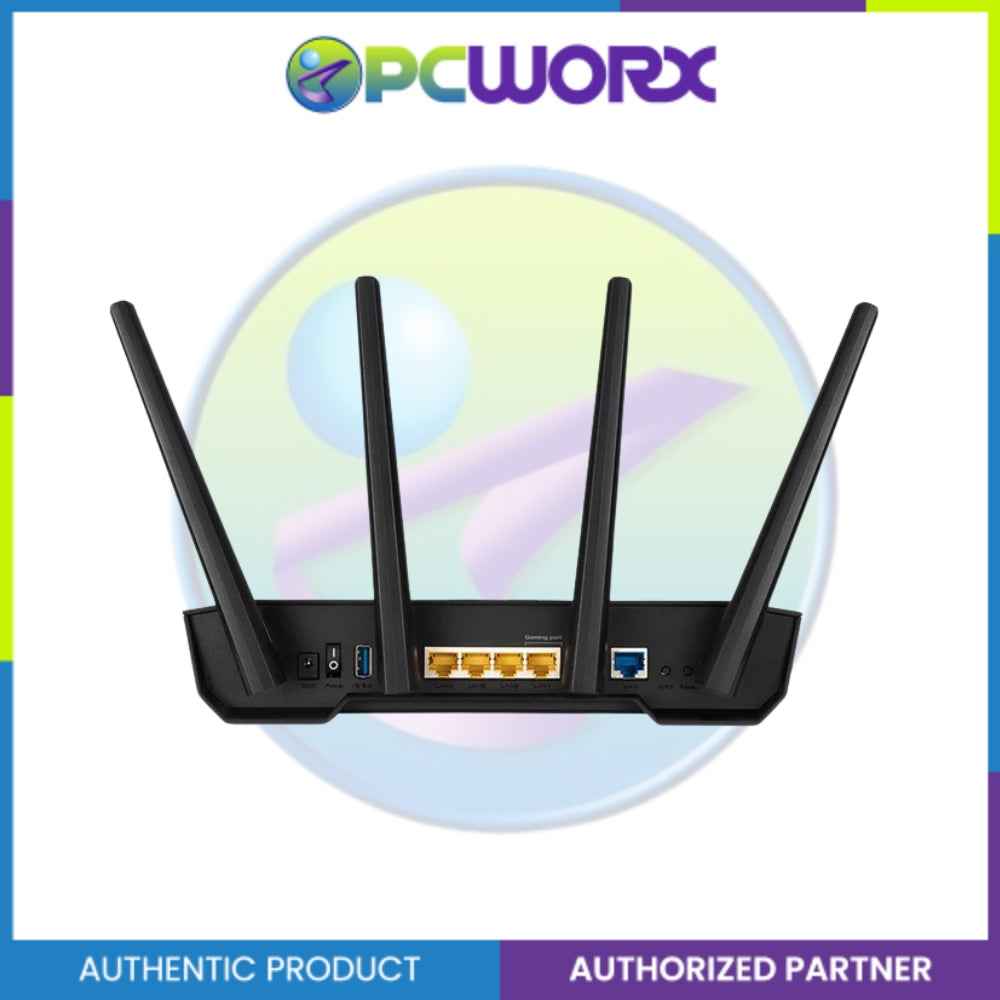

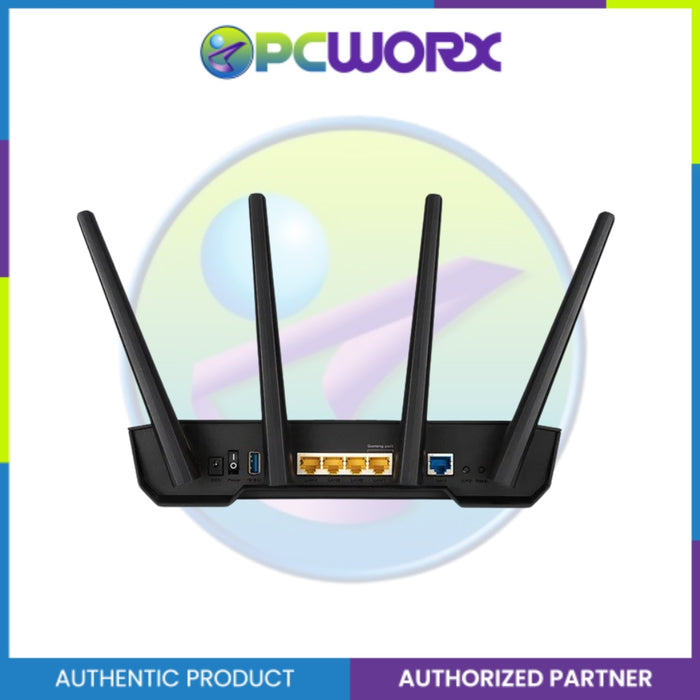

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.1 Gen 1 x 1
|
|
Buttons
|
WPS Button, Reset Button, Power Switch
|
|
LED Indicator
|
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
5G x 1
WAN x 1
|
|
Power Supply
|
AC Input: 110V~240V (50~60Hz)
DC Output : 19 V with max. 1.75 A current
|
|
Package Content
|
TUF-AX3000 WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
|
|
Product Weight (g)
|
675 g
|
|
Product Dimensions
|
265 x 177 x 189 mm (with antenna)
265 x 177 x 55 mm (without antenna)
|
|
AiMesh
|
• AiMesh Node
• Primary AiMesh Router
AiMesh
|
|
Game
|
Gear Accelerator
Mobile Game Mode
Game Boost / Acceleration
|
|
Parental Control
|
Customized Internet Schedule
"Allow you to block access to unwanted websites and apps."
|
|
Guest Network
|
Guest Network Connection Time Limit
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
|
|
Security
|
SSH
Firewall
WPS
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
|
|
AiProtection
|
• Infected Device Prevention and Blocking
• Two-Way IPS
• Malicious Site Blocking
• Router Security Assessment
|
|
VPN
|
VPN Fusion
VPN Server PPTP
VPN Server Open VPN
VPN Server IPSec
VPN Client PPTP
VPN Client Open VPN
VPN Client L2TP
|
|
Traffic Control
|
• Website History
Traffic Analyzer
• Wireless Traffic Monitor
• Wired Traffic Monitor
• Real-time Traffic Monitor
Traffic Monitor
Traditional QoS
• Bandwidth Limiter
• Bandwidth Monitor
Adaptive QoS
-- Maximum Bandwidth Limiter Rule : 32
-- Maximum Traditional QoS Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
|
|
WAN
|
DDNS
DMZ
Port triggering
Port forwarding
3G / 4G LTE dongle
Dual WAN
Internet connection Type: PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Maximum Port Forwarding Rule: 64
• Maximum Port Triggering Rule: 32
NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
|
LAN
|
Manually Assign IP Address
Wake on LAN (WOL)
IPTV
IGMP Snooping
DHCP Server
• Maximum Manually Assign IP Address Rule: 64
|
|
USB application
|
Samba Server
Shared Folder Privileges
FTP Server
Time Machine
Media Server
AiDisk
Download Master
AiCloud
Safely Remove Disk
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
|
|
Administration
|
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
|
