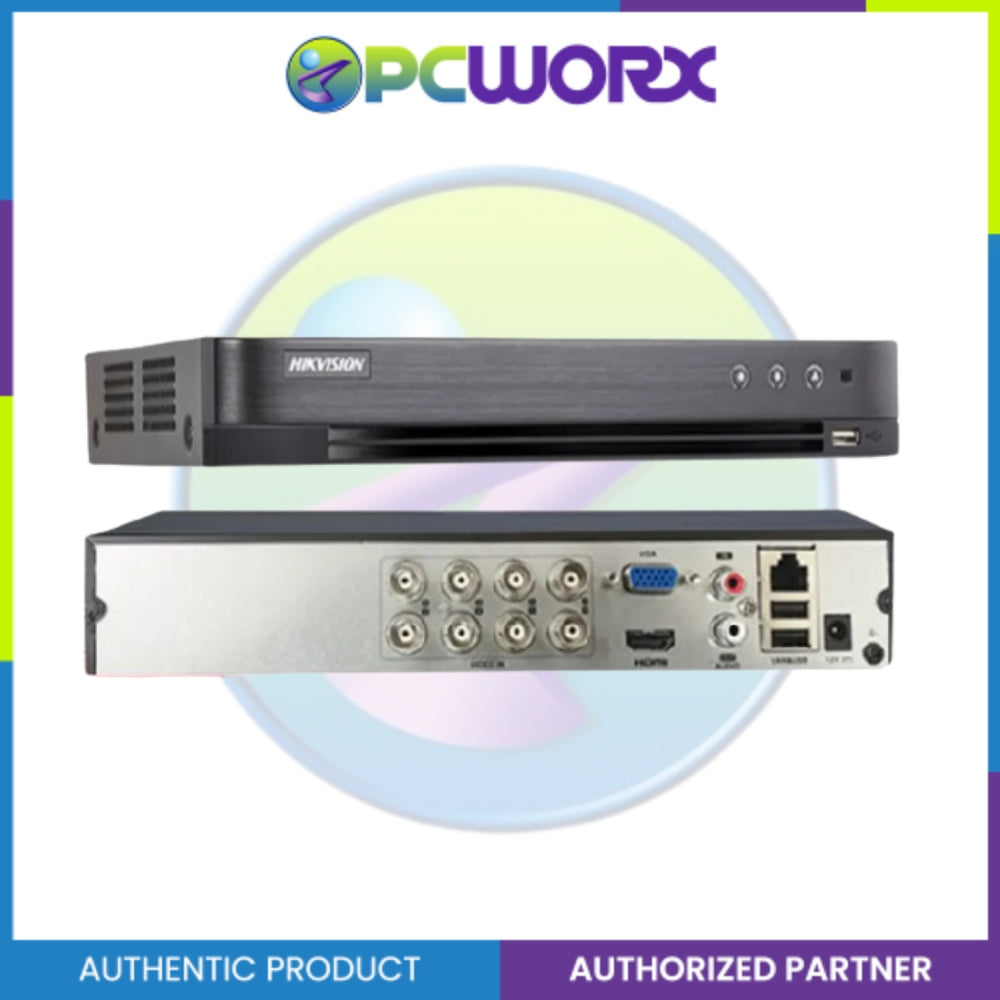

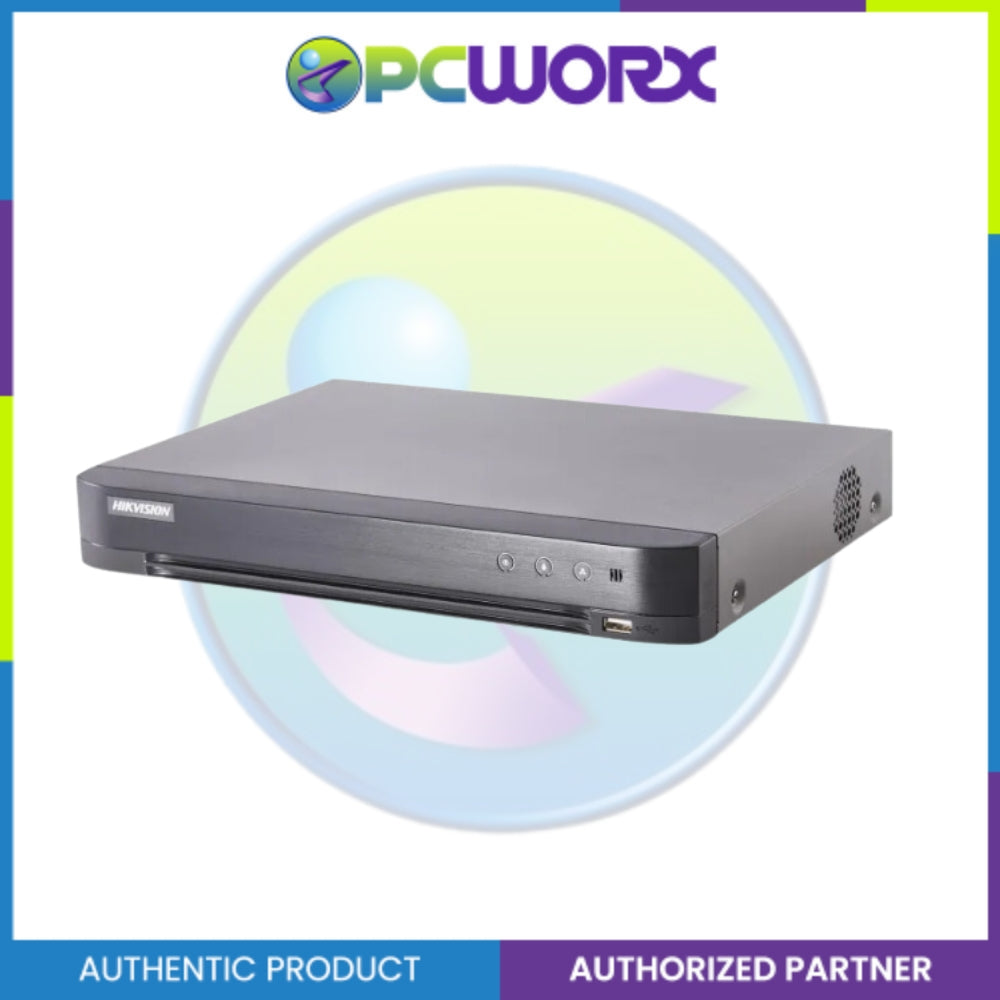

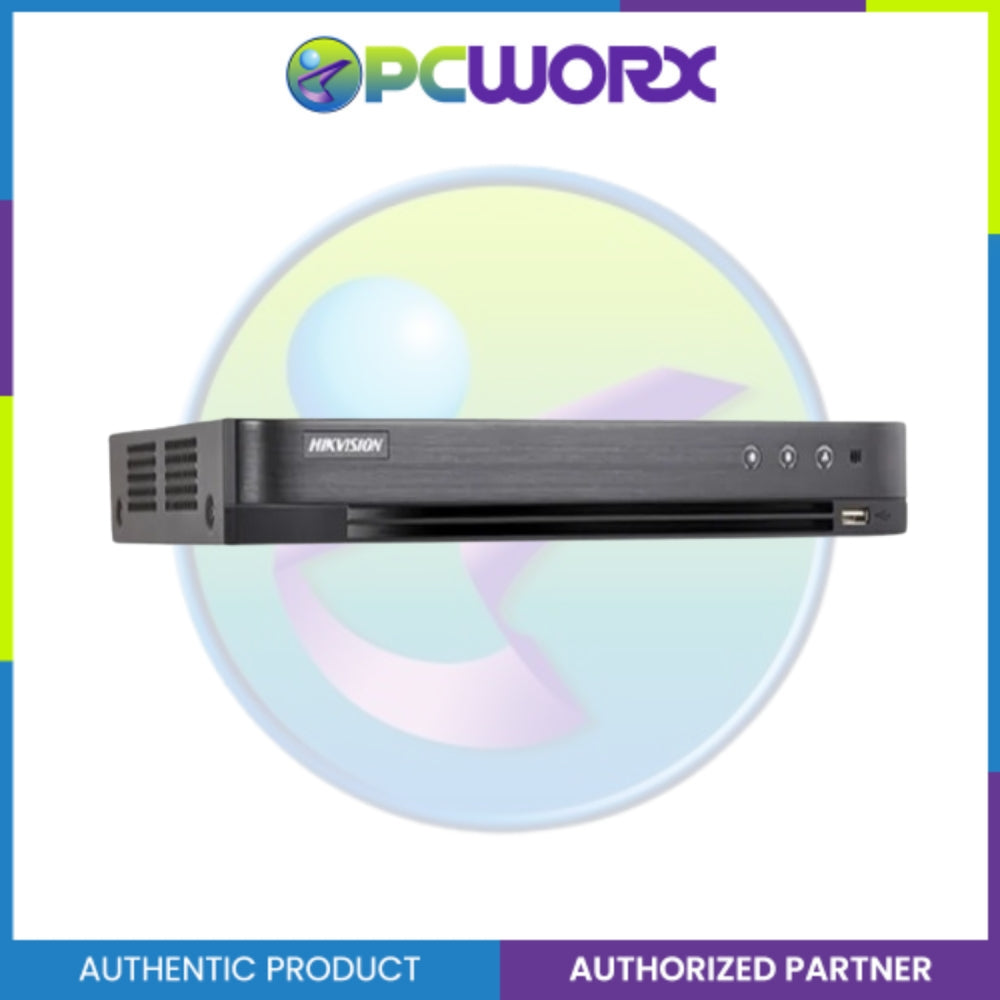

Hikvision DS-7208HQHI-K1/E H.265+ 1080P/4MP Lite 8CH 1SATA 1U DVR

Description

Description

8-ch 1080p 1U H.265 DVR

  • 8 channels and 1 HDD 260 case DVR
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 12 network cameras can be connected.

SPECIFICATIONS:

Recording:
Encoding resolution: When 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Video bit rate: 32 Kbps to 6 Mbps
Frame rate: Mainstream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Dual streamSupport: Stream typeVideo, Video & Audio
Audio compression: G.711u
Audio bit rate: 64 Kbps



Video and Audio
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Synchronous playback: 8-ch
IP video input: 2-ch (up to 10-ch)
Enhanced IP mode on:
4-ch (up to 12-ch), each up to 4 Mbps
Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1,
HDCVI input; 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input: PAL/NTSC
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Analog video input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS output: N/A
HDMI/VGA output: HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz



Network
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote connections: 64
Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
Capacity: Up to 10 TB capacity for each disk
Serial interface: N/A
USB interface: 2 × USB 2.0
Alarm in/out: N/A
SATA: 1 SATA interface
General
Consumption (without HDD): ≤ 9 W
Working humidity: 10% to 90%
Power supply: 12 VDC
Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Dimensions (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
Weights (without HDD): ≤ 1.6 kg (3.5 lb)

Hikvision DS-7208HQHI-K1/E H.265+ 1080P/4MP Lite 8CH 1SATA 1U DVR

Product form

8-ch 1080p 1U H.265 DVR 8 channels and 1 HDD 260 case DVR Efficient H.265 pro+ compression technology Encoding ability... Read more

Free pickup in our shop(s)

SKU: 0000042817

1 in stock

₱3,720.00 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Guaranteed secure & safe checkout.

    Description

    Description

    8-ch 1080p 1U H.265 DVR

    • 8 channels and 1 HDD 260 case DVR
    • Efficient H.265 pro+ compression technology
    • Encoding ability up to 1080p @ 15 fps
    • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
    • Up to 12 network cameras can be connected.

    SPECIFICATIONS:

    Recording:
    Encoding resolution: When 1080p lite mode is not enabled:
    4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
    When 1080p Lite mode is enabled:
    4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
    Video bit rate: 32 Kbps to 6 Mbps
    Frame rate: Mainstream:
    When 1080p Lite mode is not enabled:
    For 4 MP stream access:
    4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
    For 1080p stream access:
    1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    When 1080p Lite mode is enabled:
    4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    Sub-stream:
    WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
    Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
    Dual streamSupport: Stream typeVideo, Video & Audio
    Audio compression: G.711u
    Audio bit rate: 64 Kbps



    Video and Audio
    Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable
    Audio output: 1-ch, RCA (Linear, 1 KΩ)
    Synchronous playback: 8-ch
    IP video input: 2-ch (up to 10-ch)
    Enhanced IP mode on:
    4-ch (up to 12-ch), each up to 4 Mbps
    Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
    HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1,
    HDCVI input; 4 MP, 1080p25, 1080p30, 720p25, 720p30
    CVBS input: PAL/NTSC
    Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
    Analog video input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
    CVBS output: N/A
    HDMI/VGA output: HDMI:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI and VGA simultaneous output
    VGA:1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz



    Network
    Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
    Remote connections: 64
    Network interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
    Auxiliary interface
    Capacity: Up to 10 TB capacity for each disk
    Serial interface: N/A
    USB interface: 2 × USB 2.0
    Alarm in/out: N/A
    SATA: 1 SATA interface
    General
    Consumption (without HDD): ≤ 9 W
    Working humidity: 10% to 90%
    Power supply: 12 VDC
    Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
    Dimensions (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
    Weights (without HDD): ≤ 1.6 kg (3.5 lb)
