Digital Storage Capacity
8 TB
Hard Disk Interface
Raid
Connectivity Technology
SATA
Brand
Seagate
Special Feature
Portable
Hard Disk Form Factor
3.5 Inches
Hard Disk Description
Mechanical Hard Disk
Compatible Devices
Desktop
Installation Type
Dashboard Mount
Product details of Seagate SkyHawk 8TB Surveillance Hard Drive - SATA 6Gb/s 256MB Cache 3.5-Inch Internal Drive
Custom-built for surveillance applications with ImagePerfect firmware for crisp, clear, 24×7 video workloads
Maximum 180TB/year workload rating—3× the workload rating of desktop drives—for reliable performance in write-intensive surveillance systems
Rotational vibration (RV) sensors help maintain performance in RAID and multi-drive systems (4TB or higher)
Up to 10TB of capacity to store up to 10,000 hours of HD video. High reliability with 550TB/yr workload rate
Specifications
Model:
ST8000VE001
Capacity:
8TB
Form Factor:
3.5-inch
Interface:
SATA 6Gb/s
Cache:
256MB
Rotational Speed:
7200 RPM
Max Sustained Transfer Rate:
235 MB/s
Workload Rating:
550TB/year
Seagate Skyhawk 6TB CCTV Surveillance Hard Disk Drive SATA 3.5 ST6000VX009 100%
Genuine, Brand New, Original and Factory Sealed.
See More. Store More.
Optimised for DVRs and NVRs, SkyHawk™ surveillance drives are tuned for 24×7 workloads in capacities up to 10TB. Equipped with enhanced ImagePerfect™ firmware, SkyHawk helps to minimise dropped frames and downtime with a workload rating 3× that of a desktop drive and is ready to record up to 90% of the time while supporting up to 64 HD cameras.
Keep Your Drive Healthy
SkyHawk Health Management (SHM) is first-to-market with in-depth analysis that helps to prevent data loss. SHM analyzes and provides detailed information on how to improve storage performance. SHM is built into Hikvision NVR 4.0 OS systems and select Dahua NVR systems.
Smart Surveillance
SkyHawk’s innovative Image Perfect and Image Perfect AI firmware enables smooth, clear video streaming for always-on, 24×7 surveillance environments—helping to ensure your business has a formidable layer of protection.
SPECIFICATION
Performance Parameters:
Form Factor:
3.5”
Interface:
Sata 6Gbps
Usage:
SMB Surveillance DVR and NVR
Capacity:
6TB
Model No.:
ST6000VX009
NVR Ready:
Yes
No. of cameras supported:
1 to 64 cameras
Workload Rating:
180TB/year
Specification
Details
Capacity
2TB | 4TB | 6TB | 8TB | 10TB | 12TB
Dimensions (H x W x D)
20.20 mm / 0.795 in × 101.6 mm / 4.00 in × 146.99 mm / 5.787 in
Weight
415 g / 0.915 lb
Description
Description

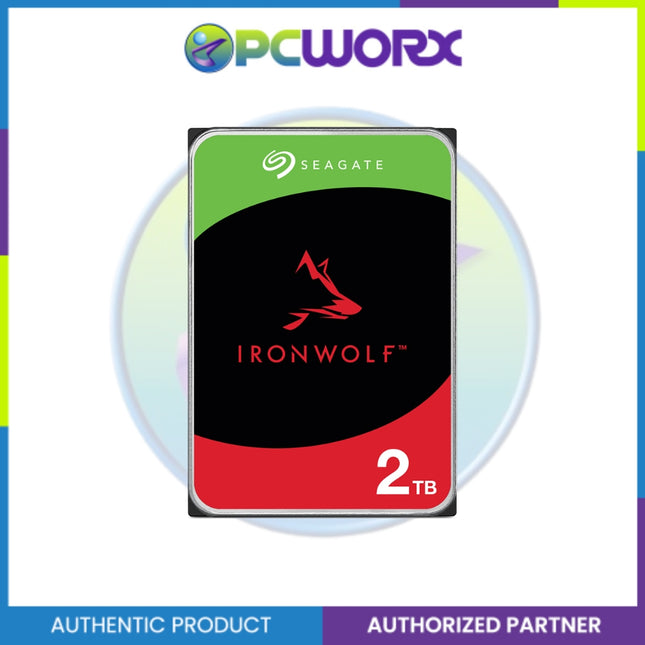

IronWolf
2TB, 3.5". SATA 6Gb/s, 256 MB
Seagate IronWolfST2000VN003. HDD size:
3.5", HDD capacity: 2000 GB, HDD speed: 5400 RPM
Tough. Ready. Scalable
Purpose-built for Connected-Home,
SOHO
and Small-to-Medium Business NAS Environments
IronWolf™ is designed for consumer and commercial NAS.
Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.
Optimised for NAS with AgileArray™
AgileArray enables Dual-Plane Balancing and
Time-Limited Error Recovery to deliver best-in-class
RAID performance in multi-bay systems
Cost-effective storage upgrade for laptop or desktop computers
Store all your games, music, movies and more with up to 4TB of storage
SATA 6Gb/s interface optimizes burst performance
Seagate Secure models for hardware-based data security
Instant Secure Erase allows safe and easy drive retirement; protect data with Self-Encrypting Drive (SED) models
Standard Model Numbers
ST2000DM008
Capacity
2TB / 2000GB
Bytes per Sector
4096 / Emulated 512e
Performance
- Interface
SATA 6Gb/s
- SATA Transfer Rates Supported (Gb/s)
6.0/3.0/1.5
- Max. Sustained Transfer Rate OD (MB/s)
190MB/s
- Cache, Multisegmented (MB)
256
- Rotational Speed (RPM)
5400
Reliability/Data Integrity
- Load/Unload Cycles
600,000
- Power-On Hours per Year (24×7)
2400
- Nonrecoverable Read Errors per Bits Read, Max
1 per 10E15
- Workload Rate Limit (TB/Year)
55
Power Management
- Startup Power (A)
2.0
- Operating Mode, Typical (W)
3.7
- Idle Average (W)
2.5W
- Standby Mode/Sleep Mode, Typical (W)
0.25/0.25
- Voltage Tolerance, Inc. Noise (5V)
±5%
- Voltage Tolerance, Inc. Noise (12V)
±10%
Environmental Temperature
- Operating (ambient, min)
0°C
- Operating (drive case, max)
60°C
- Nonoperating (ambient)
-40°C – 70°C
- Halogen Free
Yes
- RoHS Compliance
Yes
Physical
- Height (mm/in)
20.20mm/0.795in
- Width (mm/in)
101.85mm/4.010in
- Depth (mm/in)
146.99mm/5.787in
- Weight (g/lb)
490g/1.08lb
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Specifications
1 TB
Model Numbers
ST1000LM048
Bytes per Sector (logical/physical)
512/4,096
Performance
Interface
SATA 6 Gb/s
Data Transfer Rate (MB/s)
Up to 140
Cache (MB)
128
Spindle Speed (RPM)
5,400
Reliability/Data Integrity
Load/Unload Cycles
600,000
Head-Rest Method
QuietStep Ramp Load
Non-recoverable Read Errors per Bits Read, Max
1 per 1014
Limited Warranty
2
Power Management
Startup Current (+5 V, A)
1
Read/Write Power, Average (W)
1.6/1.7
Idle Power, Average (W)
0.45
Environmental
Temperature, Operating (°C)
0 to 60
Temperature, Non-operating (°C)
–40 to 70
Shock, Operating: 2 ms (Gs)
400
Shock, Non-operating: 1ms (Gs)
1,000
Acoustics, Idle, Typical (bels—sound power)
2
Acoustics, Seek, Typical (bels—sound power)
2.2
Physical
Height (mm/in)
7.0/0.276
Width (mm/in)
69.85/2.750
Depth (mm/in)
100.35/3.951
Weight (g/lb, max)
90/0.198
Special Features
Multi-Tier Caching Technology™
Yes
Halogen-free
Yes
RoHS compliance
Yes
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
Home Security Systems: Store video footage from home surveillance cameras.
Small Business Surveillance: Monitor business premises with multiple cameras.
Retail Surveillance: Record customer interactions and prevent theft.
Public Safety: Support surveillance initiatives in public areas.
Specification
Details
Capacity
2TB
Interface
SATA III (6 Gb/s)
Spindle Speed
5400 RPM
Cache
256 MB
Form Factor
3.5-inch
Dimensions (L × W × H)
147 × 100 × 26.5 mm
Weight
620 g
Operating Temperature
5°C to 60°C
Non-Operating Temperature
-40°C to 70°C
Acoustic Noise
22 dBA
Rotational Vibration Tolerance
3.5 mm peak-to-peak
Shock Tolerance
200G (5 ms duration)
Digital Storage Capacity
6 TB
Hard Disk Interface
Unknown
Connectivity Technology
SATA
Brand
Seagate
Special Feature
Portable
Hard Disk Form Factor
3.5 Inches
Hard Disk Description
Mechanical Hard Disk
Compatible Devices
Laptop, Desktop
Installation Type
Internal Hard Drive
Hard Disk Size
6 TB
Tough. Ready. Scalable.
For everything NAS, theres IronWolf and IronWolf Pro. Always on and always working,
IronWolf is enhanced with AgileArray technology for optimal reliability and system agility.
Multi-user technology and extreme workload rates allow IronWolf to perform and scale up with your enterprise.
IronWolf + the Power of AgileArray
NAS-optimized hard drive for the best-possible user experience
IronWolf Health Management in Synology NAS1 continuously helps to safeguard the health of your data
Drive balance with Rotational Vibration (RV) sensors manage multi-bay vibration for long-term consistent performance and reliability
RAID performance optimized that maximizes responsiveness and uptime with NAS-aware Error Recovery Control
Advanced power management saves energy and delivers the right power at the right time
1. IronWolf Health Management Beta is only available in capacities of 4TB and up.
Actively Protect Your Data with IronWolf Health Management in Synology DiskStations
IronWolf Health Management is designed to operate on enabled Synology DiskStation NAS,
populated with supported IronWolf or IronWolf Pro HDDs.1 It improves the overall system
reliability by displaying actionable prevention, intervention or recovery options for the user.
Prevention. IHM monitors the user environment and recommends preventative actions
to enable superior NAS experience.
Intervention. Analyzes hundreds of parameters and recommends backup ahead of any
potential catastrophic data loss events.
Recovery. Access to Seagate® Data Recovery Services (included with IronWolf Pro for two years),
helps to ensure a secure environment for data recovery in the event of failure.
1. IronWolf Health Management features subject to change.
2. Synology DiskStation may vary in compatibility with IronWolf Health Management. Contact your Seagate sales representative for further details.
Multi-Bay and NAS-Ready With Built-In RV Sensor
First in its class, IronWolf drives are equipped with RV sensors on high capacity drives to
maintain performance in multi-bay NAS enclosures. RV sensors on IronWolf Pro come
standard, helping business and creative pros to have consistent performance for years to come.
Do More With Multi-User Optimization
Do more with your NAS with multi-user optimization. Enabling user workloads of up to
180 TB/year on IronWolf and 300TB/year with IronWolf Pro, multiple users can confidently
upload and download data to a NAS server. Whether youre a creative pro or a small business,
IronWolf is on your side.
IronWolf Pro Comes With 2-year Rescue Data Recovery Service1
Your data is important and a Rescue plan provides peace of mind in case of unexpected data loss
due to accidents or mechanical damage. The Rescue plan gives you access to a global team of
world-class data recovery experts with 95% customer satisfaction rating.
Purchase and register an IronWolf Pro drive to activate your free Rescue plan and y
Key specifications
Capacity:
2TB
Form Factor:
2.5-inch
Interface:
SATA 6Gb/s
Rotational Speed:
5400 RPM
Cache:
128MB
Height:
7mm
Weight:
Approximately 90g
Max Data Transfer Rate:
Up to 140 MB/s
Bytes per Sector:
4096
Power:
5V DC
