Key specifications
GPU:
NVIDIA GeForce RTX 5060 Ti
Core Clock:
2617 MHz (Reference: 2572 MHz)
CUDA Cores:
4608
Memory:
8GB GDDR7
Memory Interface:
128-bit
Memory Speed:
28 Gbps
Interface:
PCI Express 5.0
Max Resolution:
7680 x 4320
Multi-View:
4 displays
Video Output:
3 x DisplayPort, 1 x HDMI
Power Connector:
1x 8-Pin PCI Connector
Recommended PSU:
650 Watt
Card Size:
215mm length
Features
Cooling System:
WINDFORCE with Hawk fans, composite copper heat pipes, and copper base
GPU Architecture:
NVIDIA Blackwell
Key Technologies:
DLSS 4 with Multi Frame Generation, NVIDIA Reflex 2, full ray tracing, and neural rendering
Additional Features:
Server-grade thermal conductive gel and a reinforced structure with a bent edge backplate
Key specifications
GPU:
GeForce RTX™ 5070 Ti
CUDA Cores:
8960
Core Clock:
2452 MHz
Memory:
16GB GDDR7
Memory Bus:
256-bit
Memory Clock:
28 Gbps
Interface:
PCI-E 5.0
Digital Max Resolution:
7680 x 4320
Video Output:
3x DisplayPort 2.1b, 1x HDMI 2.1b
Card Size:
304 x 126 x 50 mm
Recommended PSU:
750W
Power Connectors:
1x 16-pin
Cooling System:
WINDFORCE cooling system with server-grade thermal conductive gel, Hawk fans, and 3D Active Fan technology

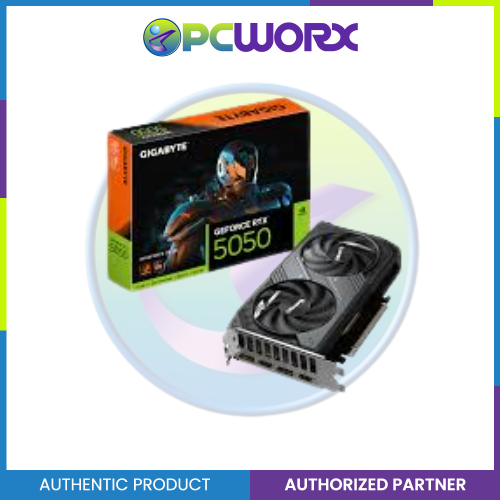

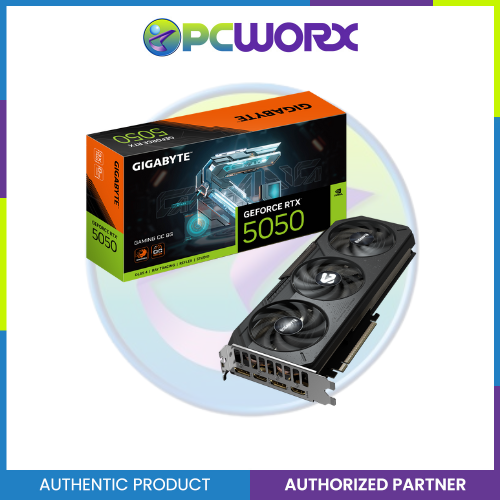

Specifications
GPU:
NVIDIA GeForce RTX 5050 (GB207-300-A1, Blackwell 2.0)
CUDA® Cores:
2560
Memory:
8GB GDDR6
Memory Interface:
128-bit
Memory Clock:
20 Gbps
Boost Clock:
2587 MHz (vs. 2572 MHz for the reference card)
Architecture:
Blackwell 2.0
Interface:
PCIe 5.0
Outputs:
2x DisplayPort 2.1b, 2x HDMI 2.1b
Cooling and Design
WINDFORCE Cooling System:
Features a Hawk fan and server-grade thermal conductive gel for efficient cooling.
Physical Design:
The card has a compact 199mm ATX design.
Key Features
NVIDIA AI & Ray Tracing:
Optimized for neural shaders with fourth-gen Ray Tracing Cores for true-to-life graphics and AI capabilities.
NVIDIA Technologies:
Supports NVIDIA Reflex, Digital Humans, AI Assistants, and NVIDIA ACE.
For Creators:
Includes NVIDIA Studio creator tools and the NVIDIA Broadcast and Encoder for content creation.
