Description
Line interactive UPS

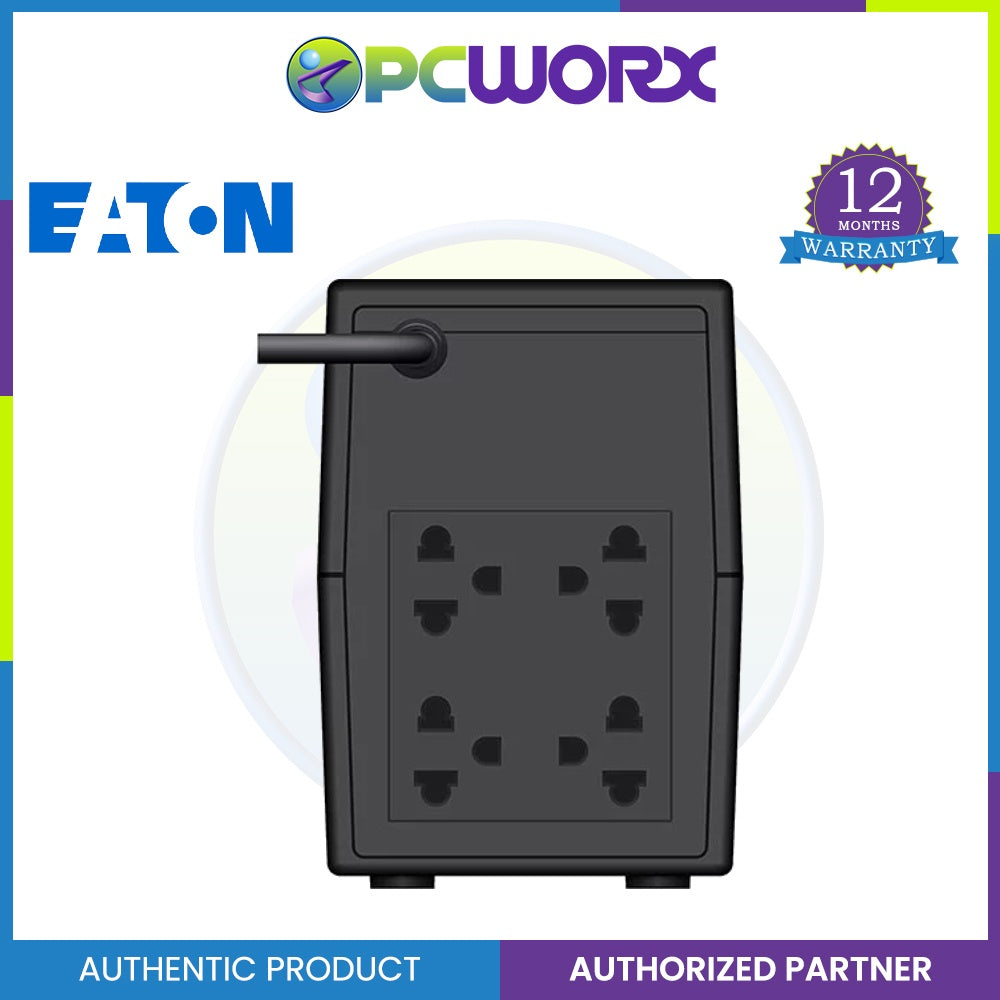

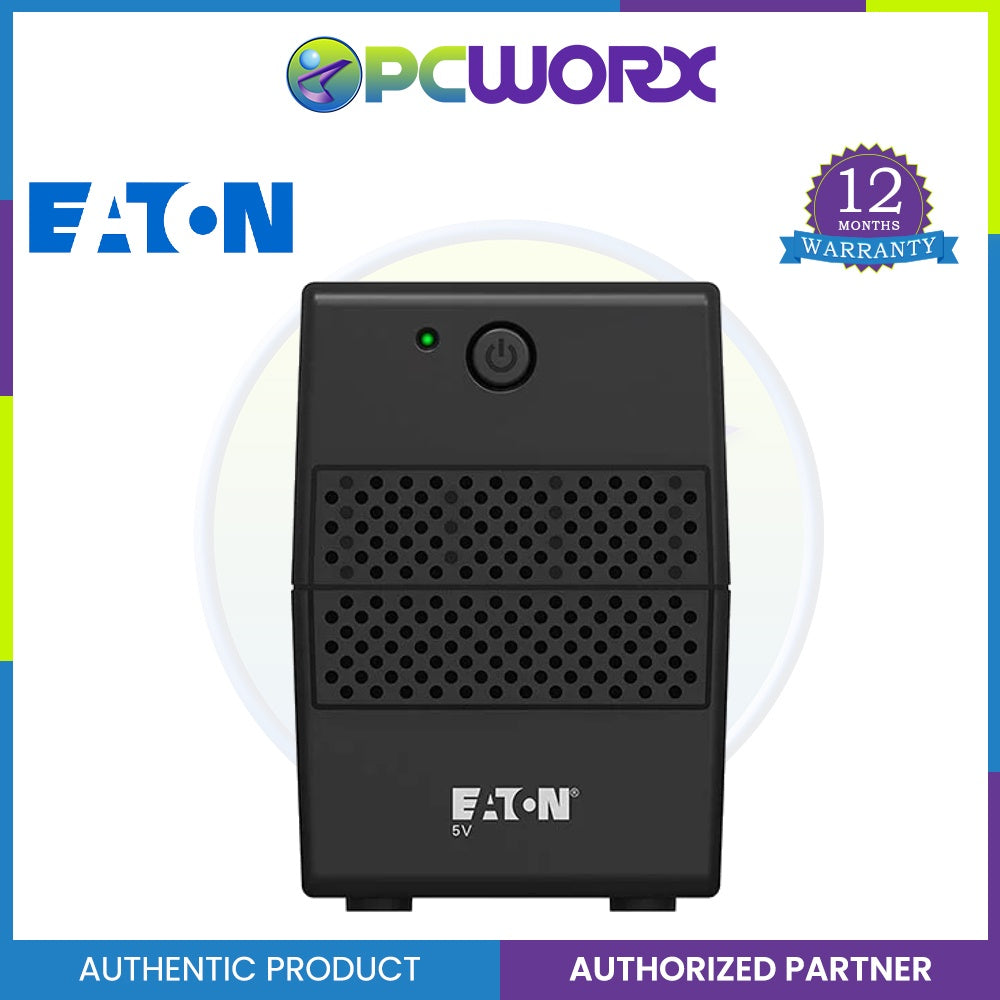

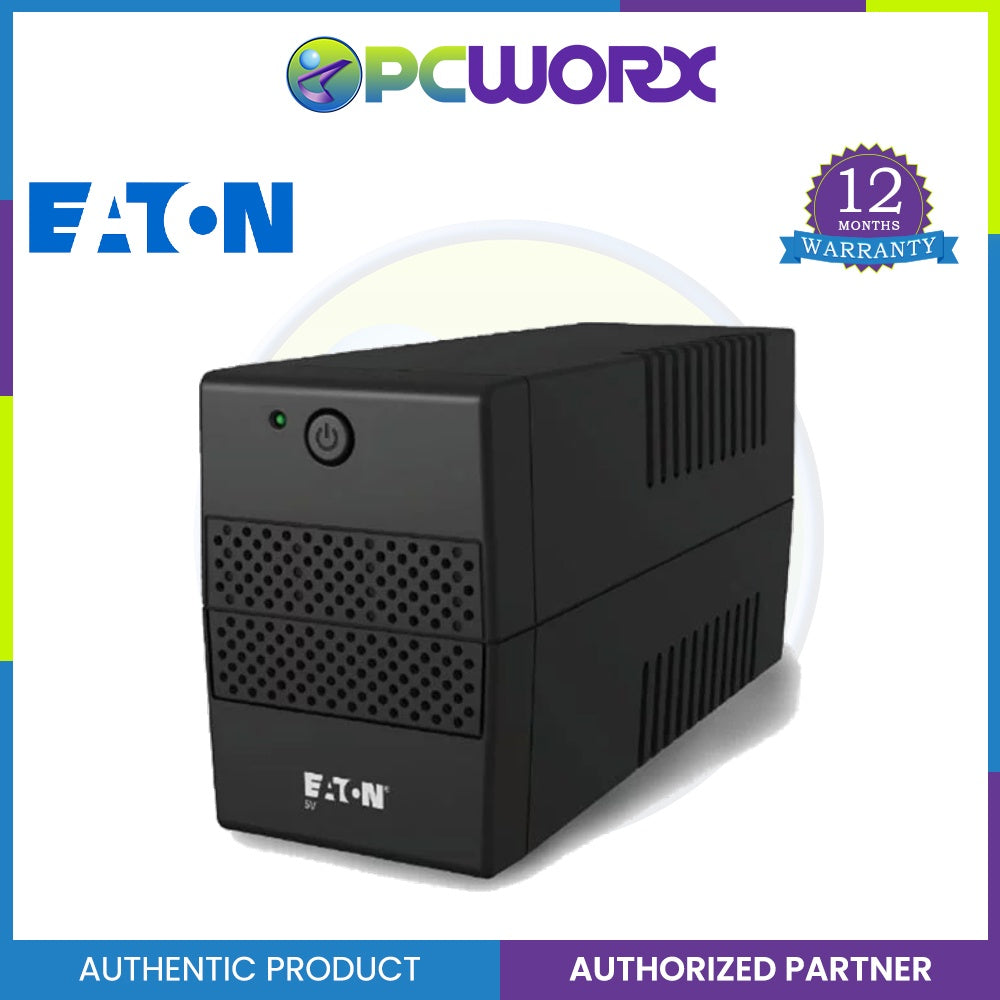

The Eaton 5V UPS offers a cost-efficient line interactive backup power for workstations, desktop PCs, telephone equipment, internet access point and point of sales (POS) applications. Designed with universal outlets, it allows ease of power connection to equipment in a home or business environment and secure your data/ equipment against power outages and bad power quality.
Line interactive technology at an affordable price
Secure your data and equipment by protecting you against power outages and bad power quality
With Automatic Voltage Regulation (AVR), Eaton 5V UPS can ride through under & over voltage without utilizing battery
Unmatched price/performance ratio
Eaton reliability
Rely on batteries anytime: Eaton 5V UPS can start up on batteries without mains (Cold Start)
Easy integration
Ease of connection to any equipment (PC, HD TV, internet gateway) with universal outlets
Install Eaton 5V UPS anywhere thanks to its small size
Technical Specs
Power rating VA/W 650VA/360W
Input Voltage range 170-280V
Input Connector type Fixed 5-15P 1.2m
Surge Suppression NA
Generator Compatitable NA
Output Voltage 230V
Output Voltage reg (Bat mode) +/- 10%
Battery Wave form Stepped sine wave
Protection PCBA current sensor (F/W protection)
Output back up socket Small Universal*4
Transfer time 2-6ms typical, 10ms Max
Battery 12V/7Ah, Rita
Back up time (100W) 16min
Recharge time 6 hours to 90%
Interface
On/Off Switch 1pcs
Indicator LED*1
Communication USB NO
Communication-RS232 NO
RJ 11 protection NO
Physical
Product size (D*W*H) 278*100*143
Package Color box
Weight 4.4Kg
Accessories
USB cable NO
RS232 NO
RJ 11 Cable NO
User Manual YES
-------------------------------------------------------------------------------------------------------------------------------------

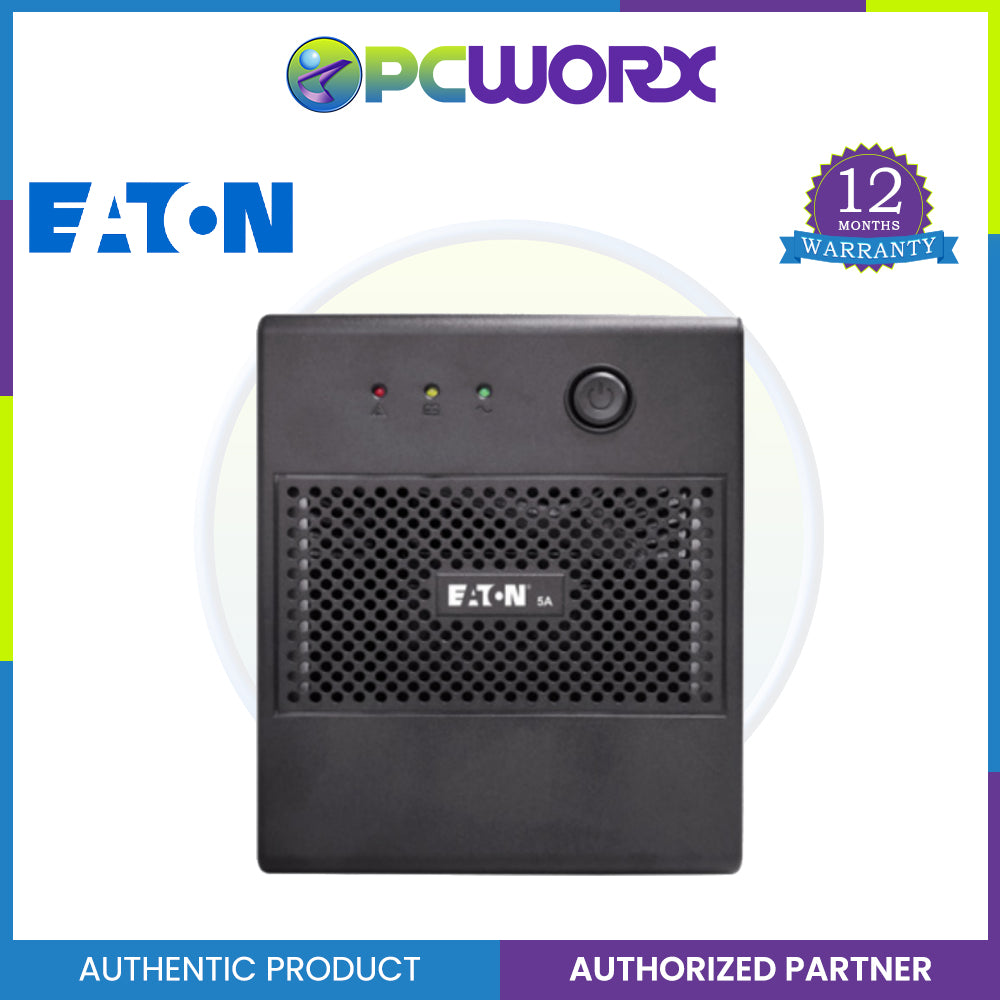

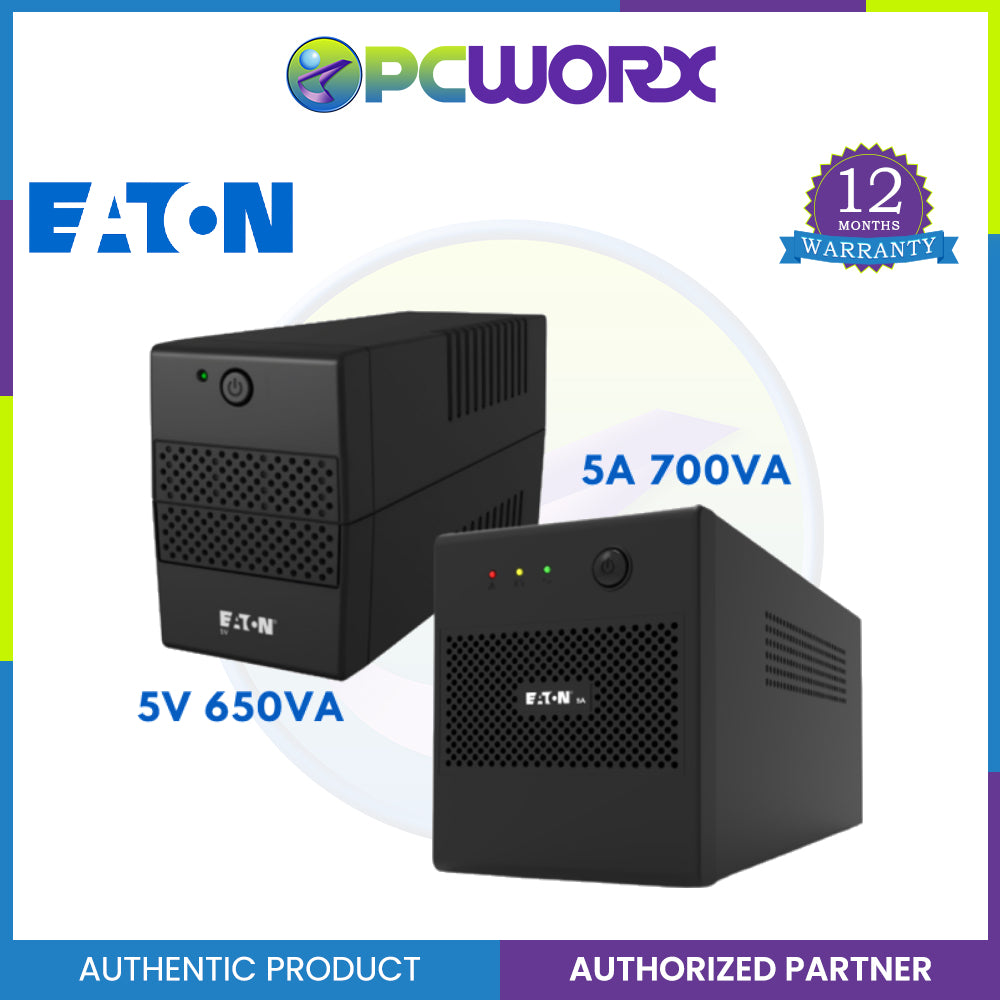

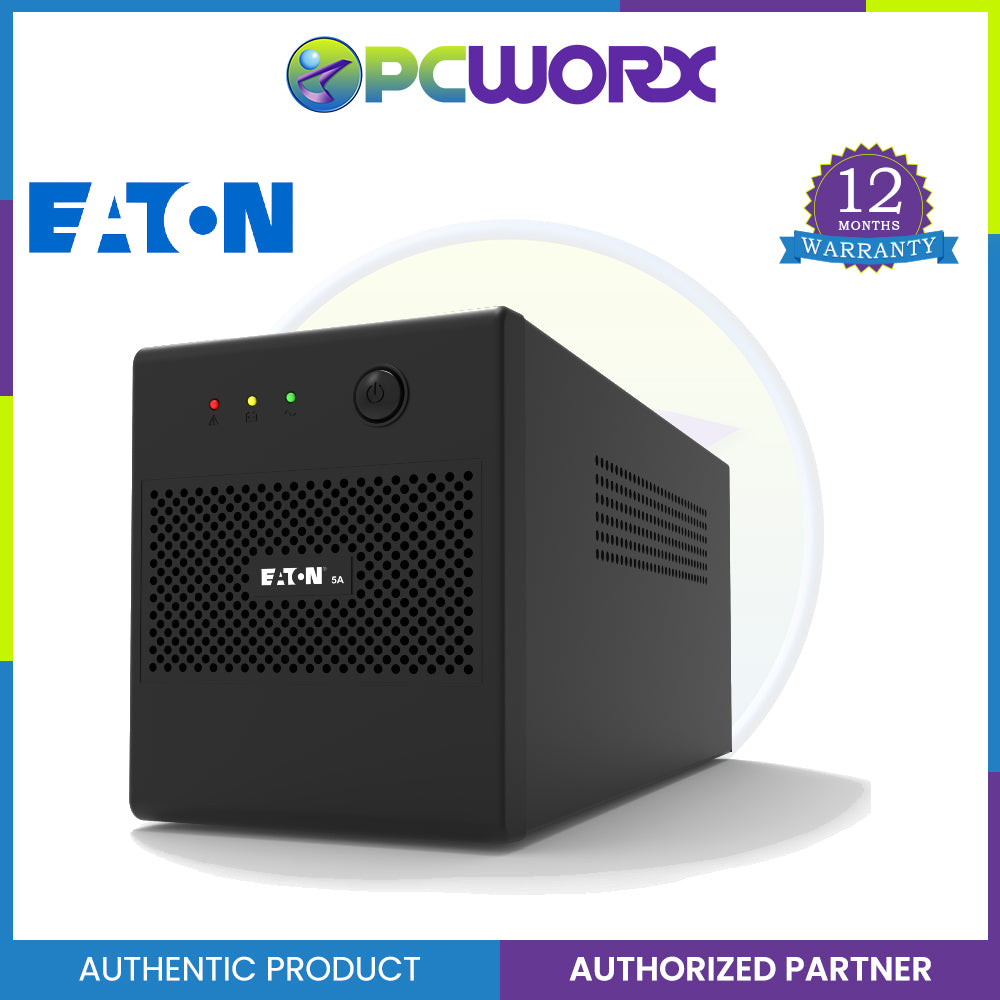

■ ■ Eaton 5A 700I-NEMA 700VA 360W Line Interactive UPS ■ ■
✎ Rating (VA / W): 700VA/360W
✎ Form factor: Tower
✎ Input Voltage Range: 140 – 300 VAC
✎ Frequency: 50 / 60 Hz
✎ Output Voltage: 230 VAC
✎ Battery Wave Form: Stepped sine wave
✎ Output backup socket
■ DIN model: (2) Schuko outlets
■ NEMA model: (4) NEMA universal outlets
■ UNI model: (2) Universal outlets
✎ Surge protection: Yes
✎ Generator Compatible: Yes
✎ Mute by Power Key: Yes
✎ Circuit breaker: Yes
-------------------------------------------------------------------------------------------------------------------------------------
