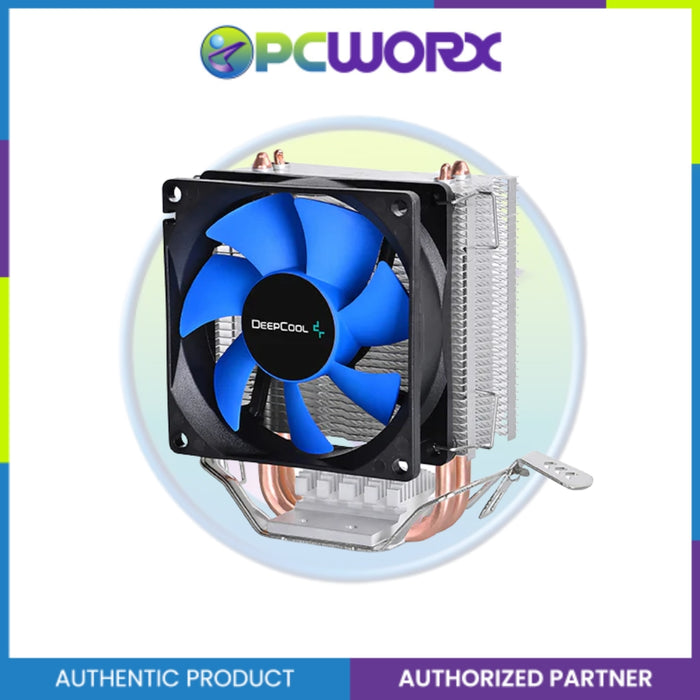

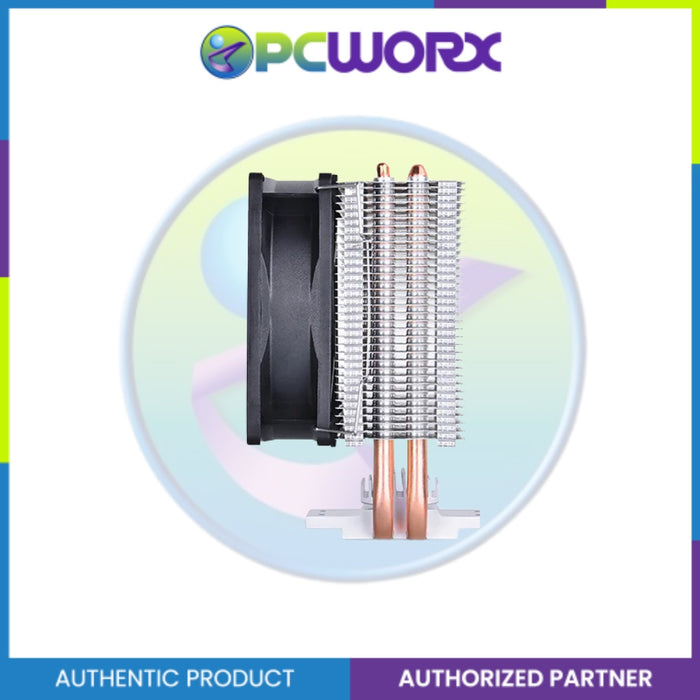

Deepcool Ice Edge Mini Fs V2.0 CPU Cooler
Application For
Intel Socket 95W
LGA1200/1151/1150/1155/LGA775
Core i7/i5/i3
Core 2 Quad/Duo
Pentium/Pentium G
Celeron/Celeron G
AMD Socket 100W
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
（NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2）
Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4
Technical Spec
Product Dimensions : 119X75X112mm
Hedatsink Dimensions : 85X57.2X112mm
Net Weight : 258g
Heatpipe : Ø6 mm×2 pcs

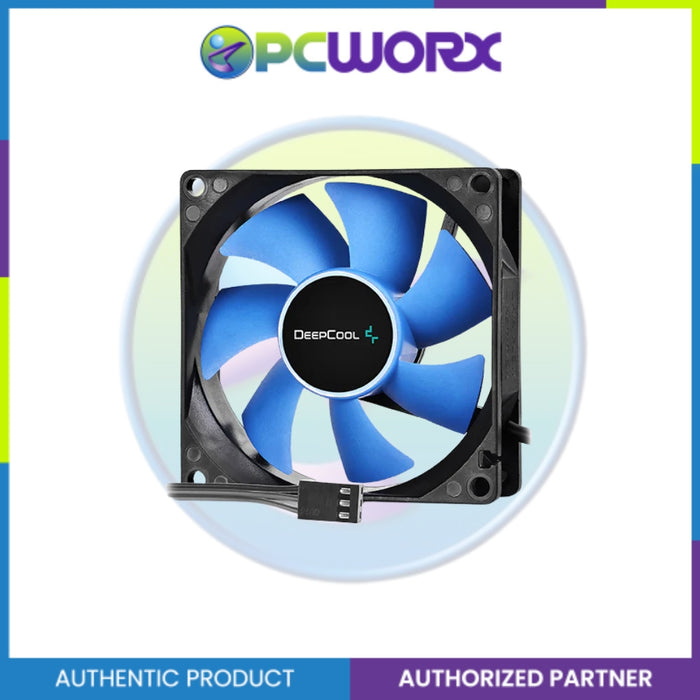

Fan Dimensions : 80X80X25mm
Fan Speed : 2200 RPM±10%
Fan Airflow : 25.13 CFM
Fan Air Pressure : 2.23 mmAq
Fan Noise : 24.7 dB(A)
Fan Connector : 3-pin
Bearing Type : Hydro Bearing
Fan Rated Voltage : 12VDC
Fan Rated Current : 0.12 A
Fan Power Consumption : 1.44 W
_____________________________________________________
Warranty Information:
• Item compatibility is buyer’s responsibility.
• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.
• Check all items upon receipt.
• All items/claims for warranty are carry-in.
• Tampered warranty sticker voids the warranty.
• Overclocking may void the warranty.
• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.
• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
