Description
AS500 PLUS
The Deep Cool AS500 PLUS single tower CPU cooler boasts a five heat pipe design with two 140mm PWM fans for great performance in a slim profile.
ELEVATED COOLING PERFORMANCE
Optimize heat exchange through a solid copper base with optimal surface contact that runs five 6mm heat pipes in a single tower with high fin density
SIZED JUST RIGHT
Designed for maximum RAM height compatibility in a slim (48mm) profile.
CONTROL YOUR TEMPS
The high-performance 140mm PWM fans provide precise control between extreme cooling or low-noise operation with long-life durability.
A-RGB LED CONTROLLER
An included wired controller allows for a quick and easy way to adjust lighting effects without installing additional software.
Appropriate A-RGB connector cables for motherboard control are also provided.
Specifications:
Product Dimensions
142×102×164 mm
Heatsink Dimensions
140×49×159 mm
Net Weight
1198 g
Heatpipe
Ø6 mm×5 pcs
Fan Dimensions
140×140×25 mm
Fan Speed
500~1200 RPM±10%
Fan Airflow
70.81 CFM
Fan Air Pressure
1.14 mmAq
Fan Noise
≤29.2dB(A)
Overall Noise
≤31.5 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.11 A
Fan Power Consumption
1.32 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
1.4 W
LS520
The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
LS520 Elite performance
The DeepCool LS520 premium liquid CPU cooler maximizes cooling performance and low-noise efficiency with a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror cap design.
A New Era of DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
Improved microchannel design ensures optimal coolant flow.
Powerful three-phase drive motor up to 3100 RPM.
Thick solid copper base with a seamless match.
Cool and Quiet
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearing.
500~2250 RPM *
Dynamic PWM Range
85.85 CFM
Supreme Airflow
TECHNICAL SPECIFICATIONS:
Net Weight
1305 g
Radiator Dimensions
282×120×27 mm(L×W×H)
Radiator Material
Aluminum
Tube length
410 mm(L×W×H)
Pump Dimensions
86×74×57 mm(L×W×H)
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.47 A
Pump Power Consumption
5.64 W
Fan Dimensions
120×120×25 mm(L×W×H)
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
≤32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.29 A
Fan Power Consumption
3.48 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.2 W（PUMP）/ 3.6 W（FAN×2）
EAN
6933412727484
P/N
R-LS520-BKAMNT-G-1
Application For
Intel
LGA2066/2011-v3/2011/1851/1700/1200/1151/1150/1155
AMD
sTRX4/sTR4/AM5/AM4
Technical Spec
Net Weight
1607 g
Radiator Dimensions
402×120×27 mm(L×W×H)
Radiator Material
Aluminum
Tube length
410 mm(L×W×H)
Pump Dimensions
86×74×57 mm(L×W×H)
Pump Speed
3100 RPM±10%
Pump Noise
19 dB(A)
Pump Connector
3-pin
Pump Rated Voltage
12 VDC
Pump Rated Current
0.47 A
Pump Power Consumption
5.64 W
Fan Dimensions
120×120×25 mm(L×W×H)
Fan Speed
500~2250 RPM±10%
Fan Airflow
85.85 CFM
Fan Air Pressure
3.27 mmAq
Fan Noise
≤32.9 dB(A)
Fan Connector
4-pin PWM
Bearing Type
Fluid Dynamic Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.29 A
Fan Power Consumption
3.48 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-D-G)
LED Rated Voltage
5 VDC
LED Power Consumption
2.2 W（PUMP）/ 5.4 W（FAN×3）
EAN
6933412727644
P/N
R-LS720-WHAMNT-G-1
UPGRADED & MORE!
Upgraded pump motor provides bigger push power or the water flow and hence cools better than the previous generation of pump. Equipped with a 4pin power header, the new pump can run a balance between performance and silence.
FLUID DYNAMIC BEARING
Featuring faster lubricating than traditional bearings, fluid dynamic bearing fans can operate more quietly and enjoys a longer lifespan.
SMARTER & SUPERIOR
Equipped with a Daisy Chain connector, it can be assembled at will, and it is more convenient for fans to be connected in series.
STRAIGHT & SIMPLEX
The new AF series fans are designed with a flat and simplex manner to offer solid structure for the blades movement to get less vibration. On SPACE LCD series, AF-127-ARGB fans are used to provide performance and aesthetics at the same time.
SPECIFICATIONS
LCD SCREEN
System Requirement
Windows 10, Windows 11
Dimension
2.1 inch
Resolution
480x480
Backlight
600cd/m²
Color
24-bit, 16.7 million
Compatibility
Intel LGA2066/2011/1851/1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP
350W
Radiator Dimension
397×120×27mm
Radiator Material
Aluminum
Tube Material
Premium Sleeved Tubing
Tube Length
465mm
Water block Dimension
76x76x58mm
Cold Plate Material
Copper
Pump Current
0.36A Max.
Pump Speed
2500RPM±10%
Pump Bearing
Ceramic Bearing
Pump Noise Level
25dB(A)
Pump Life Expectancy
50,000 Hrs
Fan Dimension
120×120×27mm
Included Fans
3pcs
Fan Speed
500～2000±10%RPM
Max. Air Flow
78CFM
Max. Static Pressure
2.68mmH2O
Noise
29.9dB(A) Max.
Rated Voltage
12VDC
Operating Voltage
10.8～13.2VDC
Started Voltage
7VDC
Rated Current
0.25A
Power Input
3W
Bearing Type
Fluid Dynamic Bearing
Connector
4Pin PWM
Cooling Features:

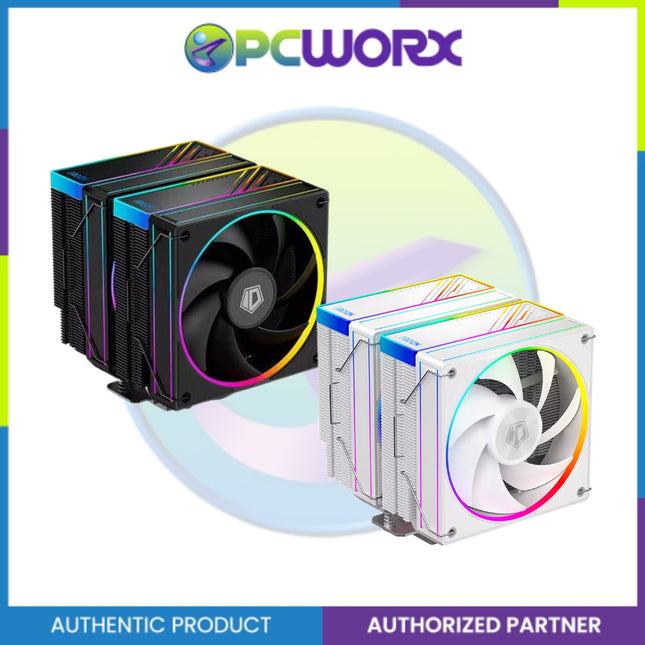

Twin Tower Design:
Offers significant surface area for efficient heat dissipation.
6 Heatpipes:
Utilizes six copper heatpipes to quickly transfer heat from the CPU base to the aluminum fins.
Copper Base:
Ensures excellent thermal contact and heat transfer from the CPU's Integrated Heat Spreader (IHS).
Aluminum Fins:
Provide a large surface area for heat to be dissipated into the air.
Fans & Lighting:
2x120mm PWM Fans:
Two 120mm fans with Pulse Width Modulation (PWM) for adjustable speed based on CPU temperature.
aRGB Lighting:
Features addressable RGB lighting on the fans, allowing for customizable visual effects.
Performance & Compatibility:
TDP Rating:
Rated to handle a Thermal Design Power (TDP) of up to 270W, making it suitable for high-end CPUs.
CPU Socket Compatibility:
Compatible with the latest Intel sockets (LGA 1700/1200/115x) and AMD sockets (AM5/AM4).
Dimensions & Weight:
Overall Dimensions: .
Measures 120mm (length) × 140mm (width) × 154mm (height)
Total Weight:
The complete cooler (heatsink and fans) weighs 1190g.
Compatibility
Intel LGA1700/1200/1151/1150/1155/1156
AMD AM5/AM4
TDP:
270W
Overall Dimension:
120×142×154mm (L×W×H)
Heatsink Material:
6×?6mm Heatpipe + Copper Base + Aluminum Fin
Weight:
1200g (heatsink+fan)
Fan Dimension:
120×120×27mm (2pcs)
Fan Speed:
500±200 ~ 2000±10% RPM
Max. Air Flow:
78CFM
Max. Static Pressure:
2.68mmH2O
Noise:
29.9dB(A) Max.
Rated Voltage:
12VDC (4Pin PWM) / 5V 3Pin ARGB
Operating Voltage:
10.8 ~ 13.2VDC
Started Voltage:
7VDC
Rated Current:
0.25A
Power Input:
3W
Bearing Type:
FDB
Connector:
4Pin PWM / 5V 3Pin ARGB
MIRAGE RGB LIQUID COOLER
The MIRAGE AIO delivers optimal cooling performance paired with a beautiful aesthetic.
Immersive Aesthetics
Enhance your system with this mesmerizing Infinity mirror LED ring effect. Re-orientate the logo with the adjustable 4-position cap.
Low-resistance Radiator
Pure aluminum, high-density fins increase heat dissipation, effectively reducing CPU temperature quicker.
Pure Copper Base
Maximized contact surface area and improved heat exchange rate accelerates the overall CPU cooling efficiency.
Sleeved FEP Tubing
Flexible, corrosion resistant and reduced coolant evaporation rate.
SPECIFICATIONS
FAN
Rated Voltage:
12V DC
Fan Size:
120 x 120 x 25 mm
Speed:
800~1800RPM±10%
Max Airflow:
60.3CFM Max
Max Static Pressure:
2.05 mmH20
Max Noise Level:
≤35.2dB(A)
Fan Connector:
4-pin (PWM)
PUMP
Speed:
2300RPM±10%
Pump Size:
ø 70x32mm
Max Noise:
≤26.9dB(A)
Power Consumption:
2.1W
Pump Connector:
3-pin (5V ARGB)
CPU SOCKET COMPATIBILITY
Rated Voltage:
12V DC
AMD:
AM4 / AM5
PACKAGE CONTENTS
Mounting Brackets for CPU Sockets
OMNI P1 PWM 120mm Fan x 1 / 2 / 3
Fan & Radiator Mounting Screws
Thermal Compound (0.5g tube, 8.5 w/mk)
6-Port Controller (PWM + ARGB)
MIRAGE RGB LIQUID COOLER
The MIRAGE AIO delivers optimal cooling performance paired with a beautiful aesthetic.
Immersive Aesthetics
Enhance your system with this mesmerizing Infinity mirror LED ring effect. Re-orientate the logo with the adjustable 4-position cap.
Low-resistance Radiator
Pure aluminum, high-density fins increase heat dissipation, effectively reducing CPU temperature quicker.
Pure Copper Base
Maximized contact surface area and improved heat exchange rate accelerates the overall CPU cooling efficiency.
Sleeved FEP Tubing
Flexible, corrosion resistant and reduced coolant evaporation rate.
SPECIFICATIONS
FAN
Rated Voltage:
12V DC
Fan Size:
120 x 120 x 25 mm
Speed:
800~1800RPM±10%
Max Airflow:
60.3CFM Max
Max Static Pressure:
2.05 mmH20
Max Noise Level:
≤35.2dB(A)
Fan Connector:
4-pin (PWM)
PUMP
Speed:
2300RPM±10%
Pump Size:
ø 70x32mm
Max Noise:
≤26.9dB(A)
Power Consumption:
2.1W
Pump Connector:
3-pin (5V ARGB)
CPU SOCKET COMPATIBILITY
Rated Voltage:
12V DC
AMD:
AM4 / AM5
PACKAGE CONTENTS
Mounting Brackets for CPU Sockets
OMNI P1 PWM 120mm Fan x 1 / 2 / 3
Fan & Radiator Mounting Screws
Thermal Compound (0.5g tube, 8.5 w/mk)
6-Port Controller (PWM + ARGB)
