Cisco SF350-24-K9-EU 24-port 10/100 Managed Switch

(0)

₱15,122.50

Brand Name: CISCO
Part Number:	SF350-24-K9-EU
GENERAL
Enclosure:	Type Rack-mountable 1U
Subtype:	Fast Ethernet
Ports:	24 x 10/100 10/100/1000 + 2 x combo Gigabit SFP
PowerOver:	Ethernet
Jumbo Frame Support:	9216 bytes
Authentication Method:	RADIUS, Secure Shell (SSH), TACACS+
MAC Address Table Size:	16K entries
Authentication Method:	Secure Shell (SSH), RADIUS, TACACS+
Power Over Ethernet
Status Indicators:	Link/activity
Encryption Algorithm:	SSL
Routing Protocol:	Static IPv4 routing, CIDR
Jumbo Frame Support:	9216 bytes
PoE Budget:	185 W
Manufacturer:	Cisco
CAMERA
Installed Size:	256 MB
POWER DEVICE
Nominal Voltage:	AC 120/230 V
Frequency Required:	50/60 Hz
Type:	internal power supply
NETWORKING
MAC Address Table Size:	16K entries
Subcategory:	network hubs and switches
Subtype:	Fast Ethernet
Form Factor:	rack-mountable
Type:	Switch
Advanced Switching:	Layer 3

Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Jumbo Frame Support:	9216 bytes
Ports Qty: 24
Manageable:	Yes
Routing Protocol:	CIDR, static IPv4 routing
PoE Budget:	185 Watt
Remote Management Protocol:	CLI, HTTP, HTTPS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet
MISCELLANEOUS
Encryption Algorithm:	SSL
MTBF 293029 hour(s)
Height (Rack Units):	1 m
Color Category:	black
MTBF:	293,029 hours
INTERFACE PROVIDED
Qty: 1, 2, 24
PoE Power:	185 Watt
Comments:	PoE+, management
ENVIRONMENTAL PARAMETERS
Humidity Range Storage:	10 – 90% (non-condensing)
Min Storage Temperature:	-4 °F
Max Storage Temperature:	158 °F
Min Operating Temperature:	32 °F
Max Operating Temperature:	122 °F
Humidity Range Operating:	10 – 90% (non-condensing)
HEADER
Brand:	Cisco
Product Line Cisco Small Business
Model:	SF350-24P
Country:	Kits North America
Packaged Quantity:	1
DIMENSIONS & WEIGHT
Width 17.3 in
Depth 10.1 in
Height 1.7 in
Weight 8.99 lbs
Warranty:	Limited Lifetime

Out of stock

Receives in 6 days.

PCWORX

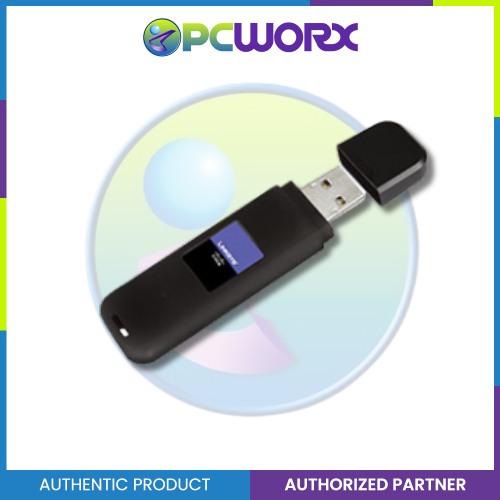

Cisco WUSB600N Ultra Rangeplus DUAL-BAND Wireless-N USB Network Adapter

(0)

₱3,162.50

Out of stock

Receives in 6 days.

Cisco CBS350-24T-4X-EU 24-Port GE, 4x10G SFP+ Managed Switch

My Store

Cisco CBS350-24T-4X-EU 24-Port GE, 4x10G SFP+ Managed Switch

(0)

₱52,670.00

CBS350-24T-4X Specification

CBS350-24T-4X Specification
Feature	Description
Capacity in Millions of Packets per Second (mpps) (64-byte packets)	95.23
Switching Capacity in Gigabits per Second (Gbps)	128.0
Total System Ports	24 x Gigabit Ethernet + 4 x 10G
RJ-45 Ports	24 x Gigabit Ethernet
Combo Ports (RJ45 + Small form-factor pluggable [SFP])	4 x SFP+
Packet Buffer	1.5 MB
Unit dimensions (W x D x H)	445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in)
Layer 3
IPv4 routing	Wirespeed routing of IPv4 packets Up to 990 static routes and up to 128 IP interfaces
IPv6 routing	Wirespeed routing of IPv6 packets
Layer 3 Interface	Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)	Support for classless interdomain routing
RIP v2	Support for Routing Information Protocol version 2 for dynamic routing
Policy-Based Routing (PBR)	Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)
DHCP Server	Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options
DHCP relay at Layer 3	Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay	Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets
Quality of Service
Priority levels	8 hardware queues
Scheduling	Strict priority and Weighted Round-Robin (WRR)
Rate limiting	Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing
Congestion avoidance	A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization
iSCSI traffic optimization	A mechanism for giving priority to iSCSI traffic over other types of traffic
Green (power efficiency)
Energy Detect	Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up
Cable length detection	Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.
EEE Compliant (802.3az)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Disable port LEDs	LEDs can be manually turned off to save on energy
Time-based port operation	Link up or down based on user-defined schedule (when the port is administratively up)
Time-based PoE	PoE power can be on or off based on user-defined schedule to save energy
General
Jumbo frames	Frame sizes up to 9K bytes. The default MTU is 2K bytes
MAC table	16K addresses
Hardware
USB slot	USB Type-A slot on the front panel of the switch for easy file and image management
Buttons	Reset button
Cabling type	Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs	System, Link/Act, PoE, Speed
Flash	256 MB
CPU	800 MHz ARM
DRAM	512 MB
Environmental
Storage temperature	-13° to 158°F (-25° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	10% to 90%, relative, noncondensing
Warranty	Limited lifetime with next business day advance replacement (where available)
Package Contents
● Cisco Business 350 Series Managed Switch ● Power Cord (Power adapter for select 8-port and 16-port SKUs) ● Mounting Kit ● Quick Start Guide

Minimum Requirements

● Web browser: Chrome, Firefox, Edge, Safari

● Category 5e Ethernet network cable

● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed

Warranty Limited Lifetime

Out of stock

Receives in 6 days.

My Store

Cisco SF95-24-AS 24-Port 10/100 Switch

(0)

₱5,405.00

Out of stock

Receives in 6 days.

Specification (Last stocks - Phase out)
Standards	IEEE 802.11a/b/g, IEEE802.11n Draft
Security	Security features: WEP, WPA, and WPA2 Security key bits: Up to 256-bit encryption
WPA/WPA2	WPA2
Interface	USB 2.0
Frequency Band	2.4GHz/5GHz
LEDs	Link/Act
Transmitted Power	Transmitted Power: 2.4GHz Wireless-N @ <16 dBm (Typical) 5GHz Wireless-N @ <16 dBm (Typical) Receive Sensitivity: 2.4GHz Wireless-N @ <-91dBm (Typical) 5GHz Wireless-N @ <-91dBm (Typical) Antenna Gain in dBi: 2.4GHz Wireless @ ± (Typical): 2dB +/-1dB 5GHz Wireless @ ± (Typical): 4dB +/- 1dB
Antenna	2 Internal Antennas
System Requirements	600 MHz or faster PC 512 MB of RAM Memory CD-ROM drive Available USB port (USB2.0 port required for fastest speeds) Up-to-date Windows 2000, XP, or Vista
Dimensions	3.9" x 1.1" x 0.4"
Weight	0.79 oz
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	10% - 85%, Non-Condensing
Feature
Features	MIMO technology uses multiple radios to create a robust signal that travels farther and reduces dead spots Performance Investment Protection: Compatibility with Wireless-B (802.11b) and Wireless-G (802.11g) Standards Easy to use Setup Wizard

SPECIFICATION
Standards and Protocols:	802.3 10BASE-T Ethernet
802.3u 100BASE-TX Fast Ethernet
802.3ab 1000BASE-T Gigabit Ethernet
802.3z Gigabit Ethernet
802.3x flow Control
802.1p Priority
802.3az, Energy Efficient Ethernet.

Ports:	24 RJ-45 connectors for 10BASE-T / 100BASE-TX.
LED Indicators:	System / PWR, Link / Activity, 100M, * Gigabit, *.
Power:	00-240VAC, 50-60 Hz, internal, universal.
Dimensions :	(W * D * H). 11 x 1.75 x 6.7 inches (279.4 x 44.5 x 170 mm).
Operating Temperature:	32 ° to 104 ° F (0 ° to 40 ° C).
Storage Temperature:	-4 ° to 158 ° F (-20 ° to 70 ° C).
Operating Humidity:	10% to 90%, relative, non-condensing.
Storage Humidity:	10% to 90%, relative, non-condensing.
Certifications:	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47)
(CFR 47) Class A.
