SPECIFICATIONS
Capacity:
850 VA
Input:
Voltage 230V AC
Voltage Range:
140-300 VAC
Frequancy Range:
50 Hz
OUT PUT:
Ac Voltage Regulation (Batt. Mode):
±10%
Frequency Range(Batt. Mode):
50 Hz± 1%
Transfer Time:
Typical 4-8ms, Max. 10ms
Waveform( Batt.Mode):
Simulated Sine Wave
Battery
Battery Type & Number
Backup Time ( One PC load )
40 min.
Typical Recharge time:
8 hours up to 90% capacity
INDICATORS:
AC Mode:
User Friendly LCD
Battery Mode:
User Friendly LCD
Fault:
User Friendly LCD
ALARM
Battery Mode:
Sounding every 10 seconds
Low Battery:
Sounding every seconds
Overload:
Sounding every 0.5 seconds
Fault:
Continuously sounding
PHYSICAL
Output Receptacles
Input output x 4
Dimensions DxWxH (mm):
290 x 142 x 98
Net Weight (Kgs):
4.8
ENVIRONMENT
Humidity:
0-90% RH @ 0-400C (non-condensing)
Noise Level:
less than 40dB

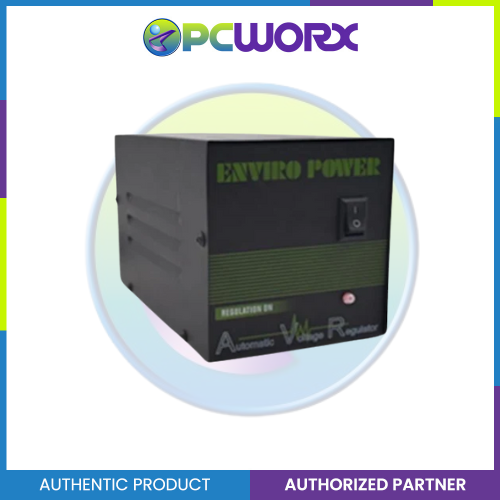

Specifications & Features:
Capacity:
500 VA (Volts-Amperes)
Power Input:
220V AC
Output Sockets:
4 x 220V sockets
Type:
Automatic Voltage Regulator (AVR)
Protection:
Overload fuse protection with a 5A fuse
Design:
Advanced, solid-state design with a durable metal casing
Performance:
Ultra-fast response time and abnormal peak voltage regulation
User Interface:
Convenient front panel power switch
IMPORTANT:
This unit is designed for computer use only!
Power Output:
500 W
Ports:
3 x 220 volts (for Desktop Computer, TV's, and Devices)
Ports:
1 x 110 volts
Safety Standards:
FCC, CB, CCC, TUV, CS ,C-stick, EMI, EMC, S-Intertek, CPT-AB15
Automatic Voltage Regulator Solid state electronic device
220V AVR
Max Capacity:
50VA
Fuse:
5A Socket: 3 x 220V 110v - use low power electronic device only max of 50w (using high wattage may cause damage to AVR)
Specifications
Feature
Specification
Power Capacity
650VA / 360 Watts
Topology
Line-interactive
AVR (Automatic Voltage Regulation)
Yes
Input Voltage Range
140-300 VAC
Nominal Output Voltage
230V
Output Connections
4 x NEMA 5-15R (Battery Backup)
Output Waveform
Stepped approximation to a sinewave
Transfer Time
4-6ms (typical)
Input Connection
NEMA 5-15P
Battery Recharge Time
6-8 hours
Physical Dimensions
14.2 cm (H) x 10.1 cm (W) x 30 cm (D)
Weight
4.2 kg
General specifications
Capacity:
1000VA / 600W
Battery:
1x 12V/9Ah
Sockets:
4x Universal Sockets
Form Factor:
Tower
Dimensions:
95 x 320 x 160mm
Weight:
5.8 Kg
Key features
Voltage Regulation:
Boost and buck AVR for voltage stabilization
Control:
Microprocessor-based digital control
Input:
Wide input voltage and frequency range
Indicators:
LED indicators for status
Protections:
Short circuit, overload, and battery overcharge/overdischarge protection
Charging:
Automatic charging in OFF mode and three-stage charging to shorten recharge time
Testing:
Power-on self-test and cold start function
Restart:
Auto restart when mains power is restored
Features- LED display or LCD display selectable- Microprocessor based digital control- Boost and buck AVR for voltage stabilization- Auto Sensing Frequency- Wide input voltage range- Power on self test- Cold start- Auto restart when mains power is restoredAuto track mains phase to ensure that inverter output voltage has same phase with utility voltage, reducing transfer time and peak surge.- Intelligent battery management: battery temperature compensation to extend --the battery life; three-stage charging to shorten recharge time- Short circuit, battery overcharge / overdischarge, overload, surge protections- Automatic charging in OFF mode.- Optional no-load shutdown- Optional RS232 / USB Communication port and RJ11 / RJ45 protection- Unattended safety shutdown: system alarm and auto power-On / Off by RS232 or USB interface communicating with PC.
Power and electrical specifications
Power Rating:
1200VA / 650 Watts
Topology:
Line-interactive
Waveform:
Stepped approximation to a sinewave
Output Voltage:
230V
Input Voltage:
230V
Input Frequency:
50/60 Hz +/- 5 Hz auto-sensing
Output Frequency:
50/60 Hz +/- 1 Hz sync to mains
Transfer Time:
6 ms typical / 10 ms maximum
Surge Energy Rating:
273 Joules
Connections and runtime
Output Connections:
4 universal sockets (battery backup + surge) and 1 IEC C13 (battery backup)
Input Connection:
IEC C14
Power Cord:
1.2 meters
Full Load Runtime:
Approximately 1 minute at 650W
Other features
Automatic Voltage Regulation (AVR):
Corrects voltage fluctuations without using the battery
Battery:
Lead-acid, typical recharge time of 8 hours, expected life of 1-2 years
Warranty:
2-year manufacturer warranty
Specifications
Main Input Voltage
230 V AC 1 phase
Main Output Voltage
230 V AC 1 phase
Rated power in W
480 W
Rated power in VA
900 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 60320 C14
output connection type
2 universal1 IEC 60320 C13
Cable length
1.2 m
Number of cables
1
Battery type
Lead-acid battery
Provided equipment
User manual
Batteries & Runtime
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
8 h
Battery voltage
12 V
Battery capacity
9.0 Ah
Battery life
2…3 year(s)
Extended runtime
0
General
Max runtime
120 min
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
UPS size
WS
Physical
Colour
Black
Height
16 cm
Width
12 cm
Depth
35.5 cm
Net weight
6 kg
Mounting support
Floor
Mounting preference
No preference
Mounting mode
Not rack-mountable
Two post mountable
0
USB compatible
No
Input
Network frequency
50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits
140...300 V 230 V AC
Cos phi
0.53
Output
Maximum configurable power in W
480 W
Output frequency
50/60 Hz +/- 1 Hz sync to mains
UPS type
Line interactive
Wave type
Stepped approximation to a sinewave
Full load runtime
00:01:00 480 W
Graph display
1
Half load runtime
00:06:30 240 W
Maximum configurable power in VA
900 VA
Transfer time
6 ms typical : 10 ms maximum
Conformance
Product certifications
CE
Standards
EN/IEC 62040-1:2019/A11:2021EN/IEC 62040-2:2006/AC:2006EN/IEC 62040-2:2018
Equipment protection policy
Lifetime : 50000 euros
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...3000 m
Ambient air temperature for storage
-15…40 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0…3000 m
Acoustic level
40 dBA
IP degree of protection
IP20
Surge Protection and Filtering
Surge energy rate
273 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
25 cm
Package 1 Width
43 cm
Package 1 Length
19.7 cm
Package 1 Weight
6.5 kg
SCC14
10731304404368
