Schneider PratiKa Wander Plug - Straight - 16 A - 3P + N + E - 380...415 V AC - IP44 Red PKE16M435

PCWORX

Schneider PratiKa Wander Plug - Straight - 16 A - 3P + N + E - 380...415 V AC - IP44 Red PKE16M435

(0)

₱336.00

Feature	Details
Range	Mureva
Product or component type	Wander plug
Device short name	Mureva plug
Plug, socket category	Low voltage
Poles description	3P + N + E
Network type	AC
Outlet standard	Industrial
Plug, socket, control station shape	Straight
Rated current [In]	16 A
Rated operational voltage [Ue]	380…415 V
Network frequency	50/60 Hz
Ground lug clockwise position	6 h
Plug/socket material	Housing: self-extinguishing engineering polymer
Contacts material	Sleeves: brass
Connections - terminals	Captive screws
Cable cross section	1…4 mm²
Cable outer diameter	8…15 mm
Cable entry	Fair lead
Cable gland thread type	Pg 21
Net weight	0.19 kg
Height	142 mm
Width	74 mm
Depth	74 mm
Colour	Grey (RAL 7035)
Voltage colour	Red
Standards	IEC 60309-1, IEC 60309-2
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
Fire resistance	850 °C conforming to IEC 60695-2-11
Relative humidity	50% at 40 °C; 70% at 30 °C; 90% at 20 °C
Operating altitude	2000 m
Ambient air temperature for operation	35 °C (86400 s); -25…40 °C
Package 1
Unit Type	PCE
Number of Units	1
Package Height	6.5 cm
Package Width	6.5 cm
Package Length	15.5 cm
Package Weight	191.6 g

In stock

Receives in 5 days.

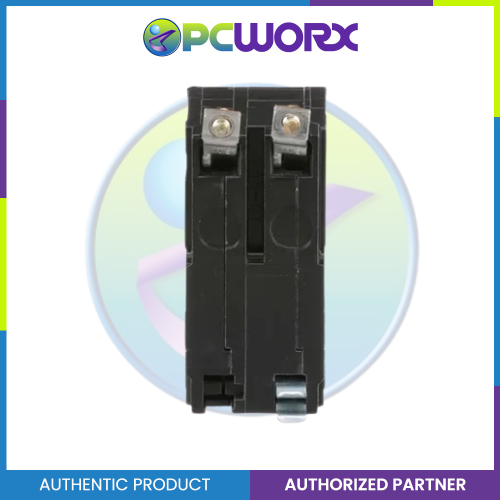

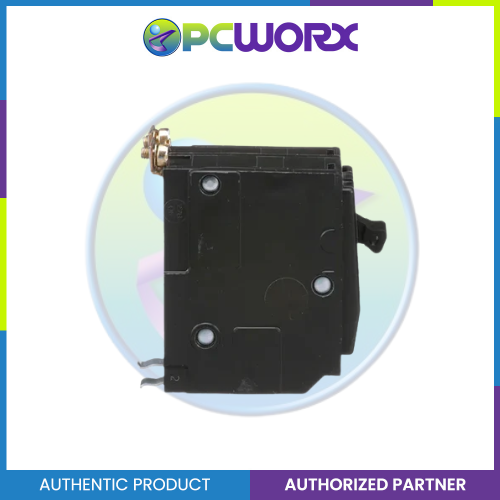

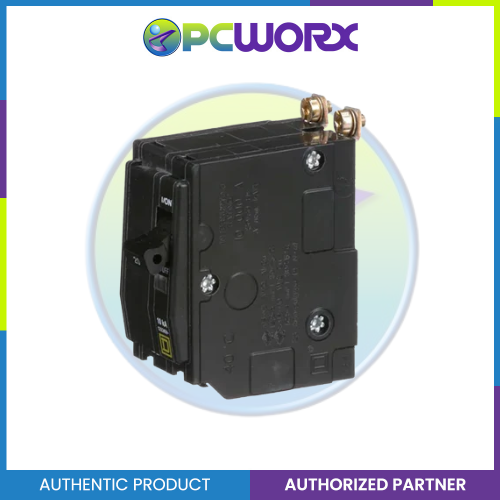

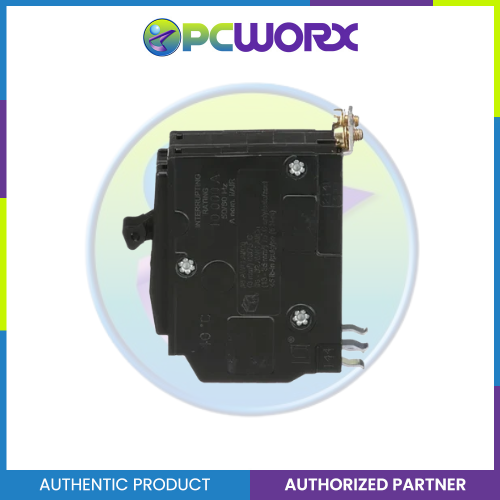

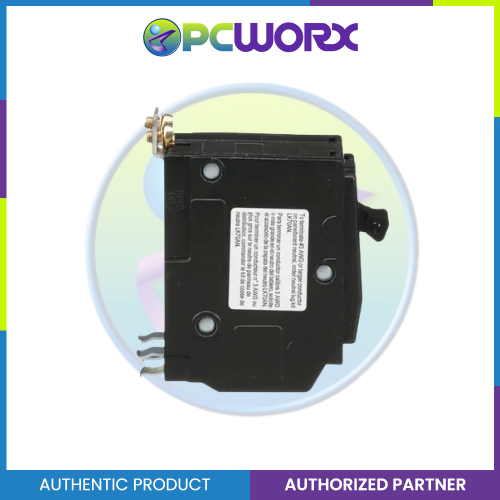

Schneider QOB UL 2-Pole 15A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB215

PCWORX

Schneider QOB UL 2-Pole 15A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB215

(0)

₱938.28

Specification	Details
Product	Miniature circuit-breaker
Range	QO
Current Rating	15 A
Voltage Rating	120/240 V AC, 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Pressure plate
Interrupt Rating	10 kA at 120/240 V AC10 kA at 120 V AC
Number of Panel Spaces	2
Wire Size	AWG 14…AWG 8 copper or aluminium
Tightening Torque	4 N·m
Height	76 mm
Width	38 mm
Depth	74 mm
Net Weight	0.272 kg
Certifications	UL listed, CSA
Ambient Rating	40 °C
Package Type (Package 1)	PCE
Units per Package 1	1
Package 1 Dimensions (H × W × L)	3.81 × 8.382 × 8.636 cm
Package 1 Weight	272 g

In stock

Receives in 5 days.

Schneider QOB UL 2-Pole 20A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB220

PCWORX

Schneider QOB UL 2-Pole 20A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB220

(0)

₱938.28

Category	Specification
Product	Miniature Circuit Breaker
Range	QO
Current Rating	20 A
Voltage Rating	120/240 V AC; 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Pressure plate
Interrupt Rating	10 kA at 120/240 V AC; 10 kA at 120 V AC
Number of Panel Spaces	2
Wire Size	AWG 14 to AWG 8 (copper or aluminium)
Tightening Torque	4 N·m
Height	76 mm
Width	38 mm
Depth	74 mm
Net Weight	0.249 kg
Certifications	UL Listed, CSA
Ambient Rating	40 °C
Package 1 Type	PCE
Units in Package 1	1
Package 1 Dimensions (H × W × L)	6.6 × 3.81 × 7.62 cm
Package 1 Weight	249.48 g

In stock

Receives in 5 days.

Schneider QOB UL 2-Pole 30A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB230

PCWORX

Schneider QOB UL 2-Pole 30A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB230

(0)

₱938.28

QO Miniature Circuit Breaker – Specifications

Category	Specification
Product Type	Miniature circuit breaker
Range	QO
Current Rating	30 A
Voltage Rating	120/240 V AC, 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Pressure plate
Interrupt Rating	10 kA @ 120/240 V AC 10 kA @ 120 V AC
Number of Panel Spaces	2
Compatible Wire Size	AWG 14 – AWG 8 (Copper or Aluminium)
Tightening Torque	4 N·m
Ambient Temperature Rating	40 °C
Certifications	UL Listed, CSA

Physical Dimensions & Weight

Parameter	Specification
Height	76 mm
Width	38 mm
Depth	74 mm
Net Weight	0.249 kg

Packing Units

Package Type	Quantity	Dimensions (H × W × L)	Weight
PCE	1	8.636 × 3.810 × 8.128 cm	272.155 g
BB1	5	8.382 × 9.144 × 19.558 cm	1.270 kg
CAR	50	21.082 × 19.304 × 43.688 cm	12.678 kg

Low in stock

Receives in 5 days.

Schneider QOB UL 2-Pole 40A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB240

PCWORX

Schneider QOB UL 2-Pole 40A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB240

(0)

₱938.28

QO Miniature Circuit Breaker – Specifications

Category	Specification
Product	Miniature circuit-breaker
Range	QO
Current Rating	30 A
Voltage Rating	120/240 V AC, 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Pressure plate
Interrupt Rating	10 kA @ 120/240 V AC 10 kA @ 120 V AC
Number of Panel Spaces	2
Wire Size	AWG 14 – AWG 8 (copper or aluminium)
Tightening Torque	4 N·m
Ambient Rating	40 °C
Certifications	UL Listed, CSA

Physical Dimensions

Parameter	Specification
Height	76 mm
Width	38 mm
Depth	74 mm
Net Weight	0.249 kg

Packing Units

Package Type	Units per Package	Dimensions (H × W × L)	Package Weight
PCE	1	8.636 × 3.810 × 8.128 cm	272.155 g
BB1	5	8.382 × 9.144 × 19.558 cm	1.270 kg
CAR	50	21.082 × 19.304 × 43.688 cm	12.678 kg

Low in stock

Receives in 5 days.

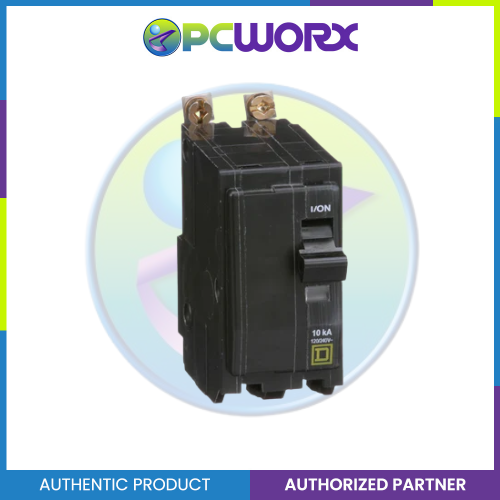

Schneider QOB UL 2-Pole 50A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB250

PCWORX

Schneider QOB UL 2-Pole 50A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB250

(0)

₱938.28

QO Miniature Circuit Breaker – Specifications Table

Section	Parameter	Value
Main	Product	Miniature circuit-breaker
	Range	QO
	Current rating	50 A
	Voltage rating	120/240 V AC 120 V AC
	Mounting type	Bolt-on
	Number of poles	2P
	Circuit breaker type	Standard
	Ratings	HACR rated
	Electrical connection	Box lugs
Complementary	Interrupt rating	10 kA at 120/240 V AC 10 kA at 120 V AC
	Number of panel spaces	2
	Wire size	AWG 8…AWG 2 (copper or aluminium)
	Tightening torque	5 N·m
	Height	79 mm
	Width	38 mm
	Depth	74 mm
	Net weight	0.249 kg
Environment	Certifications	UL Listed CSA
	Ambient rating	40 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	3.81 × 8.382 × 8.89 cm
	Package 1 weight	113.398 g

In stock

Receives in 5 days.

Schneider QOB UL 2-Pole 60A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB260

PCWORX

Schneider QOB UL 2-Pole 60A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB260

(0)

₱938.28

Category	Specification
Product	Miniature circuit-breaker
Range	QO
Current Rating	60 A
Voltage Rating	120/240 V AC; 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Box lugs
Interrupt Rating	10 kA at 120/240 V AC; 10 kA at 120 V AC
Number of Panel Spaces	2
Wire Size	AWG 8 to AWG 2 (copper or aluminium)
Tightening Torque	5 N·m
Height	79 mm
Width	38 mm
Depth	74 mm
Net Weight	0.272 kg
Certifications	UL listed; CSA
Ambient Rating	40 °C

Package	Unit Type	Units per Package	Height	Width	Length	Weight
Package 1	PCE	1	3.81 cm	8.382 cm	8.89 cm	272.0 g
Package 2	BB1	5	8.382 cm	6.604 cm	19.304 cm	1.356 kg
Package 3	CAR	50	20.574 cm	20.066 cm	43.688 cm	13.857 kg

In stock

Receives in 5 days.

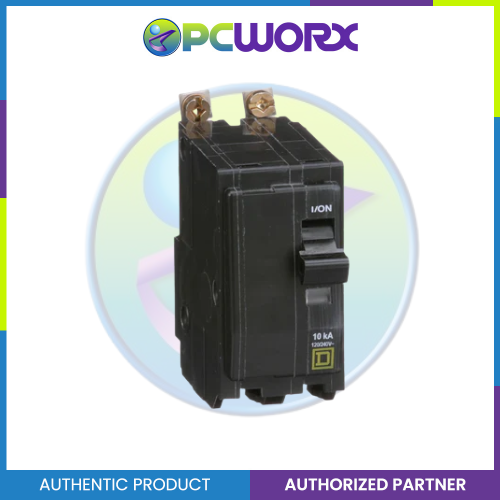

Schneider QOB UL 2-Pole 70A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB270

PCWORX

Schneider QOB UL 2-Pole 70A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB270

(0)

₱1,492.68

Section	Parameter	Value
Main	Product	Miniature circuit-breaker
	Range	QO
	Current rating	70 A
	Voltage rating	120/240 V AC120 V AC
	Mounting type	Bolt-on
	Number of poles	2P
	Circuit breaker type	Standard
	Ratings	HACR rated
	Electrical connection	Box lugs
Complementary	Interrupt rating	10 kA at 120/240 V AC10 kA at 120 V AC
	Number of panel spaces	2
	Wire size	AWG 8…AWG 2 (copper or aluminium)
	Tightening torque	5 N·m
	Height	79 mm
	Width	38 mm
	Depth	74 mm
	Net weight	0.277 kg
Environment	Certifications	UL ListedCSA
	Ambient rating	40 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	4.064 × 8.89 × 8.89 cm
	Package 1 weight	277 g

In stock

Receives in 5 days.

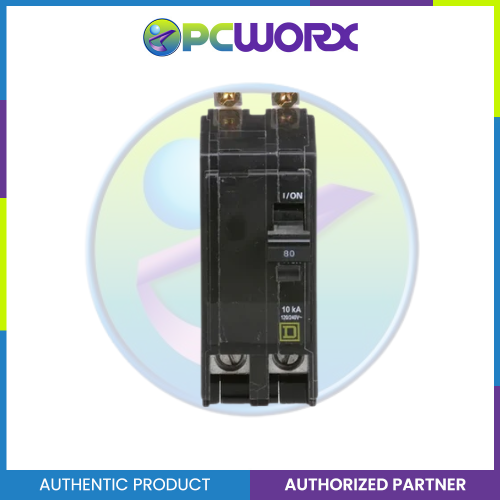

Schneider QOB UL 2-Pole 80A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB280

PCWORX

Schneider QOB UL 2-Pole 80A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB280

(0)

₱1,837.92

Section	Parameter	Value
Main	Product	Miniature circuit-breaker
	Range	QO
	Current rating	80 A
	Voltage rating	120/240 V AC120 V AC
	Mounting type	Bolt-on
	Number of poles	2P
	Circuit breaker type	Standard
	Ratings	HACR rated
	Electrical connection	Box lugs
Complementary	Interrupt rating	10 kA at 120/240 V AC10 kA at 120 V AC
	Number of panel spaces	2
	Wire size	AWG 4…AWG 2/0 (copper or aluminium)
	Tightening torque	5.6 N·m
	Height	89 mm
	Width	38 mm
	Depth	74 mm
	Net weight	0.327 kg
Environment	Certifications	UL ListedCSA
	Ambient rating	40 °C
Packing Units	Unit type – Package 1	PCE
	Units per Package 1	1
	Package 1 dimensions (H × W × L)	4.064 × 8.382 × 10.922 cm
	Package 1 weight	317.514 g

In stock

Receives in 5 days.

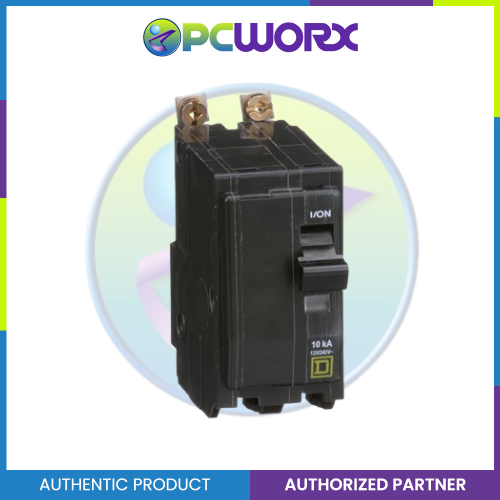

Schneider QOB UL 2-Pole 90A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB290

PCWORX

Schneider QOB UL 2-Pole 90A Bolt-On Miniature Circuit Breaker 120/240V 10kAIC QOB290

(0)

₱1,837.92

Specification	Details
Product	Miniature circuit-breaker
Range	QO
Current Rating	90 A
Voltage Rating	120/240 V AC, 120 V AC
Mounting Type	Bolt-on
Number of Poles	2P
Circuit Breaker Type	Standard
Ratings	HACR rated
Electrical Connection	Box lugs
Interrupt Rating	10 kA at 120/240 V AC, 10 kA at 120 V AC
Number of Panel Spaces	2
Wire Size	AWG 4…AWG 2/0 copper or aluminium
Tightening Torque	5.6 N.m
Height	89 mm
Width	38 mm
Depth	74 mm
Net Weight	0.327 kg
Certifications	UL listed, CSA
Ambient Rating	40 °C
Packing Units (Package 1)	1 PCE
Package 1 Height	4.064 cm
Package 1 Width	8.636 cm
Package 1 Length	10.922 cm
Package 1 Weight	326.587 g

In stock

Receives in 5 days.

Schneider QOB3125VH QOB MINIATURE CIRCUIT BREAKER 240V 125A

PCWORX

Schneider QOB3125VH QOB MINIATURE CIRCUIT BREAKER 240V 125A

(0)

₱16,153.20

QOB3125VH - Mini circuit breaker, QO, 125A, 3 pole, 120/240VAC, 22kA, bolt on - Schneider Electric

Schneider Electric QOB3125VH - QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 3 pole QO circuit breaker is rated at 125A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. We are dedicatedly involved in providing an excellent quality products at Electrihub.

Specification	Details
Product	Miniature circuit-breaker
Range	QO
Current Rating	125 A
Voltage Rating	120/240 V AC; 240 V AC; 120 V AC
Mounting Type	Bolt-on
Number of Poles	3P
Circuit Breaker Type	Standard
Ratings	Not rated
Electrical Connection	Box lugs
Interrupt Rating	22 kA at 120/240 V AC; 22 kA at 240 V AC; 22 kA at 120 V AC
Number of Panel Spaces	6
Wire Size	AWG 4…300 kcmil copper or aluminium
Tightening Torque	5.6 N.m
Height	145 mm
Width	114 mm
Depth	124 mm
Net Weight	0.435 kg
Certifications	UL listed; CSA
Ambient Rating	40 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.922 cm
Package 1 Width	12.700 cm
Package 1 Length	17.272 cm
Package 1 Weight	1.769 kg
Unit Type of Package 2	PAL
Number of Units in Package 2	558
Package 2 Height	101.600 cm
Package 2 Width	101.600 cm
Package 2 Length	121.920 cm
Package 2 Weight	1005.160 kg

In stock

Receives in 5 days.

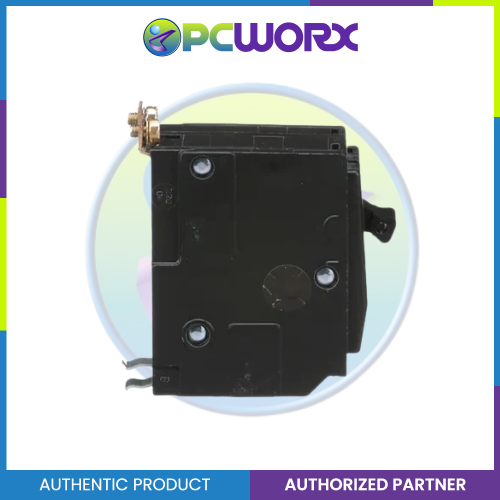

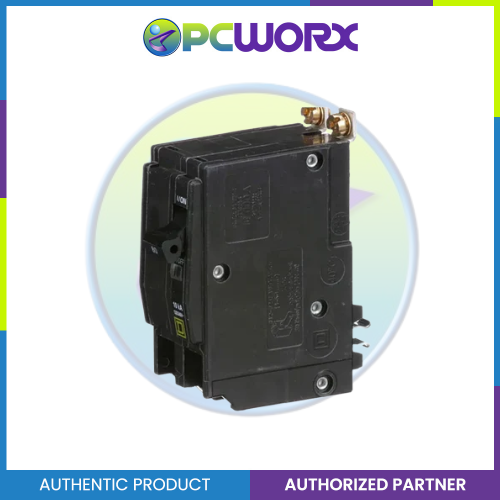

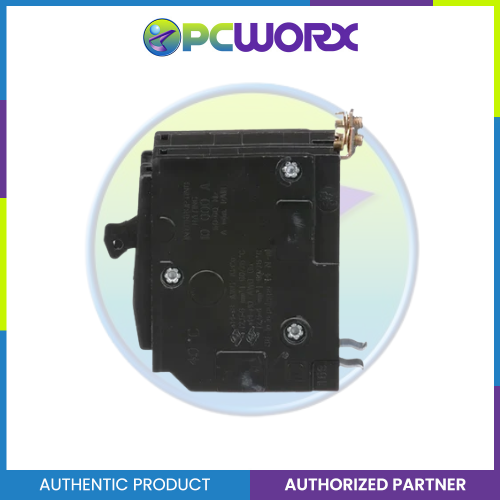

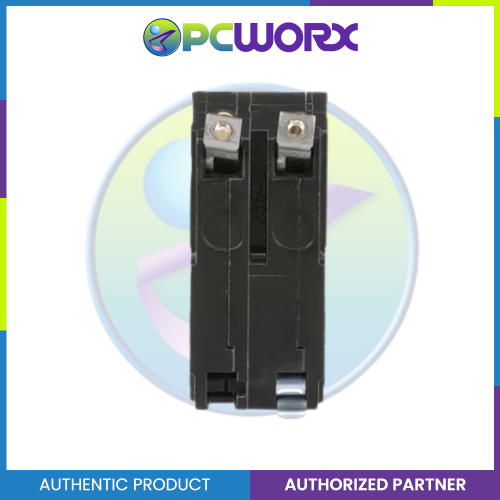

Schneider QOB3150VH QOB MINIATURE CIRCUIT BREAKER 240V 150A

PCWORX

Schneider QOB3150VH QOB MINIATURE CIRCUIT BREAKER 240V 150A

(0)

₱16,153.20

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 150A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specification	Details

Product

Miniature circuit-breaker

Range

QO

Current Rating

150 A

Voltage Rating

120/240 V AC; 240 V AC; 120 V AC

Mounting Type

Bolt-on

Number of Poles

3P

Circuit Breaker Type

Standard

Ratings

Not rated

Electrical Connection

Box lugs

Interrupt Rating

22 kA at 120/240 V AC; 22 kA at 240 V AC; 22 kA at 120 V AC

Number of Panel Spaces

6

Wire Size

AWG 4…300 kcmil copper or aluminium

Tightening Torque

28.3 N.m

Height

145 mm

Width

114 mm

Depth

124 mm

Net Weight

0.249 kg

Certifications

UL listed; CSA

Ambient Rating

40 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.922 cm

Package 1 Width

12.700 cm

Package 1 Length

17.018 cm

Package 1 Weight

1.805 kg

Unit Type of Package 2

PAL

Number of Units in Package 2

558

Package 2 Height

101.600 cm

Package 2 Width

101.600 cm

Package 2 Length

121.920 cm

Package 2 Weight

997.449 kg

In stock

Receives in 5 days.

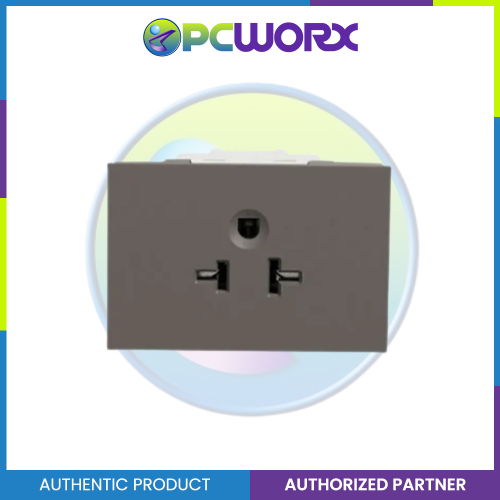

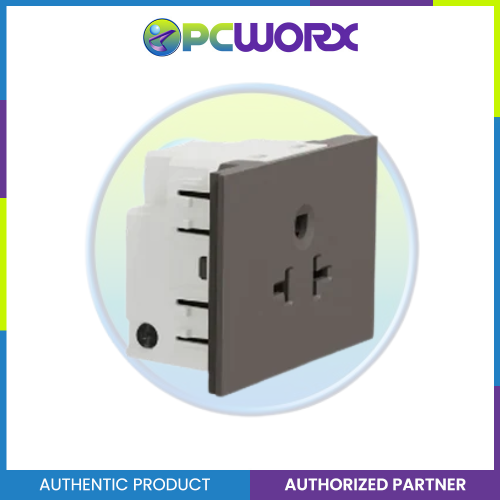

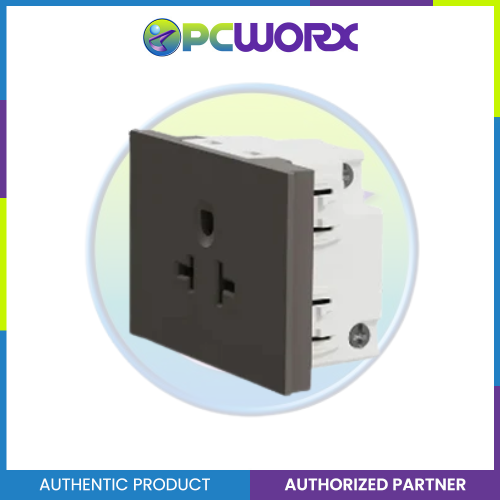

Schneider Socket Outlet Avataron A American 20A 250V 3 Pin 2S Sized Black M3T426MPH-BK

PCWORX

Schneider Socket Outlet Avataron A American 20A 250V 3 Pin 2S Sized Black M3T426MPH-BK

(0)

₱220.80

In stock

Receives in 5 days.

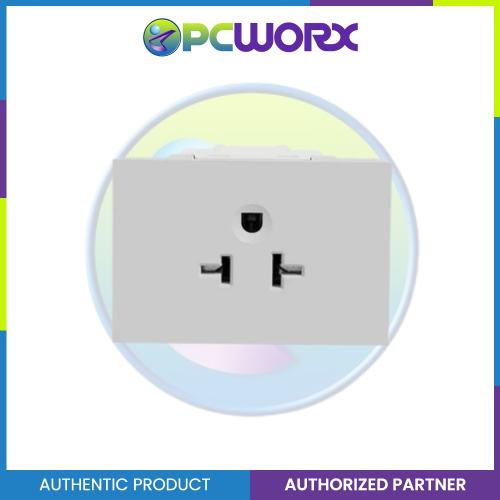

Schneider Socket Outlet Avataron A American 20A 250V 3 Pin 2S Sized Grey M3T426MPH-GY

PCWORX

Schneider Socket Outlet Avataron A American 20A 250V 3 Pin 2S Sized Grey M3T426MPH-GY

(0)

₱221.76

Schneider Electric AvatarOn socket-outlet M3T426MPH_WE is a complete product in color white. The pole configuration of the outlet is 2P + E. And its rated current is 20A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are folded terminal. It is 46.6 mm in width, 69.3 mm in height, and 34.5 mm in depth. Besides, the IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Specifications – AvatarOn A Socket-outlet (2P + E, 20 A)

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	White
Outlet poles configuration	2P + E

Complementary

Parameter	Specification
Rated current	20 A at 250 V AC 50–60 Hz
Socket number	1
Clamping connection capacity	2 x 1.5–2 x 4 mm² (solid or stranded cable)
Connections - terminals	Folded terminal
Material	Polycarbonate cover, Polycarbonate base
Device mounting	Flush
Width	46.6 mm
Height	69.3 mm
Depth	34.5 mm
Embedding depth	24.85 mm

Environment

Parameter	Specification
IP degree of protection	IP20
Maximum ambient air temperature for operation	35 °C
Ambient air temperature for storage	-5…45 °C
Relative humidity	0–95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC

Packing Units

Parameter	Specification
Unit type of package 1	PCE
Number of units in package 1	1
Package height	3.4 cm
Package width	4.66 cm
Package length	7 cm
Package weight	51.5 g

In stock

Receives in 5 days.

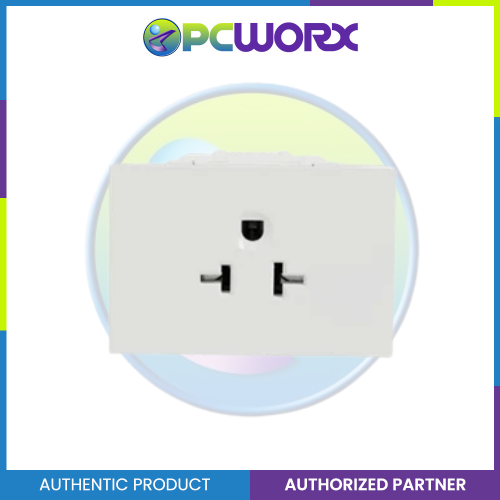

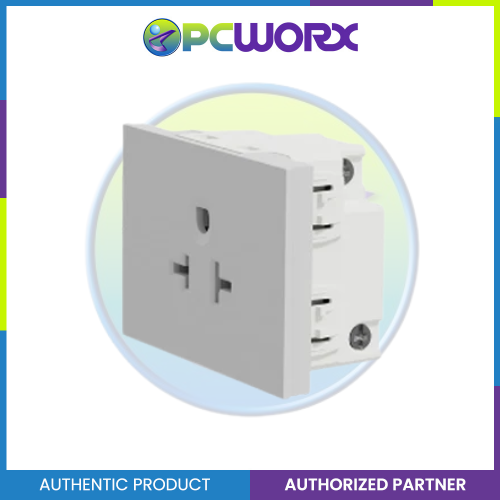

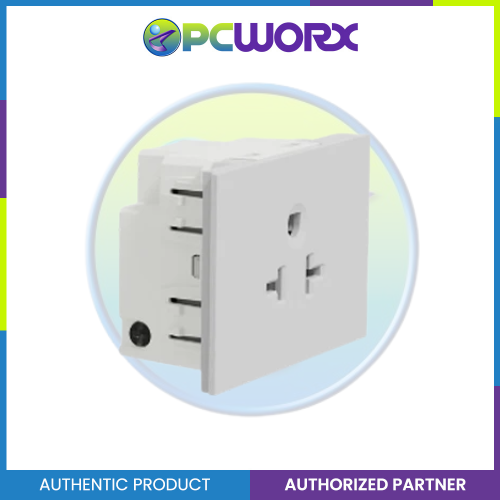

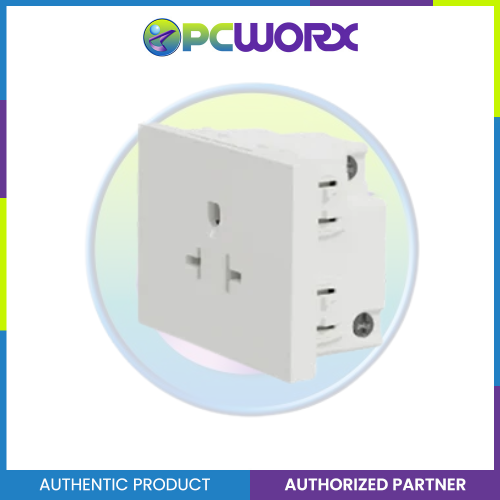

Schneider Socket Outlet AvatarOn A American 20A 250V 3 Pin 2S sized White M3T426MPH-WE

PCWORX

Schneider Socket Outlet AvatarOn A American 20A 250V 3 Pin 2S sized White M3T426MPH-WE

(0)

₱169.05

Category	Specification	Details
Main	Range of product	AvatarOn A
	Product or component type	Socket-outlet
	Device presentation	Complete product
	Colour tint	White
	Outlet poles configuration	2P + E
Complementary	Rated current	20 A at 250 V AC, 50–60 Hz
	Socket number	1
	Clamping connection capacity	2 × 1.5–4 mm² (solid)2 × 1.5–4 mm² (stranded)
	Connections – terminals	Folded terminal
	Material	Polycarbonate coverPolycarbonate base
	Device mounting	Flush
	Width	46.6 mm
	Height	69.3 mm
	Depth	34.5 mm
	Embedding depth	24.85 mm
Environment	IP degree of protection	IP20
	Max. ambient temperature (operation)	35 °C
	Ambient temperature (storage)	−5 to 45 °C
	Relative humidity	0–95%
	Operating altitude	< 2000 m
Standards & Certification	Standards	IEC 60884-1
	Product certifications	IEC
Packing Units	Package 1	PCE – 1 unit – 3.4 × 4.66 × 7 cm – 51.5 g
	Package 2	BB1 – 10 units – 9.1 × 8.9 × 25.5 cm – 0.587 kg
	Package 3	S03 – 120 units – 30 × 30 × 40 cm – 7.689 kg

In stock

Receives in 5 days.

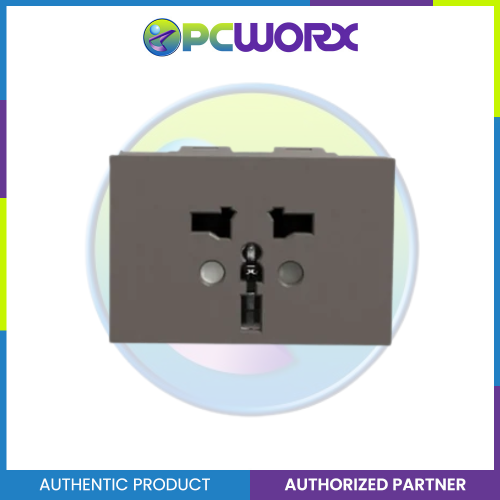

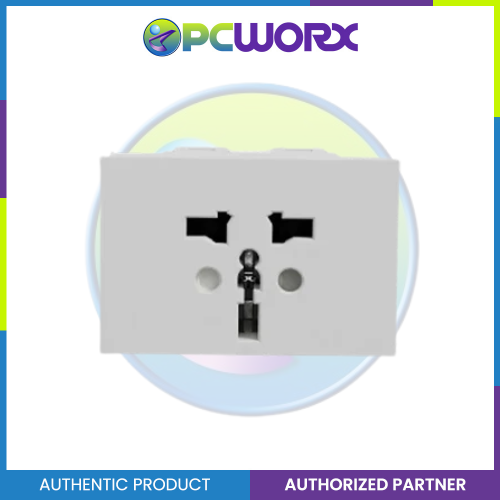

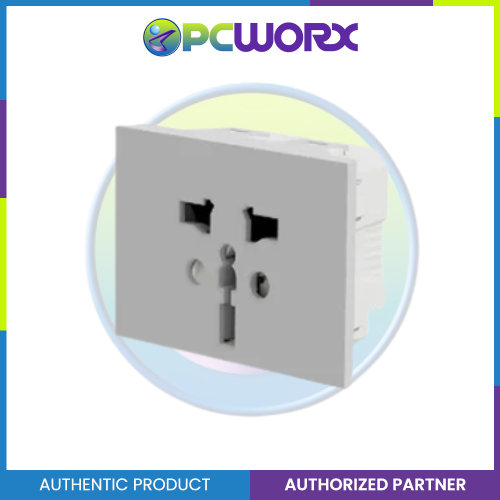

Schneider Socket Outlet Avataron A International 16A 250V 2S sized Grey M3T426-IS-GY

PCWORX

Schneider Socket Outlet Avataron A International 16A 250V 2S sized Grey M3T426-IS-GY

(0)

₱302.40

Schneider Electric AvatarOn socket-outlet M3T426_IS_GY is a complete product in color grey. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Specifications

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	Grey

Complementary

Parameter	Specification
Rated current	16 A at 250 V AC, 50–60 Hz
Socket number	1
Clamping connection capacity	2 × 1.5–4 mm² (solid cables) 2 × 1.5–4 mm² (stranded cables)
Connections – terminals	Screw terminal
Material	Polycarbonate cover Polycarbonate base
Device mounting	Flush
Width	46.6 mm
Height	69.3 mm
Depth	33.85 mm
Embedding depth	23.05 mm

Environment

Parameter	Specification
IP degree of protection	IP20
Max. operating temperature	35 °C
Storage temperature	-5 to 45 °C
Relative humidity	0–95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC

Packing Units

Parameter	Specification
Unit type of package 1	PCE
Number of units in package 1	1
Package height	3.4 cm
Package width	4.66 cm
Package length	7.0 cm
Package weight	52.0 g

In stock

Receives in 5 days.

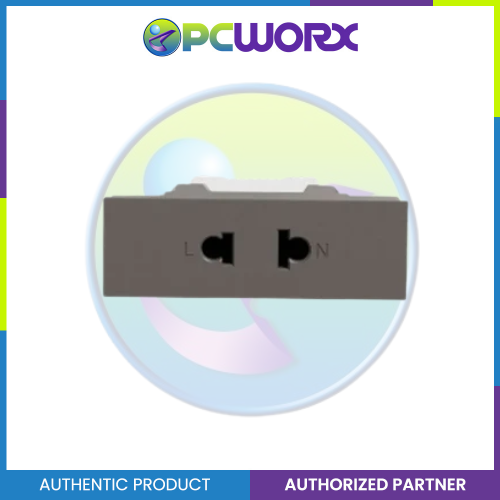

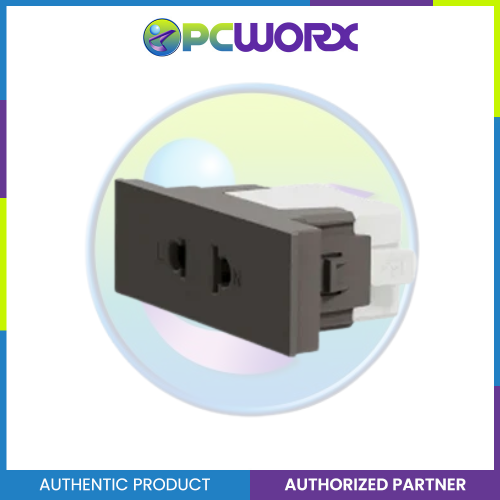

Schneider Socket Outlet Avataron A Universal 16A 250V 2 Pin S Sized Black M3T426US-BK

PCWORX

Schneider Socket Outlet Avataron A Universal 16A 250V 2 Pin S Sized Black M3T426US-BK

(0)

₱118.82

Category	Specification	Details
Main	Range of Product	AvatarOn A
	Product or Component Type	Socket-outlet
	Device Presentation	Complete product
	Colour Tint	Black
	Outlet Poles Configuration	2P
Complementary	Rated Current	16 A at 250 V AC, 50–60 Hz
	Socket Number	1
	Clamping Connection Capacity	2 × 1.5…2 × 4 mm² (solid cables)2 × 1.5…2 × 4 mm² (stranded cables)
	Connections – Terminals	Screwless terminals
	Material	Polycarbonate coverPolycarbonate base
	Device Mounting	Flush
	Width	23.1 mm
	Height	69.3 mm
	Depth	36.35 mm
	Embedding Depth	24.85 mm
Environment	IP Degree of Protection	IP20
	Max. Ambient Temperature (Operation)	35 °C
	Ambient Temperature (Storage)	−5…45 °C
	Relative Humidity	0…95 %
	Operating Altitude	< 2000 m
	Standards	IEC 60884-1
	Product Certifications	IEC
Packing Units – Package 1	Unit Type	PCE
	Units per Package	1
	Package Dimensions (H × W × L)	3.65 × 2.3 × 7.0 cm
	Package Weight	31.0 g
Packing Units – Package 2	Unit Type	BB1
	Units per Package	20
	Package Dimensions (H × W × L)	9.1 × 8.9 × 25.5 cm
	Package Weight	691.0 g
Packing Units – Package 3	Unit Type	S03
	Units per Package	240
	Package Dimensions (H × W × L)	30.0 × 30.0 × 40.0 cm
	Package Weight	8.942 kg

In stock

Receives in 5 days.

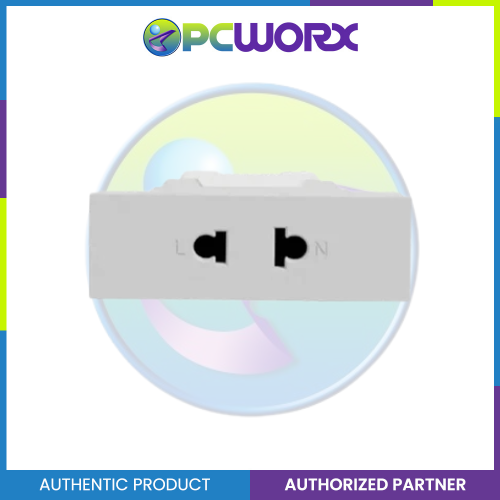

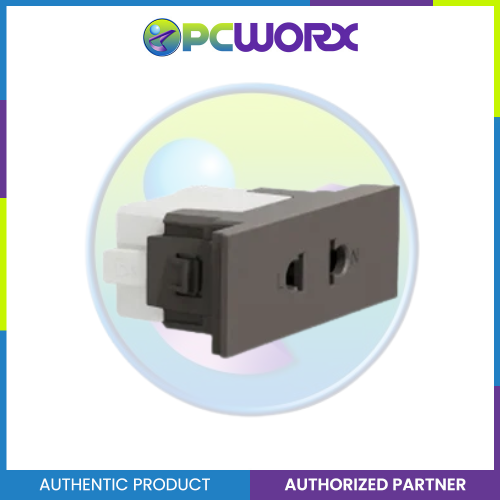

Schneider Socket Outlet AvatarOn A Universal 16A 250V 2 Pin S Sized Grey M3T426US-GY

PCWORX

Schneider Socket Outlet AvatarOn A Universal 16A 250V 2 Pin S Sized Grey M3T426US-GY

(0)

₱130.20

Schneider Electric AvatarOn socket-outlet M3T426US_GY is a complete product in color grey. The pole configuration of the outlet is 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screwless terminals. It is 23.1 mm in width, 69.3 mm in height, and 36.35 mm in depth. It reaches IP20 degree of protection too. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Specifications – AvatarOn A Socket-outlet

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	Grey
Outlet poles configuration	2P

Complementary

Parameter	Specification
Rated current	16 A at 250 V AC, 50–60 Hz
Socket number	1
Clamping connection capacity	2 × 1.5–4 mm² (solid cables) 2 × 1.5–4 mm² (stranded cables)
Connections – terminals	Screwless terminals
Material	Polycarbonate cover Polycarbonate base
Device mounting	Flush
Width	23.1 mm
Height	69.3 mm
Depth	36.35 mm
Embedding depth	24.85 mm

Environment

Parameter	Specification
IP degree of protection	IP20
Maximum ambient air temperature for operation	35 °C
Ambient air temperature for storage	-5 to 45 °C
Relative humidity	0–95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC

Packing Units

Parameter	Specification
Unit type of package 1	PCE
Number of units in package 1	1
Package height	3.65 cm
Package width	2.3 cm
Package length	7.0 cm
Package weight	31.0 g

In stock

Receives in 5 days.

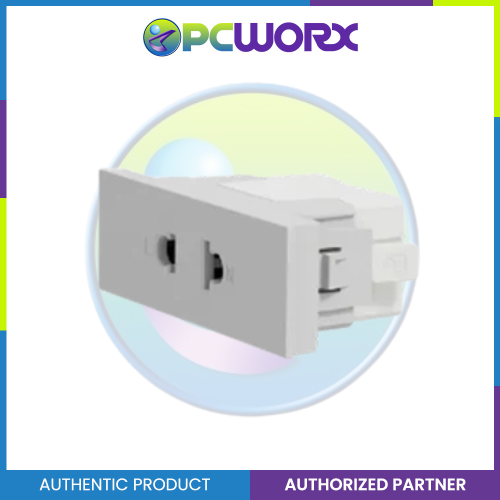

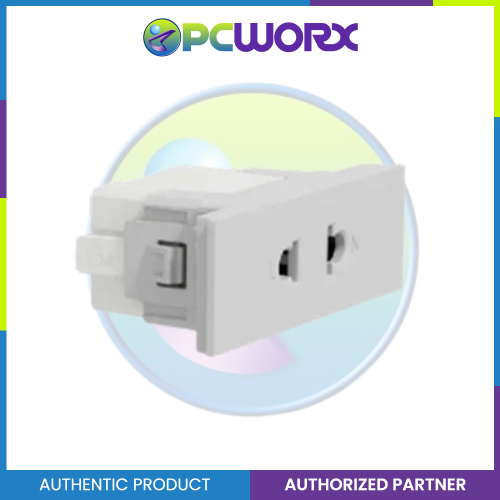

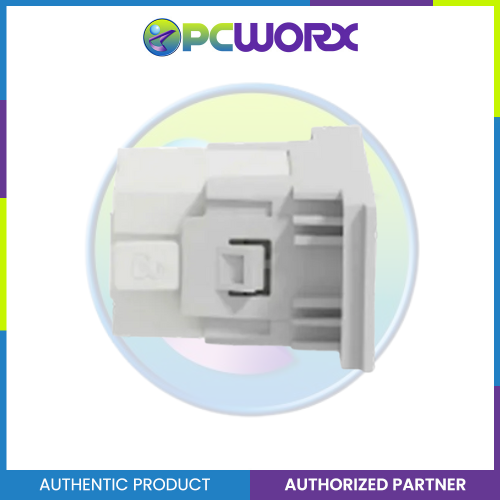

Schneider Socket Outlet AvatarOn A Universal 16A 250V 2 Pin S Sized White M3T426US-WE

PCWORX

Schneider Socket Outlet AvatarOn A Universal 16A 250V 2 Pin S Sized White M3T426US-WE

(0)

₱103.50

Category	Specification	Details
Main	Range of Product	AvatarOn A
	Product or Component Type	Socket-outlet
	Device Presentation	Complete product
	Colour Tint	White
	Outlet Poles Configuration	2P
Complementary	Rated Current	16 A at 250 V AC, 50–60 Hz
	Socket Number	1
	Clamping Connection Capacity	2 × 1.5…2 × 4 mm² (solid cables)2 × 1.5…2 × 4 mm² (stranded cables)
	Connections – Terminals	Screwless terminals
	Material	Polycarbonate coverPolycarbonate base
	Device Mounting	Flush
	Width	23.1 mm
	Height	69.3 mm
	Depth	36.35 mm
	Embedding Depth	24.85 mm
Environment	IP Degree of Protection	IP20
	Max. Ambient Temperature (Operation)	35 °C
	Ambient Temperature (Storage)	−5…45 °C
	Relative Humidity	0…95 %
	Operating Altitude	< 2000 m
	Standards	IEC 60884-1
	Product Certifications	IEC

In stock

Receives in 5 days.

Schneider Socket Outlet AvatarOn A Universal 16A 250V 3 Pin 2S Sized Black M3T426UST-BK

PCWORX

Schneider Socket Outlet AvatarOn A Universal 16A 250V 3 Pin 2S Sized Black M3T426UST-BK

(0)

₱189.75

Schneider Electric AvatarOn socket-outlet M3T426UST_BK is a complete product in color black. The pole configuration of the outlet is 2P + E. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. Its connection terminals are screwless terminals. It is 46.6 mm in width, 69.3 mm in height, and 36.35 mm in depth. Besides, the IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Specification:


Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	Black
Outlet poles configuration	2P + E
Colour tint	Black

Complementary
Rated current	16 A at 250 V AC 50...60 Hz
Socket number	1
Clamping connection capacity	2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s)
Connections - terminals	Screwless terminals
Material	Polycarbonate cover Polycarbonate base
Device mounting	Flush
Width	46.6 mm
Height	69.3 mm
Depth	36.35 mm
Embedding depth	24.85 mm

Environment
IP degree of protection	IP20
Maximum ambient air temperature for operation	35 °C
Ambient air temperature for storage	-5…45 °C
Relative humidity	0…95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.6 cm
Package 1 Width	4.66 cm
Package 1 Length	7.0 cm
Package 1 Weight	52.0 g

In stock

Receives in 5 days.

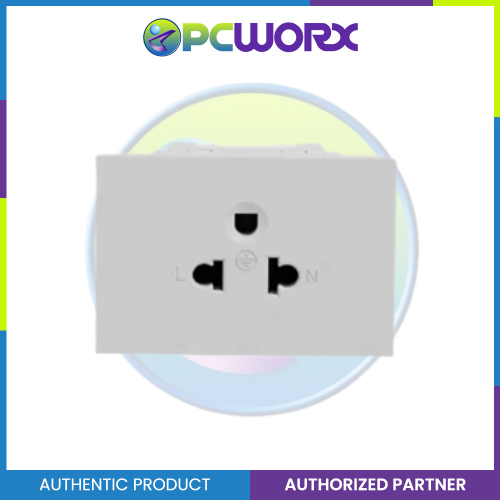

Schneider Socket Outlet AvatarOn A Universal 16A 250V 3 Pin 2S Sized Grey M3T426UST-GY

PCWORX

Schneider Socket Outlet AvatarOn A Universal 16A 250V 3 Pin 2S Sized Grey M3T426UST-GY

(0)

₱189.75

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Socket-outlet
Device presentation	Complete product
Colour tint	Grey
Outlet poles configuration	2P + E

Parameter	Specification
Rated current	16 A at 250 V AC 50…60 Hz
Socket number	1
Clamping connection capacity	2 x 1.5–2 x 4 mm² (solid or stranded cable)
Connections - terminals	Screwless terminals
Material	Polycarbonate cover, Polycarbonate base
Device mounting	Flush
Width	70.1 mm
Height	69.3 mm
Depth	30.3 mm
Embedding depth	19 mm

Parameter	Specification
IP degree of protection	IP20
Maximum ambient air temperature for operation	35 °C
Ambient air temperature for storage	-5…45 °C
Relative humidity	0–95 %
Operating altitude	< 2000 m
Standards	IEC 60884-1
Product certifications	IEC

Unit Type	Number of Units	Dimensions (H x W x L)	Weight
PCE	1	3.03 cm × 7 cm × 7 cm	68 g
BB1	15	9.1 cm × 13 cm × 25.5 cm	1.104 kg
S03	120	30 cm × 30 cm × 40 cm	9.479 kg

In stock

Receives in 5 days.

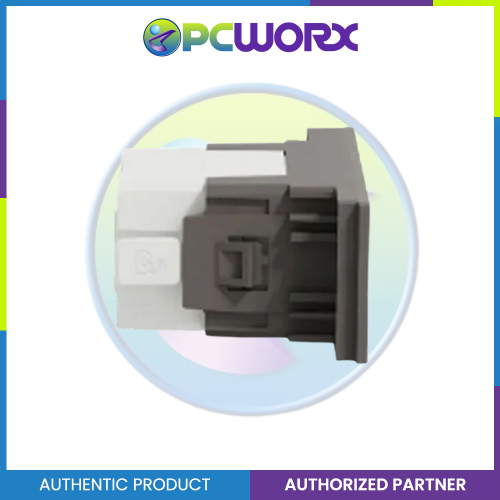

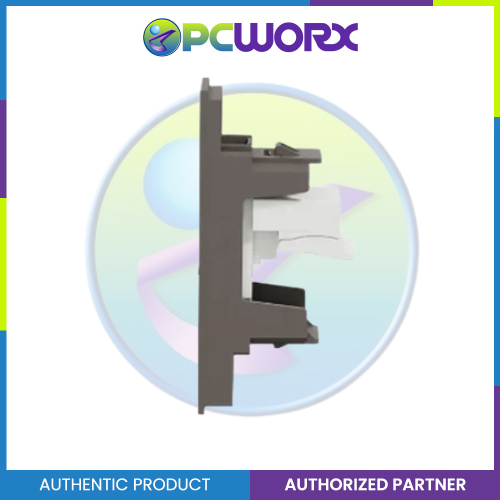

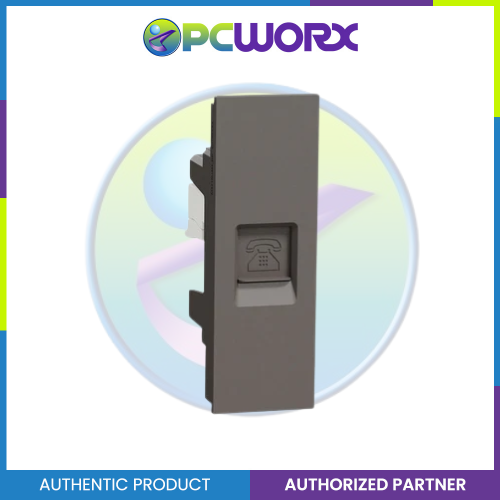

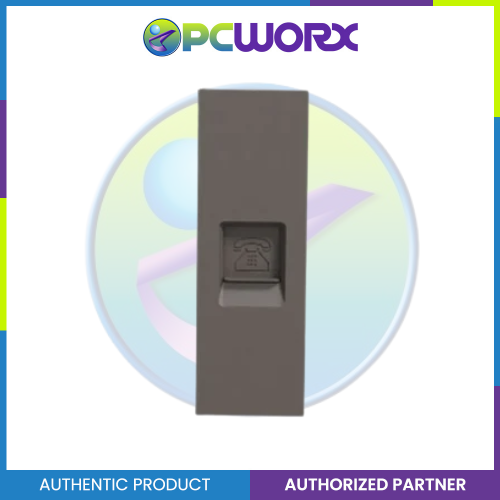

Schneider Telephone Socket AvatarOn With Shutter BLK M3T1RJ4M-BK

PCWORX

Schneider Telephone Socket AvatarOn With Shutter BLK M3T1RJ4M-BK

(0)

₱178.00

Category	Specification
Main
Range of product	AvatarOn A
Product or component type	Telephone socket
Device application	Communication
Socket additional information	Shuttered
Material	PC (polycarbonate) for cover, Brass for connectors
Colour tint	Black
Complementary
Device presentation	Complete product
Device mounting	Flush
Communication network category	3
Width	69.3 mm
Height	23.1 mm
Depth	32.9 mm
Environment
Environmental characteristic	UV resistant
Max. ambient air temperature (operation)	45 °C
Ambient air temperature (storage)	-5…60 °C
Standards	IEC 60670-1
Relative humidity	0…95 %
IP degree of protection	IP20
Packing Units – Package 1
Unit Type	PCE
Number of Units	1
Package Height	3.5 cm
Package Width	2.3 cm
Package Length	7.0 cm
Package Weight	15 g

In stock

Receives in 5 days.

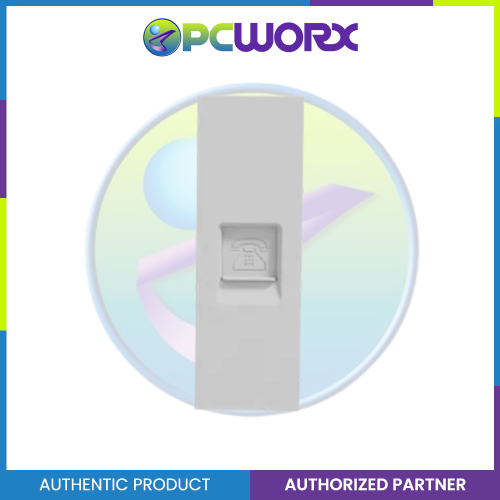

Schneider Telephone Socket AvatarOn With Shutter Grey M3T1RJ4M-GY

PCWORX

Schneider Telephone Socket AvatarOn With Shutter Grey M3T1RJ4M-GY

(0)

₱135.24

Main Specifications

Parameter	Value
Range of product	AvatarOn A
Product or component type	Telephone socket
Device application	Communication
Socket additional information	Shuttered
Colour tint	Grey

Materials

Component	Material
Cover	PC (polycarbonate)
Connectors	Brass

Complementary Information

Parameter	Value
Device presentation	Complete product
Device mounting	Flush
Communication network category	3
Width	69.3 mm
Height	23.1 mm
Depth	32.9 mm

Environmental & Standards

Parameter	Value
Environmental characteristic	UV resistant
Max operating temperature	45 °C
Storage temperature	-5…60 °C
Relative humidity	0…95 %
IP degree of protection	IP20
Standards	IEC 60670-1

Packing Units

Package 1

Parameter	Value
Unit type	PCE
Units per package	1
Dimensions (H × W × L)	3.5 × 2.3 × 7.0 cm
Weight	15 g

In stock

Receives in 5 days.

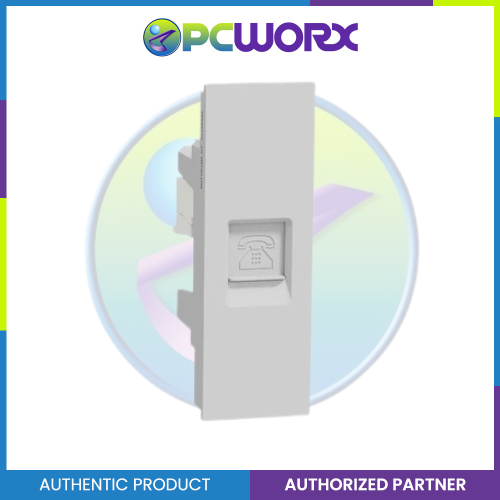

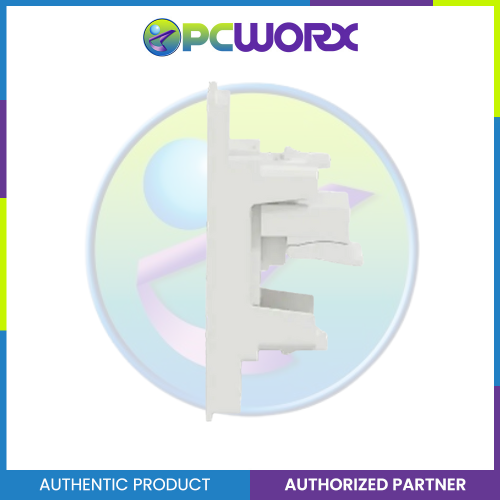

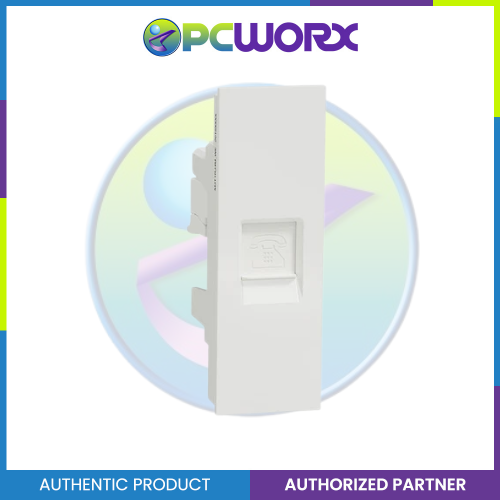

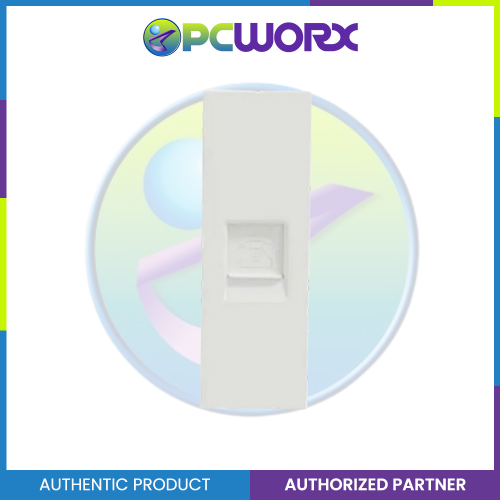

Schneider Telephone Socket AvatarOn With Shutter White M3T1RJ4M-WE

PCWORX

Schneider Telephone Socket AvatarOn With Shutter White M3T1RJ4M-WE

(0)

₱108.36

M3T1RJ4M_WE is a Schneider Electric AvatarOn telephone socket for communication. It is 69.3 mm in width, 23.1 mm in height, 32.9 mm in depth. Its matching mounting box can be recessed into the surface of the wall with flush type. Designed with a shutter, this telephone socket is dedicated to protecting your safety. Being made of PC (polycarbonate), brass material, this telephone socket is quite reliable and resistant. Also, being environment-friendly, this device reached UV resistant. By satisfying the IEC 60670-1 standard, The IP rating of this device is IP20. As a green premium product, this device is environmentally friendly as well. And it is mercury free AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.

Specifications – AvatarOn A Telephone Socket

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	Telephone socket
Device application	Communication
Socket additional information	Shuttered
Material	PC (polycarbonate) cover, Brass connectors
Colour tint	White

Complementary

Parameter	Specification
Device presentation	Complete product
Device mounting	Flush
Communication network category	3
Width	69.3 mm
Height	23.1 mm
Depth	32.9 mm

Environment

Parameter	Specification
Environmental characteristic	UV resistant
Maximum ambient air temperature for operation	45 °C
Ambient air temperature for storage	-5…60 °C
Relative humidity	0–95 %
IP degree of protection	IP20
Standards	IEC 60670-1

Packing Units

Parameter	Specification
Unit type of package 1	PCE
Number of units in package 1	1
Package height	3.5 cm
Package width	2.3 cm
Package length	7.0 cm
Package weight	16.0 g

In stock

Receives in 5 days.

PCWORX

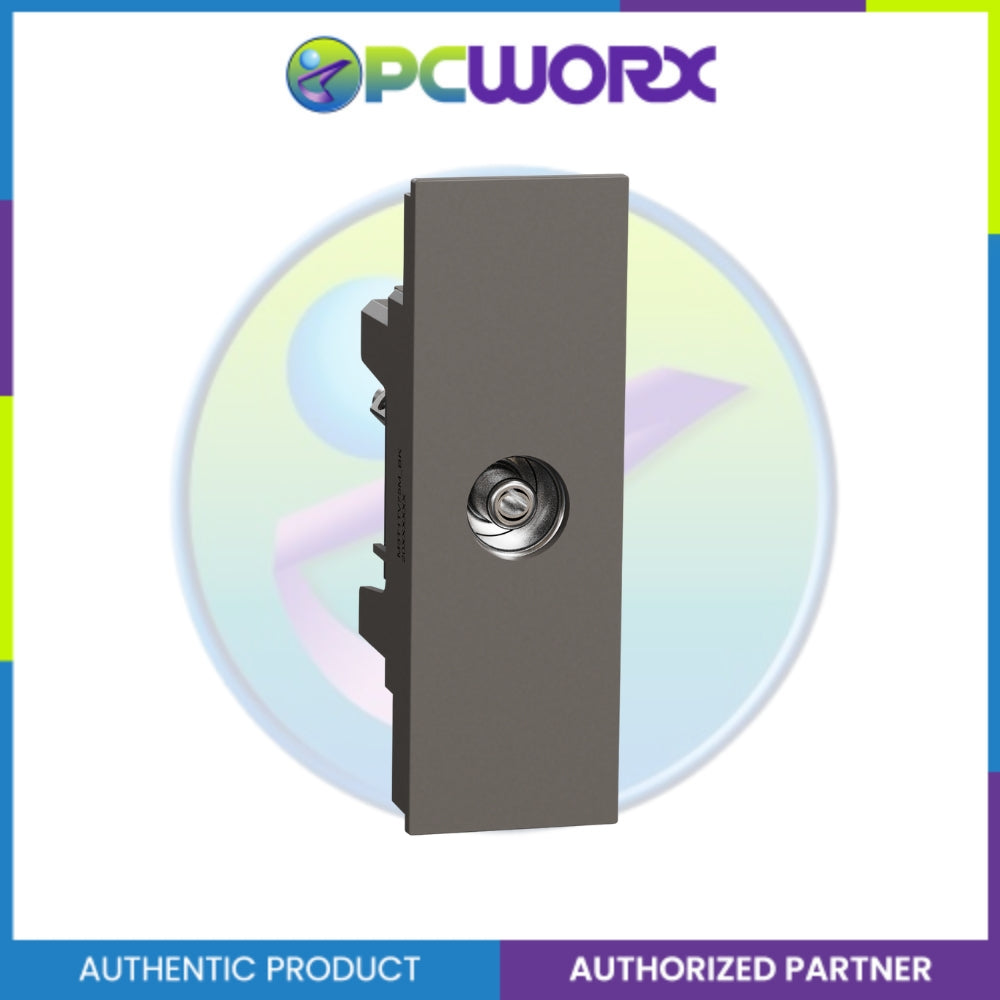

Schneider TV Socket AvatarOn A Coaxial 75 Ohm Black M3T1TV75M-BK

(0)

₱269.64

M3T1TV75M_BK is a Schneider Electric AvatarOn TV socket. Its matching mounting box can be recessed into the surface of the wall with flush type. It is 69.3 mm in width, 23.1 mm in height, 26.5 mm in depth. By satisfying the IEC 60670-1 standard, AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.


Range of product	AvatarOn A
Product or component type	TV socket
Device application	Communication
TV socket type	TV
TV connector	Female IEC
Colour tint	Black

Complementary
Device presentation	Complete product
Device mounting	Flush
Connections - terminals	Pillar terminal without pressure plate
Average impedance	75 Ohm
Material	Polycarbonate: cover Brass: terminal
Colour tint	Black
IP degree of protection	IP20
Width	69.3 mm
Height	23.1 mm
Depth	26.5 mm

Environment
Ambient air temperature for operation	-5…45 °C
Relative humidity	0…95 %
Standards	IEC 60670-1

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.6 cm
Package 1 Width	2.3 cm
Package 1 Length	7.0 cm
Package 1 Weight	16.0 g

In stock

Receives in 5 days.

Schneider TV Socket AvatarOn A Coaxial 75 Ohm Grey M3T1TV75M-GY

PCWORX

Schneider TV Socket AvatarOn A Coaxial 75 Ohm Grey M3T1TV75M-GY

(0)

₱268.80

Range of product	AvatarOn A
Product or component type	TV socket
Device application	Communication
TV socket type	TV
TV connector	Female IEC
Colour tint	Grey

Complementary
Device presentation	Complete product
Device mounting	Flush
Connections - terminals	Pillar terminal without pressure plate
Average impedance	75 Ohm
Material	Polycarbonate: cover Brass: terminal
Colour tint	Grey
IP degree of protection	IP20
Width	69.3 mm
Height	23.1 mm
Depth	26.5 mm

Environment
Ambient air temperature for operation	-5…45 °C
Relative humidity	0…95 %
Standards	IEC 60670-1

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.6 cm
Package 1 Width	2.3 cm
Package 1 Length	7.0 cm
Package 1 Weight	16.0 g

In stock

Receives in 5 days.

Schneider TV Socket AvatarOn A Coaxial 75 Ohm White M3T1TV75M-WE

PCWORX

Schneider TV Socket AvatarOn A Coaxial 75 Ohm White M3T1TV75M-WE

(0)

From ₱268.80

Main

Parameter	Specification
Range of product	AvatarOn A
Product or component type	TV socket
Device application	Communication
TV socket type	TV
TV connector	Female IEC
Colour tint	White

Complementary

Parameter	Specification
Device presentation	Complete product
Device mounting	Flush
Connections - terminals	Pillar terminal without pressure plate
Average impedance	75 Ohm
Material	Polycarbonate: cover Brass: terminal
Colour tint	White
IP degree of protection	IP20
Width	69.3 mm
Height	23.1 mm
Depth	26.5 mm

Environment

Parameter	Specification
Ambient air temperature for operation	−5…45 °C
Relative humidity	0…95 %
Standards	IEC 60670-1

Packing Units

Package	Details
Package 1	Unit type: PCE Units: 1 Height: 2.6 cm Width: 2.3 cm Length: 7.0 cm Weight: 17 g

In stock

Receives in 5 days.

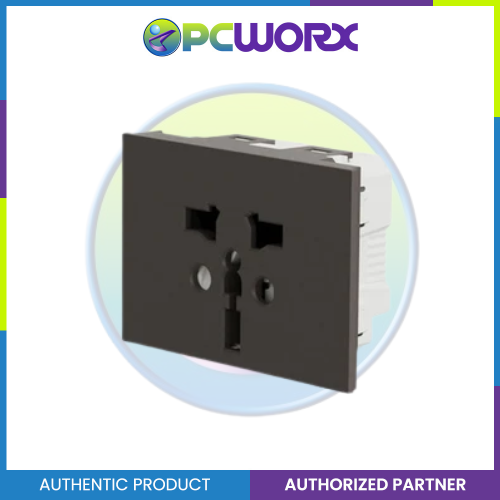

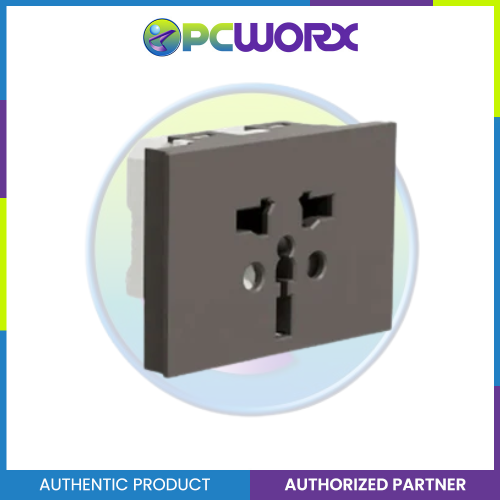

Scneider Socket Outlet Avataron A International 16A 250V 2S sized Black M3T426-IS-BK

PCWORX

Scneider Socket Outlet Avataron A International 16A 250V 2S sized Black M3T426-IS-BK

(0)

₱302.40

Schneider Electric AvatarOn socket-outlet M3T426_IS_BK is a complete product in color black. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screw terminal. It is 46.6 mm in width, 69.3 mm in height, and 33.85 mm in depth. Besides, the IP rating of this device is IP20. The socket-outlet is made of polycarbonate, making it as resistant as possible. AvatarOn offers six fashionable, classic appearances, letting your home's details change.

Category	Feature	Details
Main	Range of Product	AvatarOn A
	Product Type	Socket-outlet
	Device Presentation	Complete product
	Colour Tint	Black
Complementary	Rated Current	16 A at 250 V AC 50–60 Hz
	Socket Number	1
	Clamping Connection Capacity	2 × 1.5…2 × 4 mm² for solid cable(s) 2 × 1.5…2 × 4 mm² for stranded cable(s)
	Connections – Terminals	Screw terminal
	Material	Polycarbonate cover, Polycarbonate base
	Device Mounting	Flush
	Width	46.6 mm
	Height	69.3 mm
	Depth	33.85 mm
	Embedding Depth	23.05 mm

Low in stock

Receives in 5 days.

Seagate Barracuda PCIe Gen4 ×4 M.2 NVME SSD STZP1000CV3A002/STZP500CV3A002 1TB/500GB

PCWORX

Seagate Barracuda PCIe Gen4 ×4 M.2 NVME SSD STZP1000CV3A002/STZP500CV3A002 1TB/500GB

(0)

From ₱2,637.50

Out of stock

Receives in 5 days.

Seagate 2 TB Firecuda 530 PCIE NVME M.2 2280 GEN4 Solid State Drive (ZP2000GM3A013)

PCWORX

Seagate 2 TB Firecuda 530 PCIE NVME M.2 2280 GEN4 Solid State Drive (ZP2000GM3A013)

(0)

₱12,217.50

Out of stock

Receives in 5 days.

Main menu

Product comparison

Specifications
Main
Range of product
AvatarOn A
Product or component type
Socket-outlet
Device presentation
Complete product
Colour tint
Black
Outlet poles configuration
2P + E
Colour tint
White
Complementary
Rated current
20 A at 250 V AC 50...60 Hz
Socket number
1
Clamping connection capacity
2 x 1.5...2 x 4 mm² for solid cable(s)
2 x 1.5...2 x 4 mm² for stranded cable(s)
Connections - terminals
Folded terminal
Material
Polycarbonate cover
Polycarbonate base
Device mounting
Flush
Width
46.6 mm
Height
69.3 mm
Depth
34.5 mm
Embedding depth
24.85 mm
Environment
IP degree of protection
IP20
Maximum ambient air temperature for operation
35 °C
Ambient air temperature for storage
-5…45 °C
Relative humidity
0…95 %
Operating altitude
< 2000 m
Standards
IEC 60884-1
Product certifications
IEC
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.4 cm
Package 1 Width
4.66 cm
Package 1 Length
7 cm
Package 1 Weight
51.5 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
9.1 cm
Package 2 Width
8.9 cm
Package 2 Length
25.5 cm
Package 2 Weight
0.587 kg
Unit Type of Package 3
S03
Number of Units in Package 3
120
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
7.689 kg

Specifications
Interface:
PCIe Gen4 ×4, NVMe 1.4
Form Factor:
M.2 2280
Capacities:
500GB (STZP500CV3A002) and 1TB (STZP1000CV3A002)
Sequential Read Speed:
Up to 3,600 MB/s
Sequential Write Speed:
Up to 2,400 MB/s
Endurance (TBW):
300 TBW for the 500GB model
Mean Time Between Failures (MTBF):
1.8 million hours
Features:
TRIM, S.M.A.R.T. support, backward compatibility with PCIe Gen3
System Requirements & Compatibility
Slot:
M.2 (M key) slot
Operating Systems:
Windows® 11, Windows 10, and Linux
Physical & Environmental
Dimensions:
M.2 2280 form factor
Weight:
8g (for 2280 form factor)
Operating Temperature:
0-70°C
Non-Operating Temperature:
-40-85°C

Specification	Details
Capacity	2 TB
Form Factor	M.2 2280
Interface	PCIe Gen4 x4, NVMe 1.4
Max. Sequential Read	Up to 7,300 MB/s
Max. Sequential Write	Up to 6,900 MB/s
Endurance (TBW)	2,400 TBW
Controller	Seagate-validated E18 controller
NAND Type	3D TLC NAND
MTBF	1.8 million hours
Random Write (IOPS)	Up to 1,000,000 IOPS
Additional Services	Three years of Rescue Data Recovery Services
Warranty	5-year limited warranty

Main menu

MAXIMIZEBF

Explore Related Collections
