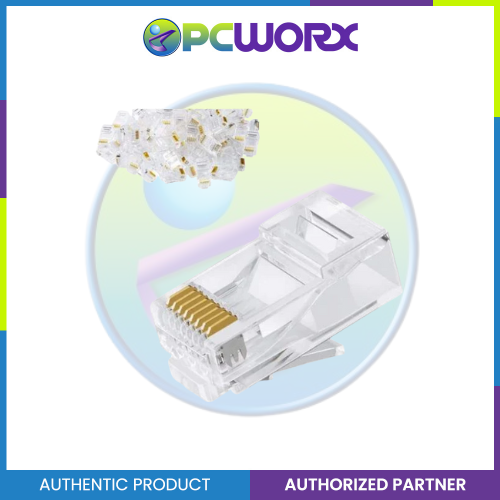

Core specifications
Category:
Cat6
Connector Type:
RJ45 (8P8C)
Data Transfer Rate:
Up to 10 Gbps
Frequency:
250 MHz (for 1 Gbps) to 500 MHz (for 10 Gbps)
Wire Gauge:
Supports 22 to 24 AWG solid or stranded cable
Additional features
Contact Plating:
Gold-plated contacts for corrosion resistance
Housing:
Typically made of durable polycarbonate, often transparent for easier alignment
Compatibility:
Designed for use with both shielded (STP) and unshielded (UTP) Cat6 cables, with specific versions available for each
Description:
21.45″ VA Panel Monitor
Sharp, Slim, Effortless! 22B30HM2 is a Full HD display with Adaptive Sync, anti-tearing technology, incredible 120Hz refresh rate, and 1ms response time. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours along with its LowBlue Mode function. With a slim and 3-sided frameless design, the monitor also saves space and improves focus – a fact further enhanced by its inclusion of Low Blue Mode eye protection technology.
Adaptable and convenient setupWhether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.
Reducing shortwave blue light output for healthier eyesAOC Low Blue Mode setting ensures a more healthy viewing experience for prolonged computer use without compromising the naturally vivid colors of the display.
Specification:
1920 × 1080 (FHD)
AdaptiveSync
120Hz(OC)
1ms
VA
3-Sided Frameless
Response Time 4ms GtG / 1ms MPRT
What’s in the box? HDMI Cable 1.8m × 1
Speakers: no
Line in & Earphone: no
Wall-Mount: 100mm × 100mm
Adjustable Stand Tilt : —5° ~ 23°
Designed with wide viewing angles
IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.
Enjoy stepped up performance
With a 120Hz refresh rate, every frame is redered sharply and in smooth succession, so you can line up your work and play accurately and appreciate high speed in all condition.
Instant response times
A pixel response time of 1ms means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting. Choose the right path to gaming success, and never let a slow display stop you.
A universally respected anti-tearing solution
Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.
See more and see it clearer
Break away from the shackles of bezels with AOC's 3-Sided Frameless Design monitors. This virtually frameless monitor has extremely narrow bezel around a stunning screen. When used as part of a multi-monitor setup it offers a near-seamless and elegant transition between screens. Beauty, form, and function. Isn't it time you broke free from your bezels?
Protect your eyes from screen flicker
Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.
Reducing shortwave blue light output for healthier eyes
AOC Low Blue Mode setting ensures a more healthy viewing experience for prolonged computer use without compromising the naturally vivid colors of the display.
Adaptable and convenient setup
Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.
Specifications
Model name
24B15H3
Panel
23.8" / IPS
Pixel Pitch (mm)
0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm)
527.04 (H) × 296.46 (V)
Brightness (typical)
250 cd/m²
Contrast Ratio
1000 : 1 (typical) / MEGA DCR
Response Time
1ms MPRT / 4ms GTG
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 111% (CIE1976) / sRGB 118% (CIE1931)
Color Accuracy
-
Optimum Resolution
1920 × 1080 @ 120Hz – HDMI; 1920 × 1080 @ 75Hz – VGA
Display Colors
16.7 Million
Signal Input
VGA × 1, HDMI 1.4 × 1
HDCP Version
-
USB Hub
No
Power Supply
External 12VDC, 2.0A
Power Consumption (typical)
22W
Speakers
No
Line in & Earphone
No
Wall-Mount
75mm x 75mm
Adjustable Stand
Tilt: - 5° ~ 20°
Product without Stand (mm)
322.1 (H) × 540.5 (W) × 36.0 (D)
Product with Stand (mm)
419.9 (H) × 540.5 (W) × 185.2 (D)
Packaging (mm)
395 (H) × 615 (W) × 110 (D)
Product without Stand (kg)
2.45
Product with Stand (kg)
2.8
Product with Packaging (kg)
3.8
Cabinet Color
Black
Regulatory Approvals
CE / RoHS
23.8" 120Hz IPS Monitor
24B36H3 is a Full HD display with IPS wide viewing angle, Incredible, 120Hz refresh rate, and 1ms response time, upgraded 3-Sided Frameless, mega DCR. This IPS display deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions.
Specification:
Model Name
24B36H3
Panel
23.8" / IPS LCD
Pixel Pitch (mm)
0.2745(H) * 0.2745(V)
Effective Viewing Area (mm)
527.04(H) * 296.46(V)
Brightness (typical)
300 cd/m²
Contrast Ratio
1500:1 (typical) / MEGA DCR
Response Time
4ms GtG / 1ms MPRT
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 101% (CIE1976) / sRGB 116% (CIE1931)
Optimum Resolution
1920 x 1080 @ 120Hz - HDMI1920 x 1080 @ 75Hz - VGA
Display Colors
16.7 Million
Signal Input
VGA x 1, HDMI 1.4 x 1
USB Hub
No
Power Supply
External 19VDC, 1.31A
Power Consumption (typical)
17W
Speakers
No
Line In/Earphone
No
Wall-Mount
100 mm x 100 mm
Adjustable Stand
Tilt: -5° - 23°
Product without Stand (mm)
316.2(H) * 542.4(W) * 34.7(D)
Product with Stand (mm)
410(H) * 542.4(W) * 198(D)
Packaging (mm)
420(H) * 615(W) * 111(D)
Product without Stand (kg)
2.15
Product with Stand (kg)
2.45
Product with Packaging (kg)
4.43
Cabinet Color
Black
Regulatory Approvals
CE / FCC / RoHS
Introducing the newest addition to the B3 line– a brilliant 23,8-inch display featuring an IPS panel for breathtaking visuals with 1920 x 1080 resolution and 100Hz refresh rates. If you're looking for a compact sized monitor with smooth experience, the 24B3CA2 is the ideal choice. Also, with one USB-C cable, video signal, power delivery and data transfer are available which will improve your productivity. Whether you're working or studying, enjoy a more comfortable and enjoyable viewing experience with the compact screen size of the 24B3CA2.
Specifications:
Screen size (inch)
23.8
Screen size (cm)
60.5
Flat / Curved
Flat
Display viewing Area (HxW) in mm
527,04 x 296,46
Display hardness
3H
Panel treatment
Antiglare (AG)
Pixel Pitch (mm)
0.2745
Pixels per Inch
93
Panel resolution
1920x1080
Resolution name
FHD
Aspect ratio
16:9
Panel type
IPS
Backlight type
WLED
Max Refresh rate
100 Hz
Response time GtG
4 ms
Response time MPRT
1 ms
Static contrast ratio
1300:1
Dynamic contrast ratio
20M:1
Viewing angle (CR10)
178/178
Display colours
16.7M (6bits+FRC)
Brightness in nits
250 cd/m2
Color Gamut
NTSC 72%
OD Response (typical)
4 ms GtG
Panel Haze Value
25%
Picture enhancement
✓
Local Dimming Zones
Global Dimming
Sync technology (VRR)
Adaptive Sync
Digital Signal Frequency Vertical
48-100Hz
Digital Signal Frequency Horizontal
30-115kHz
HDR (High Dynamic Range)
HDR Mode
Blue Light Technology
Low Blue Light
Colour space (sRGB) CIE 1931 %
102.7
Colour space (sRGB) CIE 1976 %
102.5
Colour space (DCI-P3) CIE 1931 %
75.7
Colour space (DCI-P3) CIE 1976 %
81.6
Colour space (Adobe RGB) CIE 1931 %
76.1
Colour space (Adobe RGB) CIE 1976 %
87.8
Colour space (NTSC) CIE 1931 %
72.7
Colour space (NTSC) CIE 1976 %
89.4
Colour space (BT 709) CIE 1931 %
102.7
Colour space (BT 709) CIE 1976 %
102.5
Colour space (BT 2020) CIE 1931 %
54.3
Colour space (BT 2020) CIE 1976 %
59.5
Flicker-Free
Flicker Free
KVM
No
Bezel type (front)
Ultra Narrow
Bezel Colour (front)
Black
Bezel finishing (front)
Texture
Cabinet colour (backside)
Black
Cabinet finishing (backside)
Texture
Removable stand
✓
Speakers
✓
Speaker power
2 W x 2
Kensington Lock
✓
Vesa wallmount
100x100
I/O define: Connectors on rear cabinet
Vertical insert
Quick release function
✓
Sound enhancement
No
VESA Mount screw Spec
M4 x 10
VESA Mount Support
Yes
MonitorWebcam
No
HDMIHDMI 1.4 x 1
Digital HDCP (HDMI version)HDCP 1.4
USB-C connectivityUSB-C (DP Alt mode) x 1
USB Hub✓
USB Hub speedUSB 3.2 (Gen 1
USB downstream ports2
USB fast charge port✓
Audio Output1x Audio out
Microphone in✓
mini USB (for external keypad)No
PD for USB C/TBTUSB C1 : PD=65W, PD3.0, 5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A
USB Hub up stream1 x USB3.2 type C Gen 1, 5 Gbit/s
DVI0x
D-SUB (VGA)0x
Rule the Competition with Fast IPS
Fast IPS annihilates the competition with a speed 4x faster than conventional IPS. Guaranteeing you true 1ms (GTG) response times and captivating visual quality, raise your gaming performance to the next level!
Enjoy top-tier gaming performance
With a 180Hz refresh rate , your display will be equipped to perform at the pro gaming standard. Enjoy an ultra-smooth experience with no visible screen blur to ensure you're always prepped to win.
Instant response times
A pixel response time of 0.5ms MPRT means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting. Choose the right path to gaming success, and never let a slow display stop you.
24G11E
23.8" 180Hz Gaming Monitor
24G11E is a 23.8-inch gaming monitor, with FAST IPS, ADAPTIVE SYNC, 180HZ, 0.5MS RESPONSE TIME, FHD @ 1920 X1080 PX, HDRI0, 3-SIDED FRAMELESS, LOW INPUT LAG, HDMI2.0, DISPLAYPORT 1.4, FLICKER FREE. The e-sports professional standard for gamingWith a 180Hz refresh rate and 1ms response time, your display willbe equipped to perform at the pro gaming standard. Enjoy anultra-smooth experience with no visible screen blur to ensure you're always prepped to win.
SPECIFICATIONS
Model name
24G11E
Panel
23.8" (IPS)
Pixel Pitch (mm)
0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm)
527.04 (H) × 296.46 (V)
Brightness (typical)
300 cd/m²
Contrast Ratio
1000: 1 (Typical) 80 million 1 (DCR)
Response Time
0.5ms (MPRT) / 1ms (GtG)
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 112% (CIE1976) / sRGB 133% (CIE1931) / DCI-P3 102% (CIE1976)
Color Accuracy
Delta E < 2
Optimum Resolution
1920 × 1080 @ 180Hz – DisplayPort, HDMI
Display Colors
16.7 Million
Signal Input
HDMI 2.0 x 1, DisplayPort 1.4 x 1
HDCP Version
HDMI: 2.2, DisplayPort: 2.2
USB Hub
no
Power Supply
External 12VDC, 2.0A
Power Consumption (typical)
22W
Speakers
no
Line in & Earphone
Earphone
Wall-Mount
100mm × 100mm
Adjustable Stand
Tilt: -5° ~ 23°
Product without Stand (mm)
320.8 (H) × 539.7 (W) × 51.1 (D)
Product with Stand (mm)
433.3 (H) × 539.7 (W) × 196.2 (D)
Packaging (mm)
396 (H) × 603 (W) × 130 (D)
Product without Stand (kg)
2.71
Product with Stand (kg)
3.26
Product with Packaging (kg)
4.38
Cabinet Color
Black & Red
Regulatory Approvals
BSMI / CE / RoHS
