Specifications Main Range Easy9 Device application Distribution Product or component type Miniature circuit-breaker Device short name Easy9 MCB Poles 1P Number of protected poles 1 [In] rated current 63 A Network type AC Trip unit technology Thermal-magnetic Curve code C Breaking capacity 10000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1 5000 A Icn at 60 V DC conforming to IEC 60898-1 Suitability for isolation Yes conforming to IEC 60898-1

Read more less

Schneider Electric AvatarOn 3-gang switch is a complete product in color white. This is a 1-way switch with fluorescent lighting. And its rated current is 16AX. It is 120 mm in width, 70 mm in height, 33 mm in depth, with an embedding depth of 22 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. The IP rating of this device is IP20. Its connection terminals are screwless type terminals. The switch is made of PC 10 % GF, making it as resistant as possible. It obtained IEC, TIS certificate as well. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.   Range of product AvatarOn A Product or component type Switch load type Resistive loadInductiveFluorescent load Colour tint White (WE) Colour tint White Complementary Device presentation Complete product Rated current 16 AX at 250 V AC 50 Hz Switch function 1-way Switch application Control switch Number of gangs 3 gangs Clamping connection capacity 2 x 1.5 mm² for solid cable(s)2 x 2.5 mm² for stranded cable(s)2 x 4 mm² Connections - terminals Screwless type terminals Local signalling Fluorescent (white) Material PC: dollyPC 10 % GF: basePC 10 % GF: base cover Device mounting Flush Width 120 mm Height 70 mm Depth 33 mm Embedding depth 22 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 45 °C Ambient air temperature for storage -5…60 °C Operating altitude <= 2000 m Relative humidity 0…95 % Standards IEC 60669-1 Product certifications IECTIS Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.2 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 128 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.386 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 8.966 kg

Read more less

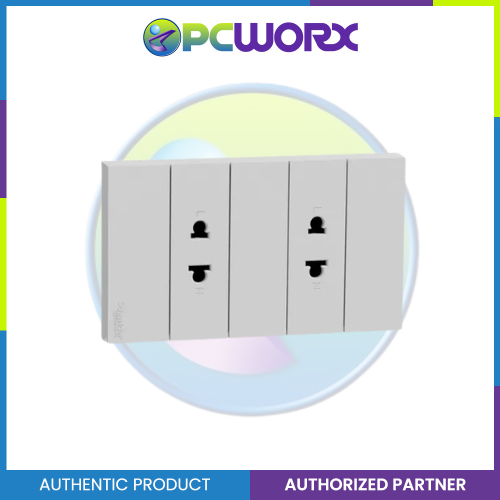

Specifications Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Grey Outlet poles configuration 2 x 2P Colour tint Grey Complementary Rated current 16 A at 250 V AC 50...60 Hz Socket number 2 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Screwless terminals Material Polycarbonate grid plate Polycarbonate cover Device mounting Flush Width 120 mm Height 70 mm Depth 36.35 mm Embedding depth 24.85 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.65 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 140 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.506 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.686 kg

Read more less

Specifications Main Range of product AvatarOn A Product or component type Socket-outlet Device presentation Complete product Colour tint Grey Outlet poles configuration 2 x 2P Colour tint Grey Complementary Rated current 16 A at 250 V AC 50...60 Hz Socket number 2 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Connections - terminals Screwless terminals Material Polycarbonate grid plate Polycarbonate cover Device mounting Flush Width 120 mm Height 70 mm Depth 36.35 mm Embedding depth 24.85 mm Environment IP degree of protection IP20 Maximum ambient air temperature for operation 35 °C Ambient air temperature for storage -5…45 °C Relative humidity 0…95 % Operating altitude < 2000 m Standards IEC 60884-1 Product certifications IEC Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.65 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 140 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.506 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.686 kg

Read more less

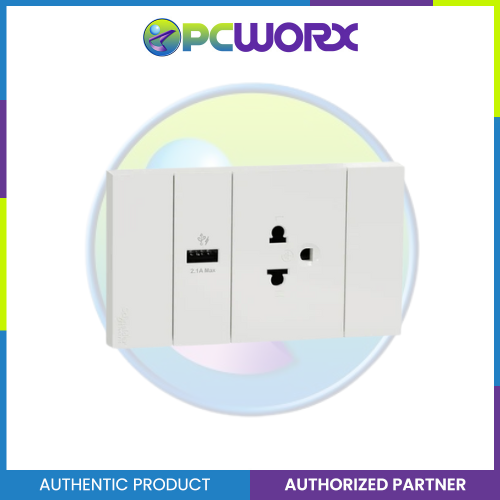

Specifications Main Range of product AvatarOn A Product or component type USB charger + socket-outlet Complementary Integrated connection type 1 USB port 5 V AC 2.1 A 50...60 Hz 3 socket-outlet 250 V AC 16 A 50...60 Hz Device presentation Complete product Colour tint White Ambient air temperature for operation -5…60 °C Relative humidity 0…95 % Service life in cycles 5000 cycles Connections - terminals 3 pins Number of terminals 3 Clamping connection capacity 0.5...4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Material PC Wire stripping length 13 mm Height 70 mm Width 120 mm Depth 36.35 mm Embedding depth 24.85 mm Standards IEC 62368-1 IEC 60884-1 Environment Product certifications IEC IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 4 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 137 g Unit Type of Package 2 BB1 Number of Units in Package 2 10 Package 2 Height 9 cm Package 2 Width 19 cm Package 2 Length 27 cm Package 2 Weight 1.5 kg Unit Type of Package 3 S03 Number of Units in Package 3 60 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 10 kg

Read more less

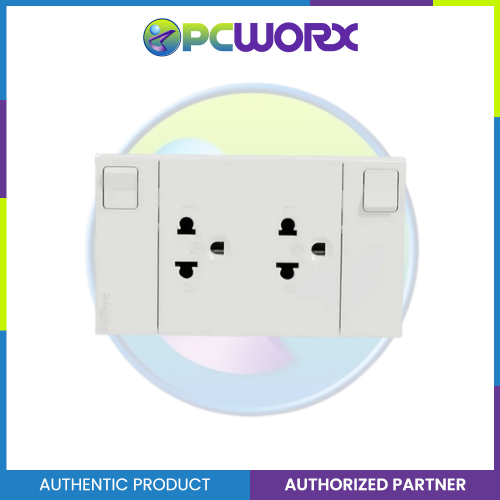

Specifications Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint White Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections - terminals Push-in Number of terminals 3 Clamping connection capacity 2 x 1.5...2 x 4 mm² for solid cable(s) 2 x 1.5...2 x 4 mm² for stranded cable(s) Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy Glossy and matt Glossy Device mounting Flush fixing mode By 2 screws Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Rated current 16 A at 250 V AC 50...60 Hz Environment IP degree of protection IP20 Ambient air temperature for operation -5…45 °C Ambient air temperature for storage -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 3.6 cm Package 1 Width 7 cm Package 1 Length 12 cm Package 1 Weight 118 g Unit Type of Package 2 BB1 Number of Units in Package 2 12 Package 2 Height 8.8 cm Package 2 Width 18.5 cm Package 2 Length 26.5 cm Package 2 Weight 1.516 kg Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package 3 Weight 9.746 kg

Read more less

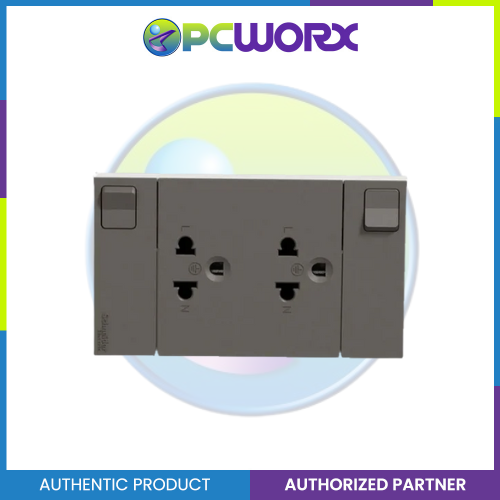

Category Parameter Specification Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint Black Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections – terminals Push-in Number of terminals 3 Clamping connection capacity Solid cable: 2 × 1.5…2 × 4 mm² Stranded cable: 2 × 1.5…2 × 4 mm² Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy / Matt Device mounting Flush Fixing mode By 2 screws Dimensions & Weight Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Electrical Rated current 16 A at 250 V AC 50/60 Hz Environment IP degree of protection IP20 Operating temperature -5…45 °C Storage temperature -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 3.6 cm Package 1 width 7 cm Package 1 length 12 cm Package 1 weight 117 g

Read more less

Category Parameter Specification Main Range AvatarOn A Product or component type Switched socket Device application Power supply Device presentation Complete product Colour tint Grey Complementary Socket number 2 Outlet standard description 3 pins Outlet standard deviation Universal Switch function 1-way Number of gangs 2 gangs Connections – terminals Push-in Number of terminals 3 Clamping connection capacity Solid cable: 2 × 1.5…2 × 4 mm² Stranded cable: 2 × 1.5…2 × 4 mm² Wire stripping length 13 mm Material Polycarbonate Surface finish Glossy / Matt Device mounting Flush Fixing mode By 2 screws Dimensions & Weight Height 70 mm Width 120 mm Depth 30.3 mm Embedding depth 19.3 mm Net weight 0.118 kg Electrical Rated current 16 A at 250 V AC 50/60 Hz Environment IP degree of protection IP20 Operating temperature -5…45 °C Storage temperature -5…60 °C Relative humidity 0…95 % Standards IEC 60884-2-3 Packing Units Unit type of Package 1 PCE Number of units in Package 1 1 Package 1 height 3.6 cm Package 1 width 7 cm Package 1 length 12 cm Package 1 weight 117 g
