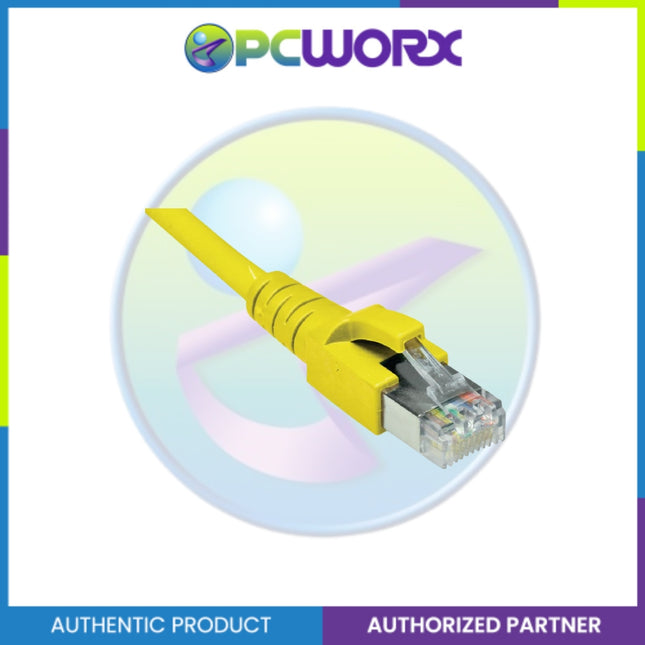

Datwyler Cat6 Patch Cord Yellow 2M P/N: 356104
Product Details and Specifications Category: Cat6 Length: 2 meters Color: Yellow Construction: Unshielded Twisted Pair (U/UTP) Frequency: Up to 250 MHz Wiring: 1:1 Outer Sheath Material: FRNC/LSZH (Flame Retardant Non-Corrosive / Low Smoke Zero Halogen) Weight: Approximately 0.07 kg Applications: Suitable for high-speed data networks, including Gigabit Ethernet.
₱149.50
-

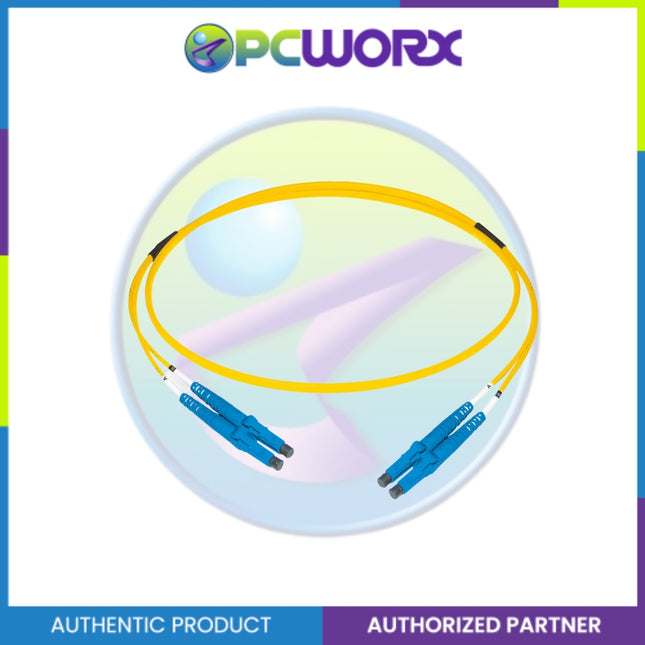

Datwyler Duplex Patch Cord LC-LC E09/125 3meters PN: 390226 Yellow
Description Datwyler offers a broad range of terminated connectors for individual customer needs. Specifications Mechanical Properties Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): 200 N Connector cable retention: 100 Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): ≤ 0,1 dB Bending (IEC 60794-1-21 E11, reversible fiber attenuation): ≤ 0,5 dB Crush resistance (IEC 60794-1-21 E3, reversible fiber attenuation): ≤ 0,2 dB Minimum bending radius: 50 mm Optical Properties Lifetime: 1000 connections with stable attenuation values Reproducibility of the IL: a maximum of +/- 0.1dB Fiber type: E9/125 G.652.D BLO Ferrule material: Zirconia Connector type side A: LCD/PC IL maximal, connector A: 0.25 dB IL typical, connector A: 0.12 dB RL minimal, connector A: 50 dB RL typical, connector A: 55 dB Grade IEC61755, connector A (better than): B2 Standard connector A: IEC 61754-20 Connector type side B: LCD/PC IL maximal, connector B: 0.25 dB IL typical, connector B: 0.12 dB RL minimal, connector B: 50 dB RL typical, connector B: 55 dB Grade IEC61755, connector B (better than): B2 Standard connector B: IEC 61754-20 Constuction Cable: Duplex Fig. 0 Cable construction: I-V(ZN)HH (5.0x3.0mm) Outer sheath material: LSZH Outer sheath color: yellow Standard: Impact: IEC 60794-1-21 E4 Repeated bending: IEC 60794-1-21 E6 Operating temperature: -10 °C - +60 °C
₱1,150.00
-
Datwyler Duplex Patch Cord ST-LC E09/125 PN: 390076 Yellow
Description Datwyler offers a broad range of terminated connectors for individual customer needs. Specifications Mechanical Properties Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): 200 N Connector cable retention: 100 Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): ≤ 0,1 dB Bending (IEC 60794-1-21 E11, reversible fiber attenuation): ≤ 0,5 dB Crush resistance (IEC 60794-1-21 E3, reversible fibre attenuation): ≤ 0,2 dB Minimum bending radius: 50 mm Optical Properties Lifetime: 1000 connections with stable attenuation values Reproducibility of the IL: a maximum of +/- 0.1dB Fibre type: E9/125 G.652.D BLO Ferrule material: Zirconia Connector type side A: SCD/PC IL maximal, connector A: 0.25 dB IL typical, connector A: 0.12 dB RL minimal, connector A: 50 dB RL typical, connector A: 55 dB Grade IEC61755, connector A (better than): B2 Standard connector A: IEC 61754-4 Connector type side B: ST/PC IL maximal, connector B: 0.25 dB IL typical, connector B: 0.12 dB RL minimal, connector B: 50 dB RL typical, connector B: 55 dB Grade IEC61755, connector B (better than): B2 Standard connector B: IEC 61754-2 Constuction: Cable: Duplex Fig. 8 Cable construction: I-V(ZN)H (4.1 x 2.0mm) Outer sheath color: yellow Standard Impact: IEC 60794-1-21 E4 Repeated bending: IEC 60794-1-21 E6 Operating temperature: -10 °C - +60 °C
₱805.00
-
Datwyler Duplex Patch Cord ST-ST E09/125 3meters PN: 390086 Yellow
Description Datwyler offers a broad range of terminated connectors for individual customer needs. Specifications Mechanical Properties Tensile load (IEC 60794-1-21 E1 0,33% reversible fiber elongation): 200 N Connector cable retention: 100 Torsion (IEC 60794-1-21 E7, reversible fiber attenuation): ≤ 0,1 dB Bending (IEC 60794-1-21 E11, reversible fiber attenuation): ≤ 0,5 dB Crush resistance (IEC 60794-1-21 E3, reversible fiber attenuation): ≤ 0,2 dB Minimum bending radius: 50 mm Optical Properties Lifetime: 1000 connections with stable attenuation values Reproducibility of the IL: a maximum of +/- 0.1dB Fiber type: E9/125 G.652.D BLO Ferrule material: Zirconia Connector type side A: ST/PC IL maximal, connector A: 0.25 dB IL typical, connector A: 0.12 dB RL minimal, connector A: 50 dB RL typical, connector A: 55 dB Grade IEC61755, connector A (better than): B2 Standard connector A: IEC 61754-2 Connector type side B: ST/PC IL maximal, connector B: 0.25 dB IL typical, connector B: 0.12 dB RL minimal, connector B: 50 dB RL typical, connector B: 55 dB Grade IEC61755, connector B (better than): B2 Standard connector B: IEC 61754-2 Constuction: Cable: Duplex Fig. 0 Cable construction: I-V(ZN)HH (5.0x3.0mm) Outer sheath material: LSZH Outer sheath color: yellow Standard: Impact: IEC 60794-1-21 E4 Repeated bending: IEC 60794-1-21 E6 General Properties: Operating temperature: -10 °C - +60 °C
₱690.00
-

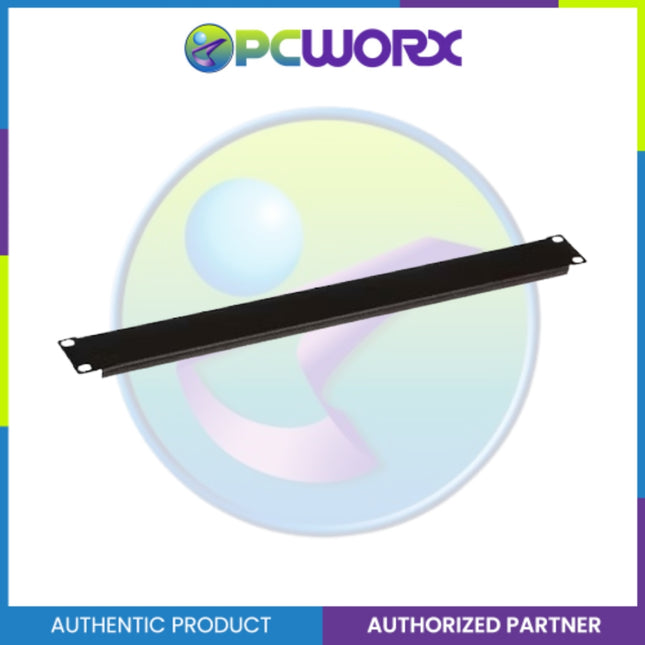

Datwyler Modular Long Metal Plate PN: 400662 Blank
Description 19" blank plate sets for covering unused height units in racks.Minimize unwanted airflows in racks, enhance energy efficiency.Powder coated sheet steel. Available versions: 1U, 2U, 3U, screwable or tool-less (with 1/4-turn fastener),5U, screwable. Scope of Delivery 5 pcs. Delivery without mounting kits
₱345.00
