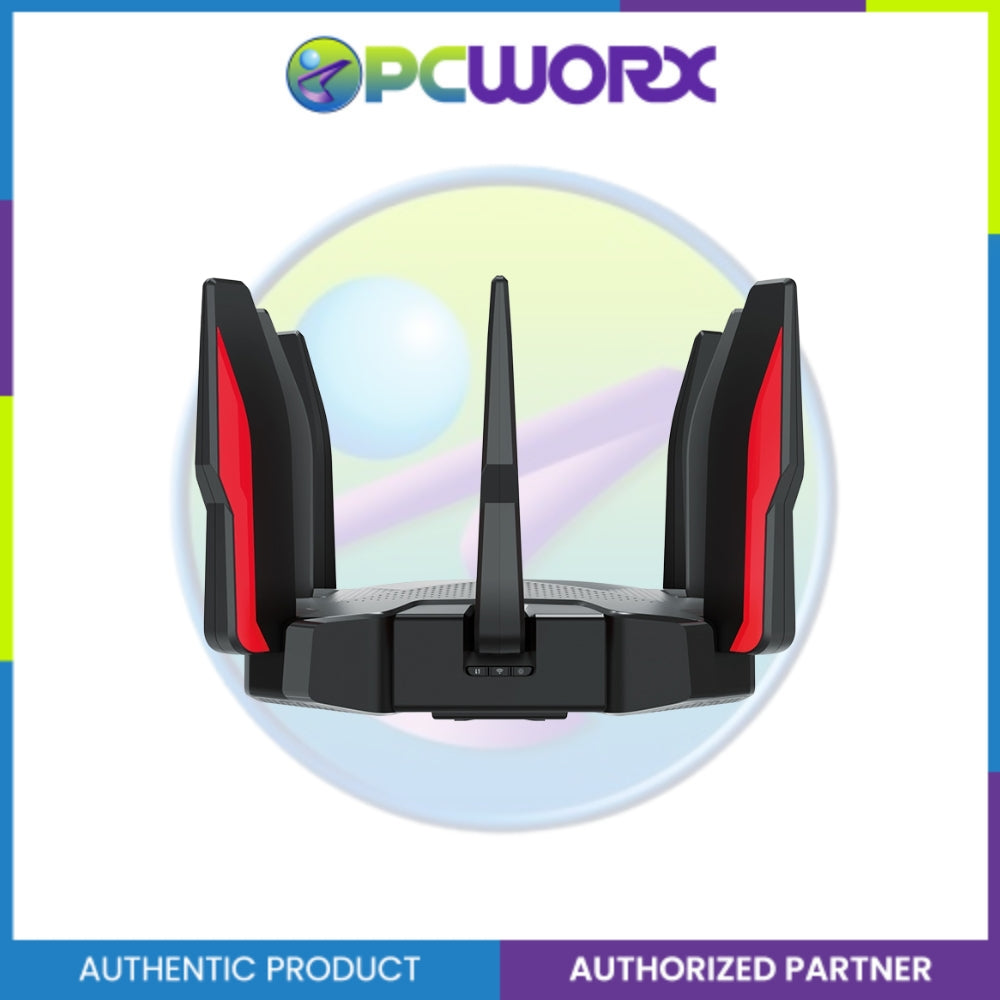

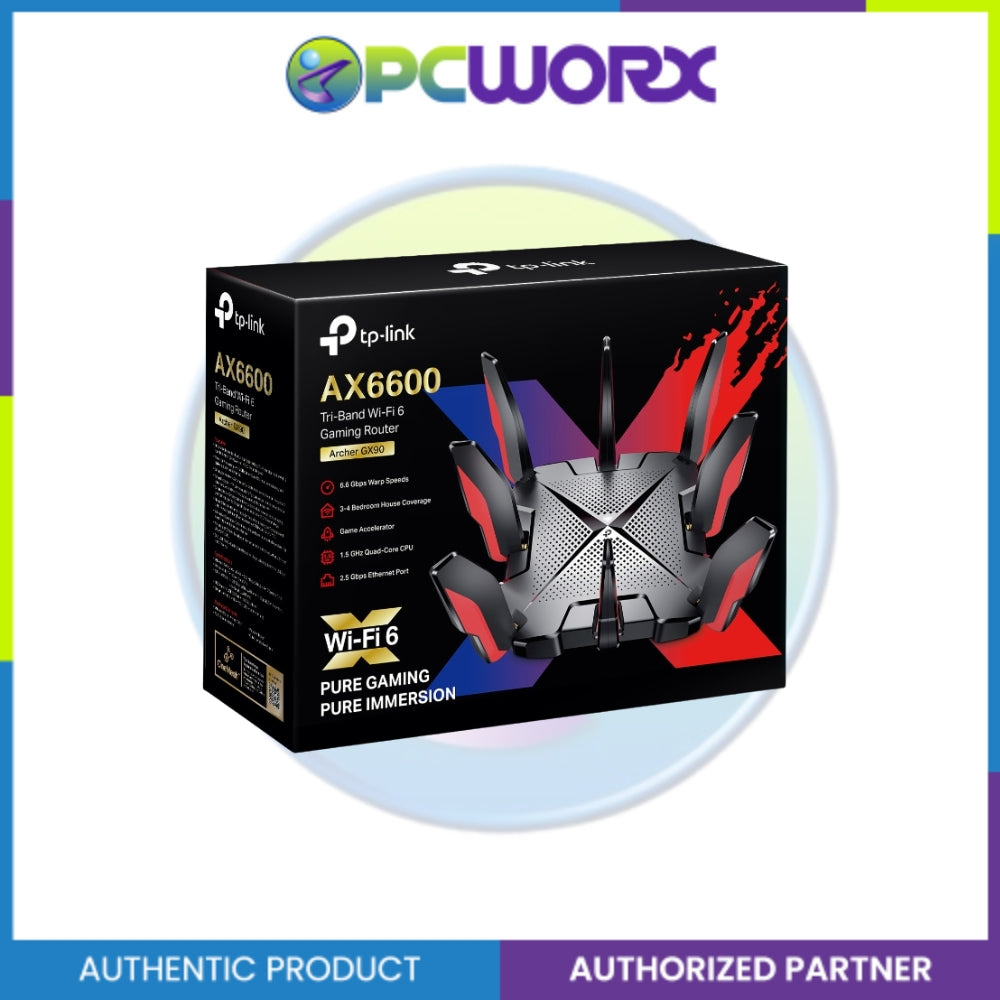

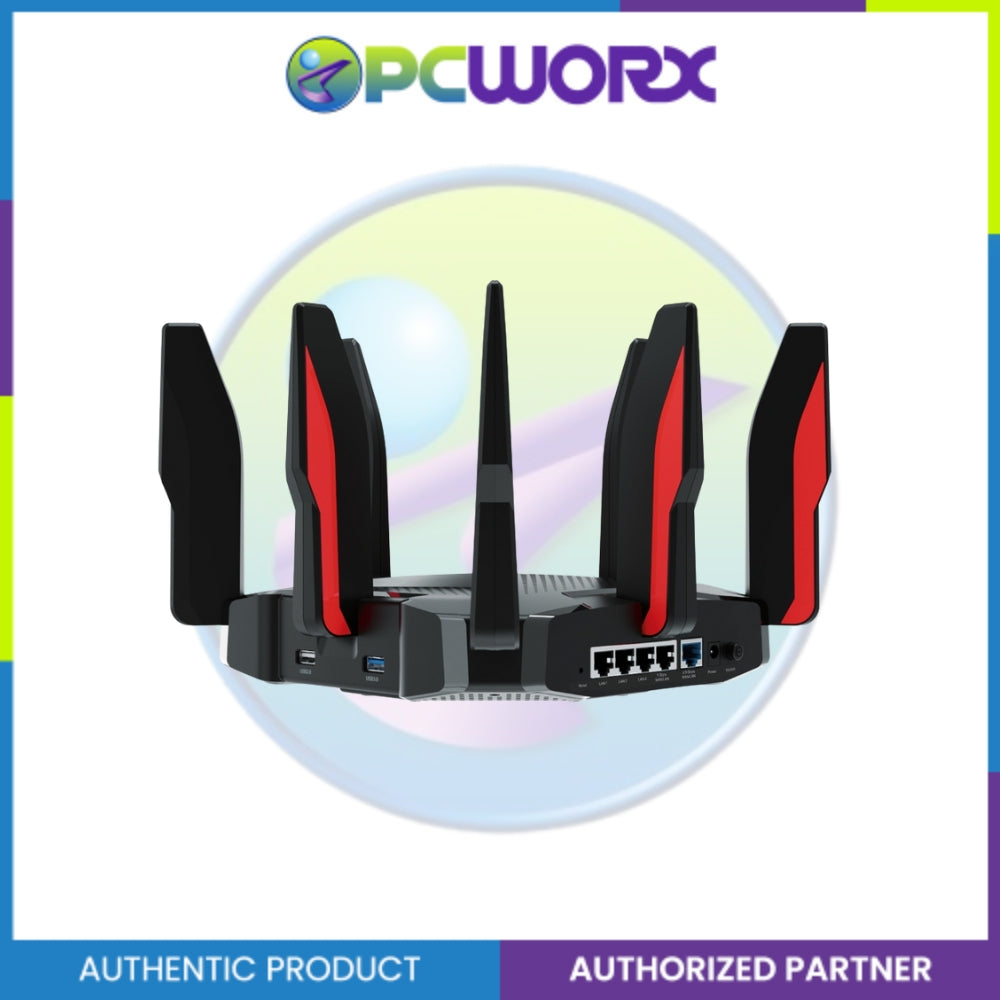

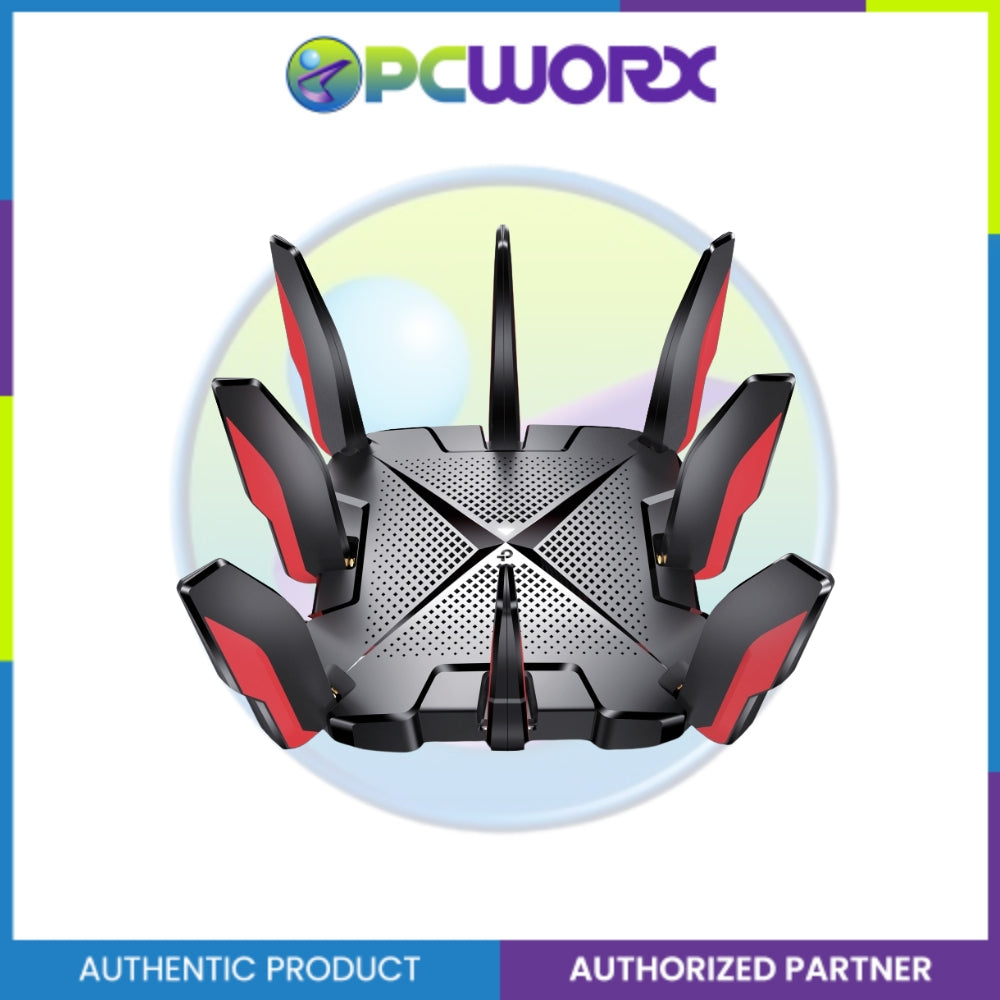

TP-LINK Archer GX90 AX6600 Tri-Band Wi-Fi 6 Gaming Router

Description

Description

SECURITY - Archer GX90
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 2× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
VPN Client • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity Very High
Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
HARDWARE
Processor 1.5 GHz Quad-Core CPU
Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
1× Gigabit WAN/LAN Port
3× Gigabit LAN Ports
USB Support 1× USB 3.0 Port
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power 12 V ⎓ 5 A
SOFTWARE
Protocols IPv4
IPv6
Game Center Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection
Service Kits HomeCare™
Learn More>
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
Parental Controls HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service Game Accelerator QoS.

QoS by Device

HomeCare™ QoS
QoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
WiFi Reception Sensitivity 5 GHz-1:
11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm
5 GHz-2 (Gaming Band):
11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm
2.4 GHz:
11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm
PHYSICAL
Dimensions (W×D×H) 8.3 × 8.3 × 2.0 in
(212 × 212 × 51.8 mm)
Package Contents Wi-Fi Router Archer GX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

TP-LINK Archer GX90 AX6600 Tri-Band Wi-Fi 6 Gaming Router

Product form

SECURITY - Archer GX90 Network Security SPI FirewallAccess ControlIP & MAC BindingApplication Layer GatewayHomeCare™ AntivirusMalicious Site CheckerPort Intrusion PreventionInfected Device IsolationNotification... Read more

SKU: 0000053388

Out of stock

₱10,350.00 Excl. VAT

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO

    • Guaranteed secure & safe checkout.
    Description

    Description

    SECURITY - Archer GX90
    Network Security SPI Firewall
    Access Control
    IP & MAC Binding
    Application Layer Gateway

    HomeCare™ Antivirus
    Malicious Site Checker
    Port Intrusion Prevention
    Infected Device Isolation
    Notification and Log
    Guest Network 2× 5 GHz Guest Network
    1× 2.4 GHz Guest Network
    VPN Server OpenVPN
    PPTP
    VPN Client • Open VPN Client
    • PPTP VPN Client
    • L2TP VPN Client
    WiFi Encryption WPA
    WPA2
    WPA3
    WPA/WPA2-Enterprise (802.1x)
    WIRELESS
    Standards Wi-Fi 6
    IEEE 802.11ax/ac/n/a 5 GHz
    IEEE 802.11ax/n/b/g 2.4 GHz
    WiFi Speeds AX6600
    5 GHz: 4804 Mbps (802.11ax, HE160)
    5 GHz: 1201 Mbps (802.11ax)
    2.4 GHz: 574 Mbps (802.11ax)
    WiFi Range 4 Bedroom Houses
    8× Detachable High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas

    Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range

    High-Power FEM
    Improves transmission power to strengthen signal coverage

    4T4R
    Multiple streams in the same band strengthen the fault tolerance in transmission
    WiFi Capacity Very High
    Tri-Band
    Allocate devices to different bands for optimal performance

    4×4 MU-MIMO
    Simultaneously communicates with multiple MU-MIMO clients

    OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients

    Airtime Fairness
    Improves network efficiency by limiting excessive occupation

    DFS
    Access an extra band to reduce congestion

    8 Streams
    Connect your devices to more bandwidth
    Working Modes Router Mode
    Access Point Mode
    HARDWARE
    Processor 1.5 GHz Quad-Core CPU
    Ethernet Ports 1× 2.5 Gbps WAN/LAN Port
    1× Gigabit WAN/LAN Port
    3× Gigabit LAN Ports
    USB Support 1× USB 3.0 Port
    1× USB 2.0 Port

    Supported Partition Formats:
    NTFS, exFAT, HFS+, FAT32

    Supported Functions:
    Apple Time Machine
    FTP Server
    Media Server
    Samba Server
    Buttons Wi-Fi On/Off Button
    Power On/Off Button
    LED On/Off Button
    WPS Button
    Reset Button
    Power 12 V ⎓ 5 A
    SOFTWARE
    Protocols IPv4
    IPv6
    Game Center Game Accelerator
    Detects and optimizes gaming streams to keep latency as low as possible

    Game Statistics
    Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

    Game Protector
    Keep your accounts and system safe with HomeCare™ antivirus protection
    Service Kits HomeCare™
    Learn More>
    OneMesh™ OneMesh™ Supported
    Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
    Learn More>
    All OneMesh Products>
    Parental Controls HomeCare™ Parental Controls
    Custom Profiles
    Content Filtering
    App Block
    URL Filtering
    Time Limit
    Time Schedule (Bedtime)
    Log Insight
    WAN Types Dynamic IP
    Static IP
    PPPoE
    PPTP
    L2TP
    Quality of Service Game Accelerator QoS.

    QoS by Device

    HomeCare™ QoS
    QoS by Application
    Cloud Service Auto Firmware Upgrade
    OTA Firmware Upgrade
    TP-Link ID
    DDNS
    NAT Forwarding Port Forwarding
    Port Triggering
    DMZ
    UPnP
    IPTV IGMP Proxy
    IGMP Snooping
    Bridge
    Tag VLAN
    DHCP Address Reservation
    DHCP Client List
    Server
    DDNS TP-Link
    NO-IP
    DynDNS
    Management Tether App
    Webpage
    Check Web Emulator>
    OTHER
    System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

    Cable or DSL Modem (if needed)

    Subscription with an internet service provider (for internet access)
    Certifications FCC, CE, RoHS
    Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    TEST DATA
    WiFi Transmission Power CE:
    <20dBm(2.4GHz)
    <23dBm(5.15GHz~5.35GHz)
    <30dBm(5.47GHz~5.725GHz)
    FCC:
    <30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
    <24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz)
    WiFi Reception Sensitivity 5 GHz-1:
    11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
    11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
    11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
    11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
    11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
    11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
    11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm
    5 GHz-2 (Gaming Band):
    11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
    11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
    11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
    11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
    11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
    11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
    11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
    11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
    11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm
    2.4 GHz:
    11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
    11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
    11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
    11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
    11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
    11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
    11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm
    PHYSICAL
    Dimensions (W×D×H) 8.3 × 8.3 × 2.0 in
    (212 × 212 × 51.8 mm)
    Package Contents Wi-Fi Router Archer GX90
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
