Description

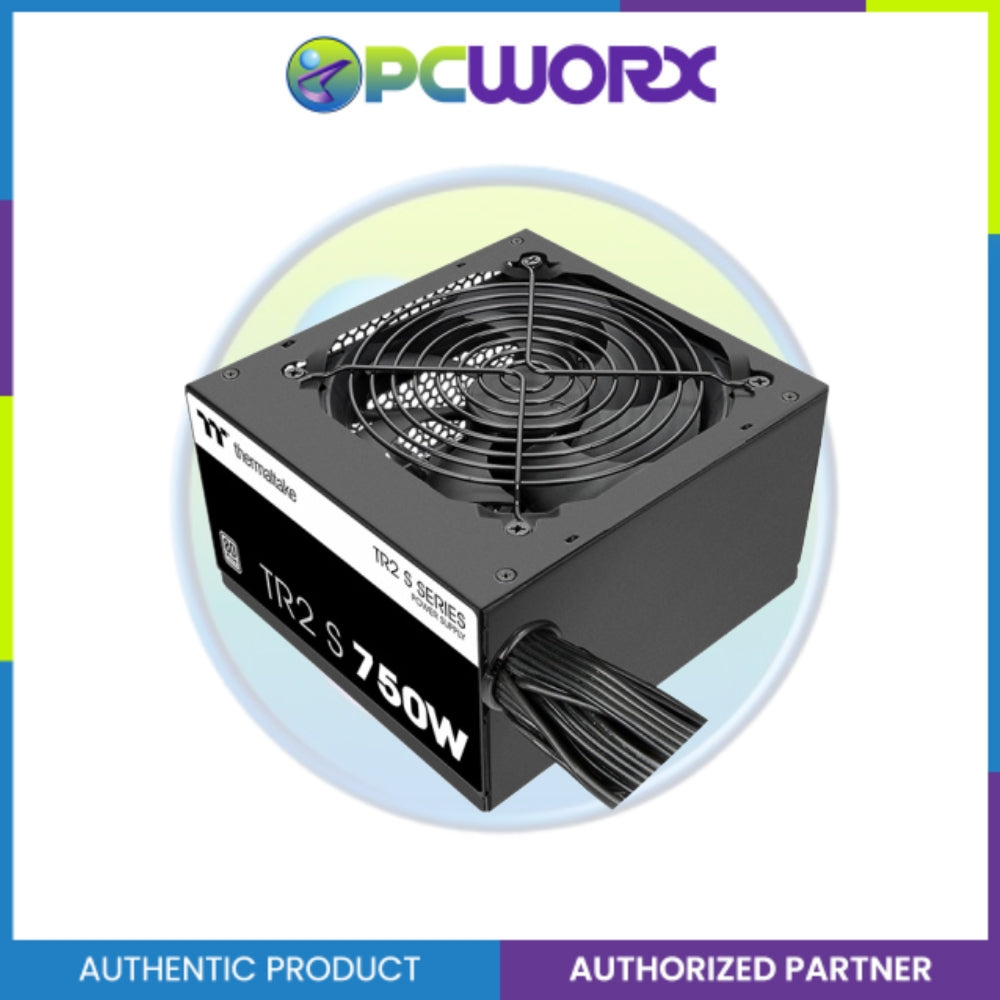

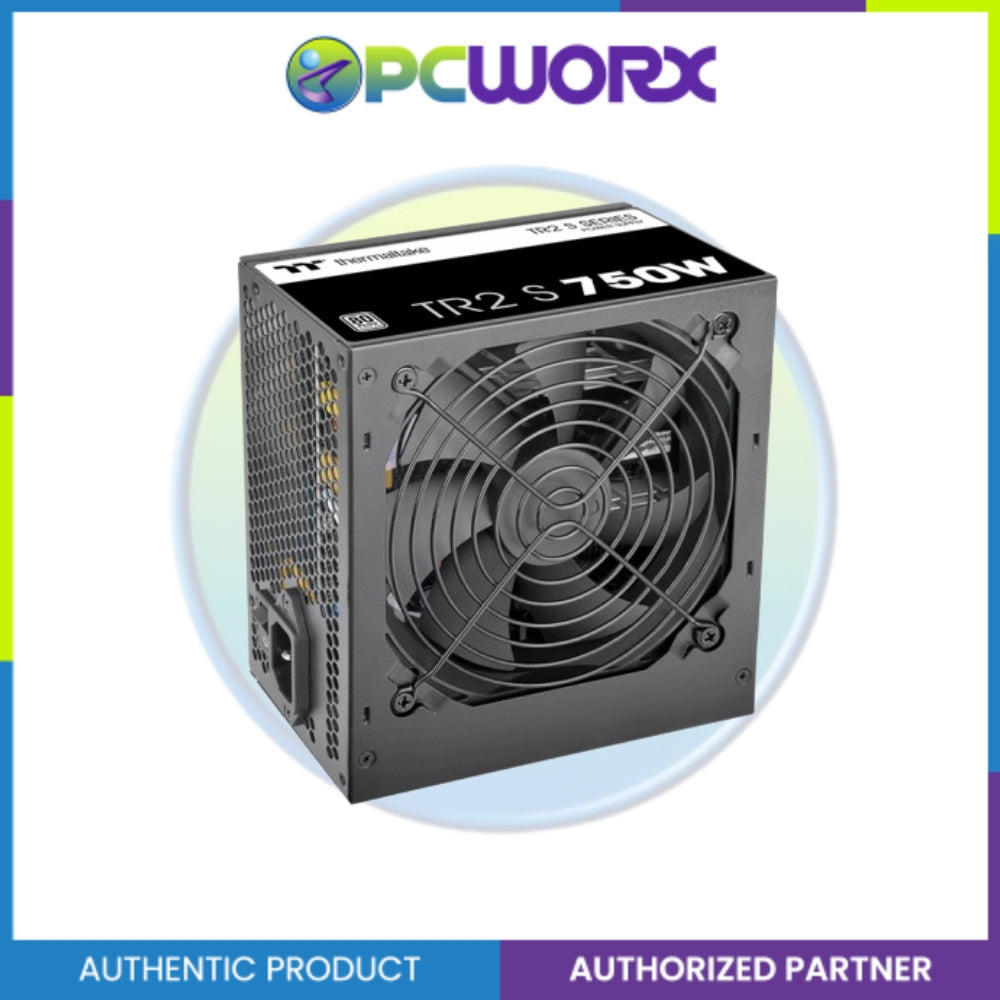

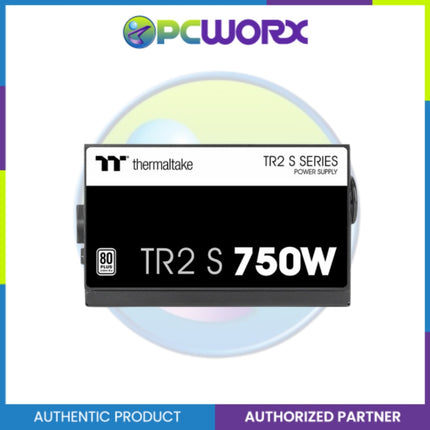

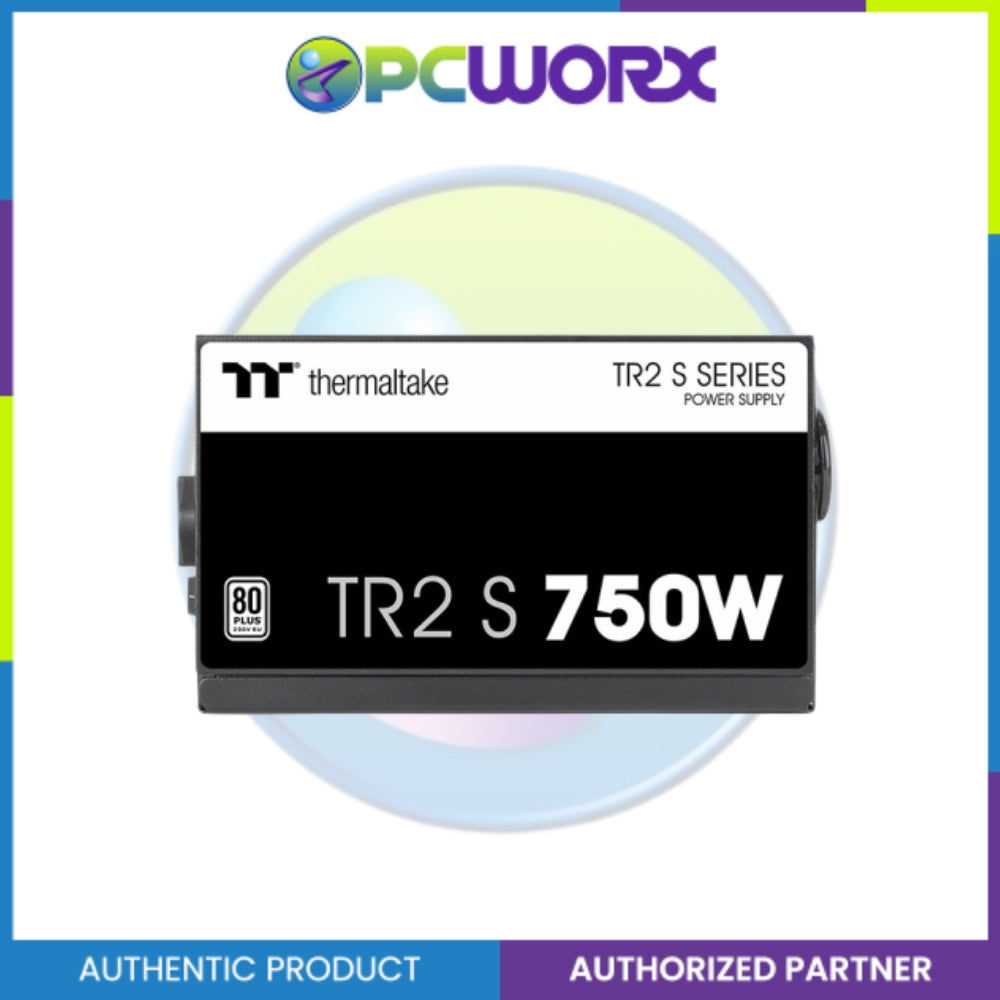

TR2 S 750W (DC to DC Version)
The TR2 S Series is certified by 80 PLUS 230V EU, saves energy through its high efficiency of up to 80% and accommodates any mainstream build with the most demanding requirements. An embedded Hydraulic Bearing Fan delivers excellent airflow at an exceptionally low noise level. Additionally, the single +12V rail design and DC-DC design enables non-stop usage with stable and reliable performance.

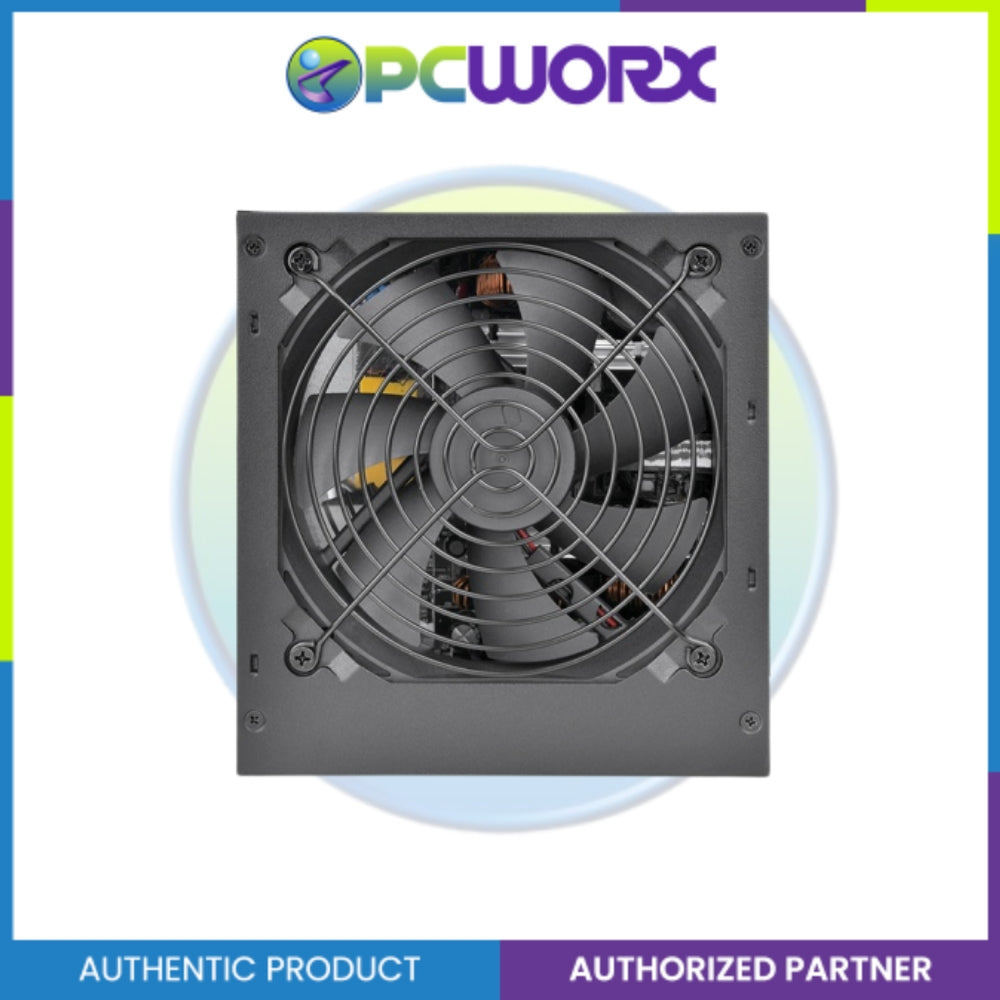

Ultra Quiet 120mm Fan
TR2 S Series adopts 120mm Hydraulic Bearing Fan to guarantee cool performance and silent operation.
80 PLUS 230V EU Certified
TR2 S Series saves energy through its high energy efficiency of up to 80% and is 80 PLUS® 230V Standard certified.
Multiple Connectors
The cables used for TR2 S Series are black and low-profile, users are able to properly route the cables in optimal location to prevent airflow blockage.
High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
High amperage Single +12V Rail & DC to DC Design
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. The use of DC-to-DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 200-240Vac
Input Current: 8A Max.
Frequency: 50Hz
|
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
| Max Output Current |
18A |
18A
|
62.5A
|
0.3A
|
2.5A |
| Max Output Power |
100W
|
750W |
3.6W
|
12.5W
|
| Continuous Power |
750W
|
SPECIFICATIONS
| WATTS |
750W (DC to DC) |
| MODEL |
TRS-750AH4NXW |
| DIMENSION ( W/H/D ) |
150mm(W)x86mm(H)x 140mM (D) |
| PFC (POWER FACTOR CORRECTION) |
Active PFC |
| POWER GOOD SIGNAL |
100-150 msec |
| HOLD UP TIME |
>17msec at 80% load |
| INPUT CURRENT
|
8A Max. |
| INPUT FREQUENCY RANGE
|
50Hz |
| INPUT VOLTAGE |
200-240Vac |
| OPERATING TEMPERATURE |
5°C to + 40°C |
| OPERATING HUMIDITY |
20% to 85%,non-condensing |
| STORAGE TEMPERATURE |
-40°C to + 55°C |
| STORAGE HUMIDITY |
10% to 95%, non-condensing |
| COOLING SYSTEM |
12cm Hydraulic Bearing Fan |
| EFFICIENCY |
80 PLUS® 230V EU Certified |
| MTBF |
100,000 hrs minimum |
| SAFETY APPROVAL |
FCC/ICES/CB/cTUVus |
| PCI-E 6+2PIN |
2 |
| PROTECTION
|
OVP/OPP/SCP |
