β±1,341.48

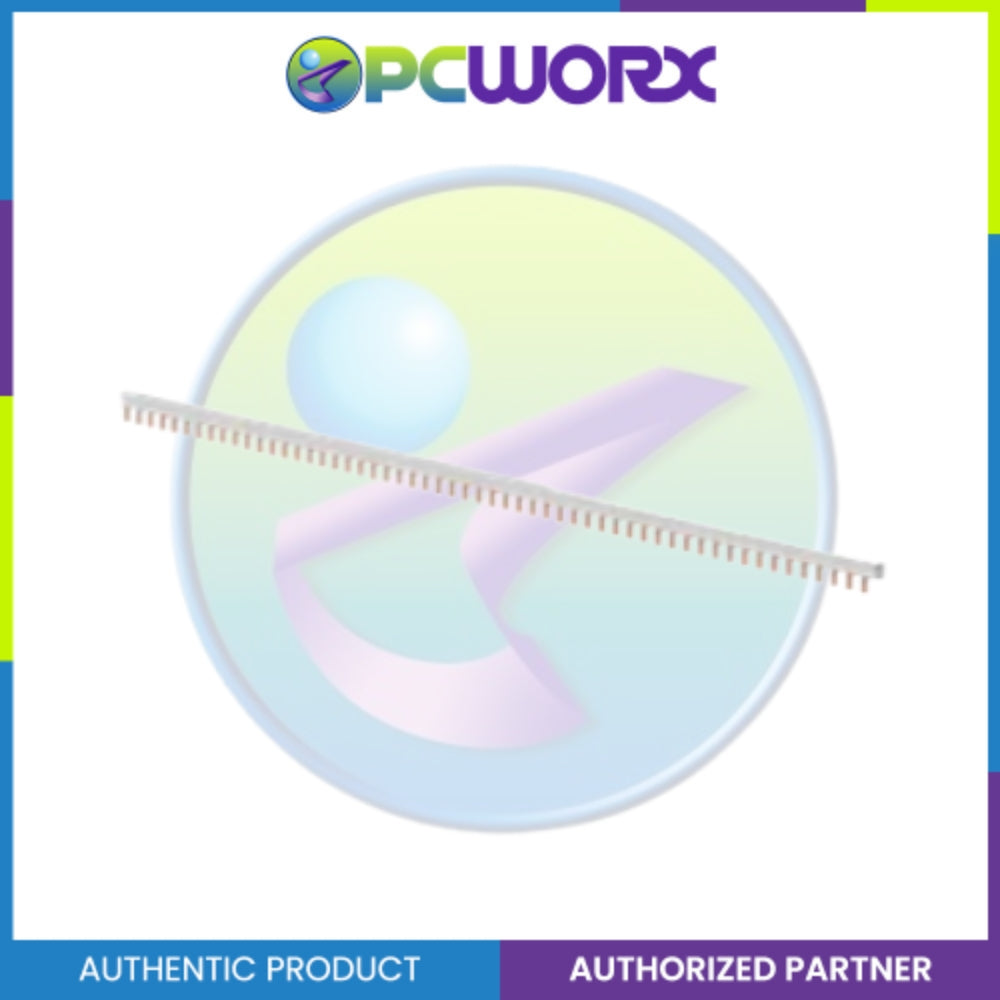

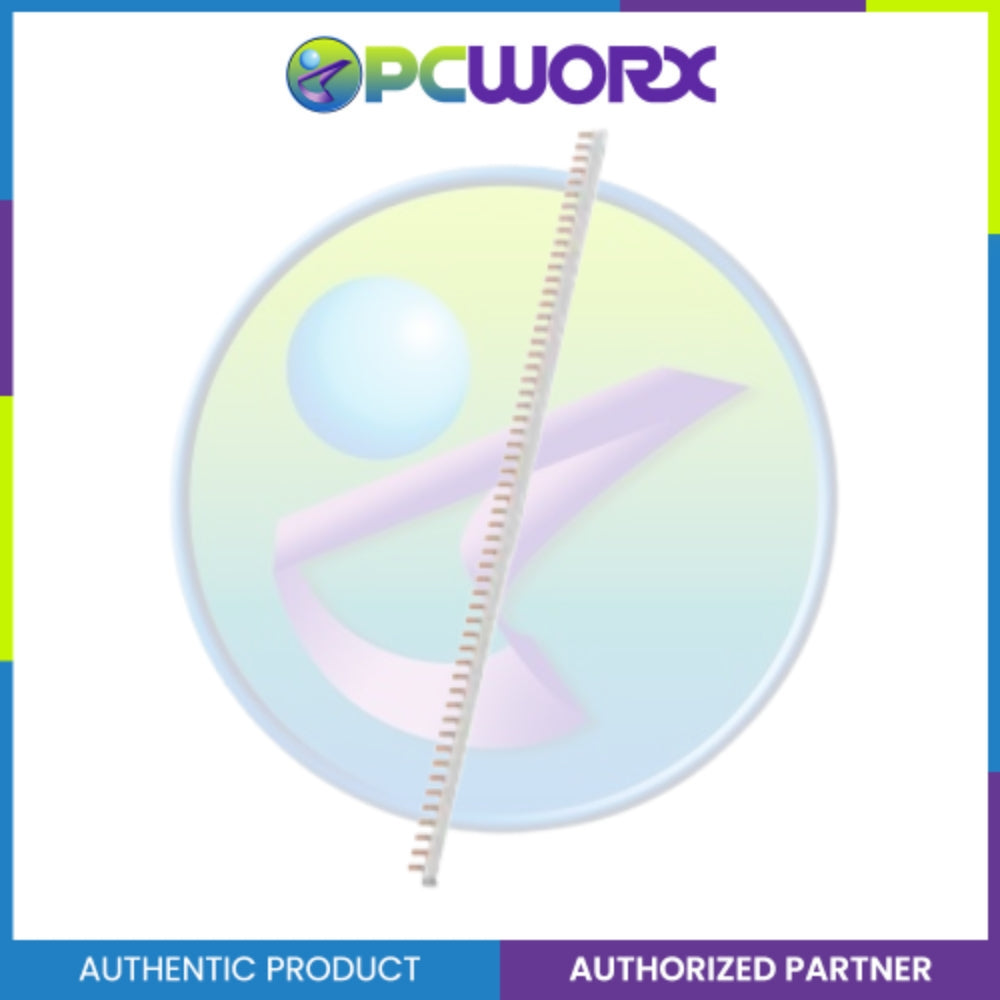

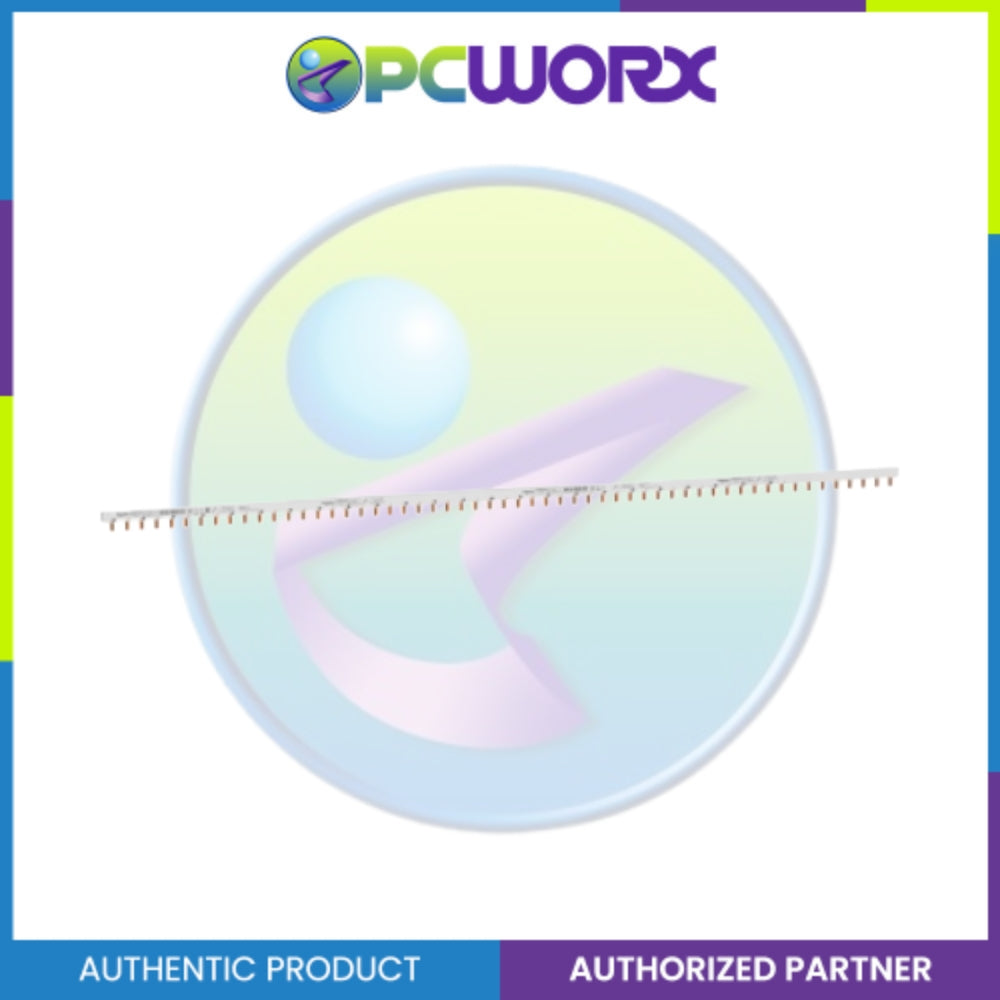

This Easy9 product is a horizontal comb busbar 57 modules. It is dedicated to 2L installations. It is a set of 1 device. It is suitable for 28 devices (1P+N or 2P). This comb busbar is compatible with Easy9 MCB, RCCB, RCBO and switch products. The total number of modules of 18mm is 57. The Ue rated operational voltage is 230VAC (phase to neutral) and 400VAC (phase to phase). The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz. Its width is 114 pitches of 9mm. The color is light grey (RAL7035). The degree of protection is IP20. The pollution degree is 3. According to IEC 60695-2-1 standard, the fire resistance is self-extinguishing at 850Β°C within 30s.
SPECIFICATIONS
| Range | Easy9 |
|---|---|
| Product or component type | Comb busbar |
| Mounting mode | Horizontal |
| Accessory / separate part category | Connection accessory |
| Lines description | 2L |
| Length in 18 mm modules | 57 |
| Standards | IEC 60439-1 IEC 60664 |
| Number of ways | 28 ways 2 L |
|---|---|
| Poles configuration for 1 way | 1 x 2P |
| Connection pitch | 18 mm |
| Connector type | Tooth |
| Distance between way | 36 mm |
| Insulation | Insulated |
| Device presentation | Cuttable |
| Provided equipment | 2 end piece |
| [Ie] rated operational current | 63 A at 40 Β°C |
| [Ue] rated operational voltage | 230 V AC 50 Hz Ph/N 400 V AC 50 Hz Ph/Ph |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-1 |
| Mounting location | Top on tunnel type terminals |
| 9 mm pitches | 114 |
| Width | 1000 mm |
| Colour | Light grey (RAL 7035) |
| Range compatibility | Easy9 Easy9 XP |
| Fire resistance | 850 Β°C ( 30 s ) conforming to IEC 60695-2-1 |
|---|---|
| Pollution degree | 2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.000 cm |
| Package 1 Width | 2.500 cm |
| Package 1 Length | 100.000 cm |
| Package 1 Weight | 300.000 g |
