₱776.16

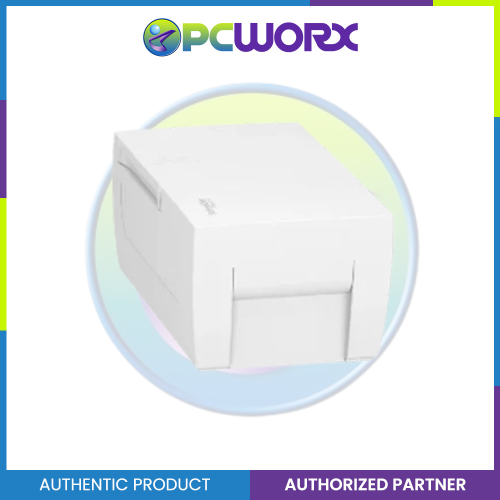

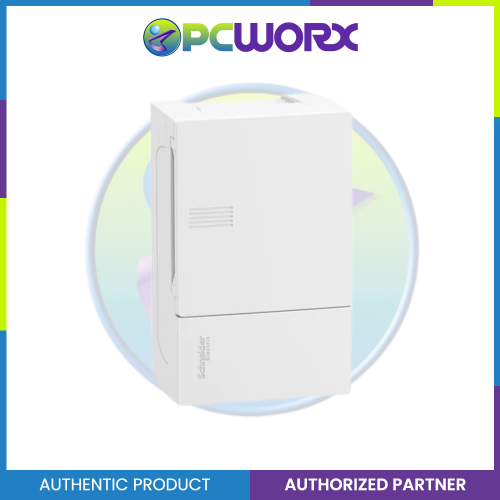

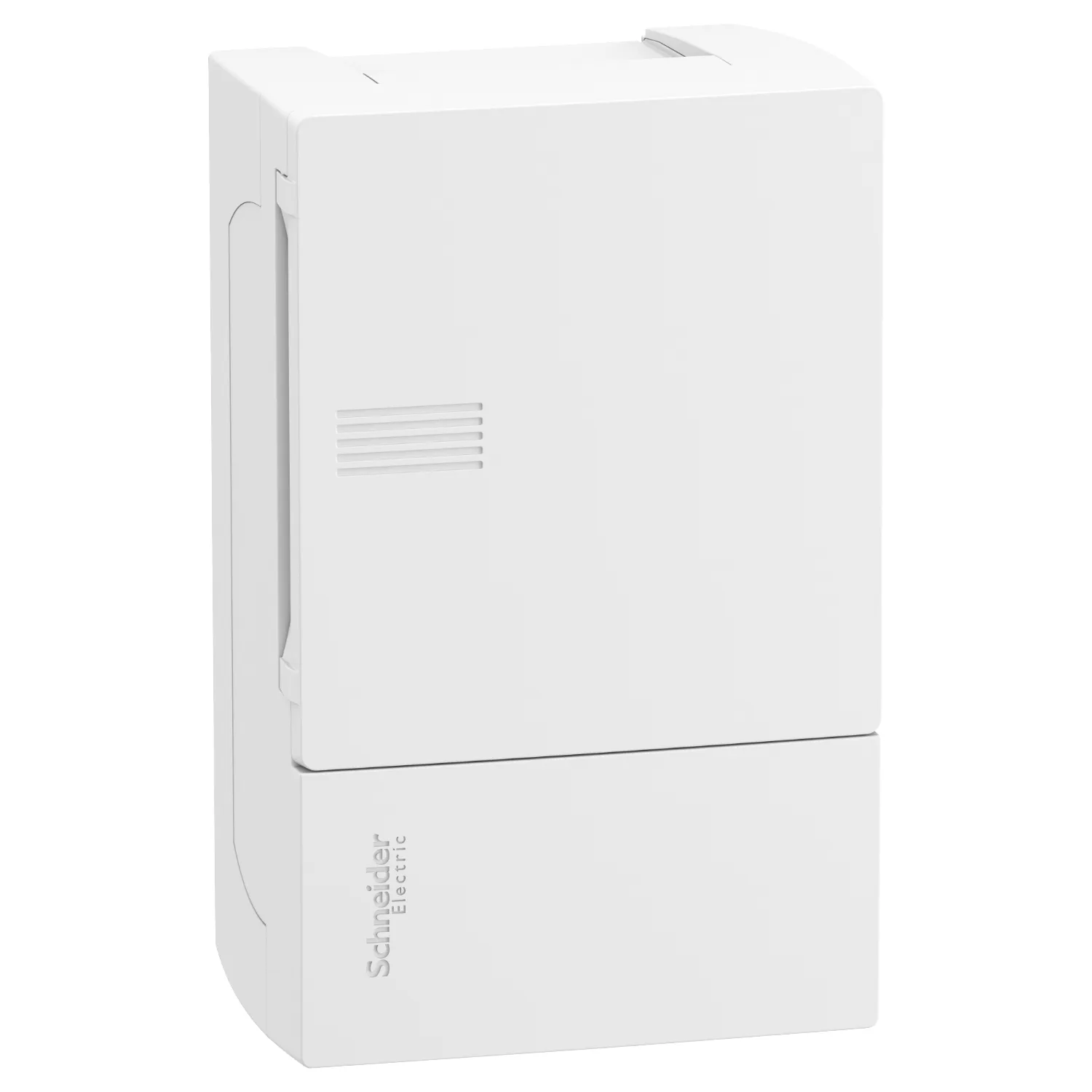

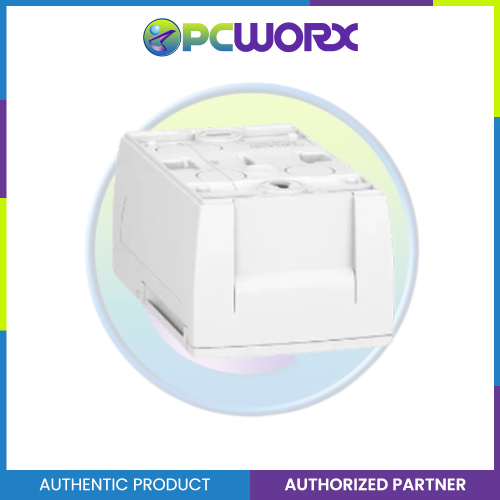

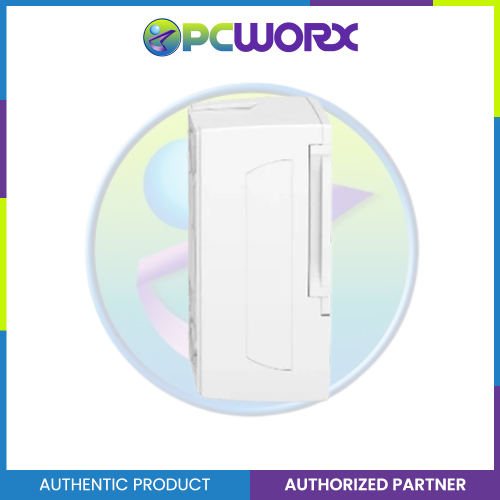

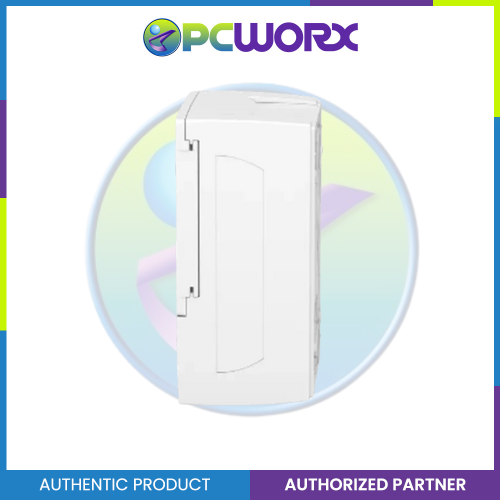

This Resi9 MP enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 50A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 124mm x (H) 198mm x (D) 95mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 650°C for the door, the back part and the front face. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.| Parameter | Specification |
|---|---|
| Range | Resi9 |
| Product name | Resi9 MP |
| Product or component type | Enclosure |
| Enclosure type | Modular enclosure |
| Nb of 18 mm modules per row | 4 |
| Nb of horizontal rows | 1 |
| Type of door | Plain |
| Parameter | Specification |
|---|---|
| Width | Outside: 124 mm |
| Height | Outside: 198 mm |
| Depth | Outside: 95 mm |
| Internal depth | 74 mm |
| Parameter | Specification |
|---|---|
| Enclosure mounting | Surface |
| 9 mm pitches | 8 |
| Total number of 18 mm modules | 4 |
| Rated current | 50 A |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate description | Without mounting plate |
| Cable entry | 1 bare flange, 1 trunking flange |
| Terminal block function | Earth / Neutral |
| Parameter | Specification |
|---|---|
| Number of terminal blocks | 1 earth (screwed) with 4 outgoers 1 neutral (screwed) with 4 outgoers |
| Distribution block outgoers | 1 × 16 mm² (earth) 1 × 16 mm² (neutral) 1 × 6 mm² (earth) 1 × 6 mm² (neutral) 2 × 10 mm² (earth) 2 × 10 mm² (neutral) |
| Parameter | Specification |
|---|---|
| Enclosure material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
| Parameter | Specification |
|---|---|
| Door | White (RAL 9003) |
| Front face | White (RAL 9003) |
| Parameter | Specification |
|---|---|
| Market segment | Small commercial Residential |
| Parameter | Specification |
|---|---|
| Standards | IEC 60670-1 IEC 60670-24 |
| Quality labels | IMQ |
| Fire resistance | Door: 650 °C Back part: 650 °C Front face: 650 °C |
| IP degree of protection | IP40 |
| IK degree of protection | IK07 |
| Ambient air temperature for operation | −25…60 °C |
| Package | Details |
|---|---|
| Package 1 | Unit type: PCE Units: 1 Height: 9.55 cm Width: 12.4 cm Length: 19.8 cm Weight: 400 g |
