Schneider Enclosure Resi9 MP Flush Mounting 2 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22212

Schneider Enclosure Resi9 MP Flush Mounting 2 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22212

(0)

SKU: 0000064433

₱2,096.40

Out of stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 11 and June 13.

In stock and ready to ship

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm

Schneider Enclosure Resi9 MP Flush Mounting 2 Rows of 12 Modules IP40 White Door 1 Earth + 1 Neutral Terminal Blocks MIP22212

₱2,096.40

Authorized Seller

100% Original Authentic Product

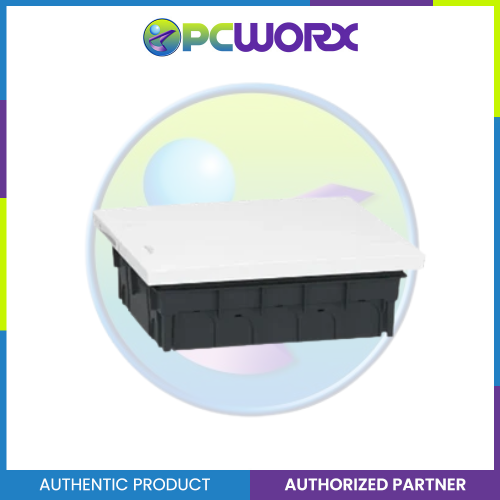

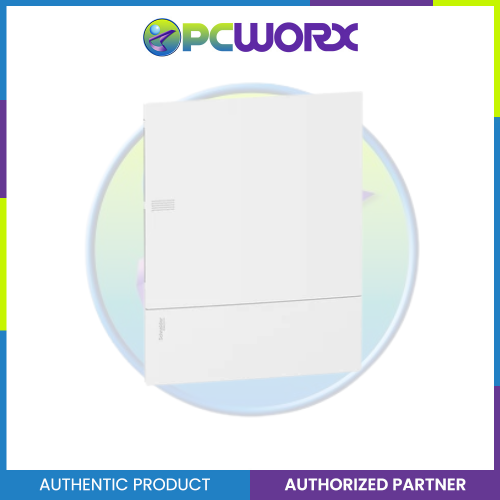

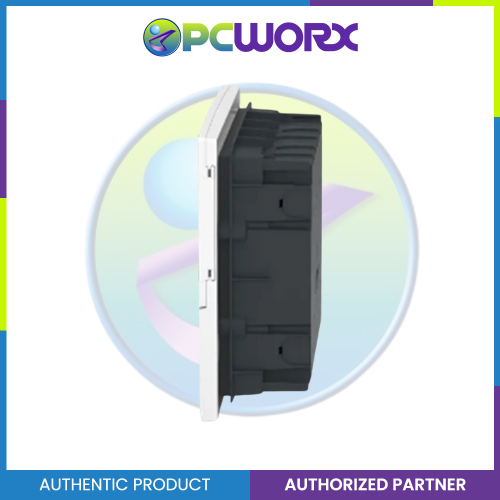

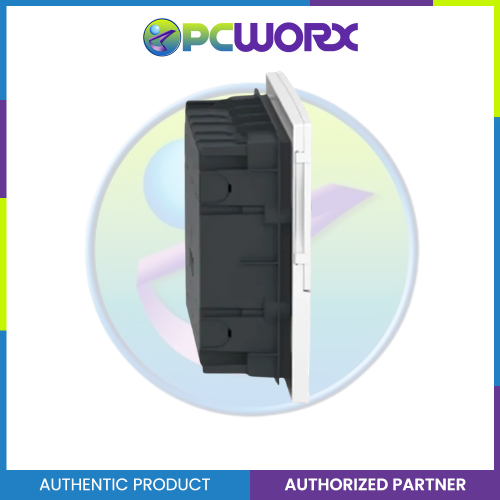

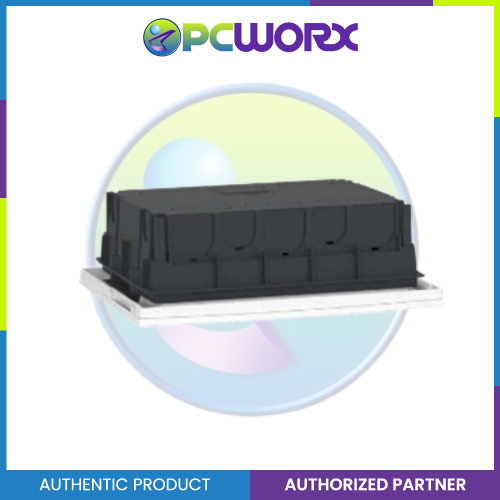

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 6x6mm² + 8x10mm² + 8x10mm²). The neutral one provides 16 outgoers (2x16mm² + 6x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 294mm x (H) 377mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.

Category	Specification
Range	Resi9
Product Name	Resi9 MP
Product Type	Enclosure
Enclosure Type	Modular enclosure
Modules per Row (18 mm)	12
Number of Horizontal Rows	2
Type of Door	Plain
Dimensions (Wall / Outside / Total)	Width: 270 mm / 294 mmHeight: 353 mm / 377 mmDepth: 80 mm / 18 mm / 98 mm
Internal Depth	76 mm
Enclosure Mounting	Flush
9 mm Pitches	24
Total Number of 18 mm Modules	24
Rated Current [In]	63 A
Rail Type	35 mm asymmetrical rail
Mounting Plate	Without mounting plate
Cable Entry	Pre‑cutted holes
Terminal Blocks	1 Earth (screwed, 16 outgoers)1 Neutral (screwed, 16 outgoers)
Distribution Block Outgoers	Earth: 2×16 mm², 6×6 mm², 8×10 mm²Neutral: 2×16 mm², 6×6 mm², 8×10 mm²
Material	Back part: technoplasticDoor: technoplasticFront face: technoplastic
Colour	Door: White (RAL 9003)Front face: White (RAL 9003)
Market Segment	Small commercial, Residential
Standards	IEC 60670‑1, IEC 60670‑24
Quality Labels	IMQ
Fire Resistance	Door: 650 °CBack part: 650 °CFront face: 650 °C
IP Protection	IP40
IK Protection	IK07
