₱1,867.20

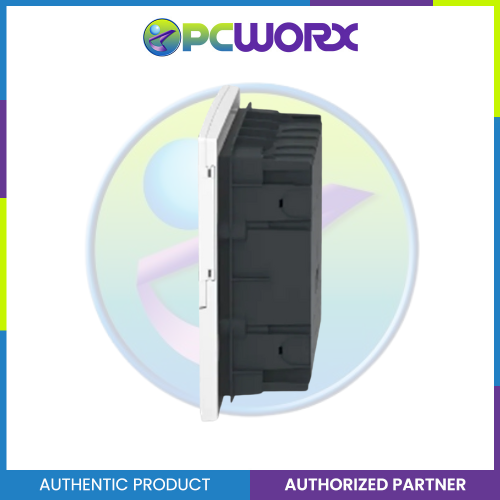

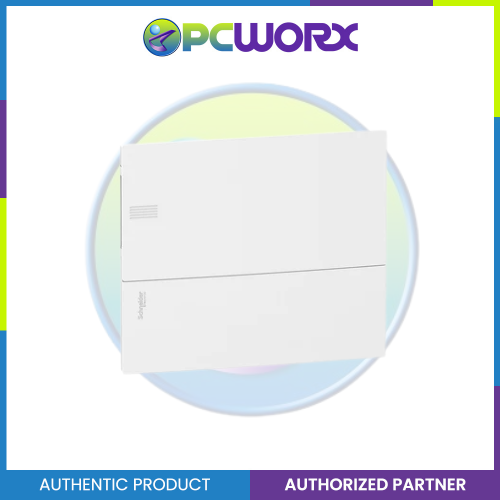

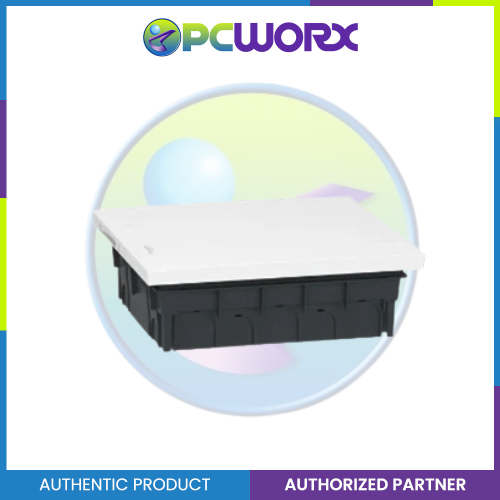

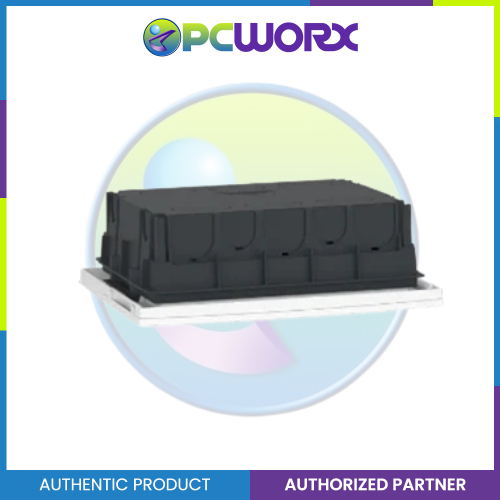

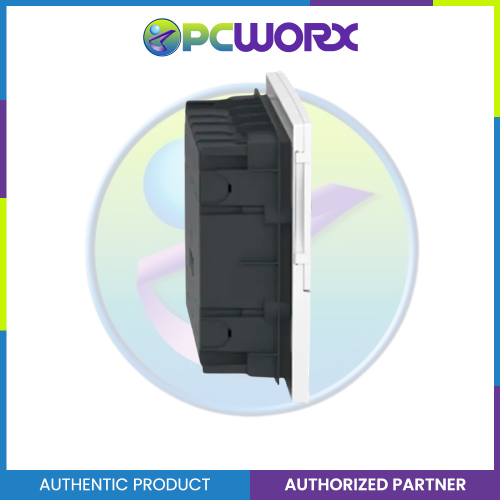

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 1 row of 18 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a plain white door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The neutral one provides 16 outgoers (2x16mm² + 8x10mm² + 6x6mm²). The In rated current is up to 63A. It complies with IEC 60439-1 and 3, IEC 60670-1 and 24 standards. The total dimensions are (W) 402mm x (H) 252mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
| Category | Specification | Details |
|---|---|---|
| Main | Range | Resi9 |
| Product Name | Resi9 MP | |
| Product / Component Type | Enclosure | |
| Enclosure Type | Modular enclosure | |
| Modules per Row (18 mm) | 18 | |
| Number of Horizontal Rows | 1 | |
| Door Type | Plain | |
| Width | Wall: 378 mm · Outside: 402 mm | |
| Height | Wall: 228 mm · Outside: 252 mm | |
| Depth | Outside: 18 mm · Wall: 80 mm · Total: 98 mm | |
| Complementary | Enclosure Mounting | Flush |
| 9 mm Pitches | 36 | |
| Total 18 mm Modules | 18 | |
| Rated Current [In] | 63 A | |
| Rail Type | 35 mm asymmetrical rail | |
| Mounting Plate | Without mounting plate | |
| Cable Entry | Pre-cutted holes | |
| Terminal Block Function | Earth / Neutral | |
| Terminal Blocks | 1 earth (screwed) with 16 outgoers 1 neutral (screwed) with 16 outgoers |
|
| Distribution Block Outgoers | Earth: 2×16 mm², 6×6 mm², 8×10 mm² Neutral: 2×16 mm², 6×6 mm², 8×10 mm² |
|
| Enclosure Material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
|
| Internal Depth | 76 mm | |
| Colour | Door: White (RAL 9003) Front face: White (RAL 9003) |
|
| Market Segment | Small commercial, Residential | |
| Environment | Standards | IEC 60670-1, IEC 60670-24 |
| Quality Labels | IMQ | |
| Fire Resistance | Door: 650 °C Back part: 650 °C Front face: 650 °C |
|
| IP Protection | IP40 | |
| IK Protection | IK07 | |
| Operating Temperature | −25 to 60 °C | |
| Packing Units – Package 1 | Unit Type | PCE |
| Units per Package | 1 | |
| Dimensions (H × W × L) | 9.9 × 40.2 × 25.2 cm | |
| Weight | 1.2 kg |
