β±1,176.00
| Category | Specification |
|---|---|
| Main Range | Resi9 |

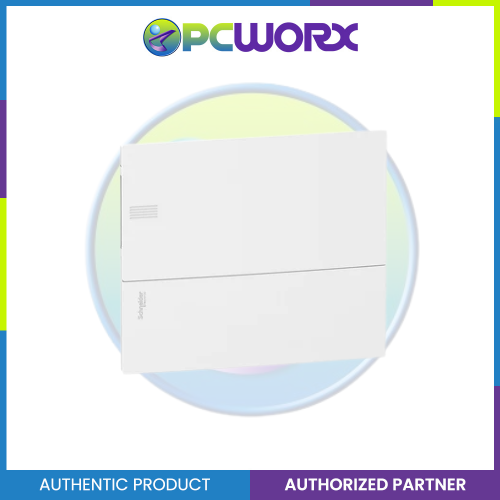

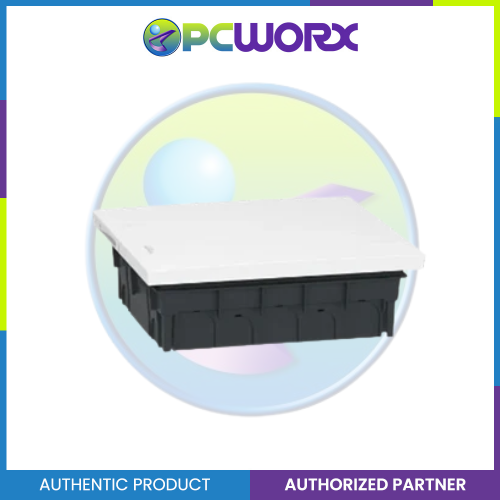

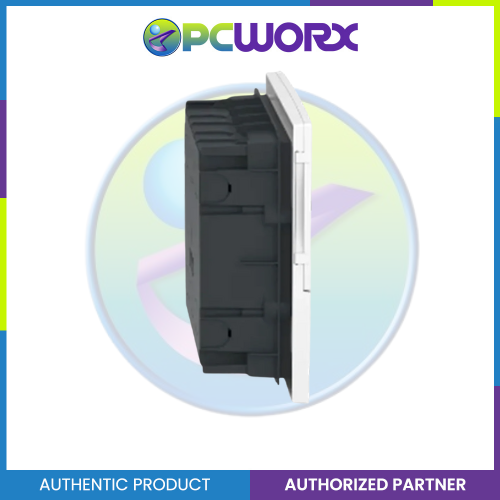

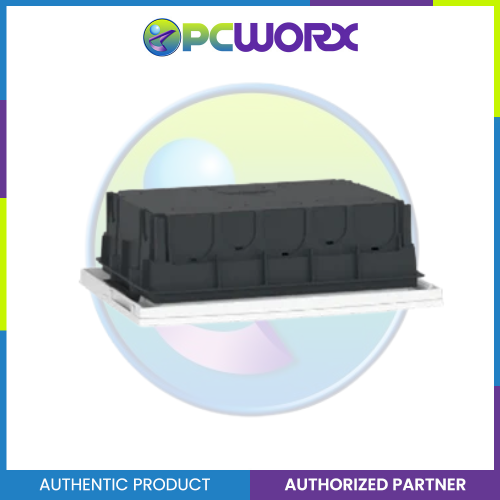

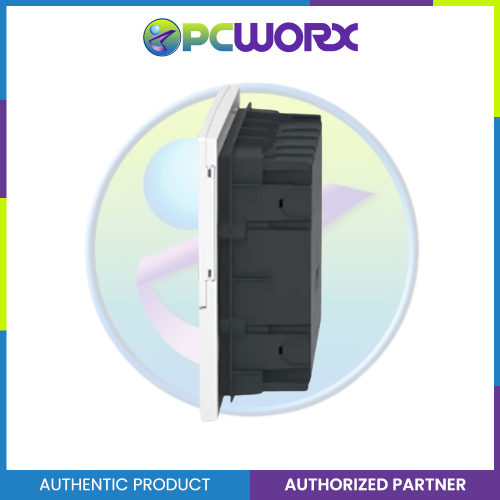

| Product Name | Resi9 MP |
| Product / Component Type | Enclosure |
| Enclosure Type | Modular enclosure |
| Market Segment | Residential, Small commercial |
| Specification | Value |
|---|---|
| Nb of 18 mm modules per row | 12 |
| Nb of horizontal rows | 1 |
| Total number of 18 mm modules | 12 |
| 9 mm pitches | 24 |
| Type of door | Plain |
| Enclosure mounting | Flush |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate | Without mounting plate |
| Cable entry | Pre-cutted holes |
| Internal depth | 76 mm |
| Specification | Value |
|---|---|
| Rated current [In] | 63 A |
| Terminal block function | Earth / Neutral |
| Number of terminal blocks | 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers |
| Distribution block outgoers | 1 Γ 16 mmΒ² (earth) 1 Γ 16 mmΒ² (neutral) 3 Γ 6 mmΒ² (earth) 3 Γ 6 mmΒ² (neutral) 4 Γ 10 mmΒ² (earth) 4 Γ 10 mmΒ² (neutral) |
| Dimension Type | Measurement |
|---|---|
| Width (Wall) | 270 mm |
| Width (Outside) | 294 mm |
| Height (Wall) | 228 mm |
| Height (Outside) | 252 mm |
| Depth (Outside) | 18 mm |
| Depth (Wall) | 80 mm |
| Total Depth | 98 mm |
| Specification | Value |
|---|---|
| Enclosure Material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
| Colour | Door: white (RAL 9003) Front face: white (RAL 9003) |
| Specification | Value |
|---|---|
| Standards | IEC 60670-1 IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Door: 650 Β°C Back part: 650 Β°C Front face: 650 Β°C |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
| Ambient Temperature (operation) | -25β¦60 Β°C |
| Specification | Value |
|---|---|
| Unit Type | PCE |
| Units per Package | 1 |
| Package Height | 9.800 cm |
| Package Width | 29.400 cm |
| Package Length | 25.200 cm |
| Package Weight | 873.000 g |
β±1,176.00
Estimated delivery between June 11 and June 13.
Delivery Information
Metro Manila: 2β3 days | Provincial: 3β7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1β2 hours after checkout MonβSat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
β±1,176.00
β±1,176.00
Authorized Seller
100% Original Authentic Product
| Category | Specification |
|---|---|
| Main Range | Resi9 |
| Product Name | Resi9 MP |
| Product / Component Type | Enclosure |
| Enclosure Type | Modular enclosure |
| Market Segment | Residential, Small commercial |
| Specification | Value |
|---|---|
| Nb of 18 mm modules per row | 12 |
| Nb of horizontal rows | 1 |
| Total number of 18 mm modules | 12 |
| 9 mm pitches | 24 |
| Type of door | Plain |
| Enclosure mounting | Flush |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate | Without mounting plate |
| Cable entry | Pre-cutted holes |
| Internal depth | 76 mm |
| Specification | Value |
|---|---|
| Rated current [In] | 63 A |
| Terminal block function | Earth / Neutral |
| Number of terminal blocks | 1 earth (screwed) with 8 outgoers 1 neutral (screwed) with 8 outgoers |
| Distribution block outgoers | 1 Γ 16 mmΒ² (earth) 1 Γ 16 mmΒ² (neutral) 3 Γ 6 mmΒ² (earth) 3 Γ 6 mmΒ² (neutral) 4 Γ 10 mmΒ² (earth) 4 Γ 10 mmΒ² (neutral) |
| Dimension Type | Measurement |
|---|---|
| Width (Wall) | 270 mm |
| Width (Outside) | 294 mm |
| Height (Wall) | 228 mm |
| Height (Outside) | 252 mm |
| Depth (Outside) | 18 mm |
| Depth (Wall) | 80 mm |
| Total Depth | 98 mm |
| Specification | Value |
|---|---|
| Enclosure Material | Back part: technoplastic Door: technoplastic Front face: technoplastic |
| Colour | Door: white (RAL 9003) Front face: white (RAL 9003) |
| Specification | Value |
|---|---|
| Standards | IEC 60670-1 IEC 60670-24 |
| Quality Labels | IMQ |
| Fire Resistance | Door: 650 Β°C Back part: 650 Β°C Front face: 650 Β°C |
| IP Degree of Protection | IP40 |
| IK Degree of Protection | IK07 |
| Ambient Temperature (operation) | -25β¦60 Β°C |
| Specification | Value |
|---|---|
| Unit Type | PCE |
| Units per Package | 1 |
| Package Height | 9.800 cm |
| Package Width | 29.400 cm |
| Package Length | 25.200 cm |
| Package Weight | 873.000 g |
