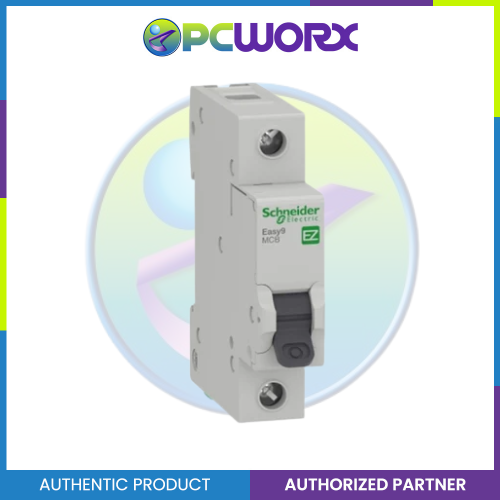

Schneider Electric Easy9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 220/400V 10 KAIC (EZ9F51140)

Schneider Electric Easy9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 220/400V 10 KAIC (EZ9F51140)

(0)
SKU: 0000064462

β‚±252.84

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 11 and June 13.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Schneider Electric Easy9 IEC, 1-Pole 40A DIN-Rail Type Circuit Breaker 220/400V 10 KAIC (EZ9F51140)

β‚±252.84

β‚±252.84

Authorized Seller

100% Original Authentic Product

Parameter Specification
Range Easy9
Device application Distribution
Product or component type Miniature circuit-breaker
Device short name Easy9 MCB
Poles 1P
Number of protected poles 1
Rated current [In] 40 A
Network type AC
Trip unit technology Thermal-magnetic
Curve code C
Breaking capacity 10,000 A Icn at 230 V AC / 400 V AC conforming to IEC 60898-1
Suitability for isolation Yes, conforming to IEC 60898-1
Parameter Specification
Network frequency 50/60 Hz
Rated operational voltage [Ue] 230 V AC 50/60 Hz
Magnetic tripping limit 5…10 Γ— In
Rated service breaking capacity [Ics] 7,500 A (75% Γ— Icn) at 230 V AC
Limitation class 3, IEC 60898-1
Rated insulation voltage [Ui] 500 V AC
Rated impulse withstand voltage [Uimp] 4 kV
Contact position indicator Yes
Control type Toggle
Local signalling Without
Parameter Specification
Mounting mode Clip-on
Mounting support DIN rail
9 mm pitches 2
Height 81 mm
Width 18 mm
Depth 66.5 mm
Colour Grey (RAL 7035)
Mechanical durability 20,000 cycles
Electrical durability 4,000 cycles
Parameter Specification
Terminals Tunnel type terminal (top or bottom) 1–25 mmΒ² flexible, 1–35 mmΒ² rigid
Wire stripping length 14 mm (top or bottom)
Tightening torque 3.5 N.m (top or bottom)
Earth-leakage protection Without
Parameter Specification
Standards IEC 60898-1
Product certifications CE
IP degree of protection IP20 (IEC 60529)
Pollution degree 2
Tropicalisation 2
Relative humidity 95% at -5…60 Β°C
Ambient air temperature for operation -5…60 Β°C
Ambient air temperature for storage -40…85 Β°C
Unit Type Number of Units Dimensions (H Γ— W Γ— L) Weight
PCE 1 7.4 cm Γ— 1.8 cm Γ— 8.5 cm 120 g
BB1 12 8.8 cm Γ— 7.8 cm Γ— 22.6 cm 1.44 kg
S03 144 30 cm Γ— 30 cm Γ— 40 cm 17.28 kg
