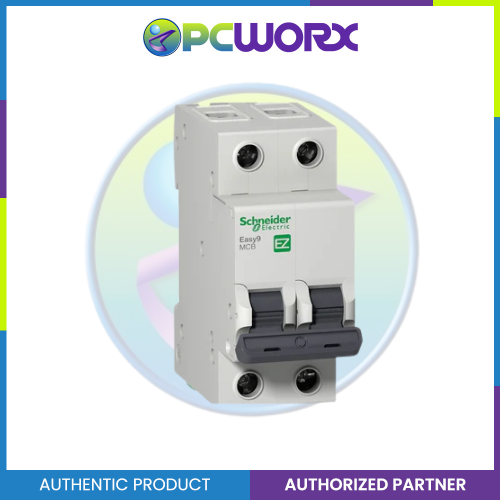

Schneider Easy9 IEC 2P 63A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56263

(0)

SKU: 0000064483

₱420.84

In stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 11 and June 13.

In stock and ready to ship

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm

Schneider Easy9 IEC 2P 63A C DIN-Rail Type Miniature Circuit Breaker 230V 6kAIC EZ9F56263

₱420.84

Authorized Seller

100% Original Authentic Product

Specifications
Main
Range
Easy9
Device application
Distribution
Product or component type
Miniature circuit-breaker
Device short name
Easy9 MCB
Poles
2P
Number of protected poles
2
[In] rated current
63 A
Network type
AC
Trip unit technology
Thermal-magnetic
Curve code
C
Breaking capacity
10000 A Icn at 220 V AC 50/60 Hz conforming to IEC 60898-1
6000 A Icn at 400 V AC 50/60 Hz conforming to IEC 60898-1
Suitability for isolation
Yes conforming to IEC 60898-1
Complementary
Network frequency
50/60 Hz
[Ue] rated operational voltage
220 V AC 50/60 Hz
400 V AC 50/60 Hz
Magnetic tripping limit
5...10 x In
[Ics] rated service breaking capacity
6 kA 100 % x Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1
[Ui] rated insulation voltage
500 V AC 50/60 Hz conforming to IEC 60898-1
[Uimp] rated impulse withstand voltage
4 kV conforming to IEC 60898-1
Contact position indicator
Yes
Control type
Toggle
Local signalling
Without
Mounting mode
Clip-on
Mounting support
DIN rail
9 mm pitches
4
Height
81 mm
Width
36 mm
Depth
66.5 mm
Colour
Grey (RAL 7035)
Mechanical durability
10000 cycles
Electrical durability
4000 cycles
Connections - terminals
Tunnel type terminal (top or bottom) 1…25 mm² flexible
Tunnel type terminal (top or bottom) 1…35 mm² rigid
Tightening torque
3.5 N.m top or bottom
Earth-leakage protection
Without
Environment
Standards
IEC 60898-1
Product certifications
CE
IP degree of protection
IP20 conforming to IEC 60529
Pollution degree
2
Tropicalisation
2
Relative humidity
95 % at -5…60 °C
Ambient air temperature for operation
-5…60 °C
Ambient air temperature for storage
-40…85 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.500 cm
Package 1 Width
3.500 cm
Package 1 Length
8.500 cm
Package 1 Weight
246.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2
6
Package 2 Height
8.000 cm
Package 2 Width
9.000 cm
Package 2 Length
22.500 cm
Package 2 Weight
1.545 kg
Unit Type of Package 3
S03
Number of Units in Package 3
72
Package 3 Height
30.000 cm
Package 3 Width
30.000 cm
Package 3 Length
40.000 cm
Package 3 Weight
19.166 kg
