₱44,323.20

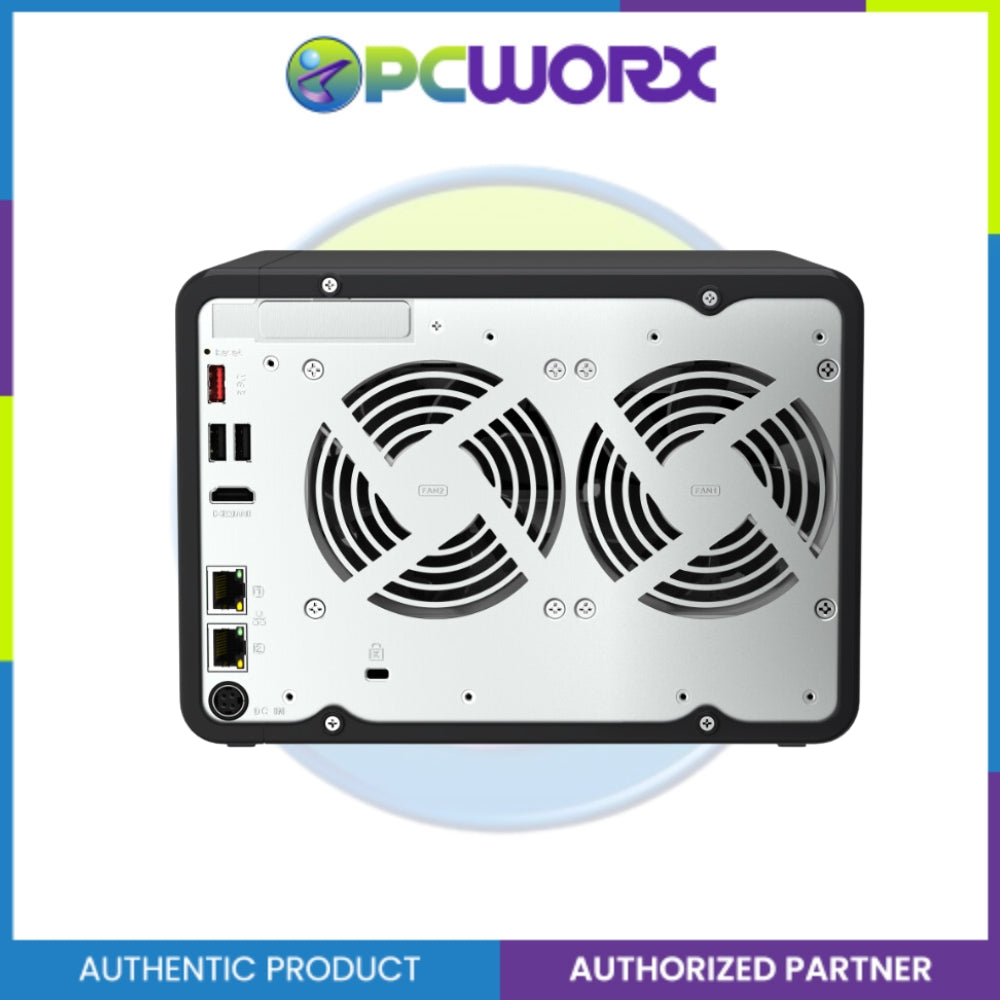

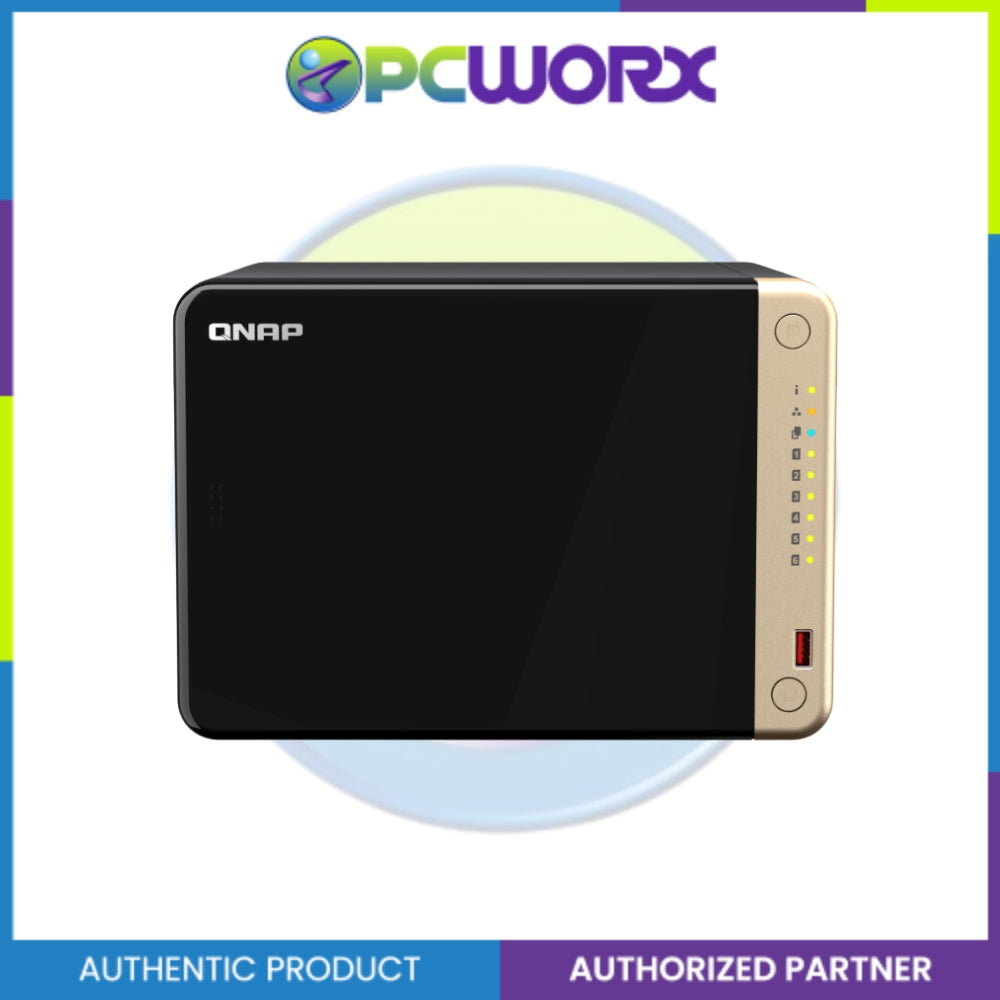

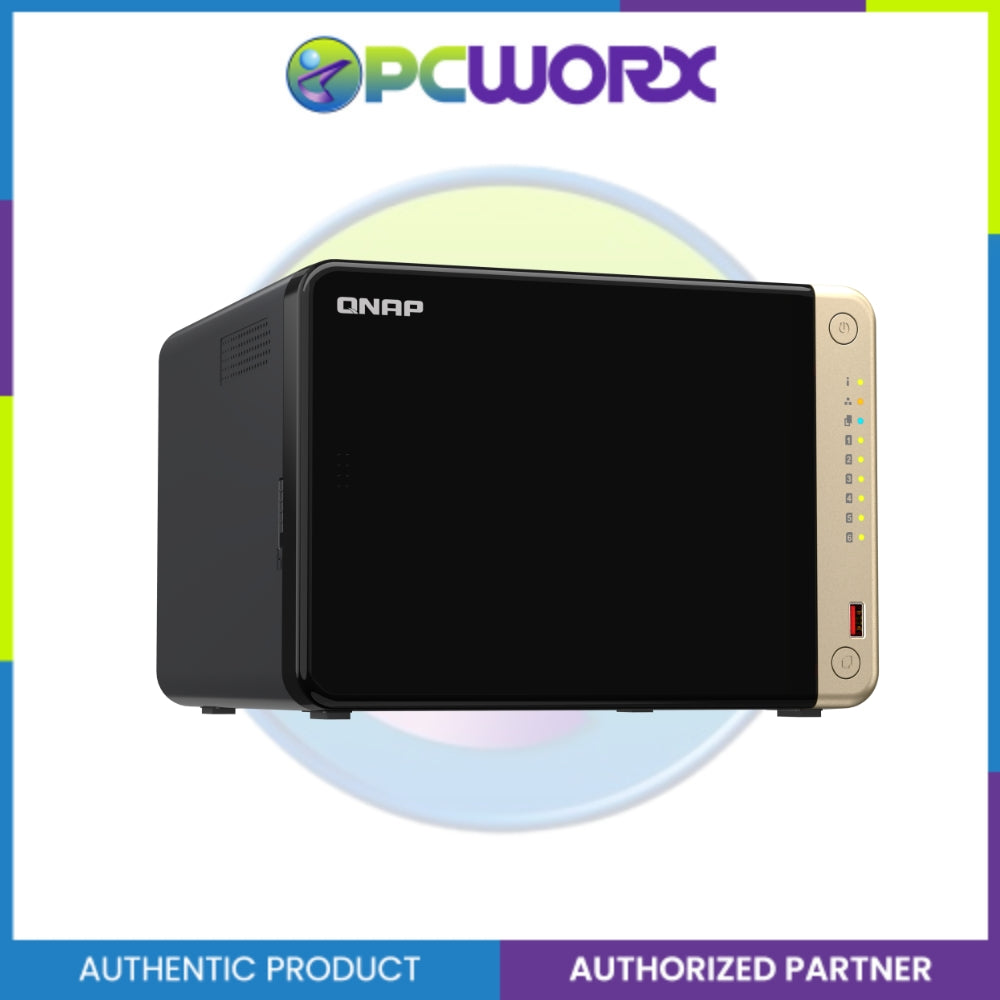

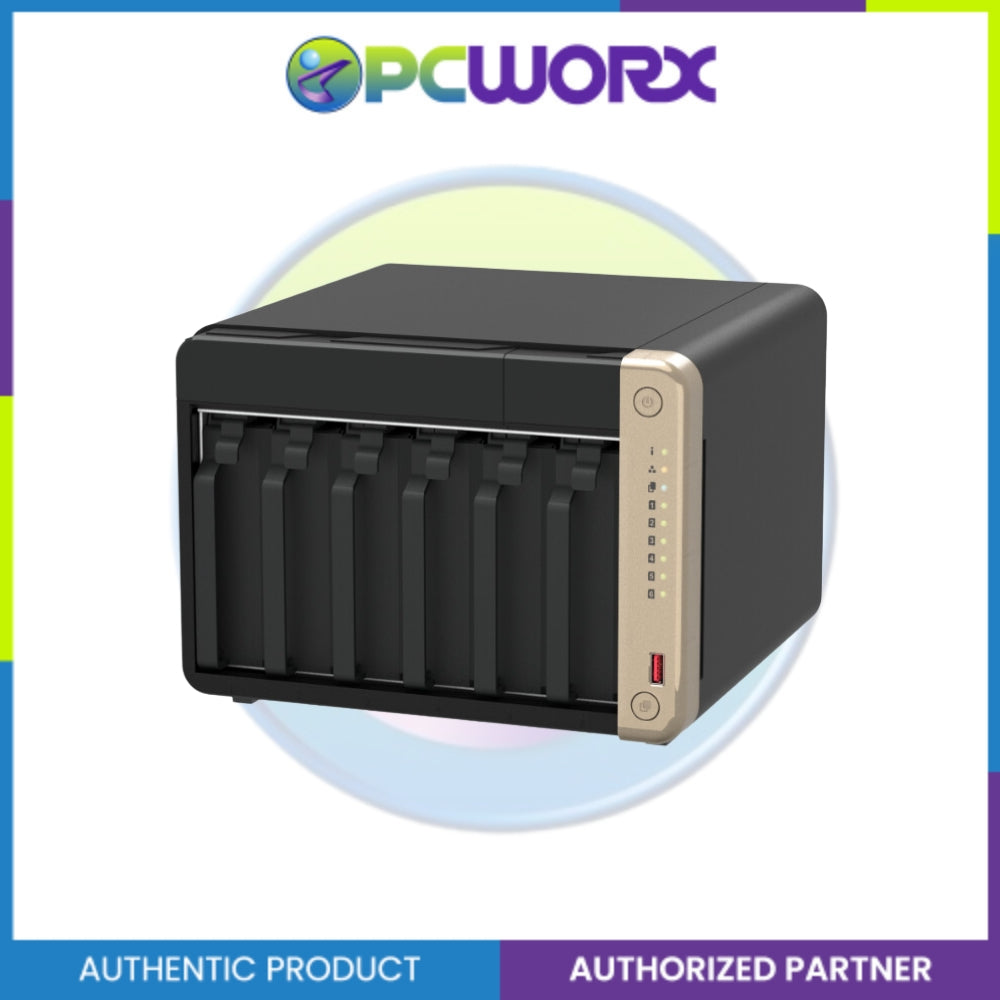

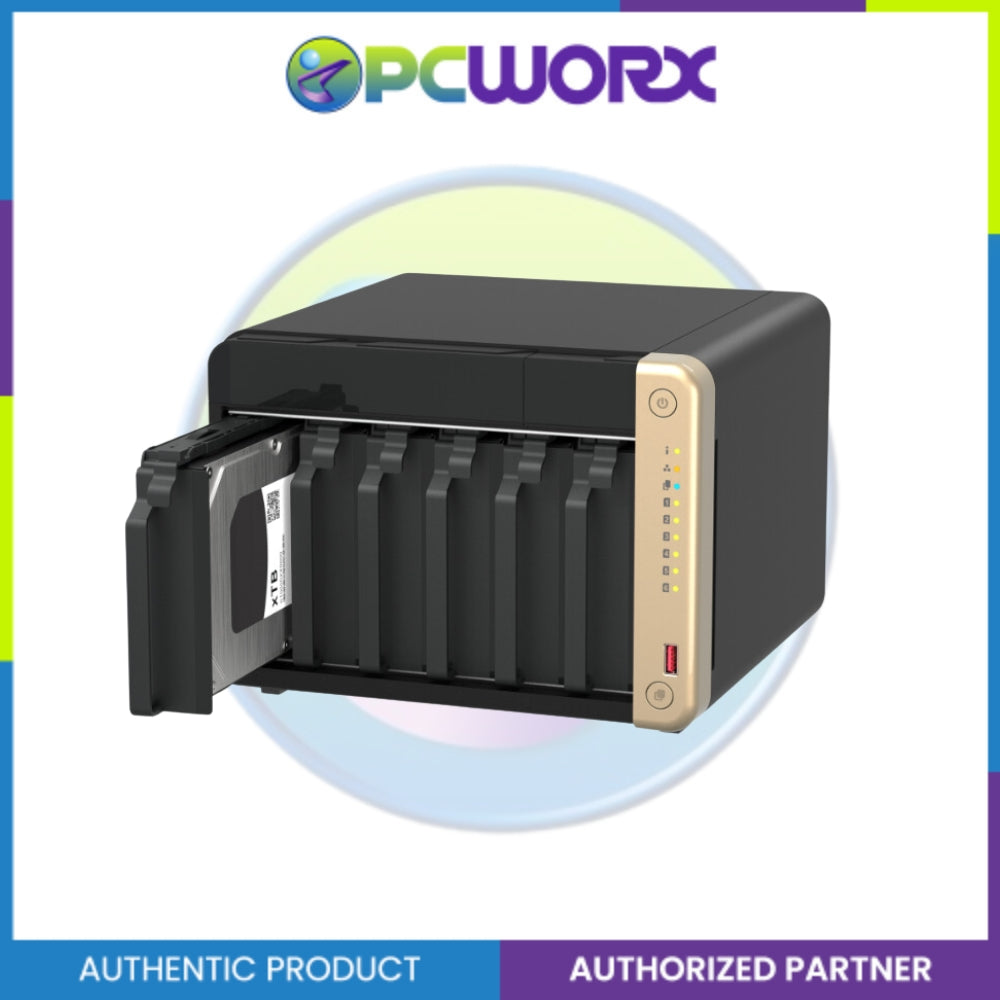

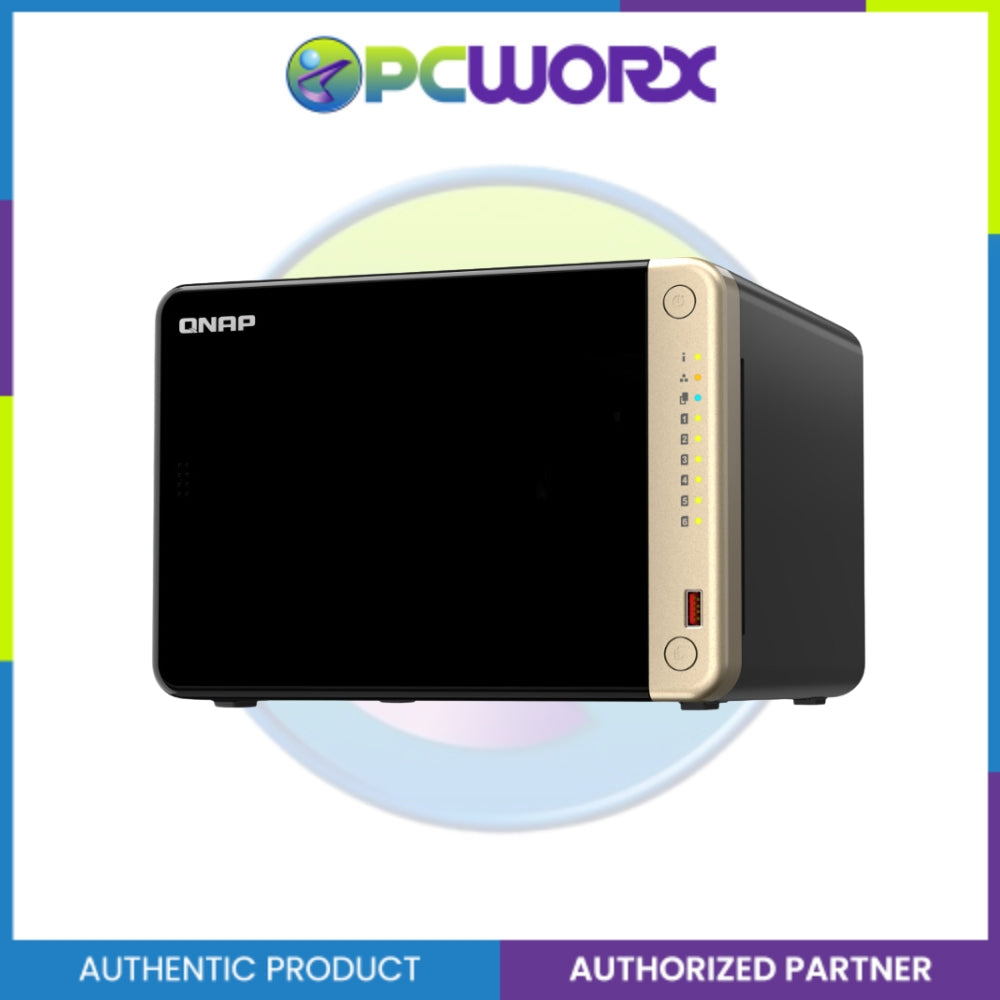

TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 120 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
The TS-664 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)
TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trucking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
Futureproof your network connection by installing a PCIe dual port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
| CPU: | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture: | 64-bit x86 |
| Graphic Processors: | Intel® UHD Graphics |
| Floating Point Unit: | ✓ |
| Encryption Engine: | (AES-NI) |
| Hardware-accelerated Transcoding: | ✓ |
| System Memory: | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory: | 16 GB (2 x 8GB) |
| Memory Slot: | 2 x SODIMM DDR4 |
| Flash Memory: | 4GB (Dual boot OS protection) |
| Drive Bay: | 6 x 3.5-inch SATA 6Gb/s |
| The system is shipped without HDD. | |
| Drive Compatibility: | 3.5-inch SATA hard disk drives |
| 2.5-inch SATA solid state drives | |
| Hot-swappable: | ✓ |
| M.2 Slot: | 2 x M.2 2280 PCIe Gen 3 x1 |
| SSD Cache Acceleration Support: | ✓ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M): | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port: | Optional via PCIe expansion card |
| Wake on LAN (WOL): | ✓ |
| Jumbo Frame: | ✓ |
| PCIe Slot: | 1 |
| Slot 1: PCIe Gen 3 x2 | |
| USB 2.0 port: | 2 |
| USB 3.2 Gen 2 (10Gbps) Port: | 2 x Type-A |
| IR Sensor: | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output: | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor: | Tower |
| LED Indicators: | Power/Status, LAN, USB, HDD1-6 |
| Buttons: | Power, USB copy, Reset |
| Dimensions (HxWxD): | 165 × 235 × 226.5 mm |
| Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | |
| Weight (Net): | 2.94 kg |
| Weight (Gross): | 5.1 kg |
| Operating Temperature: | 0 ~ 40˚C (32˚F ~ 104˚F) |
| Storage Temperature: | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity: | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit: | 120W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode: | 23.22 W |
| Power Consumption: Operating Mode, Typical: | 44.02 W |
| Tested with drives fully populated.: | ✓ |
| Fan: | 2 x 90mm, 12VDC |
| System Warning: | Buzzer |
| Kensington Security Slot: | ✓ |
₱44,323.20
Estimated delivery between June 10 and June 12.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱44,323.20
₱44,323.20
Authorized Seller
100% Original Authentic Product
TS-664 is a compact 6-bay NAS with superior performance. Supporting up to 120 TB storage and 4 TB M.2 SSD caching* at an affordable price, the TS-664 fulfills your multitasking challenges for file management, backup, collaboration, and video conversion.
The TS-664 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)
TS-664 is as fast as a single-port 10GbE NAS with up to 589 MB/s transfer speeds by setting port trucking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
Perform additional tasks, stream more media, and have more services running with an Intel® quad-core processor optimized for multitasking.
Built-in GPU for enhanced video conversion, allowing videos to be smoothly streamed from the NAS to mobile devices.
Futureproof your network connection by installing a PCIe dual port 10GbE network card that delivers up to 1,644 MB/s transfer speed.
Two USB 3.2 Gen 2 (10Gbps) ports allow faster backup to/from USB devices.
If two M.2 slots aren’t enough, install a QM2 PCIe expansion card for more M.2 SSD slots.
| CPU: | Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture: | 64-bit x86 |
| Graphic Processors: | Intel® UHD Graphics |
| Floating Point Unit: | ✓ |
| Encryption Engine: | (AES-NI) |
| Hardware-accelerated Transcoding: | ✓ |
| System Memory: | 8 GB SODIMM DDR4 (1 x 8 GB) |
| Maximum Memory: | 16 GB (2 x 8GB) |
| Memory Slot: | 2 x SODIMM DDR4 |
| Flash Memory: | 4GB (Dual boot OS protection) |
| Drive Bay: | 6 x 3.5-inch SATA 6Gb/s |
| The system is shipped without HDD. | |
| Drive Compatibility: | 3.5-inch SATA hard disk drives |
| 2.5-inch SATA solid state drives | |
| Hot-swappable: | ✓ |
| M.2 Slot: | 2 x M.2 2280 PCIe Gen 3 x1 |
| SSD Cache Acceleration Support: | ✓ |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M): | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): | Optional via PCIe expansion card |
| 10 Gigabit Ethernet Port: | Optional via PCIe expansion card |
| Wake on LAN (WOL): | ✓ |
| Jumbo Frame: | ✓ |
| PCIe Slot: | 1 |
| Slot 1: PCIe Gen 3 x2 | |
| USB 2.0 port: | 2 |
| USB 3.2 Gen 2 (10Gbps) Port: | 2 x Type-A |
| IR Sensor: | (Optional QNAP RM-IR004 remote control) |
| HDMI™ Output: | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor: | Tower |
| LED Indicators: | Power/Status, LAN, USB, HDD1-6 |
| Buttons: | Power, USB copy, Reset |
| Dimensions (HxWxD): | 165 × 235 × 226.5 mm |
| Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model) | |
| Weight (Net): | 2.94 kg |
| Weight (Gross): | 5.1 kg |
| Operating Temperature: | 0 ~ 40˚C (32˚F ~ 104˚F) |
| Storage Temperature: | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity: | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit: | 120W adapter, 100-240V |
| Power Consumption: HDD Sleep Mode: | 23.22 W |
| Power Consumption: Operating Mode, Typical: | 44.02 W |
| Tested with drives fully populated.: | ✓ |
| Fan: | 2 x 90mm, 12VDC |
| System Warning: | Buzzer |
| Kensington Security Slot: | ✓ |
