Description
UPGRADED & MORE!
Upgraded pump motor provides bigger push power or the water flow and hence cools better than the previous generation of pump. Equipped with a 4pin power header, the new pump can run a balance between performance and silence.
FLUID DYNAMIC BEARING
Featuring faster lubricating than traditional bearings, fluid dynamic bearing fans can operate more quietly and enjoys a longer lifespan.
SMARTER & SUPERIOR
Equipped with a Daisy Chain connector, it can be assembled at will, and it is more convenient for fans to be connected in series.
STRAIGHT & SIMPLEX

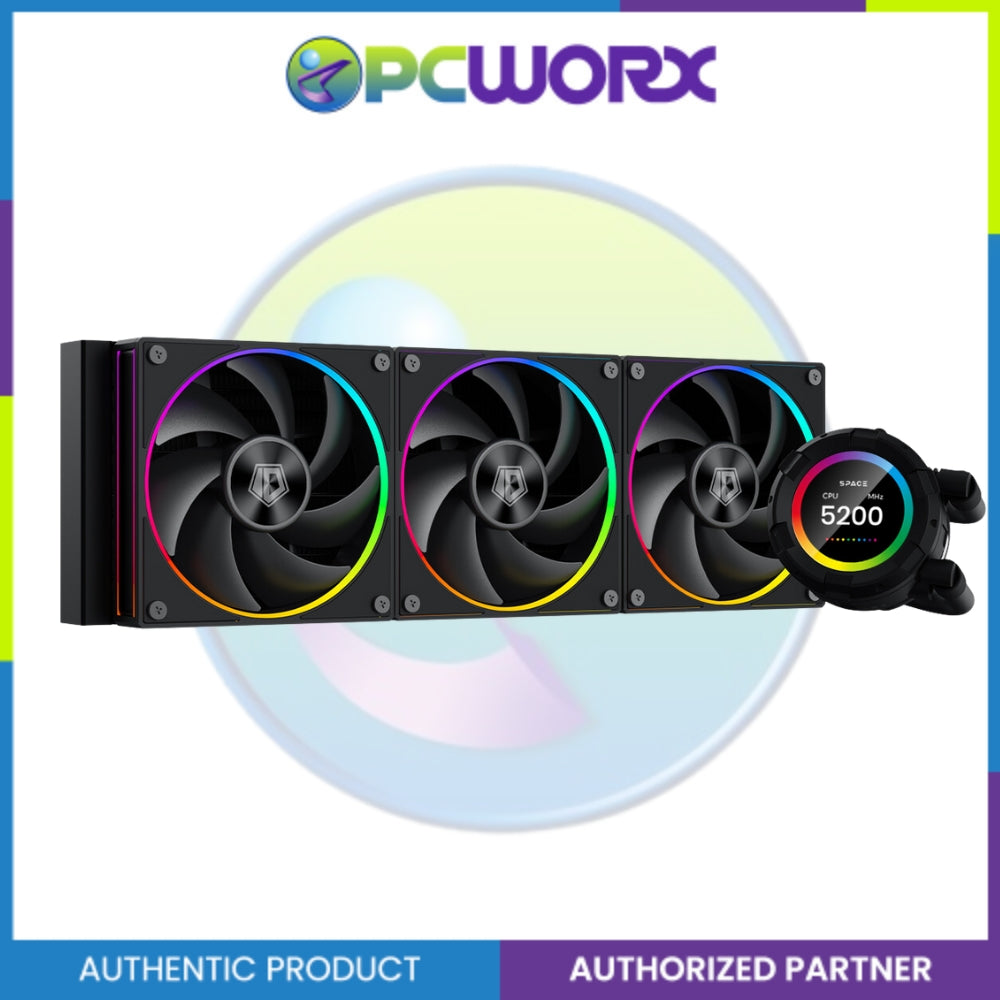

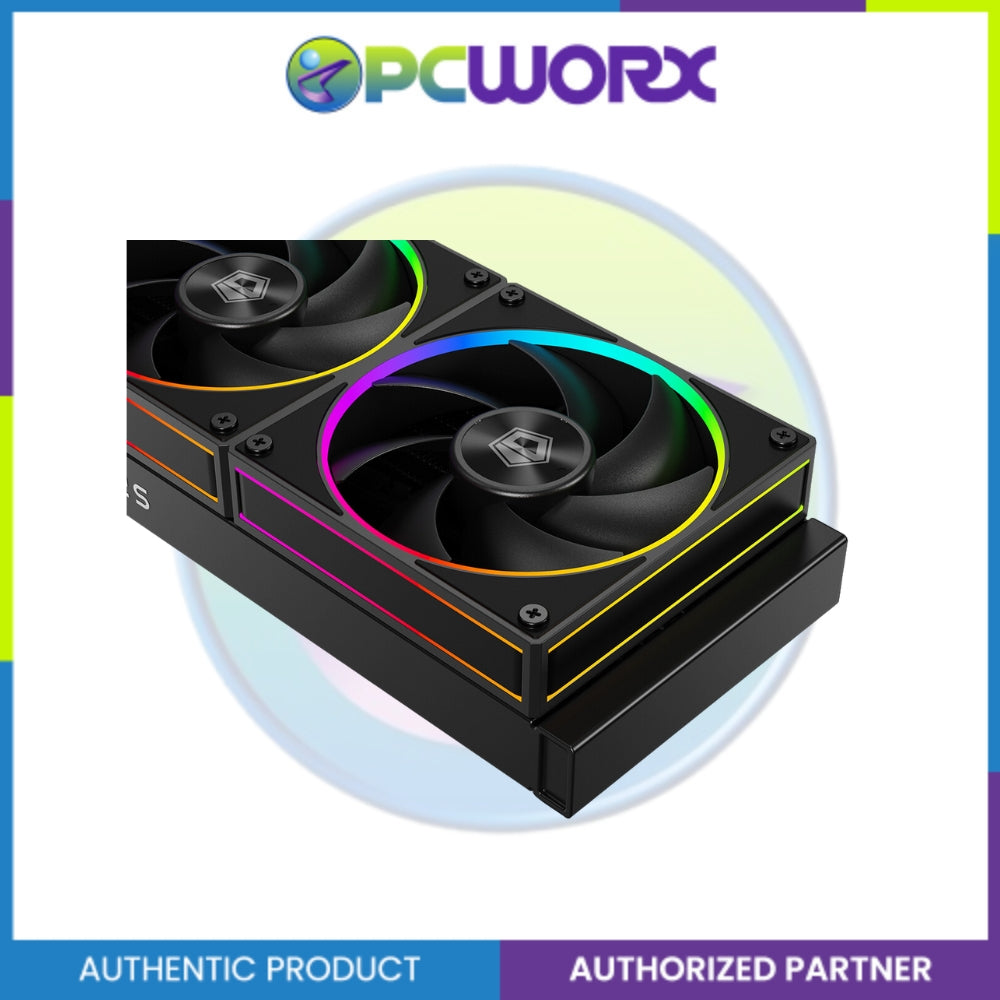

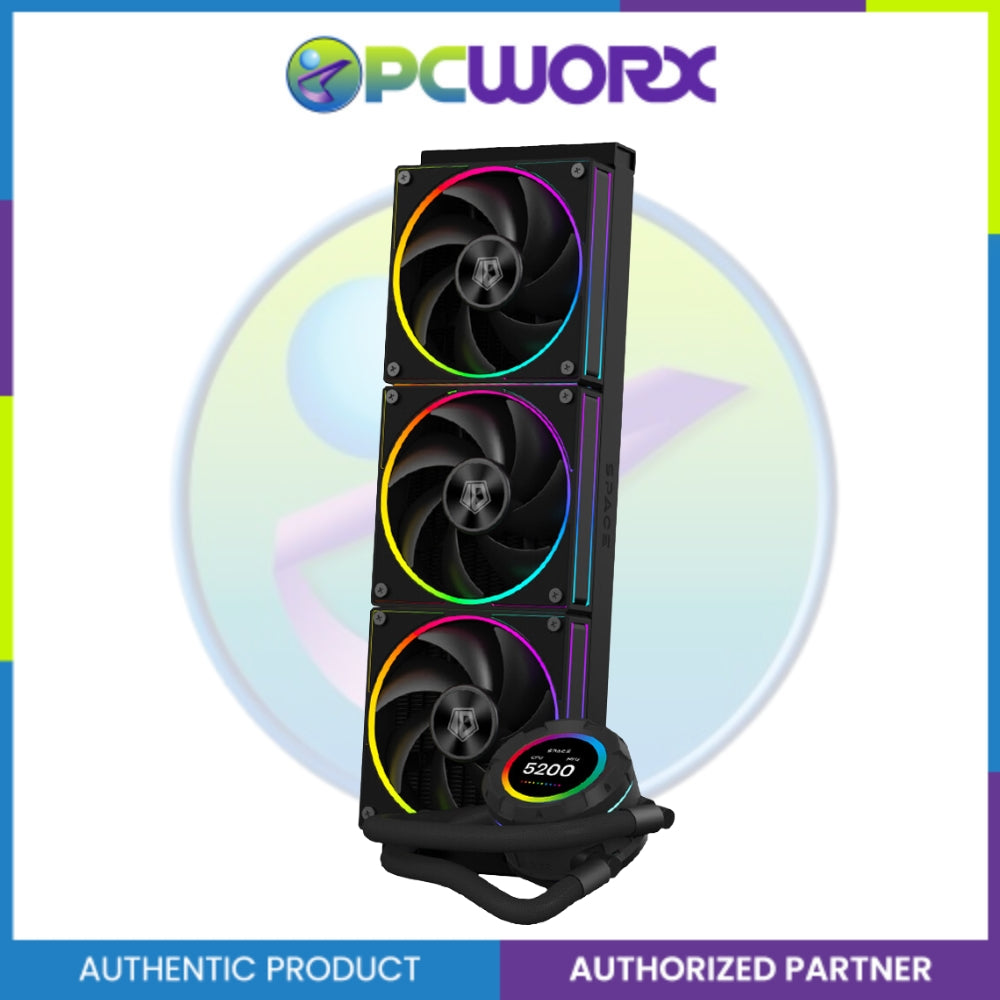

The new AF series fans are designed with a flat and simplex manner to offer solid structure for the blades movement to get less vibration. On SPACE LCD series, AF-127-ARGB fans are used to provide performance and aesthetics at the same time.
SPECIFICATIONS
| LCD SCREEN |
|
|
System Requirement |
Windows 10, Windows 11 |
|
Dimension |
2.1 inch |
|
Resolution |
480x480 |
|
Backlight |
600cd/m² |
|
Color |
24-bit, 16.7 million |
|
Compatibility |
Intel LGA2066/2011/1851/1700/1200/1151/1150/1155/1156 |
|
AMD AM5/AM4 |
|
TDP |
350W |
|
Radiator Dimension |
397×120×27mm |
|
Radiator Material |
Aluminum |
|
Tube Material |
Premium Sleeved Tubing |
|
Tube Length |
465mm |
|
Water block Dimension |
76x76x58mm |
|
Cold Plate Material |
Copper |
|
Pump Current |
0.36A Max. |
|
Pump Speed |
2500RPM±10% |
|
Pump Bearing |
Ceramic Bearing |
|
Pump Noise Level |
25dB(A) |
|
Pump Life Expectancy |
50,000 Hrs |
|
Fan Dimension |
120×120×27mm |
|
Included Fans |
3pcs |
|
Fan Speed |
500～2000±10%RPM |
|
Max. Air Flow |
78CFM |
|
Max. Static Pressure |
2.68mmH2O |
|
Noise |
29.9dB(A) Max. |
|
Rated Voltage |
12VDC |
|
Operating Voltage |
10.8～13.2VDC |
|
Started Voltage |
7VDC |
|
Rated Current |
0.25A |
|
Power Input |
3W |
|
Bearing Type |
Fluid Dynamic Bearing |
|
Connector
|
4Pin PWM |
