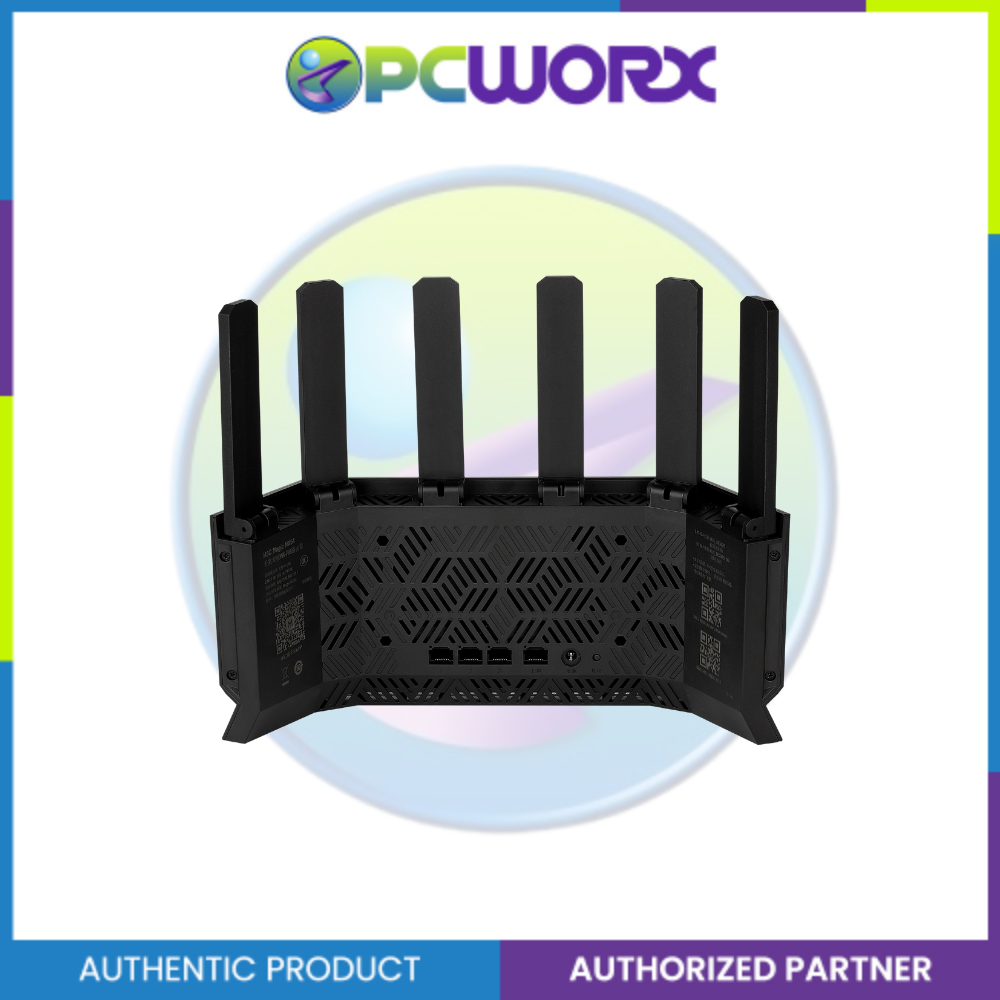

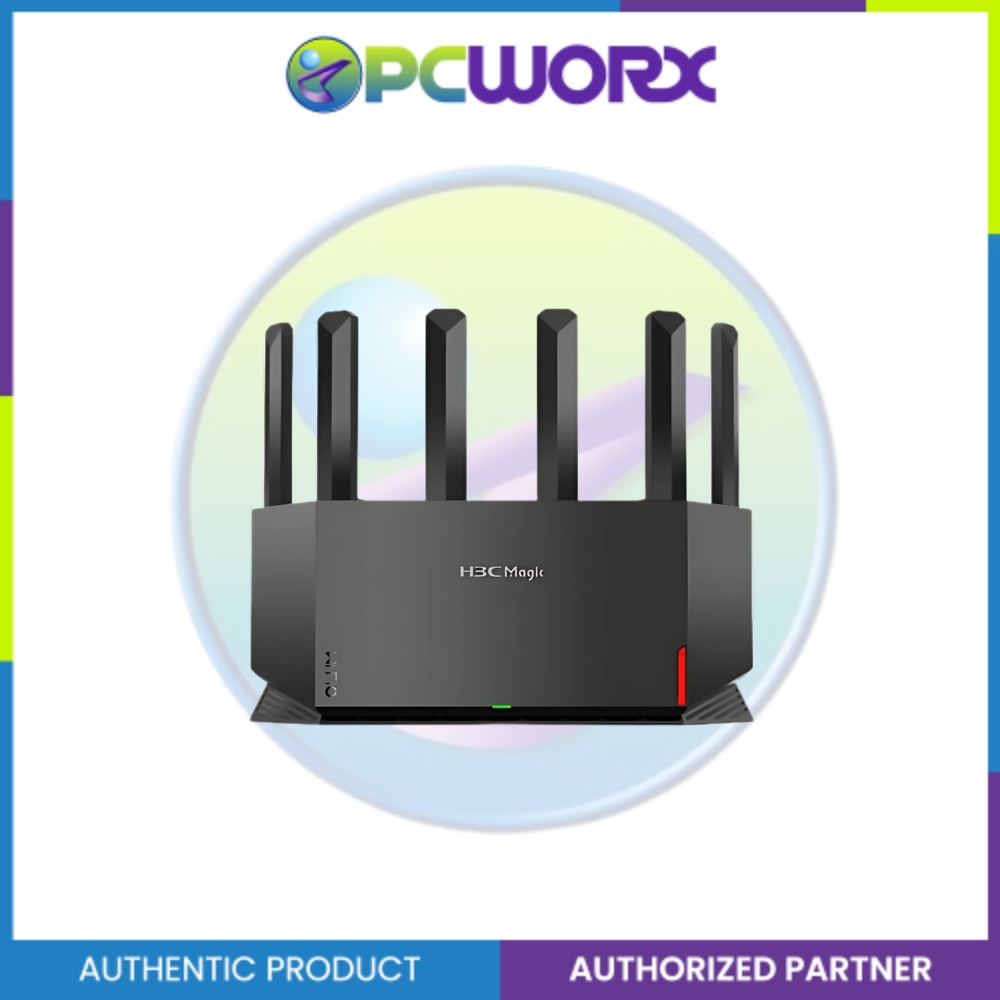

H3C Magic NX54 802.11ax 5400M Gigabit Dual Band Wi-Fi 6 Wireless Broadband Router

Product form

Specifications and parameters Hardware Fixed port Four 10/100/1000Base-T Ethernet ports Independent reset key, function keys... Read more

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: 9801A4EQ

1 in stock

₱7,609.81 Excl. VAT

You may also like

Specifications and parameters
Hardware
	Fixed port	Four 10/100/1000Base-T Ethernet ports
		Independent reset key, function keys (Mesh, wireless optimization)
	Wireless	6 external high gain omnidirectional antennas (2.4 GHz & 5 GHz 5dBi)
	CPU	Dual-core 1.0 GHz
	Indicator	Front LED: system status indicator
		Rear LED: 1 WAN port status indicator
	Dimensions (W×D×H)	286mm x 87mm x 234mm
	PPower supply	12V⎓2A
	Cooling method	Natural cooling
Wireless
	Wireless protocol	2.4 GHz: 802.11ax/n/g/b
		5 GHz: 802.11ax/ac/n/a
	Spatial flow	2.4 GHz 2x2 MIMO
		5 GHz 4x4 MIMO
	Wireless bandwidth	2.4G HT20/HT40
		5G HT20/HT40/HT80/HT160
	Wireless rate	Dual-frequency concurrency 5,378 Mbps
		2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps
	Wireless roaming	Support IEEE 802.11k/v
	MU-MIMO	Upstream and downstream MU-MIMO

Software	Internet connection	Routing mode: DHCP/PPPoE/Static IP
		Bridge mode: wired relay/wireless relay
	EasyMesh	Support
	IPv6	Support
	Security features	WPA3 encryption
		Anti-Wi-Fi squatting/anti-attack
		Firewall, DMZ, DoS attacks
	Network management	Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch
	Features	Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client)
	Management method	Support for H3C Magic APP (iOS, Android), Web
	Fault diagnosis	Link detection
		Internet diagnosis
Operating environment
	Operating temperature	0°C–40°C
	Storage humidity	10%–90%, RH non-condensing
