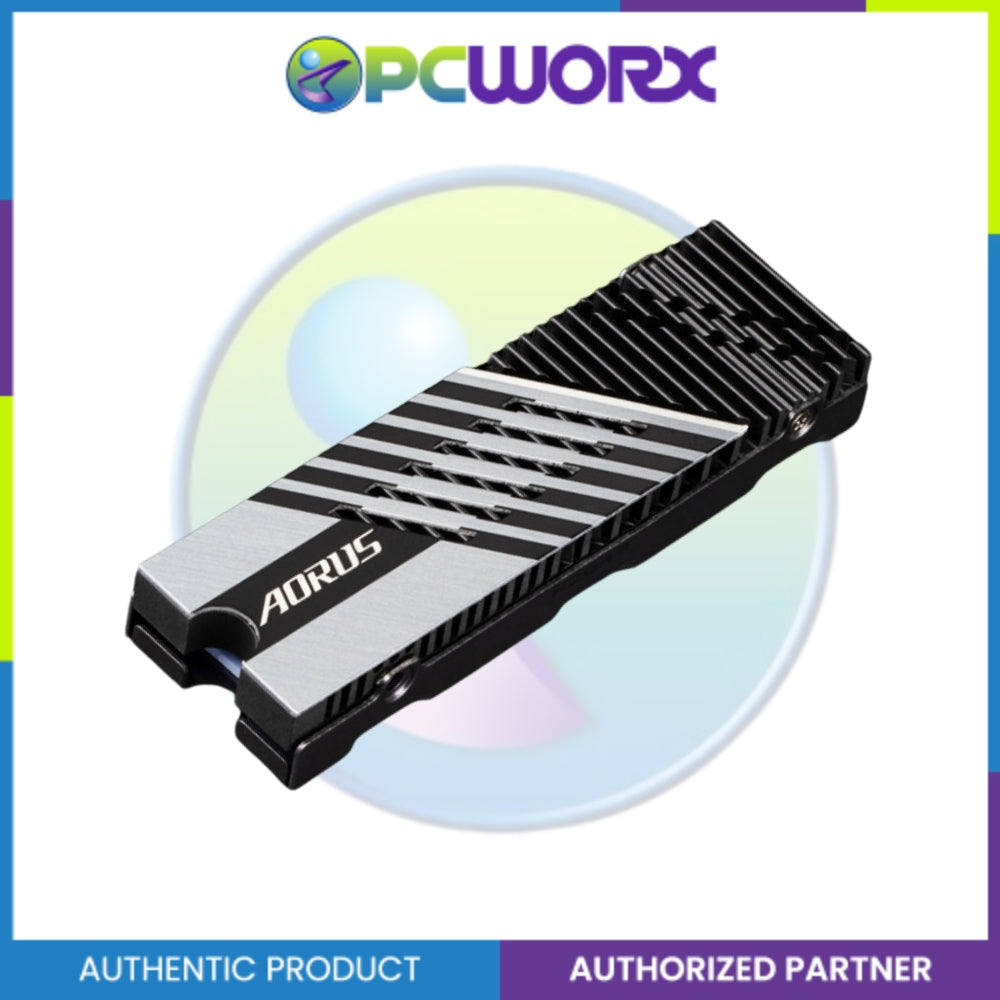

Optimized Aluminum Heat Spreaders with Nanocarbon Coating for 20% Cooler
Challenged passive cooling to maximize surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad ensures the heat transferring to the heatsink. The 7mm height heatsink is compatible with all the M.2 slots including the one under graphic card.

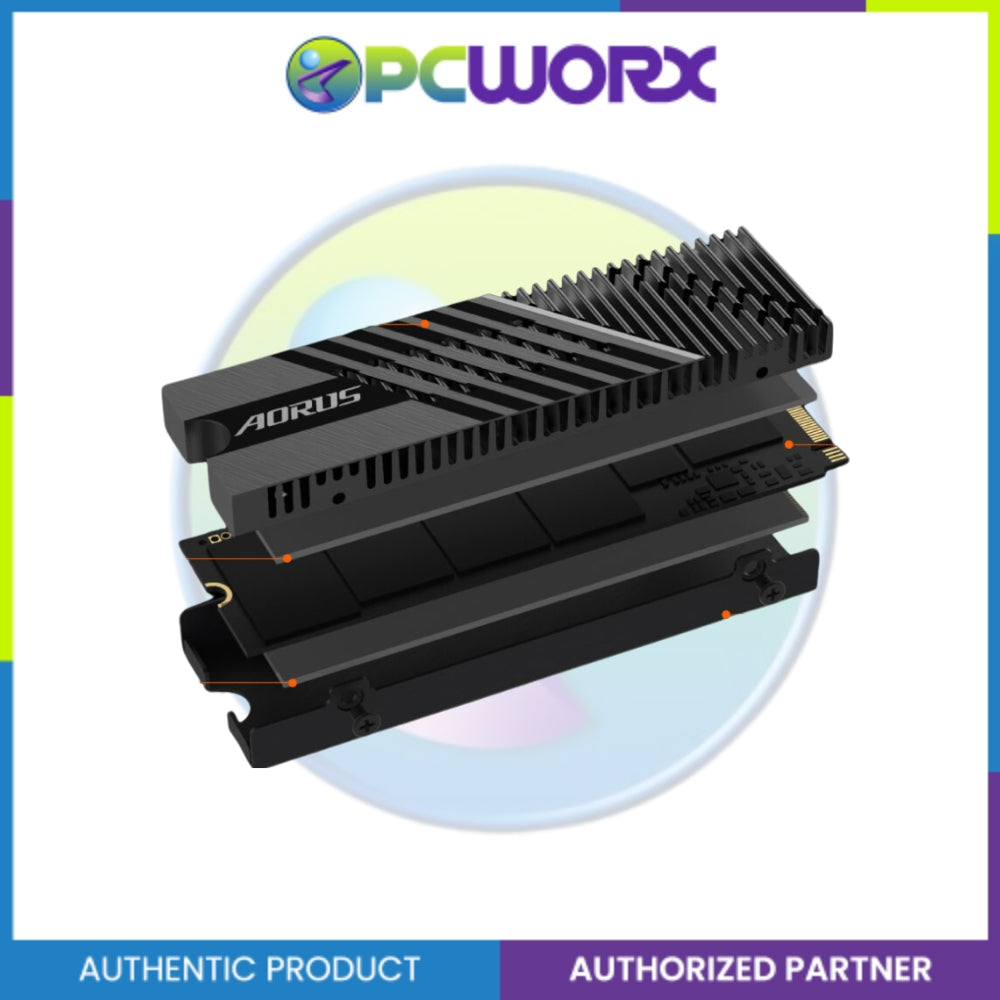

Efficient Heat Spreader Design
Compared with regular heat spreader, the new highly efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS Gen4 7300 SSD running 5 times longer at 7.3GB/s. Enjoy the smoother & upgraded storage performance.
SPECIFICATIONS:
| Interface: |
PCI-Express 4.0 x4, NVMe 1.4 |
| Form Factor: |
M.2 2280 |
| Total Capacity: |
2000GB |
| NAND: |
3D TLC NAND Flash |
| External DDR Cache: |
DDR4 2GB |
| Sequential Read speed: |
Up to 7300 MB/s |
| Sequential Write speed: |
Up to 6850 MB/s |
| Dimension: |
SSD without Heatsink: 80 x 22 x 3.5 mm (Double Side) |
|
SSD with Heatsink: 80.5 x 23.5 x 11.25 mm |
| Mean time between failure (MTBF): |
1.6 million hours |
| Max. Operating Power: |
Read: 8.1W |
|
Write: 7.4W |
| Power Consumption (Idle, PS3): |
30mW |
| Power Consumption(PS4, L1.2): |
3mW |
| Temperature (Operating): |
0°C to 70°C |
| Temperature (Storage): |
-40°C to 85°C |
