₱22,392.00
| CPU Support | AMD Socket AM5 Supports Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, up to 256GB Up to DDR5-8200 (OC) Supports Dual Channel, ECC/Non-ECC Un-buffered DIMMs Supports AMD EXPO™ & XMP profiles |
| Integrated Graphics |
With AMD Radeon™ Graphics: – 2× USB4® Type-C® (DP output, 3840×2160@240Hz) – 1× HDMI 2.1 (4096×2160@60Hz) Supports DP 1.4, HDCP 2.3, HDR Graphics support varies by CPU |
| Audio | Realtek® ALC1220 7.1-Channel HD Audio, S/PDIF Out DSD audio via rear line out |
| LAN | Realtek® 5GbE LAN |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 Bluetooth 5.3 Supports 2.4/5/6GHz bands Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | 1× PCIe x16 (CPU): – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen 8000 Phoenix 2: PCIe 4.0 x4 1× PCIe 4.0 x4 (Chipset) PCIEX4 disables with M2D_SB in use |
| Storage | 4× M.2: – 2× (CPU): PCIe 5.0/4.0 x4/x2 – 2× (Chipset): PCIe 4.0 x4/x2 2× SATA 6Gb/s Supports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) RAID 5 for Ryzen 9000 only |
| USB Ports |
Back Panel: – 2× USB4® Type-C® (ASMedia) – 1× USB 3.2 Gen 2 Type-C® – 2× USB 3.2 Gen 2 Type-A – 4× USB 3.2 Gen 1 – 4× USB 2.0 Internal: – 1× USB 3.2 Gen 2×2 Type-C® header – 2× USB 3.2 Gen 1 – 4× USB 2.0 |
| Internal Connectors | 1× 24-pin ATX, 1× 8-pin + 1× 4-pin ATX 12V 4× M.2 slots 2× SATA ports Multiple fan/pump/RGB headers Noise sensor, TPM, Q-Flash Plus, etc. |

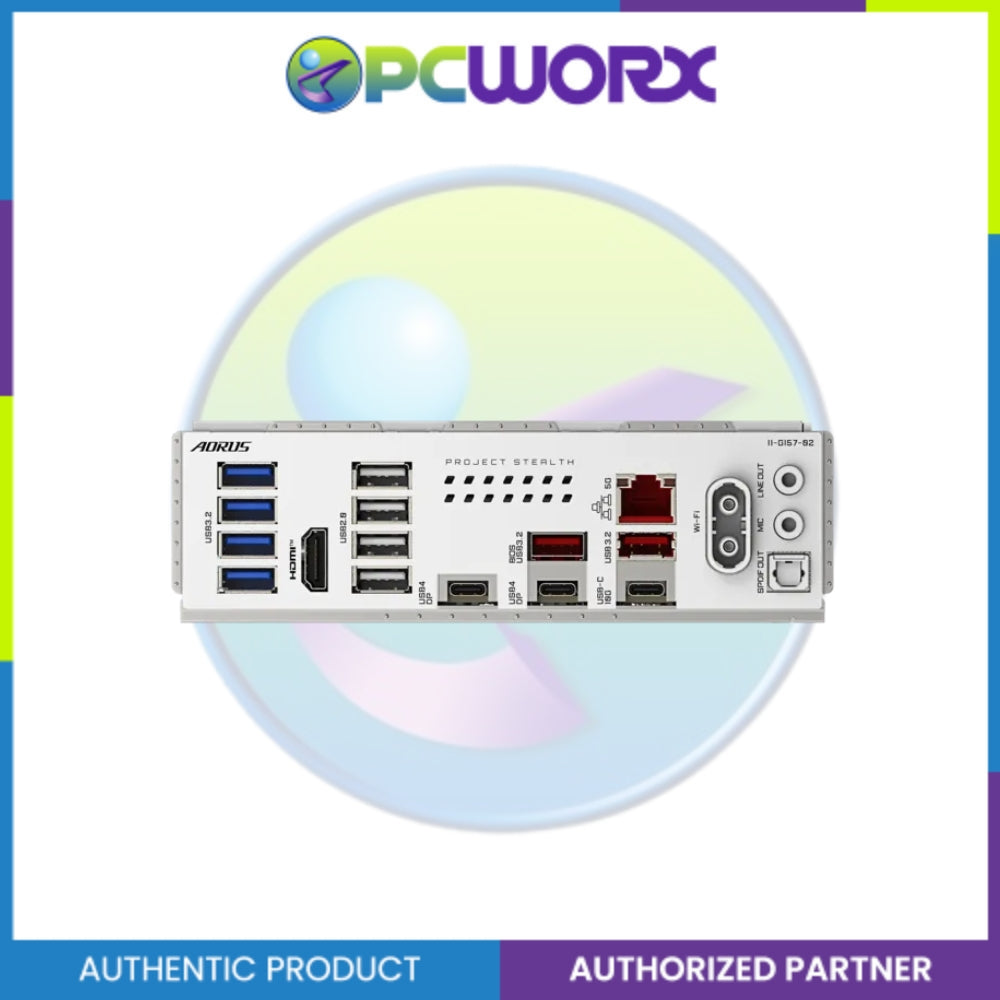

| Back Panel I/O | 1× HDMI, 2× USB4® Type-C®, 1× USB 3.2 Gen 2 Type-C®, 2× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0, 1× RJ-45 (5GbE), Optical S/PDIF, 2× Audio jacks, 2× Wi-Fi Antenna |
| I/O Controller | iTE® I/O Controller |
| Monitoring | Voltage, Temp, Fan speed, Water flow Fan fail warning & control |
| BIOS | AMI UEFI BIOS, 512 Mbit Flash Supports Q-Flash, Q-Flash Plus |
| Software | Norton® Internet Security OEM GIGABYTE Control Center |
| OS Support | Windows 11 64-bit only |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5Supports: Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM slots (Up to 256GB)DDR5 8200(O.C.) down to 4400 MT/sDual Channel ArchitectureSupports EXPO™ & XMPNon-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics2× USB4 Type-C (up to 3840×2160@240Hz, DP 1.4, HDR)1× HDMI 2.1 (4096×2160@60Hz, HDCP 2.3, HDR) |
| Audio | Realtek® ALC1220 Codec2/4/5.1/7.1-channel HD AudioS/PDIF Out |
| LAN | Realtek® 5GbE LAN (5G/2.5G/1G/100M) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865802.11 a/b/g/n/ac/ax/be (2.4/5/6GHz)Bluetooth 5.4 |
| Expansion Slots | 1× PCIe x16 (Gen5/Gen4 depending on CPU)1× PCIe x16 (Gen4 x4, from chipset) |
| Storage | 4× M.2 (PCIe 5.0/4.0 depending on CPU)2× SATA 6Gb/sSupports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) |
| USB (Rear + Internal) | 2× USB4 Type-CUSB 3.2 Gen2x2 / Gen2 / Gen1USB 2.0/1.1 (Multiple rear & internal headers) |
| Internal Connectors | 24-pin ATX8-pin + 4-pin CPU powerMultiple fan/pump headersRGB & ARGB headersTPM headerTemperature sensor headers |
| Back Panel I/O | HDMI2× Antenna connectors2× USB4 Type-CUSB 3.2 Gen2 & Gen1USB 2.0RJ-45 (5GbE)Optical S/PDIFAudio jacks |
| I/O Controller | iTE® I/O Controller |
| H/W Monitoring | Voltage, Temperature, Fan speed, Pump flow, Fan fail warning |
| BIOS | 512 Mbit FlashAMI UEFI BIOS |
| Software Features | GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5cm × 24.4cm) |
₱22,392.00
Estimated delivery between June 09 and June 11.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱22,392.00
₱22,392.00
Authorized Seller
100% Original Authentic Product
| CPU Support | AMD Socket AM5 Supports Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM, up to 256GB Up to DDR5-8200 (OC) Supports Dual Channel, ECC/Non-ECC Un-buffered DIMMs Supports AMD EXPO™ & XMP profiles |
| Integrated Graphics |
With AMD Radeon™ Graphics: – 2× USB4® Type-C® (DP output, 3840×2160@240Hz) – 1× HDMI 2.1 (4096×2160@60Hz) Supports DP 1.4, HDCP 2.3, HDR Graphics support varies by CPU |
| Audio | Realtek® ALC1220 7.1-Channel HD Audio, S/PDIF Out DSD audio via rear line out |
| LAN | Realtek® 5GbE LAN |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865 Bluetooth 5.3 Supports 2.4/5/6GHz bands Wi-Fi 7 requires Windows 11 SV3 |
| Expansion Slots | 1× PCIe x16 (CPU): – Ryzen 9000/7000: PCIe 5.0 x16 – Ryzen 8000 Phoenix 1: PCIe 4.0 x8 – Ryzen 8000 Phoenix 2: PCIe 4.0 x4 1× PCIe 4.0 x4 (Chipset) PCIEX4 disables with M2D_SB in use |
| Storage | 4× M.2: – 2× (CPU): PCIe 5.0/4.0 x4/x2 – 2× (Chipset): PCIe 4.0 x4/x2 2× SATA 6Gb/s Supports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) RAID 5 for Ryzen 9000 only |
| USB Ports |
Back Panel: – 2× USB4® Type-C® (ASMedia) – 1× USB 3.2 Gen 2 Type-C® – 2× USB 3.2 Gen 2 Type-A – 4× USB 3.2 Gen 1 – 4× USB 2.0 Internal: – 1× USB 3.2 Gen 2×2 Type-C® header – 2× USB 3.2 Gen 1 – 4× USB 2.0 |
| Internal Connectors | 1× 24-pin ATX, 1× 8-pin + 1× 4-pin ATX 12V 4× M.2 slots 2× SATA ports Multiple fan/pump/RGB headers Noise sensor, TPM, Q-Flash Plus, etc. |
| Back Panel I/O | 1× HDMI, 2× USB4® Type-C®, 1× USB 3.2 Gen 2 Type-C®, 2× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0, 1× RJ-45 (5GbE), Optical S/PDIF, 2× Audio jacks, 2× Wi-Fi Antenna |
| I/O Controller | iTE® I/O Controller |
| Monitoring | Voltage, Temp, Fan speed, Water flow Fan fail warning & control |
| BIOS | AMI UEFI BIOS, 512 Mbit Flash Supports Q-Flash, Q-Flash Plus |
| Software | Norton® Internet Security OEM GIGABYTE Control Center |
| OS Support | Windows 11 64-bit only |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5Supports: Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | 4× DDR5 DIMM slots (Up to 256GB)DDR5 8200(O.C.) down to 4400 MT/sDual Channel ArchitectureSupports EXPO™ & XMPNon-ECC Unbuffered DIMM (1Rx8/2Rx8/1Rx16) |
| Onboard Graphics | Integrated AMD Radeon™ Graphics2× USB4 Type-C (up to 3840×2160@240Hz, DP 1.4, HDR)1× HDMI 2.1 (4096×2160@60Hz, HDCP 2.3, HDR) |
| Audio | Realtek® ALC1220 Codec2/4/5.1/7.1-channel HD AudioS/PDIF Out |
| LAN | Realtek® 5GbE LAN (5G/2.5G/1G/100M) |
| Wireless | Qualcomm® Wi-Fi 7 QCNCM865802.11 a/b/g/n/ac/ax/be (2.4/5/6GHz)Bluetooth 5.4 |
| Expansion Slots | 1× PCIe x16 (Gen5/Gen4 depending on CPU)1× PCIe x16 (Gen4 x4, from chipset) |
| Storage | 4× M.2 (PCIe 5.0/4.0 depending on CPU)2× SATA 6Gb/sSupports RAID 0/1/5/10 (NVMe), RAID 0/1 (SATA) |
| USB (Rear + Internal) | 2× USB4 Type-CUSB 3.2 Gen2x2 / Gen2 / Gen1USB 2.0/1.1 (Multiple rear & internal headers) |
| Internal Connectors | 24-pin ATX8-pin + 4-pin CPU powerMultiple fan/pump headersRGB & ARGB headersTPM headerTemperature sensor headers |
| Back Panel I/O | HDMI2× Antenna connectors2× USB4 Type-CUSB 3.2 Gen2 & Gen1USB 2.0RJ-45 (5GbE)Optical S/PDIFAudio jacks |
| I/O Controller | iTE® I/O Controller |
| H/W Monitoring | Voltage, Temperature, Fan speed, Pump flow, Fan fail warning |
| BIOS | 512 Mbit FlashAMI UEFI BIOS |
| Software Features | GIGABYTE Control Center (GCC)Q-Flash / Q-Flash PlusSmart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| OS Support | Windows 11 64-bit |
| Form Factor | ATX (30.5cm × 24.4cm) |
