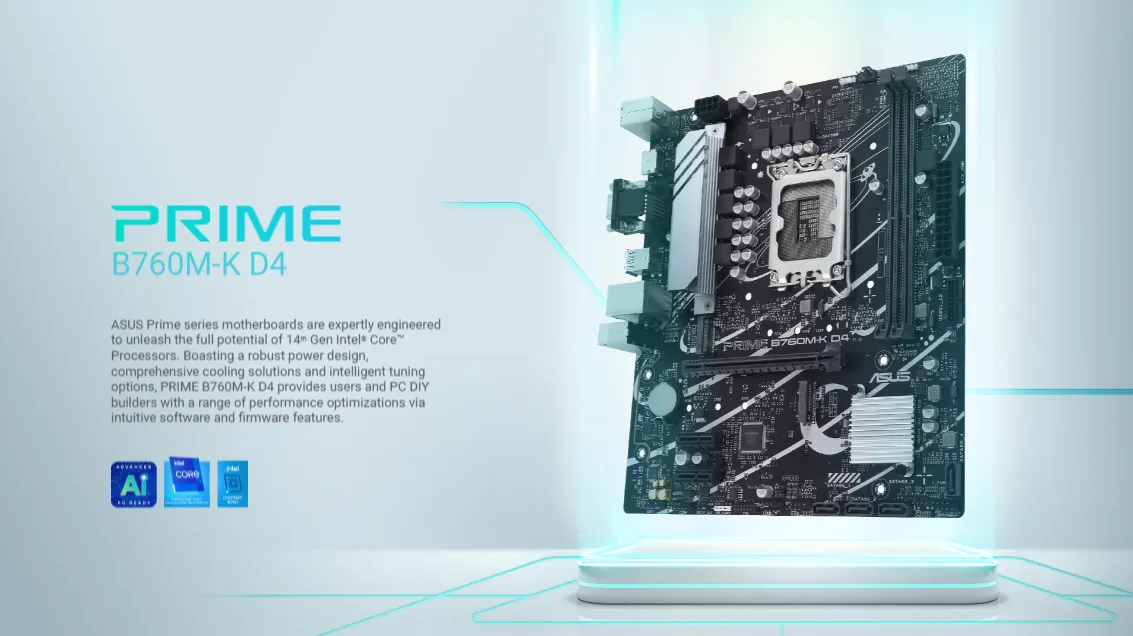

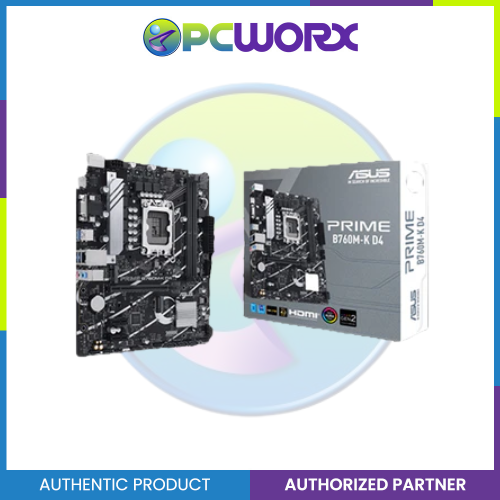

Asus Prime B760M-K D4 DDR4 LGA1700 m-ATX

Asus Prime B760M-K D4 DDR4 LGA1700 m-ATX

(0)
SKU: 0000059471

₱6,440.00

Brand: Asus Prime
Low in stock

This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

Estimated delivery between June 08 and June 10.

In stock and ready to ship

Delivery Information

Metro Manila: 2–3 days | Provincial: 3–7 days

Main Office Branch only

Same Day Delivery

Same-Day Delivery Available

Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only

Processing only during office hours from Main Office 9am - 5pm
Asus Prime B760M-K D4 DDR4 LGA1700 m-ATX

₱6,440.00

₱6,440.00

Choose option
Brand: Asus Prime
  • Asus Prime

Authorized Seller

100% Original Authentic Product

ASUS Prime B760M-K D4, an Intel® B760 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, VGA, HDMI®, SATA 6 Gbps, front USB 3.2 Gen 1, Aura Sync



  • Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® processors
  • Ultrafast Connectivity: PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet and front USB 3.2 Gen 1 support

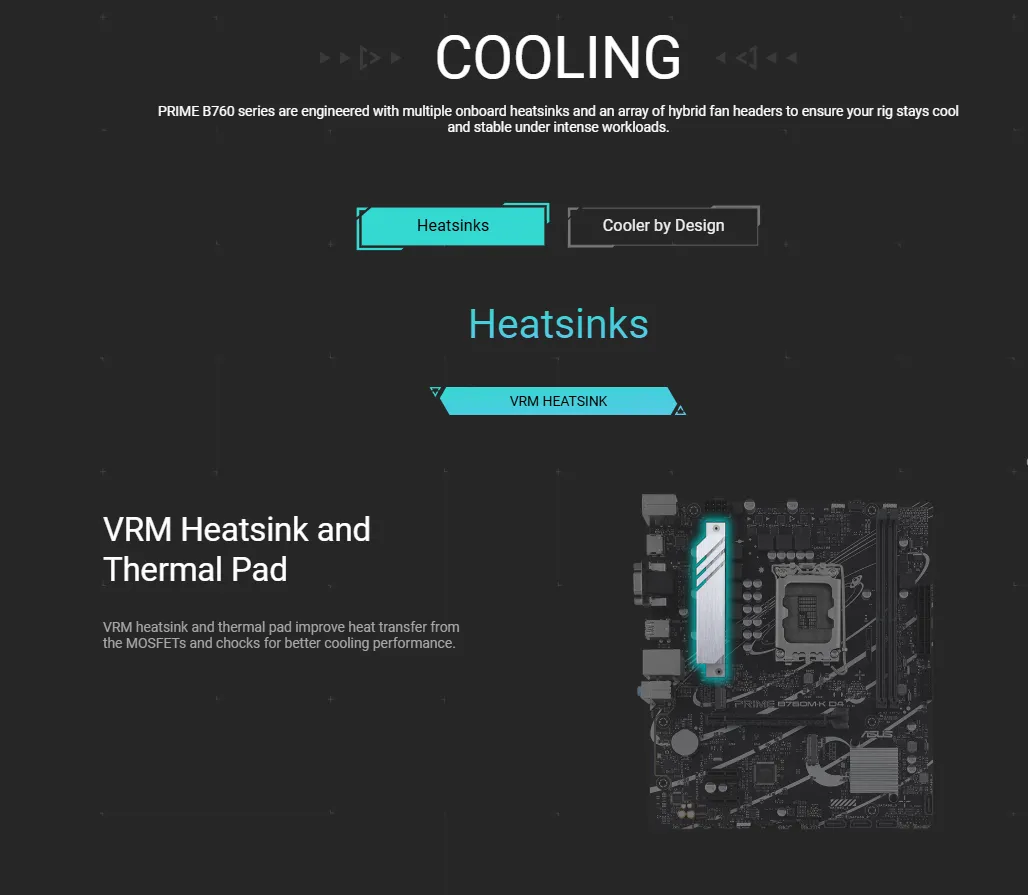

  • Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Specification Details
Model ASUS PRIME B760M-K D4
CPU Support Intel® Socket LGA1700 for Intel® Core™ 14th Gen, 13th Gen, 12th Gen, Pentium® Gold, and Celeron® Processors
CPU Technologies Intel® Turbo Boost Technology 2.0, Intel® Turbo Boost Max Technology 3.0
Chipset Intel® B760
Memory 2 × DIMM slots, Max 64GB DDR4
Memory Speed 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
Memory Features Non-ECC Unbuffered, Dual Channel, Intel® XMP support
Graphics Output 1 × VGA port, 1 × HDMI® port (supports 4K@60Hz via HDMI 2.1 depending on CPU)
Expansion Slots 1 × PCIe 4.0 x16 slot, 2 × PCIe 4.0 x1 slots
Storage 2 × M.2 slots (PCIe 4.0 x4), 4 × SATA 6Gb/s ports
RAID Support Intel® Rapid Storage Technology supports RAID 0/1/5/10
Ethernet 1 × Realtek 2.5Gb Ethernet
Rear USB Ports 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A
Front USB Headers 1 × USB 3.2 Gen 1 header (2 ports), 2 × USB 2.0 headers (3 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Features Audio Shielding, Premium Audio Capacitors, Dedicated PCB Layers

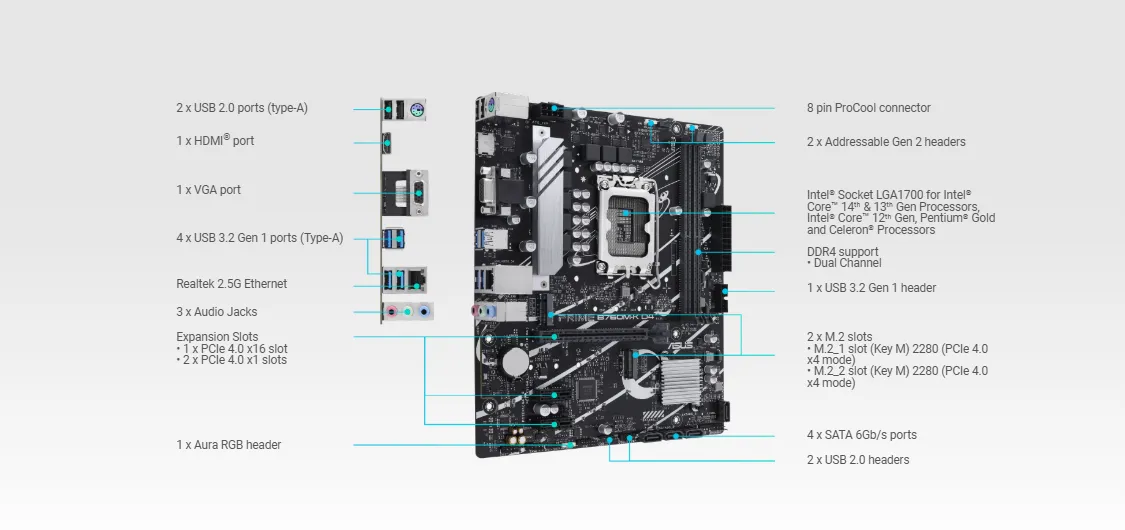

Back Panel Ports 4 × USB 3.2 Gen1, 2 × USB 2.0, 1 × VGA, 1 × HDMI, 1 × RJ45 LAN, 3 × Audio Jacks, 1 × PS/2 Combo
Internal Fan Headers 1 × CPU Fan header, 1 × Chassis Fan header
Power Connectors 1 × 24-pin ATX, 1 × 8-pin CPU power
Storage Connectors 2 × M.2 slots, 4 × SATA 6Gb/s
Internal USB 1 × USB 3.2 Gen1 header, 2 × USB 2.0 headers
RGB Headers 1 × Aura RGB header, 2 × Addressable Gen 2 headers
Other Internal Headers Clear CMOS, COM Port, Front Panel Audio, S/PDIF Out, Speaker, SPI TPM (14-1), System Panel header
ASUS Protection ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)
ASUS Q-Design Q-DIMM, Q-LED Core, Q-Slot
ASUS EZ DIY ProCool
Cooling VRM Heatsink Design
RGB Lighting Aura Sync with RGB & Addressable headers
Software Armoury Crate, Aura Sync, Fan Xpert, Power Saving, AI Suite 3, DIGI+ VRM, PC Cleaner, ASUS CPU-Z
Bundled Software Norton 360 Deluxe (60-day trial), WinRAR
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
BIOS Features ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Manageability WOL by PME, PXE
Accessories 2 × SATA 6Gb/s cables, 1 × I/O Shield, 2 × M.2 anchors, User Guide
Operating System Support Windows® 11, Windows® 10 64-bit
Form Factor Micro-ATX
Dimensions 9.6 × 8.3 inches (24.4 × 21.1 cm)
