₱11,812.50

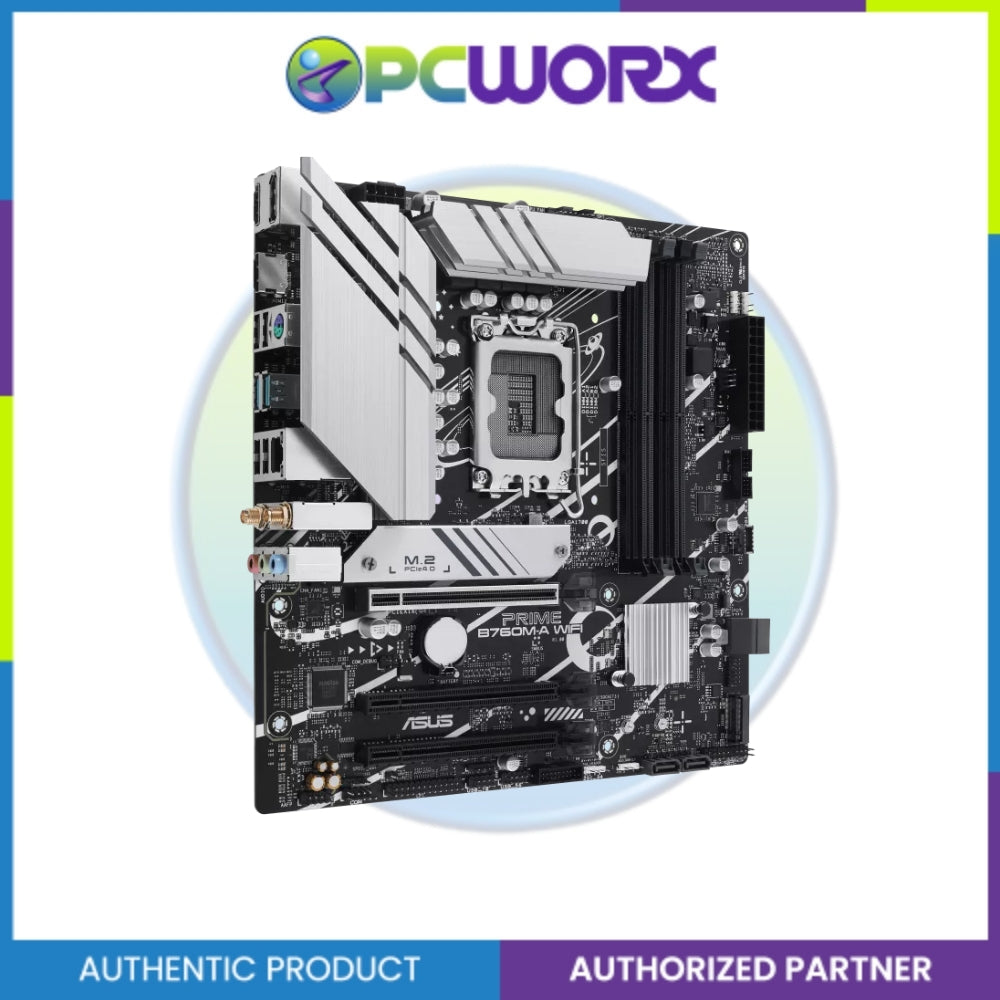

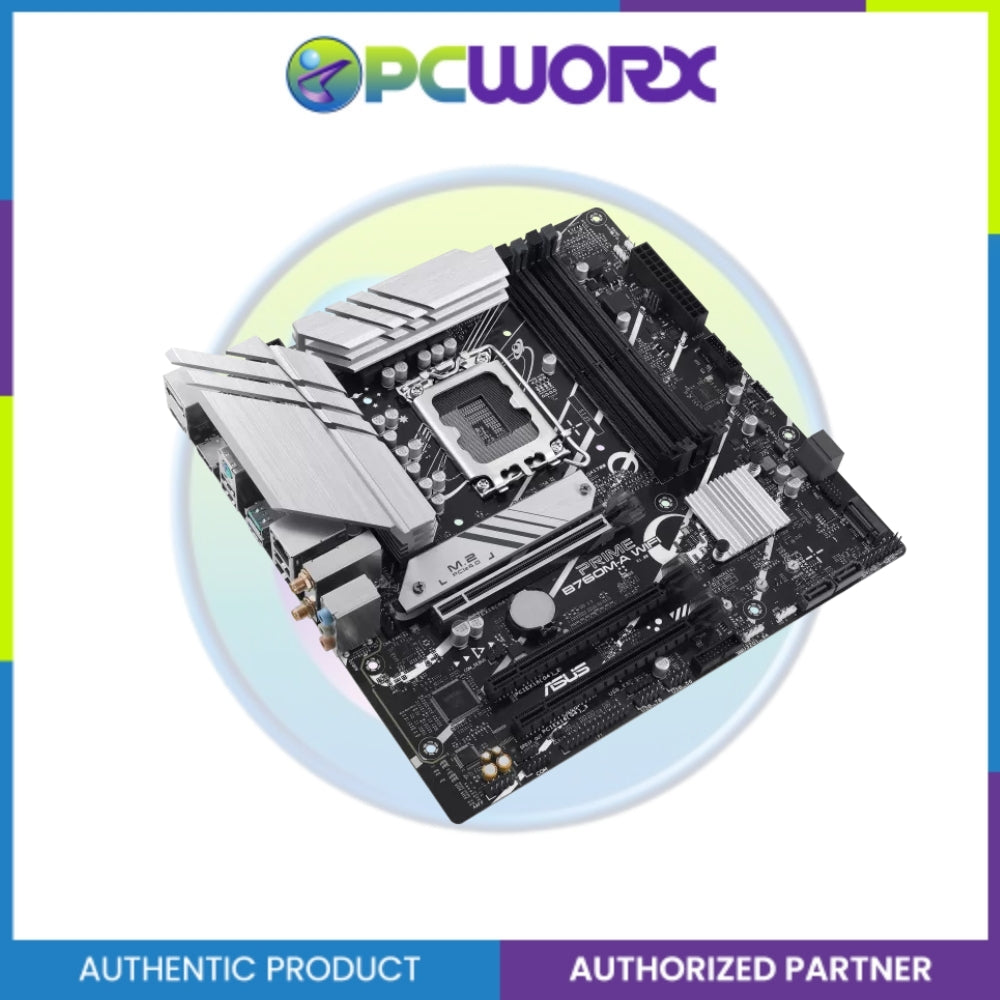

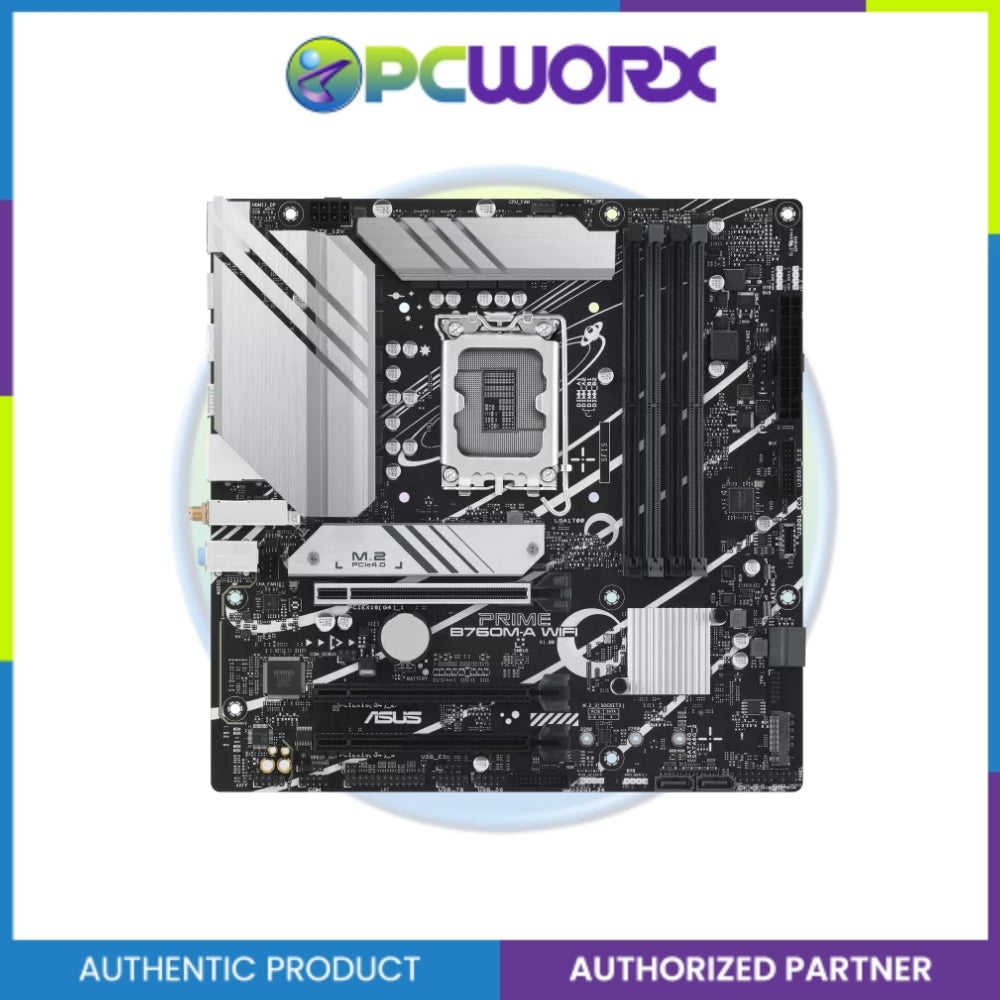

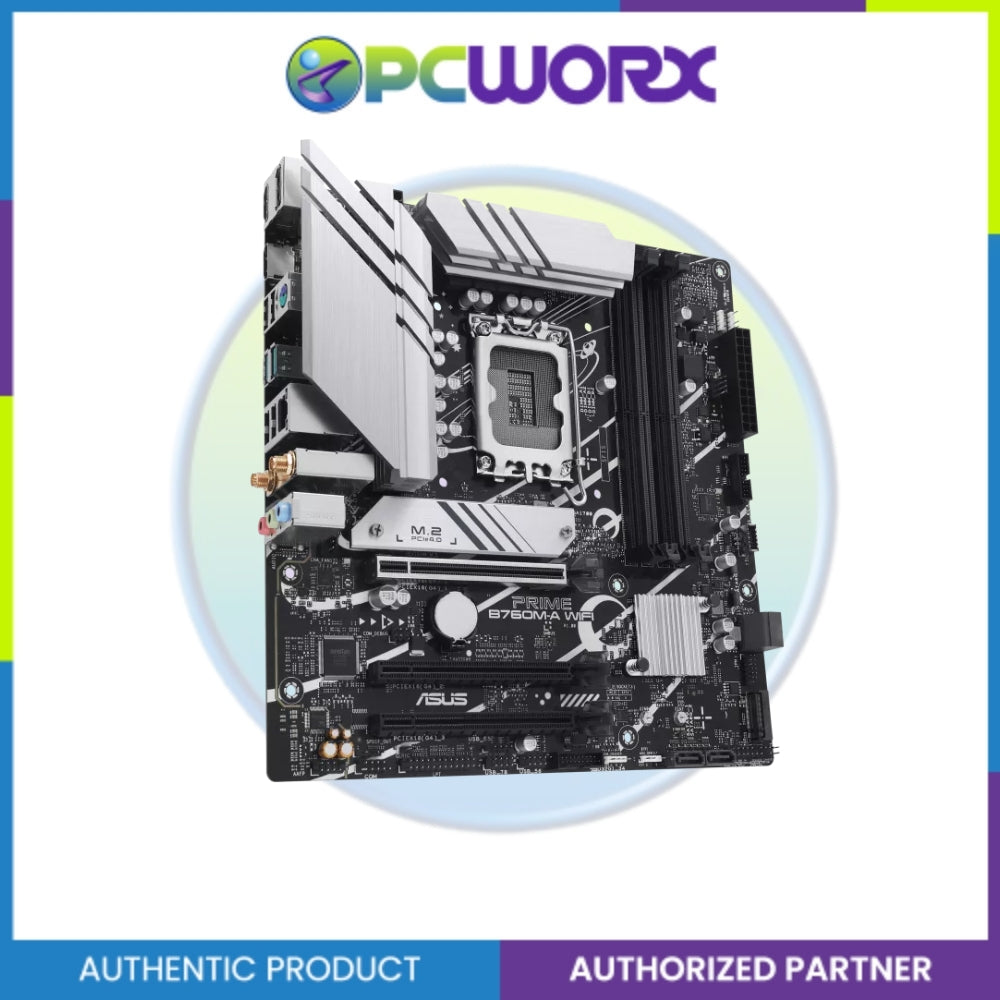

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
| Category | Specification |
|---|---|
| Model | ASUS PRIME B760M-A WIFI |
| Chipset | Intel B760 |
| Socket | LGA1700 |
| Supported CPUs | Intel 12th / 13th / 14th Gen, Pentium Gold, Celeron |
| Form Factor | Micro-ATX (24.4 × 24.4 cm / 9.6" × 9.6") |
| Weight | ~0.60–0.70 kg (board only, approx. typical ASUS mATX WiFi board weight) |
| Memory Type | DDR5 |
| RAM Slots | 4 × DIMM |
| Max Memory Capacity | Up to 128 GB |
| Memory Speeds | 4800 MHz up to 7200+ MHz (OC) |
| Memory Features | Dual-channel, Intel XMP, OptiMem II, non-ECC UDIMM |
| Graphics Outputs | 1 × DisplayPort, 2 × HDMI |
| Max Resolution | 4K @ 60Hz (HDMI 2.1 / DP 1.4) |
| PCIe Slots | 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x16 (x1 mode) |
| Storage | 2 × M.2 (PCIe 4.0 x4), 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| LAN | Realtek 2.5Gb Ethernet |
| WiFi | Wi-Fi 6 (802.11ax, 2×2) |
| Bluetooth | v5.2 |
| Rear USB Ports | 2 × USB 3.2 Gen2 Type-A, 4 × USB 2.0 |
| Front USB Support | Up to 10 additional USB ports via headers (USB 3.2 Gen1 + USB-C + USB 2.0) |
| Audio | Realtek 7.1 HD Audio Codec |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers |

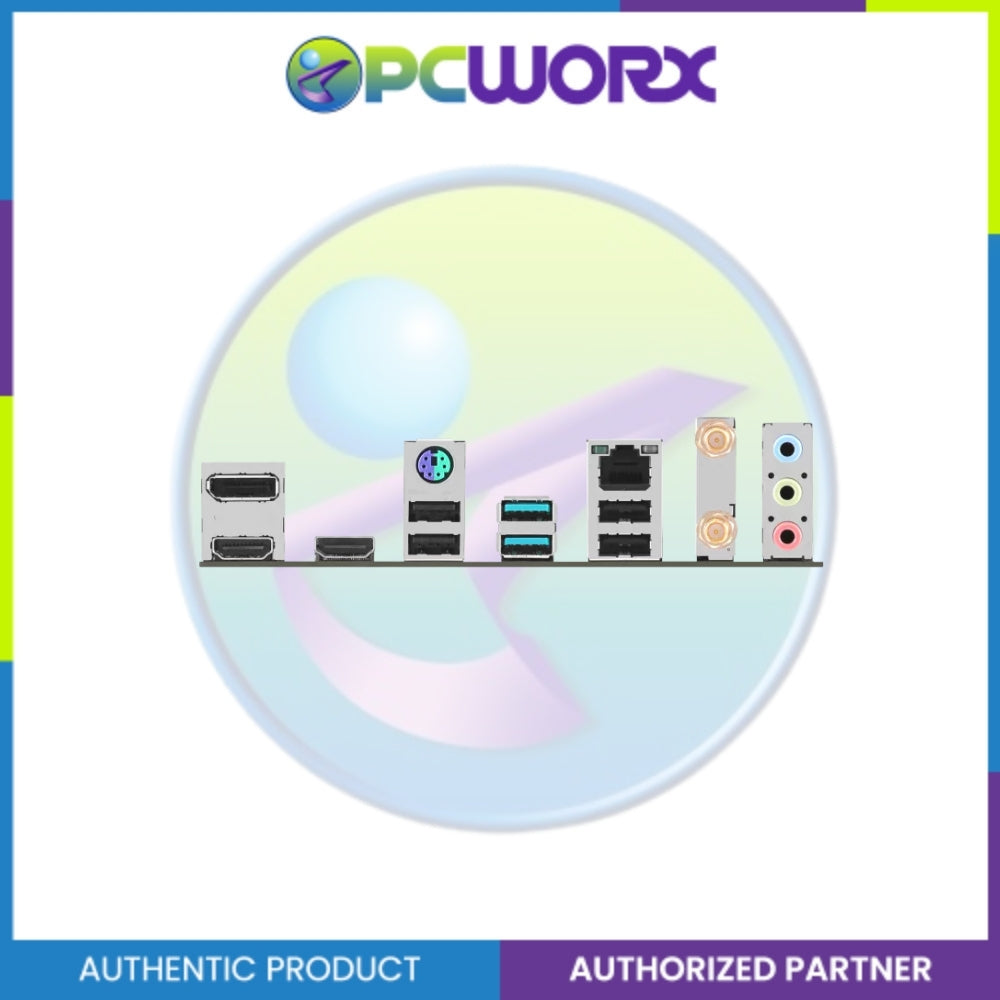

| Rear I/O | HDMI ×2, DisplayPort ×1, USB ×6, LAN ×1, WiFi module, Audio jacks ×3, PS/2 combo |
| Internal Headers | 2 × M.2, 4 × SATA, USB headers (Gen1/Gen2/USB-C), RGB + ARGB, TPM, COM, LPT |
| Fan Headers | 1 × CPU fan, 1 × CPU OPT, 2 × chassis fan |
| RGB Support | Aura Sync, 1 × RGB + 3 × ARGB Gen2 headers |
| Cooling | VRM heatsink, M.2 heatsink, Fan Xpert 2+ |
| BIOS | 128Mb UEFI AMI BIOS |
| BIOS Features | EZ Flash 3, CrashFree BIOS 3, EZ Mode |
| Power Connectors | 24-pin ATX + 8-pin CPU |
| Security/Protection | 5X Protection III (SafeSlot, LANGuard, Overvoltage Protection) |
| Software | Armoury Crate, AI Suite 3, Aura Sync, Fan Xpert 2+, MyASUS |
| OS Support | Windows 10 / Windows 11 (64-bit) |

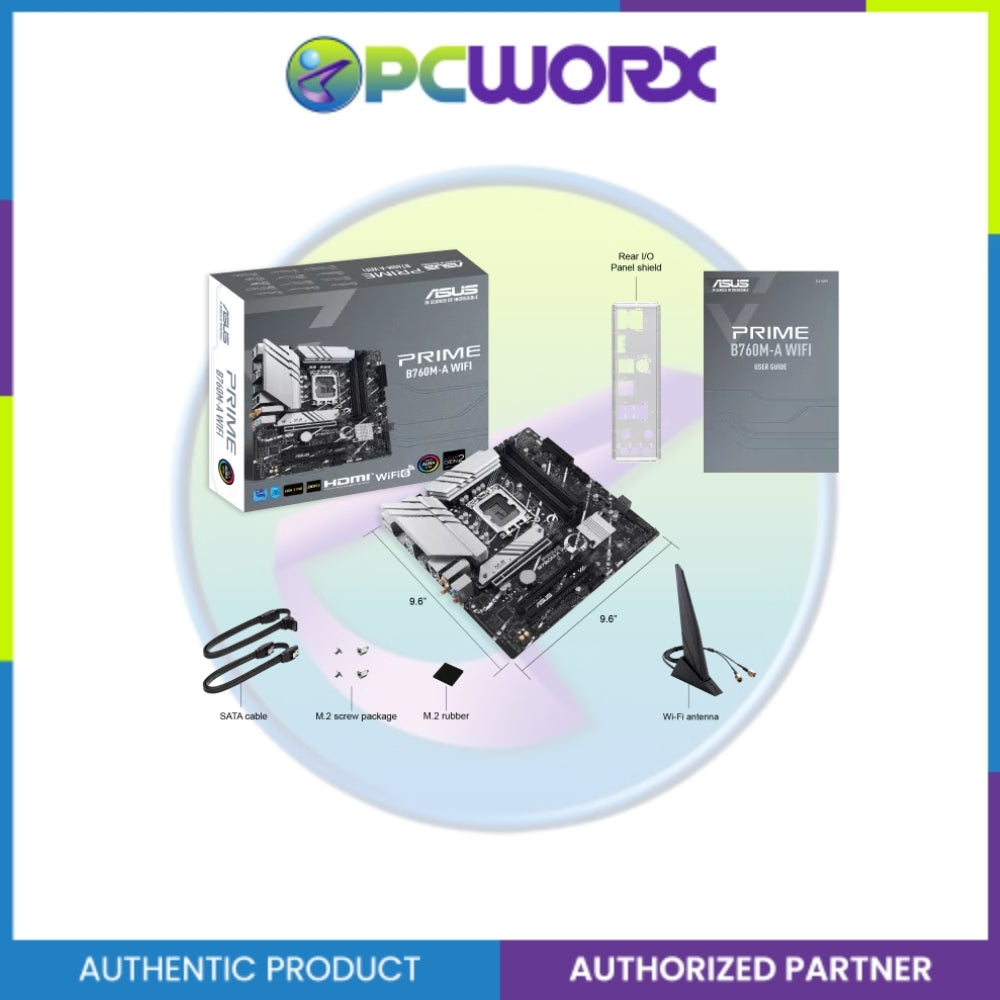

| Accessories | WiFi antennas, SATA cables, M.2 kit, I/O shield |
| Networking Features | WOL, PXE boot |
| Special Features | Q-Design, EZ DIY tools |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
| Weight | ~0.62 kg (board only, approx.) |
₱11,812.50
Estimated delivery between June 08 and June 10.
Delivery Information
Metro Manila: 2–3 days | Provincial: 3–7 days
Main Office Branch only
Same Day Delivery
Same-Day Delivery Available
Processing starts 1–2 hours after checkout Mon–Sat | Main Office Branch only
Processing only during office hours from Main Office 9am - 5pm
₱11,812.50
₱11,812.50
Authorized Seller
100% Original Authentic Product
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
| Category | Specification |
|---|---|
| Model | ASUS PRIME B760M-A WIFI |
| Chipset | Intel B760 |
| Socket | LGA1700 |
| Supported CPUs | Intel 12th / 13th / 14th Gen, Pentium Gold, Celeron |
| Form Factor | Micro-ATX (24.4 × 24.4 cm / 9.6" × 9.6") |
| Weight | ~0.60–0.70 kg (board only, approx. typical ASUS mATX WiFi board weight) |
| Memory Type | DDR5 |
| RAM Slots | 4 × DIMM |
| Max Memory Capacity | Up to 128 GB |
| Memory Speeds | 4800 MHz up to 7200+ MHz (OC) |
| Memory Features | Dual-channel, Intel XMP, OptiMem II, non-ECC UDIMM |
| Graphics Outputs | 1 × DisplayPort, 2 × HDMI |
| Max Resolution | 4K @ 60Hz (HDMI 2.1 / DP 1.4) |
| PCIe Slots | 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x16 (x1 mode) |
| Storage | 2 × M.2 (PCIe 4.0 x4), 4 × SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 |
| LAN | Realtek 2.5Gb Ethernet |
| WiFi | Wi-Fi 6 (802.11ax, 2×2) |
| Bluetooth | v5.2 |
| Rear USB Ports | 2 × USB 3.2 Gen2 Type-A, 4 × USB 2.0 |
| Front USB Support | Up to 10 additional USB ports via headers (USB 3.2 Gen1 + USB-C + USB 2.0) |
| Audio | Realtek 7.1 HD Audio Codec |
| Audio Features | Audio shielding, premium capacitors, dedicated PCB layers |
| Rear I/O | HDMI ×2, DisplayPort ×1, USB ×6, LAN ×1, WiFi module, Audio jacks ×3, PS/2 combo |
| Internal Headers | 2 × M.2, 4 × SATA, USB headers (Gen1/Gen2/USB-C), RGB + ARGB, TPM, COM, LPT |
| Fan Headers | 1 × CPU fan, 1 × CPU OPT, 2 × chassis fan |
| RGB Support | Aura Sync, 1 × RGB + 3 × ARGB Gen2 headers |
| Cooling | VRM heatsink, M.2 heatsink, Fan Xpert 2+ |
| BIOS | 128Mb UEFI AMI BIOS |
| BIOS Features | EZ Flash 3, CrashFree BIOS 3, EZ Mode |
| Power Connectors | 24-pin ATX + 8-pin CPU |
| Security/Protection | 5X Protection III (SafeSlot, LANGuard, Overvoltage Protection) |
| Software | Armoury Crate, AI Suite 3, Aura Sync, Fan Xpert 2+, MyASUS |
| OS Support | Windows 10 / Windows 11 (64-bit) |
| Accessories | WiFi antennas, SATA cables, M.2 kit, I/O shield |
| Networking Features | WOL, PXE boot |
| Special Features | Q-Design, EZ DIY tools |
| Form Factor | Micro-ATX (24.4 × 24.4 cm) |
| Weight | ~0.62 kg (board only, approx.) |
Authencity Guaranteed
We only sell authentic products from verified brand partners and retail partners globally.
