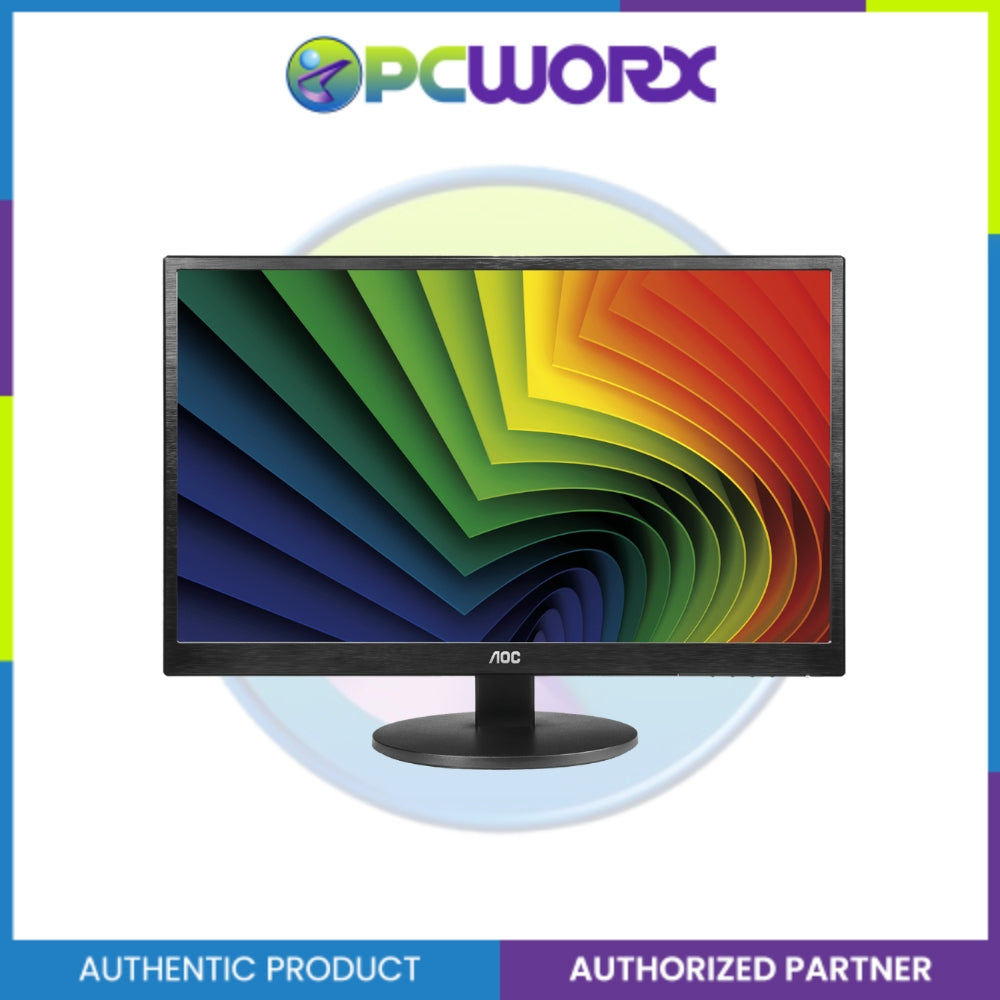

The AOC M2470SWH Monitor features a stunning 23.6” MVA wide-view display panel. Its high contrast ratio of 3000:1 ensures brighter, sharper, more detailed and vivid images. The 8-bit true color screen is capable of displaying 16.7 million hues. Standard HDMI and VGA connectors make it easy to hook up with the latest consumer electronics like Blu-ray players and game consoles. The M2470SWH also equipped with eco-friendly features, including AOC’s e-Saver software that lets the user to preset a low power configuration, and the LED backlight panel requires 50% less energy than typical 4CCFL monitor.
Adaptable and convenient setup
Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.
Built-in convenient multitasking software
Screen+ allows you to split, customize, and organize your monitor's layout. Make multitasking easier by resizing and displaying multiple windows at once.
Easy adjustments just one click away
AOC's i-Menu allows direct access to the monitor's on-screen display settings utilizing a mouse.
SPECIFICATIONS
| Model name |
M2470SWH |
| Panel |
23.6" |
| Pixel Pitch (mm) |
0.2715 (H) × 0.2715 (V) |
| Effective Viewing Area (mm) |
521.28 (H) × 293.22 (V) |
| Brightness (typical) |
250 cd / m² |
| Contrast Ratio |
3000 : 1 (typical) 20,000,000 : 1 (DCR) |
| Response Time |
5ms (GtG) |
| Viewing Angle |
178º (H) / 178º (V) |
| Color Gamut |
- |
| Color Accuracy |
- |
| Optimum Resolution |
1920 x 1080 |
| Display Colors |
16.7 Million |
| Signal Input |
Analog & HDMIx2 |
| HDCP Version |
- |
| USB Hub |
- |
| Power Supply |
Built-in |
| Power Consumption (typical) |
24W |
| Speakers |
YES |
| Line in & Earphone |
- |

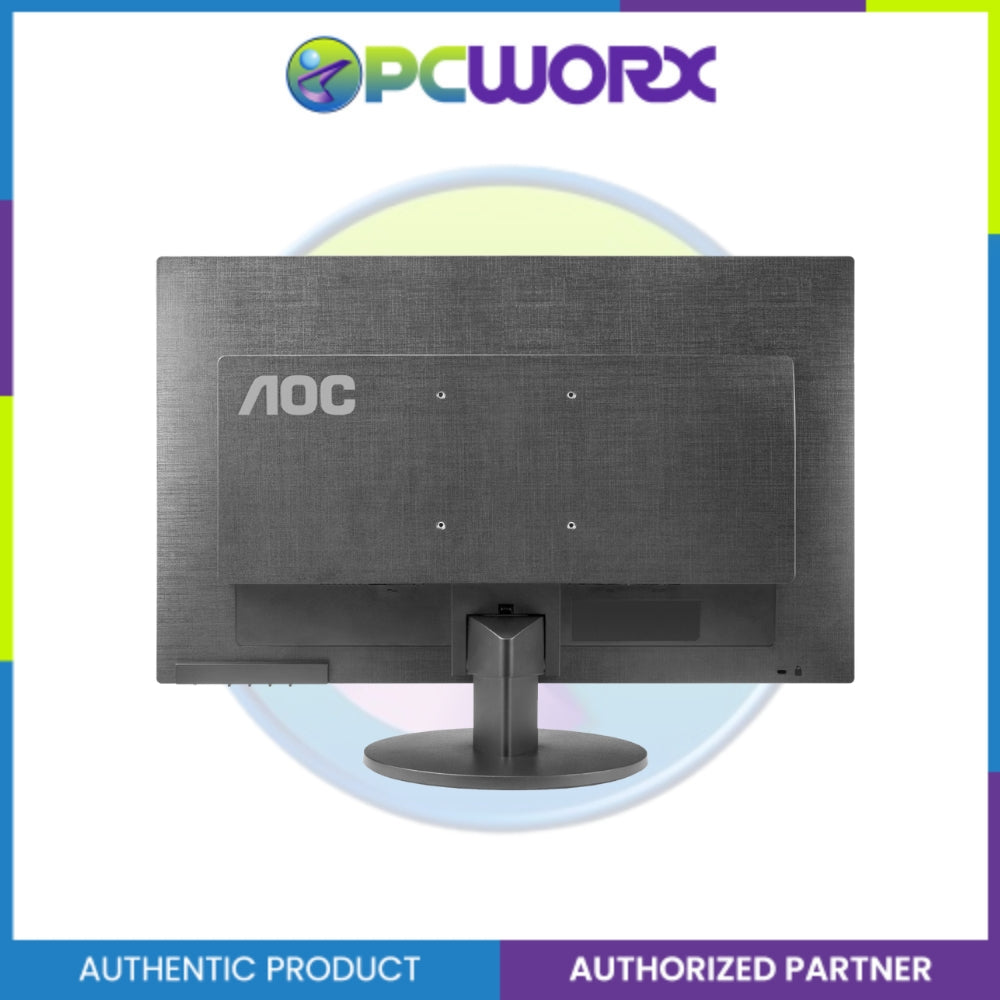

| Wall-Mount |
100mm x 100mm |
| Adjustable Stand |
Tilt: -5°~25° |
| Product without Stand (mm) |
- |
| Product with Stand (mm) |
551.4 (W) x 400.4 (H) x 221 (D) |
| Product without Stand (kg) |
- |
| Product with Stand (kg) |
3.68 Kg |
| Cabinet Color |
Black |
| Regulatory Approvals |
CCC, Windows 8, FCC, CB/CE, EPA 6.0, TCO6.0, cTUVus |
