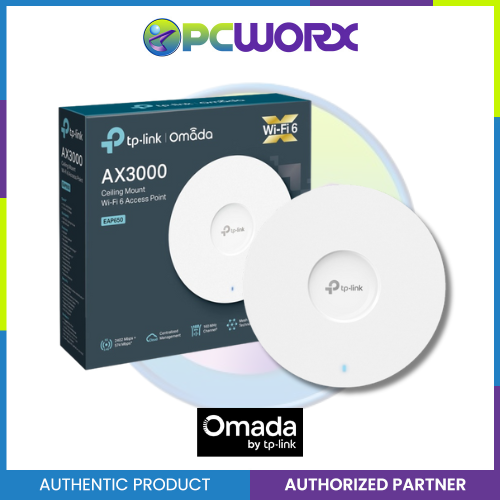

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point Dual Band

Description

Description

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12V / 1.2 A DC (Power Adapter included)
• 48V Passive PoE
Power Consumption • EU: 13.2 W
• US: 14.6 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 3× 5 dBi (One Auxiliary Antenna Included)
Bluetooth Yes
Mounting • Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)***
Wireless Client Capacity 250+**
Concurrent Clients 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<27 dBm(5 GHz, Band3, EIRP)

• FCC:
<24 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS
Package Contents • EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point Dual Band

Product form

HARDWARE FEATURES Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) Button Reset Power Supply • 802.3at PoE• 12V /... Read more

SKU: 0000063772

Out of stock

₱5,865.00
