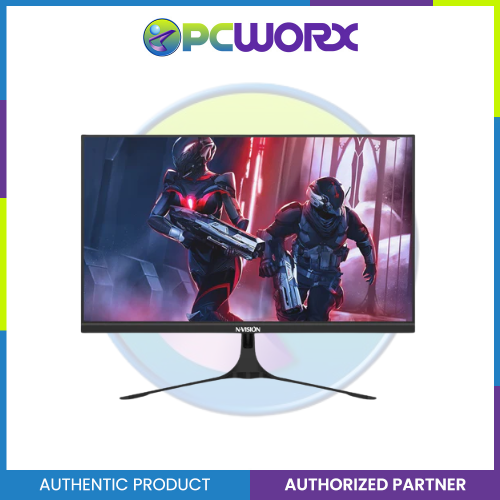

Product Specifications
Brand:
Nvision
Model:
N2455
Color:
Black and White
Panel Size:
23.8"
Panel Type:
IPS
Backlight:
WLED
Resolution:
1920(H)×1080(V)
Refresh Rate:
75Hz
Display Ratio:
16:09
Dot Pixel(H*V)0915x0.2745 (H*V)mm
Display Area (H*V) 527.04(H)×296.46(V)mm
Viewing Angel:
89/89 H / 89/89 V
Display Color:
16.7M (8-bit)
Surface:
(Haze 25%),Hard coating (3H)
Response Time:
1ms Over Clock, 8ms G to G
Contrast Ratio:
1000:1 (Typ.)
Brightness:
230cd/?(7500)
color gamut NTSC :
82.88%
color gamut sRGB :
117.01%
OSD Key:
5 Key Menu , Auto , < , > , Power
One Key Press Function
Auto:
Gameplus , <Display Mode , > Input
Led Mode
Power On:
Blue Light
Stand By :
Red Light / No Light
Power Input:
100-240V 50/60Hz
Power Output:
DC 12V 2.5A
Adaptor Type:
External Adaptor
Power Consumption
26.73W
Stand By ?30W
Interface:
HDMI1.4*1?VGA*1
Speaker:
None
Software Technology
Fliker Free , Low Blue Light, AMD Free Sync
Eco Mode, Game Plus , Response Time Over Clock
Tilt Angle:
Upper 15°,Lower 5°
Gross Weight:
3.76kg
Net Weight:
2.86kg
Unit Size (exclude stand):
541*322*35mm
Unit Size (Include Stand):
541*412*149mm
Package Size:
600*95*392mm
Vesa Mount:
75*75mm
Package Accessories:
HDMI Cable *1
23.8" 120Hz IPS Monitor
24B36H3 is a Full HD display with IPS wide viewing angle, Incredible, 120Hz refresh rate, and 1ms response time, upgraded 3-Sided Frameless, mega DCR. This IPS display deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions.
Specification:
Model Name
24B36H3
Panel
23.8" / IPS LCD
Pixel Pitch (mm)
0.2745(H) * 0.2745(V)
Effective Viewing Area (mm)
527.04(H) * 296.46(V)
Brightness (typical)
300 cd/m²
Contrast Ratio
1500:1 (typical) / MEGA DCR
Response Time
4ms GtG / 1ms MPRT
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 101% (CIE1976) / sRGB 116% (CIE1931)
Optimum Resolution
1920 x 1080 @ 120Hz - HDMI1920 x 1080 @ 75Hz - VGA
Display Colors
16.7 Million
Signal Input
VGA x 1, HDMI 1.4 x 1
USB Hub
No
Power Supply
External 19VDC, 1.31A
Power Consumption (typical)
17W
Speakers
No
Line In/Earphone
No
Wall-Mount
100 mm x 100 mm
Adjustable Stand
Tilt: -5° - 23°
Product without Stand (mm)
316.2(H) * 542.4(W) * 34.7(D)
Product with Stand (mm)
410(H) * 542.4(W) * 198(D)
Packaging (mm)
420(H) * 615(W) * 111(D)
Product without Stand (kg)
2.15
Product with Stand (kg)
2.45
Product with Packaging (kg)
4.43
Cabinet Color
Black
Regulatory Approvals
CE / FCC / RoHS
Designed with wide viewing angles
IPS displays deliver 178/178-degree viewing angles while maintaining consistent image quality and colors from all viewing positions. You can also view your spreadsheets or weekend movies from virtually any angle without compromising color uniformity.
Enjoy stepped up performance
With a 120Hz refresh rate, every frame is redered sharply and in smooth succession, so you can line up your work and play accurately and appreciate high speed in all condition.
Instant response times
A pixel response time of 1ms means speed without the smear for an enhanced gaming experience. Fast-moving action and dramatic transitions will be rendered smoothly without the annoying effects of ghosting. Choose the right path to gaming success, and never let a slow display stop you.
A universally respected anti-tearing solution
Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra-fast response time.
See more and see it clearer
Break away from the shackles of bezels with AOC's 3-Sided Frameless Design monitors. This virtually frameless monitor has extremely narrow bezel around a stunning screen. When used as part of a multi-monitor setup it offers a near-seamless and elegant transition between screens. Beauty, form, and function. Isn't it time you broke free from your bezels?
Protect your eyes from screen flicker
Flicker-free technology reduces flicker to give you a more comfortable gaming experience. Normal LED-backlit monitors adjust brightness using PWM (Pulse Width Modulation) which causes flickering and results in eye discomfort over long periods oftime. AOC flicker-free technology uses a DC (Direct Current) backlight system to provide a more comfortable and healthier viewing experience, minimizing the effects of eye fatigue during work hours.
Reducing shortwave blue light output for healthier eyes
AOC Low Blue Mode setting ensures a more healthy viewing experience for prolonged computer use without compromising the naturally vivid colors of the display.
Adaptable and convenient setup
Whether you prefer a wall mount or multi-monitor desk setup, VESA Mount offers the ultimate in flexibility. And when combined with 3rd party accessories, VESA Mount lets you put your monitor wherever you want it.
Specifications
Model name
24B15H3
Panel
23.8" / IPS
Pixel Pitch (mm)
0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm)
527.04 (H) × 296.46 (V)
Brightness (typical)
250 cd/m²
Contrast Ratio
1000 : 1 (typical) / MEGA DCR
Response Time
1ms MPRT / 4ms GTG
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 111% (CIE1976) / sRGB 118% (CIE1931)
Color Accuracy
-
Optimum Resolution
1920 × 1080 @ 120Hz – HDMI; 1920 × 1080 @ 75Hz – VGA
Display Colors
16.7 Million
Signal Input
VGA × 1, HDMI 1.4 × 1
HDCP Version
-
USB Hub
No
Power Supply
External 12VDC, 2.0A
Power Consumption (typical)
22W
Speakers
No
Line in & Earphone
No
Wall-Mount
75mm x 75mm
Adjustable Stand
Tilt: - 5° ~ 20°
Product without Stand (mm)
322.1 (H) × 540.5 (W) × 36.0 (D)
Product with Stand (mm)
419.9 (H) × 540.5 (W) × 185.2 (D)
Packaging (mm)
395 (H) × 615 (W) × 110 (D)
Product without Stand (kg)
2.45
Product with Stand (kg)
2.8
Product with Packaging (kg)
3.8
Cabinet Color
Black
Regulatory Approvals
CE / RoHS
PANEL SIZE
24.5"
PANEL RESOLUTION
1920 x 1080 (FHD)
REFRESH RATE
120Hz
RESPONSE TIME
1ms (MPRT) / 4ms (GTG)
PANEL TYPE
IPS
BRIGHTNESS (NITS)
250 cd/m2
VIEWING ANGLE
178°(H) / 178°(V)
ASPECT RATIO
16:09
CONTRAST RATIO
1500:01:00
sRGB
99% (CIE1976)
ACTIVE DISPLAY AREA (MM)
543.744(H) x 302.616(V)
PIXEL PITCH (H X V)
0.2832(H) x 0.2802(V)
SURFACE TREATMENT
Anti-glare
DISPLAY COLORS
16.7M
COLOR BIT
8 bits (6 bits + FRC)
VIDEO PORTS
1x HDMI™ 1.4b (FHD@120Hz)
1x D-Sub (VGA)
KENSINGTON LOCK
Yes
VESA MOUNTING
100 x 100 mm
POWER TYPE
External Adaptor 12V 2.5A
POWER INPUT
100~240V, 50~60Hz
DYNAMIC REFRESH RATE TECHNOLOGY
Adaptive-Sync
ADJUSTMENT (TILT)
-5° ~ 20°
DIMENSION (W x D x H)
557.2 x 192 x 413.9 mm
(21.94 x 7.56 x 16.30 inch)
CARTON DIMENSION (W X D X H)
630 x 142 x 411 mm
(24.80 x 5.59 x 16.18 inch)
WEIGHT (NW / GW)
2.84 kg (6.26 lbs) / 5.54 kg (12.21 lbs)
CERTIFICATES
CB/CE
Energy Star
VIDEO INPUT COMPATIBILITY
PC, Mac, PS5™, PS4™, Xbox, Mobile, Notebook
* All trademarks and the registered trademarks are the property of their respective owners.
ACCESSORIES
1x HDMI Cable (1.4), 1x Power Adaptor, 1x Quick Guide
Note
HDMI™: 1920 x 1080 (Up to 120Hz)
D-Sub (VGA): 1920 x 1080 (Up to 60Hz)
Work in style
Experience productivity in Full HD. This monitor is equipped with essentials for the workplace, such as LowBlue mode to protect the eyes, IPS LED wide view technology for high-quality imagery, and 1ms MPRT for sharp visuals.
IPS LED wide view technology for image and color accuracy
IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.
16:9 Full HD display for crisp detailed images
Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colors expect a true to life picture.
SmartContrast for deep black level details
SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.
HDMI ensures universal digital connectivity
An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).
Built-in stereo speakers for multimedia
A pair of high quality stereo speakers built into a display device. It can be visible front firing, or invisible down firing, top firing, rear firing, etc depending on model and design.
SoftBlue Technology: for comfortable viewing
SoftBlue LED technology, combined with the monitor's low blue light panel, is an effective solution to reducing the adverse health effects caused by high exposure to blue light. In this monitor's panel, the ratio of light is reduced by nearly 50% while the SoftBlue LED technology works simultaneously by reducing harmful blue light rays emitted from the screen. Not to mention, the SoftBlue LED technology is tested and certified by TUV Rheinland Eyesafe for its effectiveness in reducing blue light emissions.
Effortlessly smooth action with Adaptive-Sync technology
Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra fast response time.
1ms (MPRT) fast response for crisp image and smooth gameplay
MPRT (motion picture response time) is more intuitive way to describe the response time, which directly refers the duration from seeing blurry noise to clean and crisp images. Philips monitor with 1 ms MPRT effectively eliminates smearing and motion blur, delivers shaper and precise visuals to enhance gaming experience. Best choice for playing thrilling and twitch-sensitive games.
120Hz refresh rates for ultra-smooth images
For gaming and video performance, you demand display with lag free, ultra-smooth images. This Philips display redraws the screen image up--to 120 times per second, much faster than a standard display. A lower frame rate can make enemies appear to jump from spot to spot on the screen, making them difficult targets to hit. With 120Hz frame rate, you get those critical missing images on the screen which shows enemy movement in ultra-smooth motion so you can easily target them.
Technical Specifications
Picture/Display
Panel Size
23.8 inch / 60.5 cm
Aspect Ratio
16:9
LCD Panel Type
IPS technology
Backlight Type
W-LED system
Pixel Pitch
0.2745 x 0.2745 mm
Brightness
300 cd/m²
Display Colors
16.7 M
Color Gamut (typical)
Adobe RGB 84.49%; DCI-P3: 81.39%; sRGB: 102.66%; NTSC: 89.36%*
Contrast Ratio (typical)
1500:1
SmartContrast
Mega Infinity DCR
Response Time (typical)
4 ms (Gray to Gray)*
Viewing Angle
178º (H) / 178º (V) @ C/R > 10
Picture Enhancement
SmartImage
Maximum Resolution
1920 x 1080 @ 120 Hz
Effective Viewing Area
527.04 (H) x 296.46 (V) mm
Scanning Frequency
VGA: 30-85 KHz (H) / 48-75 Hz (V); HDMI: 30-140 KHz (H) / 48-120 Hz (V)
sRGB
Yes
SoftBlue
Yes
Flicker-Free
Yes
Pixel Density
93 PPI
LowBlue Mode
Yes
Display Screen Coating
Anti-Glare, 3H, Haze 25%
MPRT
1ms*
EasyRead
Yes
Adaptive Sync
Yes
Connectivity
Signal Input
VGA x 1, HDMI 1.4 x 1
Sync Input
Separate Sync
Audio (In/Out)
Audio-in, Audio out
HDCP
HDCP 1.4 (HDMI)
Convenience
Built-in Speakers
2W x 2
Plug & Play Compatibility
DDC/CI, Mac OS, sRGB, Windows 11 / 10
User Convenience
Power On/Off, Menu, Volume, Input, SmartImage
OSD Languages
Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Other Convenience
Kensington lock, VESA mount (100x100mm)
Stand
Tilt
-5° / +20°
Power
Power Supply
Internal, 100-240VAC, 50-60Hz
Off Mode
0.3 W (typ.)
On Mode
14 W (typ.)
Standby Mode
0.5 W (typ.)
Power LED Indicator
Operation - White, Standby - White (blinking)
Dimensions
Packaging (W x H x D)
610 x 370 x 124 mm
Product Without Stand
542 x 316 x 45 mm
Product With Stand (max height)
542 x 417 x 180 mm
Weight
Product With Packaging
4.68 kg
Product With Stand
2.92 kg
Product Without Stand
2.57 kg
Operating Conditions
Altitude
Operation: +12,000 ft (3,658 m), Non-operation: +40,000 ft (12,192 m)
Operating Temperature
0 to 40 °C
MTBF
50,000 hrs (excluding backlight)
Relative Humidity
20% - 80%
Storage Temperature
-20 to 60 °C
Sustainability
Environmental & Energy
RoHS
Recyclable Packaging Material
100%
Specific Substances
PVC / BFR free housing
Compliance and Standards
Regulatory Approvals
CB, CE Mark, PSB, BSMI, UKCA, EMF, FCC, ICES-003
Cabinet
Color
White
Finish
Textured
Built for precision
2000 series
24 (23.8" / 60.5 cm diag.)
1920 x 1080 (Full HD)
IPS LED wide view technology for image and color accuracy
IPS displays use an advanced technology which gives you extra wide viewing angles of 178/178 degree, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays gives you remarkably crisp images with vivid colors, making it ideal not only for Photos, movies and web browsing, but also for professional applications which demand color accuracy and consistent brightness at all times.
16:9 Full HD display for crisp detailed images
Picture quality matters. Regular displays deliver quality, but you expect more. This display features enhanced Full HD 1920 x 1080 resolution. With Full HD for crisp detail paired with high brightness, incredible contrast and realistic colors expect a true to life picture.
SmartContrast for deep black level details
SmartContrast is a Philips technology that analyzes the contents you are displaying, automatically adjusting colors and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption.
LowBlue mode and Flicker-free easy-on-the eyes viewing
Our LowBlue Mode and Flicker-free technology have been developed to reduce eye strain and fatigue often caused by long hours in front of a monitor.
HDMI ensures universal digital connectivity
An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. A HDMI cable enables high-quality digital video and audio all transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras).
Effortlessly smooth action with Adaptive-Sync technology
Gaming shouldn't be a choice between choppy gameplay or broken frames. Get fluid, artifact-free performance at virtually any framerate with Adaptive-Sync technology, smooth quick refresh and ultra fast response time.
1ms (MPRT) fast response for crisp image and smooth gameplay
MPRT (motion picture response time) is more intuitive way to describe the response time, which directly refers the duration from seeing blurry noise to clean and crisp images. Philips monitor with 1 ms MPRT effectively eliminates smearing and motion blur, delivers shaper and precise visuals to enhance gaming experience. Best choice for playing thrilling and twitch-sensitive games.
120Hz refresh rates for ultra-smooth, brilliant images
You play intense, competitive gaming. You demand display with lag free, ultra-smooth images. This Philips display redraws the screen image up-to 120 times per second, effectively faster than a standard display. A lower frame rate can make enemies appear to jump from spot to spot on the screen, making them difficult targets to hit. With 120Hz frame rate, you get those critical missing images on the screen which shows enemy movement in ultra-smooth motion so you can easily target them. With ultra-low input lag and no screen tearing, this Philips display is your perfect gaming partner.
EasyRead mode for a paper-like reading experience
Category
Specification / Details
Panel Size
23.8 inch / 60.5 cm
Aspect Ratio
16:9
LCD Panel Type
IPS technology
Backlight Type
W-LED system
Pixel Pitch
0.2745 x 0.2745 mm
Brightness
300 cd/m²
Display Colors
16.7 M
Contrast Ratio (Typical)
1500:1
SmartContrast
Mega Infinity DCR
Response Time (Typical)
4 ms (Gray to Gray)
Viewing Angle
178º (H) / 178º (V) @ C/R > 10
Picture Enhancement
SmartImage
Maximum Resolution
1920 x 1080 @ 120 Hz
Effective Viewing Area
527.04 (H) x 296.46 (V) mm
Scanning Frequency
VGA: 30-85 KHz / 48-75 Hz; HDMI: 30-140 KHz / 48-120 Hz
sRGB
Yes
Flicker-Free
Yes
Pixel Density
93 PPI
LowBlue Mode
Yes
Display Screen Coating
Anti-Glare, 3H, Haze 25%
MPRT
1 ms
EasyRead
The 24B36X is built for seamless transitions between productivity and entertainment. Its 24" FHD display delivers fluid visuals with a 144Hz refresh rate and ultra-fast 0.5ms MPRT. Adaptive Sync ensures tear-free performance, while HDR10 brings rich contrast and color. Designed for comfort, Low Blue Light technology helps reduce eye strain—making the 24B36X a smart, versatile choice for any workspace or gaming station.
Specification:
Model Name
24B36X
Panel
23.8" / IPS
Pixel Pitch (mm)
0.2745 (H) × 0.2745 (V)
Effective Viewing Area (mm)
527.04 (H) × 296.46 (V)
Brightness (typical)
300 cd/m²
Contrast Ratio
1500 : 1 (typical) / MEGA DCR
Response Time
4ms GtG / 0.5ms MPRT
Viewing Angle
178° (H) / 178° (V) (CR > 10)
Color Gamut
NTSC 112% (CIE1976) / sRGB 123% (CIE1931)
Optimum Resolution
1920 × 1080 @ 144Hz
Display Colors
16.7 Million
Signal Input
HDMI 1.4 × 1, DisplayPort 1.4 × 1
USB Hub
No
Power Supply
External 19VDC, 1.31A
Power Consumption (typical)
18W
Speakers
No
Line In/Earphone
Yes
Wall-Mount
100 mm × 100 mm
Adjustable Stand
Tilt: -5° ~ 23°
Product without Stand (mm)
318.5 (H) × 544.0 (W) × 35.1 (D)
Product with Stand (mm)
414.5 (H) × 544.0 (W) × 198.0 (D)
Packaging (mm)
420 (H) × 615 (W) × 112 (D)
Product without Stand (kg)
2.21
Product with Stand (kg)
2.52
Product with Packaging (kg)
4.65
Cabinet Color
Black
Regulatory Approvals
CE / FCC / RoHS
This monitor is packed with features that allow you to work with absolute precision. Its Full HD resolution, along with a 144Hz refresh rate and 0.5ms MPRT, this monitor showcases detailed imagery with the utmost definition.
2000 series
24 (23.8" / 60.5 cm diag.)
1920 x 1080 (Full HD)
IPS LED wide view technology for image and color accuracy
IPS displays use advanced technology giving extra wide viewing angles of 178/178 degrees, allowing viewing from almost any angle. Unlike standard TN panels, IPS displays deliver crisp images and vivid colors, ideal for photos, movies, web browsing, and professional applications demanding color accuracy and consistent brightness.
16:9 Full HD display for crisp detailed images
This display features enhanced Full HD 1920x1080 resolution. With high brightness, incredible contrast, and realistic colors, expect sharp detail and a true-to-life picture.
SmartContrast for deep black level details
SmartContrast analyzes content and adjusts colors and backlight intensity dynamically for the best image quality. In Economy mode, it fine-tunes contrast and brightness for office applications while lowering power consumption.
LowBlue mode and Flicker-free easy-on-the-eyes viewing
LowBlue Mode and Flicker-free technology help reduce eye strain and fatigue during long hours in front of a monitor.
Ultra Slim Bezel: for minimal edges and more screen
The Ultra Slim Bezel design minimizes frame thickness, creating an elegant look and a more immersive viewing experience.
HDMI ensures universal digital connectivity
HDMI-ready devices support high-quality digital video and audio over a single cable, ensuring compatibility with PCs and various AV sources.
Effortlessly smooth action with Adaptive-Sync technology
Adaptive-Sync delivers fluid, artifact-free performance at virtually any framerate, ensuring smooth, responsive gameplay.
144Hz refresh rates for ultra-smooth, brilliant images
With a 144Hz refresh rate and ultra-low input lag, enjoy fluid motion and crystal-clear visuals for fast-paced, competitive gaming.
0.5 ms ultra-fast speed for crisp image and smooth gameplay
With 0.5 ms MPRT, motion blur is eliminated for sharp, precise visuals—perfect for action-packed, high-speed gaming.
EasyRead mode for a paper-like reading experience
VESA mount for convenience
Technical Specifications
Picture / Display
Panel Size
23.8 inch / 60.5 cm
Aspect Ratio
16:9
LCD Panel Type
IPS technology
Backlight Type
W-LED system
Pixel Pitch
0.2745 x 0.2745 mm
Brightness
300 cd/m²
Display Colors
16.7 million
Contrast Ratio (Typical)
1500:1
SmartContrast
Mega Infinity DCR
Response Time (Typical)
4 ms (Gray to Gray)*
Viewing Angle
178º (H) / 178º (V) @ C/R > 10
Picture Enhancement
SmartImage
Maximum Resolution
1920 x 1080 @ 144 Hz
Effective Viewing Area
527.04 (H) x 296.46 (V) mm
Scanning Frequency
30 KHz–160 KHz (H) / 48 Hz–144 Hz (V)
sRGB
Yes
Flicker-Free
Yes
Pixel Density
93 PPI
LowBlue Mode
Yes
Display Screen Coating
Anti-Glare, 3H, Haze 25%
MPRT
0.5 ms*
EasyRead
Yes
Adaptive Sync
Yes
HDR
HDR 10
Connectivity
Signal Input
HDMI 1.4 x1, DisplayPort 1.4 x1
Audio (In/Out)
Audio Out
HDCP
HDCP 1.4 (HDMI/DP)
Convenience
Plug & Play Compatibility
DDC/CI, Mac OS X, sRGB, Windows 11/10
User Convenience
Power On/Off, Menu, Brightness, Input, SmartImage
OSD Languages
Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Other Convenience
Kensington Lock, VESA Mount (100×100mm)
Stand
Tilt
-5° / 20°
Power
Power Supply
External, 100–240VAC, 50–60Hz
Off Mode
0.3 W (typ.)
On Mode
14.3 W (typ.)
Standby Mode
0.5 W (typ.)
Power LED Indicator
Operation – White / Standby – White (blinking)
Dimensions
Packaging (W×H×D)
610 × 378 × 126 mm
Product Without Stand
544 × 319 × 32 mm
Product With Stand (Max Height)
544 × 413 × 180 mm
Weight
With Packaging
4.45 kg
With Stand
2.46 kg
Without Stand
2.18 kg
Operating Conditions
Altitude
Operation: up to 12,000 ft (3,658 m) / Non-operation: up to 40,000 ft (12,192 m)
Operating Temperature
0–40 °C
Storage Temperature
-20–60 °C
Relative Humidity
20–80%
MTBF
50,000 hours (excluding backlight)
Sustainability
Environmental & Energy
RoHS
Recyclable Packaging Material
100%
Compliance & Standards
Regulatory Approvals
CB, CE Mark, PSB, CEL, CCC, CECP, BSMI, UKCA, EMF, FCC, ICES-003
Cabinet
Color
Black
Finish
Textured
SPECIFICATION
Display & Performance
Panel Type:
In-Plane Switching (IPS) for wide viewing angles and good color accuracy.
Size:
24.5 inches.
Resolution:
Full HD (1920x1080).
Refresh Rate:
144Hz.
Response Time:
1ms (VRB).
Brightness: .
250 cd/m² (nits)
Contrast Ratio:
1500:1 (Native).
Color Gamut:
99% sRGB.
Viewing Angle:
Wide viewing angles (178° horizontal/vertical) typical of IPS panels.
Design & Features
Design:
ZeroFrame design with minimal bezels for a more immersive experience.
Adaptive Sync:
Supports AMD FreeSync to reduce screen tearing and stuttering.
Eye Protection:
Includes Flicker-less and BlueLightShield technologies to reduce eye strain.
Audio:
No built-in speakers.
Ergonomics:
Features tilt adjustment and VESA wall mount compatibility.
Connectivity
Video Inputs:
1 x HDMI port, 1 x VGA port.
