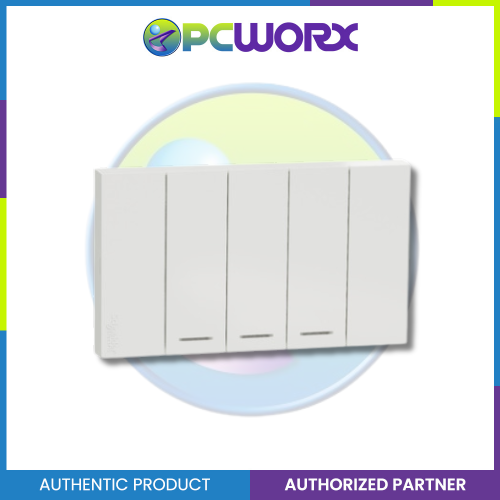

Specifications
Main
Range of product
AvatarOn A
Product or component type
Switch
load type
Resistive loadInductiveFluorescent load
Colour tint
White (WE)
Colour tint
White
Complementary
Device presentation
Complete product
Rated current
16 AX at 250 V AC 50 Hz
Switch function
1-way
Switch application
Control switch
Number of gangs
3 gangs
Clamping connection capacity
2 x 1.5 mm² for solid cable(s)2 x 2.5 mm² for stranded cable(s)2 x 4 mm²
Connections - terminals
Screwless type terminals
Local signalling
Fluorescent (white)
Material
PC: dollyPC 10 % GF: basePC 10 % GF: base cover
Device mounting
Flush
Width
120 mm
Height
70 mm
Depth
33 mm
Embedding depth
22 mm
Environment
IP degree of protection
IP20
Maximum ambient air temperature for operation
45 °C
Ambient air temperature for storage
-5…60 °C
Operating altitude
<= 2000 m
Relative humidity
0…95 %
Standards
IEC 60669-1
Product certifications
IECTIS
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.2 cm
Package 1 Width
7 cm
Package 1 Length
12 cm
Package 1 Weight
128 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
8.8 cm
Package 2 Width
18.5 cm
Package 2 Length
26.5 cm
Package 2 Weight
1.386 kg
Unit Type of Package 3
S03
Number of Units in Package 3
60
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
8.966 kg
DESCRIPTION

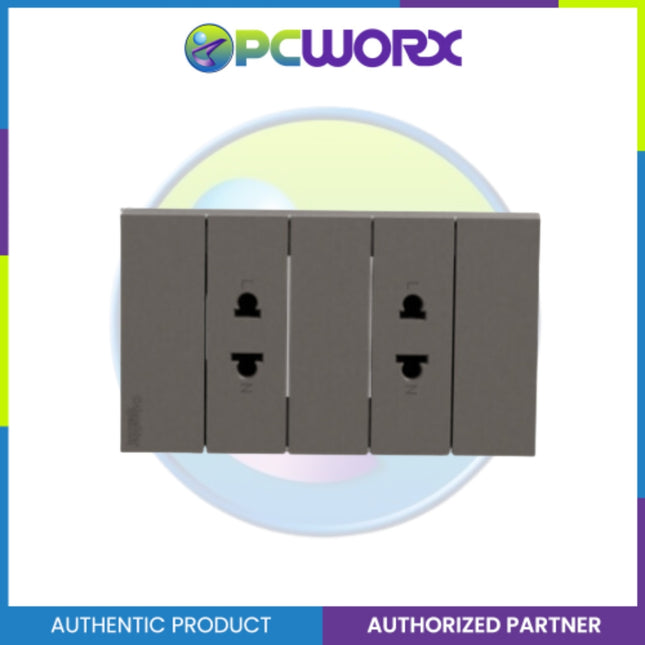

Schneider Electric AvatarOn socket-outlet A70426US_BK is a complete product in color black. With 2 socket outlets. The pole configuration of the outlet is 2 x 2P. And its rated current is 16A. Its matching mounting box can be recessed into the surface of the wall with flush type. The connection terminals of this socket-outlet are screwless terminals. It is 120 mm in width, 70 mm in height, and 36.35 mm in depth. The IP rating of this device is IP20. Being made of polycarbonate material, this socket-outlet is quite reliable and resistant. AvatarOn offers six fashionable, classic appearances, letting your home's details change, just like the changes in your colorful life. Unique, patented technology and exquisite manufacturing ensure comfortable operation, and the easy-mount design allows you to change the faceplates as quickly and easily as you wish.
SPECIFICATIONS
Main
Range of product
AvatarOn A
Product or component type
Socket-outlet
Device presentation
Complete product
Colour tint
Black
Outlet poles configuration
2 x 2P
Colour tint
Black
Complementary
Rated current
16 A at 250 V AC 50...60 Hz
Socket number
2
Clamping connection capacity
2 x 1.5...2 x 4 mm² for solid cable(s)
2 x 1.5...2 x 4 mm² for stranded cable(s)
Connections - terminals
Screwless terminals
Material
Polycarbonate grid plate
Polycarbonate cover
Device mounting
Flush
Width
120 mm
Height
70 mm
Depth
36.35 mm
Embedding depth
24.85 mm
Environment
IP degree of protection
IP20
Maximum ambient air temperature for operation
35 °C
Ambient air temperature for storage
-5…45 °C
Relative humidity
0…95 %
Operating altitude
< 2000 m
Standards
IEC 60884-1
Product certifications
IEC
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.65 cm
Package 1 Width
7 cm
Package 1 Length
12 cm
Package 1 Weight
140 g
Unit Type of Package 2
BB1
Number of Units in Package 2
10
Package 2 Height
8.8 cm
Package 2 Width
18.5 cm
Package 2 Length
26.5 cm
Package 2 Weight
1.506 kg
Unit Type of Package 3
S03
Number of Units in Package 3
60
Package 3 Height
30 cm
Package 3 Width
30 cm
Package 3 Length
40 cm
Package 3 Weight
9.686 kg

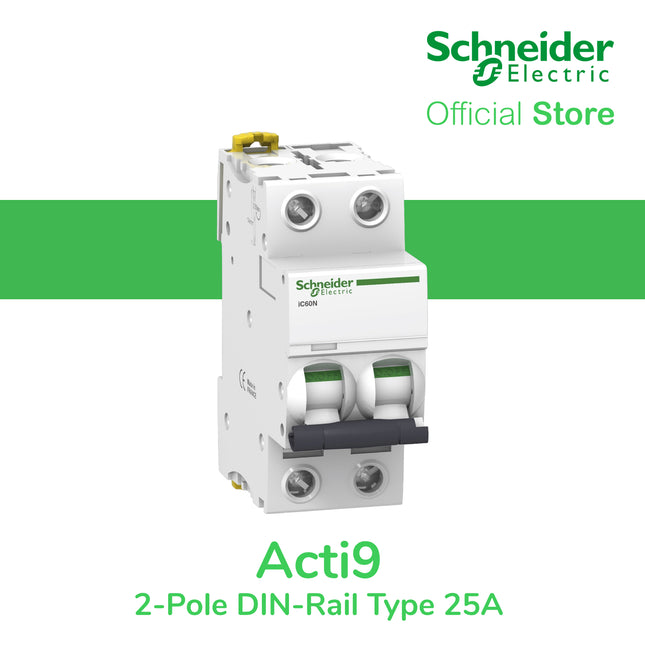

Description

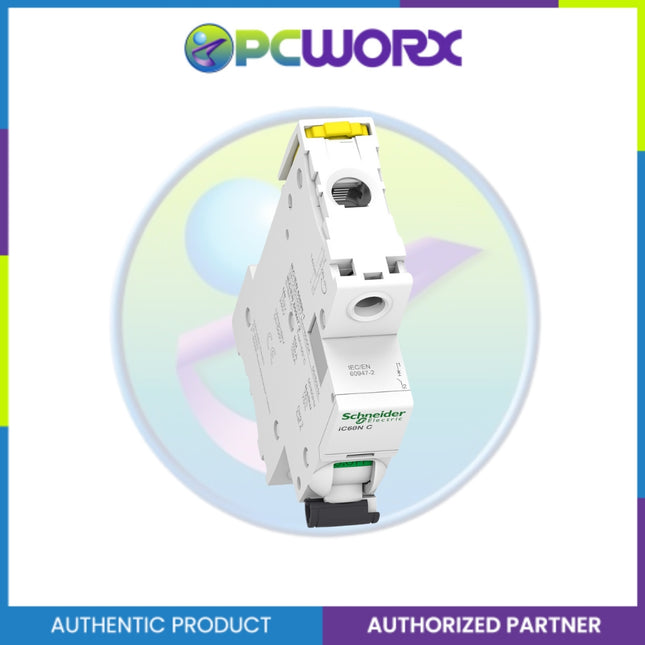

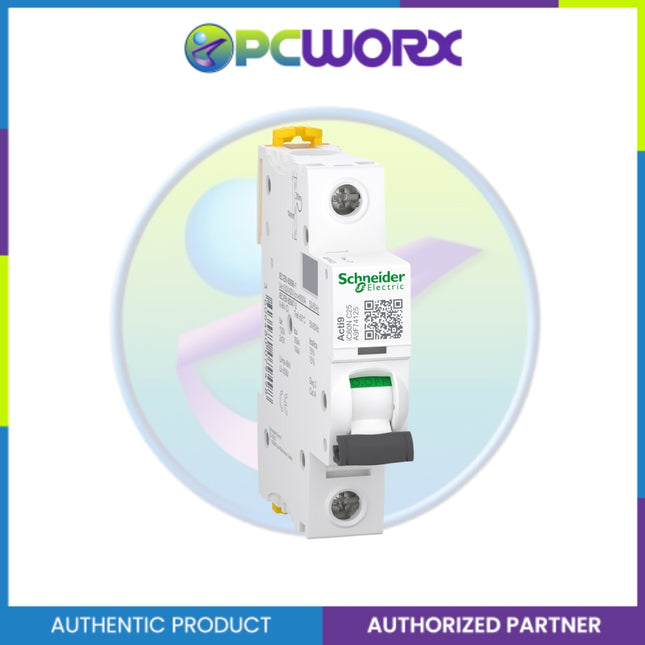

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
SPECIFICATION
Device application:
Distribution
Range:
Acti9
product name:
Acti9 iC60
Product or component type:
Miniature circuit-breaker
Device short name:
IC60N
Poles description:
1P
Number of protected poles:
1
[In] rated current:
25 A
network type:
AC
DC
Trip unit technology:
Thermal-magnetic
Curve code:
C
Breaking capacity:
6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2
15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category:
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation:
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards:
EN 60898-1
EN 60947-2
IEC 60898-1
IEC 60947-2
Complementary
Network frequency:
50/60 Hz
Magnetic tripping limit:
8 x in +/- 20 %
[Ics] rated service breaking capacity:
27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz
10 kA 100 % conforming to EN 60947-2 - 72 V DC
10 kA 100 % conforming to IEC 60947-2 - 72 V DC
15 kA 100 % conforming to EN 60947-2 - 12...60 V DC
15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Limitation class:
3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage:
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage:
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator:
Yes
Control type:
Toggle
Local signalling:
Trip indicator
Mounting mode:
Fixed
Mounting support:
DIN rail
Comb busbar and distribution block compatibility:
Top or bottom: YES
9 mm pitches:
2
Height:
85 mm
Width:
18 mm
Depth:
78.5 mm
Product weight:
0.215 kg
Colour:
White
Mechanical durability:
20000 cycles
Electrical durability:
10000 cycles
Connections - terminals:
Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
Wire stripping length:
14 mm for top or bottom connection
Tightening torque:
2 N.m top or bottom
Earth-leakage protection:
Without
Environment:
IP degree of protection:
IP20 conforming to IEC 60529
IP20 conforming to EN 60529
Pollution degree:
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage category:
IV
Tropicalisation:
2 conforming to IEC 60068-1
Relative humidity:
95 % at 55 °C
Operating altitude:
0...2000 m
Ambient air temperature for operation:
-35…70 °C
Ambient air temperature for storage:
-40…85 °C
Packing Units:
Unit Type of Package 1:
PCE
Number of Units in Package 1:
1
Package 1 Height:
1.800 cm
Package 1 Width:
7.200 cm
Package 1 Length:
9.100 cm
Package 1 Weight:
116.000 g
Unit Type of Package 2
BB1
Number of Units in Package 2:
12
Package 2 Height:
8.000 cm
Package 2 Width:
9.500 cm
Package 2 Length:
22.500 cm
Package 2 Weight:
1.500 kg
Unit Type of Package 3:
S03
Number of Units in Package 3:
132
Package 3 Height:
30.000 cm
Package 3 Width:
30.000 cm
Package 3 Length:
40.000 cm
Package 3 Weight:
16.936 kg
DESCRIPTION
This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast-closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 78.5mm. The weight is 0.215kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.
SPECIFICATIONS
Device application:
Distribution
Range:
Acti9
product name:
Acti9 iC60
Product or component type:
Miniature circuit-breaker
Device short name:
IC60N
Poles description:
1P
Number of protected poles:
1
[In] rated current:
63 A
network type:
DC
AC
Trip unit technology:
Thermal-magnetic
Curve code:
C
Breaking capacity:
6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at <= 72 V DC conforming to EN/IEC 60947-2
15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2
10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
Utilisation category:
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
Suitability for isolation:
Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
Standards:
IEC 60947-2
EN 60947-2
IEC 60898-1
EN 60898-1
Complementary
Network frequency:
50/60 Hz
Magnetic tripping limit:
8 x In +/- 20 %
[Ics] rated service breaking capacity:
27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz
15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz
10 kA 100 % conforming to EN 60947-2 - 72 V DC
10 kA 100 % conforming to IEC 60947-2 - 72 V DC
15 kA 100 % conforming to EN 60947-2 - 12...60 V DC
15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC
Limitation class:
3
[Ui] rated insulation voltage:
500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage:
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
Contact position indicator:
Yes
control type:
Toggle
Local signalling:
Trip indicator
Mounting mode:
Fixed
Mounting support:
DIN rail
Comb busbar and distribution block compatibility:
Top or bottom: YES
9 mm pitches:
2
Height:
85 mm
Width:
18 mm
Depth:
78.5 mm
Product weight:
0.215 kg
Colour:
White
Mechanical durability:
20000 cycles
Electrical durability:
10000 cycles
Connections - terminals:
Single terminal (top or bottom) 1…35 mm² rigid
Single terminal (top or bottom) 1…25 mm² flexible
Wire stripping length:
14 mm for top or bottom connection
Tightening torque:
3.5 N.m top or bottom
Earth-leakage protection:
Without
Environment
IP degree of protection:
3 conforming to EN 60947-2
3 conforming to IEC 60947-2
Pollution degree:
3 conforming to IEC 60947-2
overvoltage category:
IV
Tropicalisation:
2 conforming to IEC 60068-1
Relative humidity:
95 % at 55 °C
Operating altitude:
0...2000 m
Ambient air temperature for operation:
-35…70 °C
Ambient air temperature for storage:
-40…85 °C
Packing Units:
Unit Type of Package 1:
PCE
Number of Units in Package 1:
1
Package 1 Height:
1.8 cm
Package 1 Width:
7.5 cm
Package 1 Weight:
9.5 cm
Package 1 Weight:
128 g
Unit Type of Package 2:
BB1
Number of Units in Package 2:
12
Package 2 Height:
7.8 cm
Package 2 Width:
9.8 cm
Package 2 Length:
22.2 cm
Package 2 Weight:
1.595 kg
Unit Type of Package 3:
S03
Number of Units in Package 3:
132
Package 3 Height:
30 cm
Package 3 Width:
30 cm
Package 3 Length:
40 cm
Package 3 Weight:
18.224 kg
Package 3 Weight:
18.224 kg
