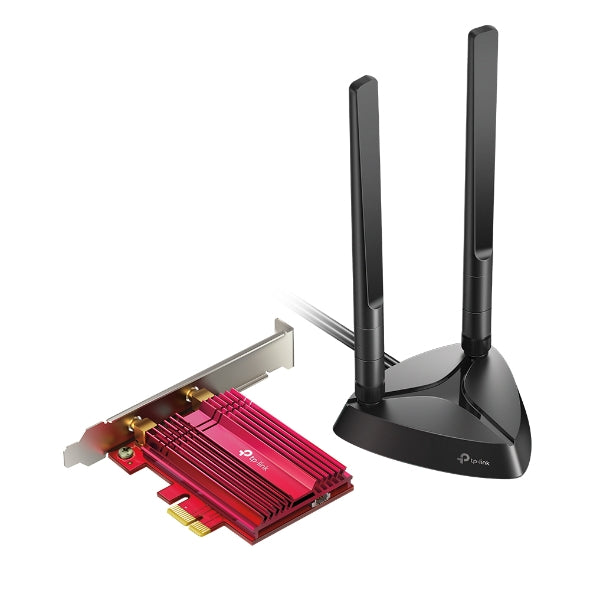

HARDWARE FEATURES - Archer TX3000E
Dimensions
3.7 x 4.8 x 0.8 in(95.2 x 120.8 x 21.5 mm)
Antenna Type
Two High-Gain Dual Band AntennasMagnetized Antenna Base
Chipset
Intel Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/g/b 2.4 GHzBluetooth 5.0/4.2/4.0
WLAN Signal Rate
5 GHz11ax: Up to 2402 Mbps(dynamic)11ac: Up to 1733 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity
5 GHz :11ax HT160：-56.25dBm11ax HT80: -59dBm11ax HT40: -62.25dBm11ax HT20: -65dBm11ac HT160：-62dBm11ac HT80: -65.5dBm11ac HT40: -69.75dBm11ac HT20: -73.75dBm11n HT40: -74.5dBm11n HT20: -77.5dBm11a 54Mbps: -77.75dBm11a 6Mbps: -94.5dBm2.4GHz :11ax HT40: -60.75dBm11ax HT20: -63.75dBm11n HT40: -73dBm11n HT20: -76.25dBm11g 54Mbps: -76.5dBm11b 11Mbps: -89dBm
WLAN Transmit Power
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes
Infrastructure mode
Wireless Security
Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Bluetooth Profiles
Archer TX3000E support the native BT profiles implemented in Windows 10.For the latest information on Windows 10 BT profiles please refer to https://support.microsoft.com/en-us/help/10568/windows-10-supported-bluetooth-profiles
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Archer TX3000EMagnetized Antenna Base with 1m RF CableTwo High Gain AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource CD
System Requirements
Windows 11/10(64-bit) only
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Mesh for Everyone
Introducing COVR-C1203, the mesh solution that blankets your entire home in stable, consistent, and truly seamless Wi-Fi that fits everyone's needs.
HIGH PERFORMANCE
With high-speed AC1200 Dual-Band Wi-Fi, and 11ac Wave 2 with MU-MIMO, COVR-C1203 is fast enough to support multiple devices undertaking everyday data-intensive tasks like HD streaming and video chats simultaneously. Perfect, if you’re just starting out in whole-home networking.
MORE COVERAGE
COVR-C1203’s three discreet units cover up to 5,000 sq. ft. – enough seamless Wi-Fi coverage to eliminate pesky Wi-Fi dead zones in houses of different sizes and configurations.
REDUCE BUFFERING AND LAG
Smart Steering technology steers you away from buffering and lag by automatically directing your device to the optimum wireless band, depending on your current network traffic. No more frustrating dropouts, lags, or interruptions in your wireless connections.
FREE YOURSELF WITH SMART ROAMING
Don’t let endless disconnecting and reconnecting to different networks cripple your Wi-Fi experience. Smart Roaming keeps you constantly connected to the strongest signal even as you move from room to room.
SIMPLE. YET FLEXIBLE.
Covr Dual Band Whole Home Wi-Fi System comes pre-paired and works straight out of the box, so you just need to plug in the Covr Points and get started. The best part? It's flexible enough to cover most housing types. From 1-storey apartments to 4-storey houses, and basements to back decks, Covr's got you covered.
SPECIFICATIONS
Ethernet Ports
2 x Gigabit (Auto WAN/LAN)
Antennas
2 x 3 (Tx/Rx) Internal
Wi-Fi Radios
Up to 866 Mbps (5 GHz) / Up to 300 Mbps (2.4 GHz)
Wi-Fi Standard
802.11ac Wave 2 dual-band wireless
Dimensions
107.5 x 108 x 51 mm
WPS
Yes
Coverage Area
Up to 465 sqm / 5000 sq. ft. ( 3-pack )
Supports 802.11ac standardSimultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth4 external antennas provide stable wireless connections and optimal coverageEasy network management at your fingertips with TP-Link TetherSupports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streamingSupports Access Point mode to create a new Wi-Fi access pointSPECIFICATIONWIRELESSStandards: Wi-Fi 5 - IEEE 802.11ac/n/a 5 GHz / IEEE 802.11n/b/g 2.4 GHzWiFi Speeds: AC1200 - 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)WiFi Range: 2 Bedroom Houses4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas WiFi Capacity: Medium Dual-Band Allocate devices to different bands for optimal performanceWorking Modes: Router Mode & Access Point ModeHARDWAREProcessor: Single-Core CPUEthernet Ports: 1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN PortsButtons: WPS/Wi-Fi Button & Power On/Off Button Reset ButtonPower: 9 V ⎓ 0.85 ASECURITYWiFi Encryption: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer GatewayGuest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest NetworkSOFTWAREProtocols: IPv4, IPv6Parental Controls: URL Filtering, Time ControlsWAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TPQuality of Service: QoS by DeviceNAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnPIPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLANDHCP: Address Reservation , DHCP Client List, ServerDDNS: NO-IP, DynDNSManagement: Tether App, WebpagePHYSICALDimensions (W×D×H): 9.1 × 5.7 × 1.5 in, (229.9 × 144.2 × 36.9 mm)Package Contents: Wi-Fi Router Archer A5, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide_____________________________________________________Warranty Information:• Item compatibility is buyer’s responsibility.• For security purposes: Kindly secure unboxing video incase wrong item and defective upon received.• Check all items upon receipt.• All items/claims for warranty are carry-in.• Tampered warranty sticker voids the warranty.• Overclocking may void the warranty.• Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt.• Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)
HARDWARE FEATURES - M7350
Interface
1 micro USB port for power supplySIM card slotMicro SD card slot
Button
Power On/Off ButtonMenu Button
Power Supply
Internal 2000mAh Rechargeable Battery
Network Type
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)3G: DC-HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz)
Data Rates
DL: 150Mbps, UL: 50Mbps
Dimensions ( W x D x H )
4.2 × 2.6 × 0.6 in. (106 × 66 × 16mm)
Antenna
Internal Antenna
Micro SD Card Reader
Up to 32GB
Screen Display
Traffic statistics, Wi-Fi status, user numbers, network type (2G/3G/4G), signal strength, Internet connection status, messages, battery meter.
WIRELESS FEATURES
Wireless Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency
2.4GHz
Transmit Power
2.4G <20dbm
Wireless Security
Support WPA-PSK/WPA2-PSK, Black List, Enable/Disable SSID Broadcast
DHCP
DHCP server, DHCP Client List
OTHERS
RNDIS Support
YesSystem Requirement: Windows XP/7/8/10
Certification
CE, RoHS
Package Contents
4G LTE Mobile Wi-Fi M7350Micro USB CableMicro to Standard SIM Card AdapterNano to Standard SIM Card AdapterQuick Installation Guide2000mAh Battery
System Requirements
Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
DGS‑1016C
Acoustic
0 dB
Comply with RoHS 6
Yes
Control
802.3x Flow
Dimensions
282.2 x 178 x 44.5 mm (11.11 in. x 7.01 in. x 1.75 in.)
Energy Efficiency Ethernet (EEE)
Yes
FAN
Fanless
Head-of-line (HOL) Blocking Prevention
Yes
Humidity
Operating: 10% ~ 90% RHStorage: 5% ~ 95% RH
Interfaces
16 x 1000Base-TAuto MDI/MDIX
Jumbo Frame
9,216 Bytes
MAC Address Table Size
8000
Maximum Forwarding Rate
23.808 Mpps
Maximum Heat Dissipation
33.554 BTU/h
Maximum Power Consumption
9.3 watts
MTBF
208,124 hours
Packet Buffer Size
256KBytes
Power Input
AC：100 ~ 240 V
Standby Power Consumption
4.48 watts
Switching Capacity
32 Gbps
Temperature
Operating: 0 ~ 40 °CStorage: - 40 ~ 70 °C
Weight
1.06 kg
