WIRELESS - TL-WA855RE
Working Modes
Range Extender/Access Point
HARDWARE FEATURES
Plug Type
EU, UK, US
Interface
1 x 10/100M Ethernet Port (RJ45)
Ports
1 x 10/100Mbps Ethernet Port (RJ45)
Button
WPS Button, Reset Button
Input Power
100-240V~50/60Hz
Power Consumption
3.6W
Dimensions ( W x D x H )
3.15 x 3.06 x 3.04 in. (80 x 77.8 x 77.3mm)
Antenna
2 x external
WIRELESS FEATURES
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4~2.4835GHz
Signal Rate
11n: Up to 300Mbps (dynamic)11g: Up to 54Mbps (dynamic)11b: Up to 11Mbps (dynamic)
Working Modes
Range Extender/Access Point
Reception Sensitivity
270M: <-68dBm@10% PER130M: <-68dBm@10% PER108M: <-68dBm@10% PER54M: <-68dBm@10% PER11M: <-68dBm@8% PER6M: <-68dBm@10% PER1M: <-68dBm@8% PER
Transmit Power
< 20 dBm (EIRP)
Wireless Modes
Range Extender/Access Point
Wireless Functions
Wireless MAC Address FilteringDomain Login FunctionTransmit Power Control
Wireless Security
64/128/152-bit WEPWPA-PSK / WPA2-PSK
Transmission Power
< 20 dBm (EIRP)
OTHERS
Certification
CE, RoHS
Package Contents
300Mbps Wi-Fi Range Extender TL-WA855REQuick Installation Guide
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, 10, Mac® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
HARDWARE FEATURES - TL-SF1008D
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD
Interface
8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan Quantity
Fanless
Power Supply
External Power Adapter(Output: 5.0VDC / 0.6A)
Power Consumption
Maximum: 2.2W (220V/50Hz)
External Power Supply
100-240VAC, 50/60Hz
Buffer Size
2Mb
Data Rates
10/100Mbps at Half Duplex ;20/200Mbps at Full Duplex
LED Indicator
Power, 1, 2, 3, 4, 5, 6, 7, 8
Dimensions ( W x D x H )
5.3*3.1*0.9 in. (134.5*79*22.5mm)
Max Power Consumption
2.05W(220V/50Hz)
Max Heat Dissipation
6.99BTU/h
SOFTWARE FEATURES
Transfer Method
Store and Forward
Advanced Functions
Green Technology, saving power up to 60%802.3X Flow Control, Back Pressure
OTHERS
Certification
FCC, CE, RoHS
Package Contents
8-Port 10/100Mbps Desktop SwitchPower AdapterUser Guide
System Requirements
Microsoft® Windows®, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0°C~40°C (32°F~104°F);Storage Temperature: -40°C~70°C (-40°F~158°F);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES - TL-SG1008D
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x
Interface
8 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
Fan Quantity
Fanless
Physical Security Lock
No
Power Consumption
Maximum: 4.63W (220V/50Hz)
External Power Supply
External Power Adapter (Output: 5VDC / 0.6A)
Jumbo Frame
15 KB
Switching Capacity
16 Gbps
Dimensions ( W x D x H )
7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
Max Power Consumption
4.63W(220V/50Hz)
Max Heat Dissipation
15.80BTU/h
SOFTWARE FEATURES
Transfer Method
Store and Forward
MAC Address Table
4K
Advanced Functions
Green Technology, saving power up to 80%802.3X Flow Control, Back Pressure
OTHERS
Certification
FCC, CE, RoHs
Package Contents
8-Port Gigabit Desktop Switch TL-SG1008DPower AdapterInstallation Guide
System Requirements
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

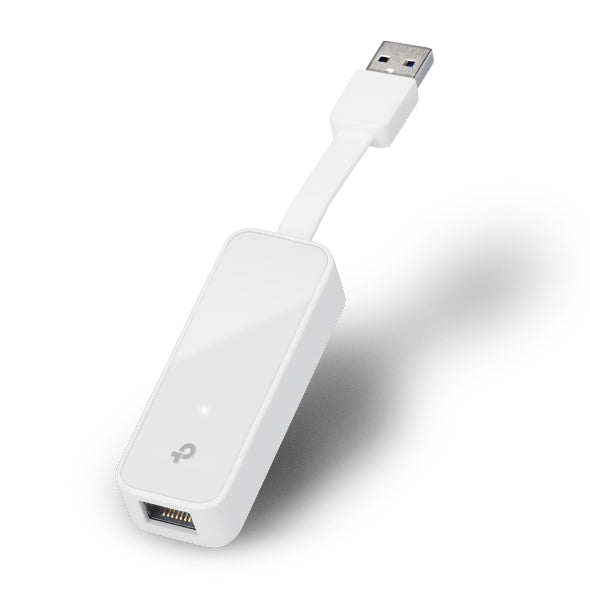

SPECIFICATIONS - UE300
Dimensions
2.8 x 1.0 x 0.6 in. (71 x 26 x 16.2mm)
Output Interface
1 10/100/1000Mbps RJ45 Ethernet Port
Input Interface
1 USB 3.0 Port
Chipset
RTL8153
Supported Systems
Windows 10/8.1/8/7/Vista/XPMac OS 10.6-10.14Chrome OSLinux OS
Package contents
USB 3.0 to Gigabit Ethernet Network Adapter, Quick Installation Guide
