LCD monitor
Vivid, crisp images beyond boundaries
Philips V line wide-view monitor gives viewing beyond boundaries, great value withessential features. Adaptive-Sync delivers smooth video display. Features like anti-glare,Low Blue mode, and flicker-free for easy-on-the eyes.
Technical Specifications
Picture/Display
Panel Size 23.8 inch / 60.5 cm
Aspect ratio 16:9
LCD panel type VA LCD
Backlight type W-LED system
Pixel pitch 0.2745 x 0.2745 mm
Brightness 250 cd/m²
Display colors 16.7 M
Contrast ratio (typical) 3000:1
Smart Contrast Mega Infinity DCR
Response time (typical) 4 ms (GtG)*
Viewing angle
178º (H) / 178º (V)
@ C/R > 10
Maximum resolution 1920 x 1080 @ 75 Hz*
Effective viewing area 527 (H) x 296.5 (V)
Scanning Frequency 30 - 85 kHz (H) / 48 - 75 Hz (V)
sRGB Yes
Flicker-free Yes
Pixel Density 93 PPI
LowBlue Mode Yes
Display Screen Coating Anti-Glare, 3H, Haze 25%
EasyRead Yes
Adaptive sync Yes
Connectivity
Signal Input
VGA (Analog)
HDMI (digital, HDCP)
Sync Input
Separate Sync
Sync on Green
Audio (In/Out) Audio out
Convenience
Plug & Play Compatibility
DDC/CI
Mac OS X
sRGB
Windows 10 / 8.1 / 8 / 7
User convenience
Power On/Off
Menu/OK
Brightness/UP
Input/Down
Smart Image/Back
Compliance and standards
Regulatory Approvals
UKRAINIAN
CB
TUV Ergo
TUV/GS
CU-EAC
EAEU RoHS
CE Mark
PSB
Stand
Tilt -5/20 degree
Power
Power supply
o Built-in
o 100-240VAC, 50-60Hz
Off mode 0.3 W (typ.)
On mode 20.4 W (typ.)
Standby mode 0.5 W (typ.)
Power LED indicator
o Operation - White
o Standby mode- White (blinking)
Dimensions
Packaging in mm (WxHxD): 608 x 415 x 121 mm
Product without stand (mm) 540 x 322 x 51 mm
Product with stand(max height) 540 x 416 x 220 mm
Weight
Product with packaging (kg) 4.25 kg
Product with stand (kg) 3.03 kg
Product without stand (kg) 2.64 kg
Operating conditions
Altitude Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation) 0°C to 40°C °C
MTBF 50,000 (Excluded backlight) hour(s)
Relative humidity 20%-80 %
Temperature range (storage) -20°C to 60°C °C
Sustainability
Environmental and energy
o RoHS
o Mercury Free
Recyclable packaging material
100 %
Cabinet
Color: Black
Finish: Textured
HP P22v G4 Monitor
An everyday, affordable business monitor that’s easy on you.
Tackle your daily task list with the budget[1]friendly HP P22v G4 Monitor that adjusts to
your comfort needs and delivers Full HD
picture quality.
Product details
Display type: TN
Panel Active Area: 18.77 x 10.56 in 476.64 x 268.11 mm
Brightness: 250 nits
Contrast ratio: 1000:1
Response Ratio: 5ms on/off
Product color: Black
Aspect ratio: 16:9
Native resolution: FHD (1920 x 1080)
Resolutions supported: 1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1440 x 900; 1600 x 900; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 800 x 600
Display features Anti-glare; Low blue light mode
User controls Exit; Information; Management; Menu; Power control; Input control; Brightness+; Image; Color
Input signal 1 VGA; 1 HDMI 1.4
Display size (diagonal) 21.5"
Display size (diagonal, metric) 54.6 cm (21.5")
Camera No integrated camera
Environmental
Operating temperature: 5 to 35°C;
Operating humidity: 20 to 80% non-condensing;
Power Input voltage 100 to 240 VAC
Power consumption 19 W (maximum), 18.5 W (typical), 0.5 W (standby)
Dimensions 50.5 x 4.2 x 31.02 cm (Without stand.)
Weight 2.85 kg (With stand.)
Physical security features Security lock-ready
Energy efficiency compliance ENERGY STAR® certified; EPEAT® 2019 registered
Certification and compliance
Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; ENERGY STAR®; FCC; ISO 9241-307; KC/KCC; NOM; PSB;
SEPA; TCO Certified; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; Low blue light; South Africa MEPS; Ukraine Energy label; WW application; ICE
Pixels per inch (ppi) 102 ppi
Panel bit depth 8 bit
Vertical viewing angle 160°
Horizontal viewing angle 170°
Bezel Standard
Swivel No swivel
Tilt -5 to +20°
Pivot No pivot
Height adjustment range No height adjust
VESA mounting 100 mm x 100 mm
Hardness 3H
Screen treatment Anti-glare
Touch-enabled Not touch-enabled
Integrated privacy filter No
Flicker-free Yes
Low blue light modes Yes (TÜV certified)
Display scan frequency (horizontal) 30-80 KHz
Display scan frequency (vertical) 50-60 Hz
Pixel pitch 0.248 mm
LCD monitor
Vivid, crisp images beyond boundaries
The Philips V monitor line provides essential features at a great value. With a 120Hz refresh rate and 16:9 Full HD display, this monitor provides a high-definition picture experience with crisp imagery.
Technical Specifications:
Picture/Display
Panel Size
21.5 inch / 54.6 cm
Aspect ratio
16:09
LCD panel type
VA LCD
Backlight type
W-LED system
Pixel pitch
0.2493 x 0.241 mm
Brightness
250 cd/m²
Display colors
16.7 M (8 bit)
Contrast ratio (typical)
3000:01:00
SmartContrast
Mega Infinity DCR
Response time (typical)
4 ms (GtG)*
Viewing angle
178º (H) / 178º (V) /@ C/R > 10
Picture enhancement
SmartImage
Maximum resolution
1920 x 1080 @ 120 Hz (Overclock) *
Effective viewing area
478.656 (H) x 260.28 (V)
Scanning Frequency
30k - 140 kHz (H) / VGA 48 - 60 Hz (V), HDMI 48-120 Hz
sRGB
Yes
Flicker-free
Yes
Pixel Density
102 PPI
LowBlue Mode
Yes
Display Screen Coating
Anti-glare, 3H, Haze 25%
MPRT
1 ms
EasyRead
Yes
Adaptive sync
Yes
Connectivity
Signal Input
VGA (Analog), HDMI 1.4
Sync Input
Separate Sync / Sync on Green
Audio (In/Out)
Audio out
HDCP
HDCP 1.4 (HDMI)
Convenience
Plug & Play Compatibility
DDC/CI / Mac OS X/ sRGB/ Windows 11 / 10 / 8.1 / 8
User convenience
Power On/Off /Menu/OK /Brightness/UP /Input/Down /SmartImage/Back
Stand
Tilt
-5/20 degree
Power
Power supply
Built-in /100-240VAC, 50-60Hz
Off mode
0.3 W (typ.)
On mode
14.8 W (typ.)
Standby mode
0.5 W (typ.)
Power LED indicator
Operation - White/ Standby mode- White (blinking)
Dimensions
Product with stand (mm)
493 x 369 x 220 mm
Packaging in mm (WxHxD)
570 x 436 x 109 mm
Product without stand (mm)
493 x 286 x 44 mm
Weight
Product with packaging (kg)
4.35 kg
Product with stand (kg)
4.35 kg
Product without stand (kg)
2.23 kg
Operating conditions
Altitude
Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation)
0°C to 40°C °C
MTBF
50,000 (Excluded backlight) hour(s)
Relative humidity
20%-80 %
Temperature range (storage)
-20°C to 60°C °C
Sustainability
Environmental and energy
RoHS
Recyclable packaging material
100 %
Compliance and standards
Regulatory Approvals
BSMI/ CB/ CE MARK/ Cetlus/ fcc Class B/ ICES - 003
Cabinet
Color
Black
Finish
Textured
Business Monitor (Portable monitor)
Performance, adaptability, work on the go
This monitor is portable, lightweight, and perfectly suited for improving workflow productivity when traveling. While on the road, the Dual USB-C feature facilitates sharing and presenting material or running a multi-screen setup.
Technical Specifications:
Picture/Display
Panel Size: 15.6 inch / 39.6 cmAspect ratio: 16:9
LCD panel type: IPS technology
Backlight type: W-LED system
Pixel pitch: 0.17925 x 0.17925 mm
Brightness: 250 cd/m²
Display colors: 16.2 M (6 bit + FRC)
Color gamut (typical): NTSC 46%*, sRGB 64%*
Contrast ratio (typical): 700:1
Smart Contrast: 50,000,000:1
Response time (typical): 4 ms (Gray to Gray)*
Viewing angle
-170º (H) / 170º (V)
-@ C/R > 10
Picture enhancement: Smart Image
Maximum resolution: 1920 x 1080 @ 75 Hz
Effective viewing area: 344.16 (H) x 193.59 (V)
Scanning Frequency: Landscape mode: 30 - 85 kHz (H) / 48 - 75 Hz (V); Portrait mode: 30 - 150 kHz (H) /48 - 75 Hz (V)
sRGB: Yes
Flicker-free: Yes
Pixel Density: 141 PPI
LowBlue Mode: Yes
Display Screen Coating: Anti-Glare, 3H, Haze 25%Easy Read: YesPower
ECO mode: 4.4 W
Off mode: 0.3 W
On mode: 6.2 W (EnergyStar test method)
Standby mode: 0.5 W
Power LED indicator: Operation - White
Standby mode- White (blinking)
Energy Label Class: C
Operating conditions
Altitude: Operation: +12,000ft (3,658m), Non-operation: +40,000ft (12,192m)
Temperature range (operation): 0°C to 40 °C
Relative humidity: 20%-80 %
Temperature range (storage): -20°C to 60 °C
MTBF (demonstrated): 70,000 hrs. (excluded backlight)
Compliance and standards
Regulatory Approvals:
- CB/ TUV/GS/ TUV Ergo/ CU-EAC/ EAEU RoHS
- CE Mark/ FCC Class B/ ICES-003/ cETLus
Connectivity
Signal Input: USB-C x 2 (DP Alt mode, Data, Power delivery)
Sync Input: Separate Sync
Audio (In/Out): Audio out
HDCP: HDCP 1.4 (USB-C), HDCP 2.2 (USB-C)
Power Delivery
Version: PD version 3.0
USB-C (input): Up to 90 W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.5A)
USB-C (output): Up to 65 W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A)
Convenience
Plug & Play Compatibility
DDC/CI / Mac OS X/ sRGB/ Windows 11 / 10 /8.1 /
User convenience
Smart Image/ Input/ Menu/ Power On/Off
Stand
Pivot: +90 degree
Tilt: 0 ~ 90 degree
Dimensions
Packaging in mm (WxHxD): 404 x 281 x 103 mm
Product with stand(max height): 359 x 232 x 119 mm
Weight
Product with packaging (kg): 2.08 kg
Product with stand (kg): 1.03 kg
Sustainability
Environmental and energy:
- EnergyStar 8.0
- EPEAT*
- RoHS
Post-consumer recycled plastic: 60%
Recyclable packaging material: 100 %
Specific Substances:
- Mercury free
- PVC / BFR free housing
Cabinet
Finish: Texture
Foot: Black
Front bezel: Black
Rear cover: Black

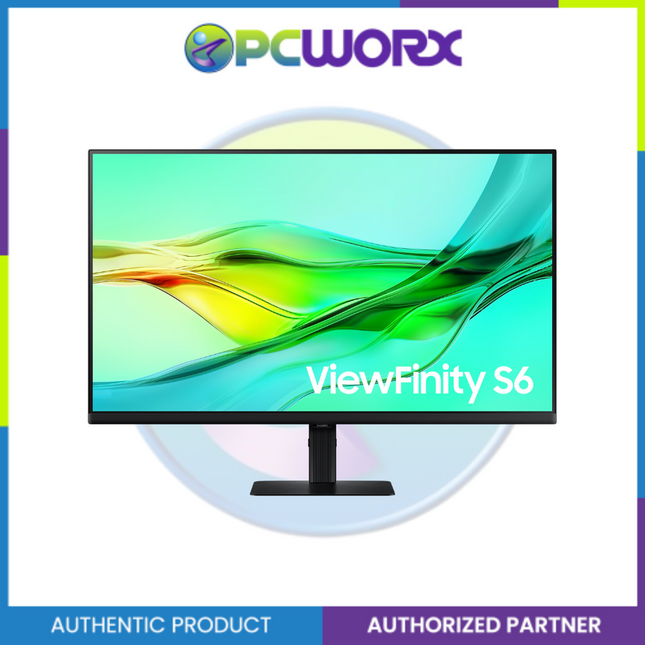

Savor smooth visuals and performance QHD resolution with 100Hz refresh rate
Visual excellence that professionals demand. QHD (2560x1440) resolution and 100Hz refresh rate resolution work together to reveal hidden details through higher pixel density, while reducing stuttering and tearing. Dive into intricate designs, complex diagrams and dynamic video content with a smoother workflow.
Enhanced realism through more color
1.07 billion colors with HDR10
See a wider gamut of colors for stunning accuracy and detail. HDR10 provide near limitless hues and true-to-life color representation, with darker darks and the brighter brights. Every piece of content becomes a joy to look at and can be experienced exactly as intended.
Effortless and instant setup
Easy Setup Stand
The Easy Setup Stand effortlessly creates an ideal workspace without any tools or screws. When it's time to change things up, simply push a button and enjoy flexible convenience.
OVERVIEW
Resolution: QHD (2,560 x 1,440)
Aspect Ratio: 16:9
Brightness (Typical): 350cd/㎡
Contrast Ratio Static: 1000:1(Typ)
Response Time: 5ms
Refresh Rate: Max 100Hz
DISPLAY
Screen Size (Class): 32
Flat / Curved: Flat
Active Display Size (HxV) (mm): 698.112 mm (H) x 392.688 mm (V)
Aspect Ratio: 16:9
Panel Type: IPS
Brightness (Typical): 350 cd/㎡
Brightness (Min): 280 cd/㎡Contrast Ratio Static: 1000:1(Typ)
Contrast Ratio (Dynamic): Mega
HDR (High Dynamic Range) : HDR10
Resolution: QHD (2,560 x 1,440)
Response Time: 5ms
Viewing Angle (H/V): 178°/178°
Color Support: Max 1.07B
sRGB Coverage: 99% (Typ)
Refresh Rate: Max 100Hz
General Feature
Eye Saver Mode: Yes
Flicker Free: Yes
Picture-In-Picture: Yes
Picture-By-Picture: Yes
Image Size: Yes
Daisy Chain: Yes
Windows Certification: Windows11
Off Timer Plus: Yes
Auto Source Switch: Auto Source Switch+
Adaptive Picture: Yes
KVM Switch: Yes
Dimension
Set Dimension with Stand (WxHxD): 713.9 x 585 x 220 mm
Set Dimension without Stand (WxHxD): 713.9 x 424.7 x 41.8 mm
Package Dimension (WxHxD): 798 x 160 x 546 mm
Weight
Set Weight with Stand: 7.2 kg
Set Weight without Stand: 4.7 kg
Package Weight: 9.2 kg
Interface
Display Port: 1 EA
Display Port Version: 1.4
HDCP Version (DP): 2.2
Display Port Out: 1
Display Port Out Version: 1.4
HDMI1: EA
HDMI Version: 2
HDCP Version (HDMI): 2.2
Headphone: Yes
USB Hub: 3
USB Hub Version: 3.0x3ea
USB-C1: EA
USB-C Charging Power: 90W
HDCP Version (USB-C): 2.2
Ethernet (LAN): 1 EA
Operation Conditions
Temperature: 10~40 ℃
Humidity: 10~80,non-condensing
Design
Front Color: BLACK
Rear Color: BLACK
Stand Color: Black
Stand Type: HAS PIVOT
HAS (Height Adjustable Stand): 120mm(±5.0mm)
Tilt: -2.0˚(±2.0˚)~25.0˚(±2.0˚)
Swivel: -30.0˚(±3.0˚)~30.0˚(±3.0˚)
Pivot: -92.0° (±2.0°) ~ 92.0° (±2.0°)
Wall Mount: 100 x 100
Eco
Recycled Plastic: Over 10 %
Power
Power Supply: AC 100~240V
Power Consumption (Max): 160 W
Type: Internal Power
Accessory
Power Cable Length: 1.5 m
HDMI Cable: Yes
USB Type-C Cable: Yes
Certification and Compliance
TCO Certified: Yes
Performance, adaptability, work on the goThis brand-new, light-weight portable Philips monitor supports your daily productivity. With one USB-C cable you can easily set up sharing and presenting or running a dual-screen productivity-enhancing on-the-go workstation.
Performance, adaptability, work on the go
· 3000 series
· 16 (15.6" / 39.6 cm diag.)
· 1920 x 1080 (Full HD)
Dual screen viewing and device charging with one cableThis Philips monitor features USB-C video and power delivery. Watch high resolution video from your smartphone or laptop. Its slim, reversible USB-C cable allows for easy sharing and presenting. Charge your compatible device directly from the monitor with intelligent and flexible power management, using a single USB-C cable.Continuous tilt stands to fit your viewing needsOur continuous tilt stands bends from 0 to 90 degrees with the kind of flexibility to allow you to get comfortable anywhere you need to keep up with your work.Lightweight and foldable design for portabilityEnjoy a clean, portable, dual-screen workstation. The soft, smooth, pliable USB-Ccable is designed to be easy to carry and fit in any bag.
Picture/Display
Panel Size: 15.6 inch / 39.6 cm
Aspect ratio: 16:9
LCD panel type: IPS technology
Backlight type: W-LED system
Pixel pitch: 0.17925 x 0.17925 mm
Brightness:250 cd/m²
Display colors: 16.2 M
Color gamut (typical): NTSC 46%*, sRGB 64%*
Contrast ratio (typical): 700:1
Smart Contrast: 50,000,000:1
Response time (typical): 4 ms (Gray to Gray) *
Viewing angle:
-170º (H) / 170º (V)-@ C/R > 10
Picture enhancement: Smart Image
Maximum resolution: 1920 x 1080 @ 75 Hz*
Effective viewing area: 344.16 (H) x 193.59 (V)
Scanning Frequency:
Landscape mode: HDMI 30 - 140 kHz (H), USB-C 30 - 85 kHz (H) / 48 - 75 Hz (V);Portrait mode: 30 - 150 kHz (H) / 48 - 75 Hz (V)
sRGB: Yes
Flicker-free: Yes
Pixel Density: 141 PPI
Low Blue Mode: Yes
Display Screen Coating: Anti-Glare, 3H, Haze 25%
Easy Read: Yes
HDR: HDR 10 supported
Dimensions
Packaging in mm (WxHxD): 400 x 281 x 103 mm
Product with stand (max height): 359 x 232 x 119 mm
Weight
Product with packaging (kg): 2.45 kg
Product with stand (kg): 1.03 kg
Connectivity
Signal Input: micro-HDMI 2.0 x 1, USB-C x1 (DisplayPort 1.4 Alt mode and PowerDelivery)
Sync Input: Separate Sync
Audio (In/Out): Audio out
HDCP: HDCP 1.4 (HDMI / USB-C),HDCP 2.2 (HDMI / USB-C)
Power Delivery
Version: USB PD version 3.0
USB-C (input): up to 65W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/3.25A)
USB-C (output): up to 15W (5V/3A)
Convenience
Plug & Play Compatibility
DDC/CI
Mac OS X
sRGB
Windows 11 / 10 / 8.1 / 8 / 7
User convenience
SmartImage
Input
Menu
Power On/Off
Other convenience: VESA mount: Yes*
Control software: Smart Control
Stand
Pivot: +90 degree
Tilt: 0 ~ 90 degree
Power
ECO mode: 5.5 W (typ.)
Power supply
External
100-240VAC, 50-60Hz
Off mode: 0.3 W (typ.)
On mode: 8.2 W (typ.) (Energy Star test method)
Standby mode: 0.3 W (typ.)
Power LED indicator
Operation - White
Standby mode- White (blinking)
Operating conditions
Altitude: Operation: +12,000ft (3,658m),Non-operation: +40,000ft (12,192m)
Temperature range (operation): 0°C to 40 °C
Relative humidity: 20%-80 %
Temperature range (storage): -20°C to 60 °C
MTBF (demonstrated): 70,000 hrs (excluded backlight)
Descriptions
The ViewSonic® VA1903H-2 is a 19” (18.5” viewable) widescreen monitor that delivers value and performance for both home offices and small businesses. Equipped with HDMI inputs, a fast 5ms response time, and a 50M:1 Dynamic Contrast Ratio, the VA1903H-2 is great for a variety of applications ranging from viewing office documents to surfing the web. Featuring a hairline surface finish, this monitor looks great on any desktop. ViewSonic’s exclusive ViewMode™ feature provides intuitive presets for optimised screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain from extended viewing periods for improved productivity. An energy-saving Eco-mode reduces cost of ownership, making the VA1903H-2 a great choice for both government and education.
SPECIFICATIONS
Display
Display Size (in.): 19
Viewable Area (in.): 18.5
Panel Type: TN Technology
Resolution: 1366 x 768
Resolution Type: WXGA (Wide XGA)
Static Contrast Ratio: 600:1 (typ)
Dynamic Contrast Ratio: 50M:1
Light Source: LED
Brightness: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Viewing Angles: 90º horizontal, 65º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 60
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.3 mm (H) x 0.3 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1366x768
Mac® Resolution (max): 1366x768
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1366x768
Connector
VGA: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
Power
Eco Mode (Conserve): 9.5W
Eco Mode (optimized): 12.5W
Consumption (typical): 15.3W
Consumption (max): 17W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Auto, Left, Right, Menu, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 75 x 75 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomics
Tilt (Forward/Back): -3º / 18º
Weight (imperial)
Net (lbs): 4.6
Net Without Stand (lbs): 4
Gross (lbs): 6.6
Weight (metric)
Net (kg): 2.1
Net Without Stand (kg): 1.8
Gross (kg): 3
Dimensions (imperial) (wxhxd)
Packaging (in.): 19.8 x 13.7 x 4.1
Physical (in.): 17.2 x 13.5 x 6.7
Physical Without Stand (in.): 17.2 x 10.7 x 1.9
Dimensions (metric) (wxhxd)
Packaging (mm): 502 x 349 x 105
Physical (mm): 438 x 344 x 170
Physical Without Stand (mm): 438 x 271 x 48
General
Regulations: cTUVus, FCC-B, ICES003, CEC, IQC-ST, MX-CoC, Mexico Energy, CB, RoHS, WEEE, BSMI, RCM, GEMS, BIS
PACKAGE CONTENTS: VA1903H-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
KEY FEATURES
QHD Resolution: Provides sharper and more detailed images compared to Full HD.
IPS Panel: Ensures wide viewing angles and consistent color accuracy.
100Hz Refresh Rate: Reduces motion blur and provides smoother visuals, especially for fast-paced content.
5ms Response Time: Minimizes input lag, making it ideal for gaming and video editing.
Eye Comfort Mode: Reduces eye strain with features like flicker-free technology and blue light filter.
Height-Adjustable Stand: Allows you to adjust the monitor's height for optimal viewing angle.
Tilt and Swivel: Offers flexibility in positioning the monitor for comfortable viewing.
HDMI and DisplayPort: Provides multiple connectivity options for various devices.
Overview
DISPLAY
Resolution: QHD (2,560 x 1,440)
Aspect Ratio: 16:9
Brightness (Typical): 350cd/㎡
Contrast Ratio Static: 1000:1(Typ)
Response Time: 5ms
Refresh Rate: Max 100Hz
Screen Size (Class): 27
Flat / Curved: Flat
Active Display Size (HxV) (mm): 596.736 mm (H) x 335.664 mm (V)
Aspect Ratio: 16:9
Panel Type: IPSBrightness (Typical): 350 cd/㎡Brightness (Min): 280 cd/㎡
Contrast Ratio Static: 1000:1(Typ)
Contrast Ratio (Dynamic): Mega
HDR (High Dynamic Range): HDR10
Resolution: QHD (2,560 x 1,440)
Response Time: 5ms
Viewing Angle (H/V): 178°/178°
Color Support: Max 1.07B
sRGB Coverage: 99% (Typ)
Refresh Rate: Max 100Hz
GENERAL FEATURE
INTERFACE
Eye Saver Mode: Yes
Flicker Free: Yes
Picture-In-Picture: Yes
Picture-By-Picture: Yes
Image Size: Yes
Daisy Chain: Yes
Windows Certification: Windows11
Off Timer Plus: Yes
Auto Source Switch: Auto Source Switch+
Adaptive Picture: Yes
KVM Switch: Yes
Display Port: 1 EA
Display Port Version: 1.4
HDCP Version (DP): 2.2
Display Port Out: 1
Display Port Out Version: 1.4
HDMI: 1 EA
HDMI Version: 2
HDCP Version (HDMI): 2.2
Headphone: Yes
USB Hub: 3
USB Hub Version: 3.0x3ea
USB-C1: EA
USB-C Charging Power: 90W
HDCP Version (USB-C): 2.2
Ethernet (LAN): 1 EA
OPERATION CONDITIONS
DESIGN
Temperature: 10~40 ℃
Humidity: 10~80,non-condensing
Front Color: BLACK
Rear Color: BLACK
Stand Color: Black
Stand Type: HAS PIVOT
HAS(Height Adjustable Stand): 120mm(±5.0mm)
Tilt: -2.0˚(±2.0˚)~25.0˚(±2.0˚)
Swivel: -30.0˚(±3.0˚)~30.0˚(±3.0˚)
Pivot: -92.0° (±2.0°) ~ 92.0° (±2.0°)
Wall Mount: 100 x 100
ECO
POWER
Recycled Plastic: Over 10 %
Power Supply: AC 100~240V
Power Consumption (Max): 160 W
Type: Internal Power
DIMENSION
WEIGHT
Set Dimension with Stand (WxHxD): 612.9 x 556.6 x 220 mm
Set Dimension without Stand (WxHxD): 612.9 x 367.7 x 41.6 mm
Package Dimension (WxHxD): 687 x 160 x 510 mm
Set Weight with Stand: 6.1 kg
Set Weight without Stand: 3.6 kg
Package Weight: 7.9 kg
ACCESSORY
Power Cable Length: 1.5 m
HDMI Cable: Yes
USB Type-C Cable: Yes

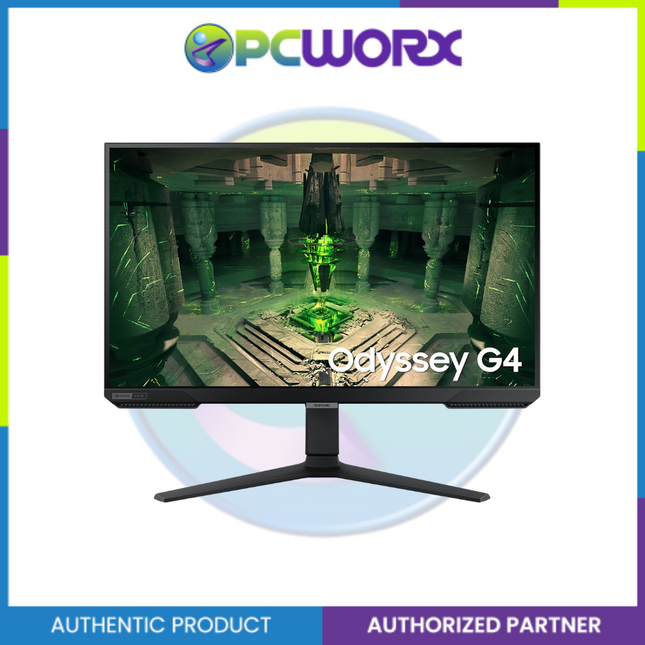

Boost your reality
FHD resolution & IPS panel
Escape into reality-defying realism. You can see games like never before. IPS panel delivers clear colors and a wide 178º viewing angle for clarity from any viewpoint. With more pixels and greater depth, games are closer to reality than ever before.
React in real time
240Hz refresh rate & 1ms response time
Speed through scenes. 240Hz refresh rate eliminates lag for exhilarating gameplay with ultra-smooth action. Jump on enemies right when you see them with a 1ms response time and blur-free frames.
Focus without ever breaking flow
Nvidia G-Sync compatible
Effortlessly smooth gameplay. G-Sync compatibility keeps the GPU and panel synced up to eliminate choppiness, screen-lag, and image tears. Fast-action and complex game scenes are stable and stutter-free with AMD FreeSync Premium for your competitive edge
Reveal the game's hidden sides
Ultrawide Game View
Keep your eye on the win. Adjust your screen to 21:9 to discover hidden areas in game scenes with Ultrawide Game View. Now when you play soccer games, see more of the pitch right up to the goalposts. And in driving games, get a natural and encompassing view of the road ahead.
Connect automatically, in an instant
Auto Source Switch+
Power on for instant play. With Auto Source Switch+, your monitor detects when connected devices are turned on and instantly switches to the new source signal. This helps you get to your game action faster without flipping through multiple input sources.
See your game your way
Ergonomic Stand
Reach the height of winning. Swivel, tilt, and adjust your monitor until all enemies are in perfect view. Your display can be moved freely so you can find total gaming comfort.
Display
Screen Size (Class)
27
Flat / Curved
Flat
Active Display Size (HxV) (mm)
596.736 x 335.664mm
Aspect Ratio
16:9
Panel Type
IPS
Brightness (Typical)
400 cd/?
Brightness (Min)
320 cd/?
Contrast Ratio Static
1,000:1(Typ.)
Contrast Ratio (Dynamic)
Mega ? DCR
HDR(High Dynamic Range)
HDR10
Resolution
1,920 x 1,080
Response Time
1ms (GTG)
Viewing Angle (H/V)
178°(H)/178°(V)
Color Support
Max 16.7M
sRGB Coverage
99%
Refresh Rate
Max 240Hz
General Feature
Eco Saving Plus
Yes
Eco Light Sensor
Yes
Eye Saver Mode
Yes
Flicker Free
Yes
Windows Certification
Windows 10
FreeSync
FreeSync Premium
G-Sync
G-Sync Compatible
Off Timer Plus
Yes
Black Equalizer
Yes
Low Input Lag Mode
Yes
Virtual AIM Point
Yes
Refresh Rate Optimizor
Yes
Super Arena Gaming UX
Yes
Auto Source Switch+
Yes
Adaptive Picture
Yes
Ultrawide Game View
Yes
Interface
Display Port
1 EA
Display Port Version
1.2
HDMI
2 EA
HDMI Version
2.0
HDCP Version (HDMI)
2.2
Operation Conditions
Temperature
10~40 ?
Humidity
10~80,non-condensing
Calibration
Color Mode
Custom/FPS/RTS/RPG/Sports/sRGB/Cinema/DynamicContrast
Design
Front Color
BLACK
Rear Color
BLACK
Stand Color
BLACK
Stand Type
HAS PIVOT
HAS(Height Adjustable Stand)
120.0±5.0mm
Tilt
-3.0°(±2.0°) ~ +22.0°(±2.0°)
Swivel
-15.0°(±2.0°) ~ +15.0°(±2.0°)
Pivot
-92.0°(±2.0°) ~ +92.0°(±2.0°)
Wall Mount
100 x 100
Power
Power Supply
AC 100~240V
Power Consumption (Max)
48 W
Type
External Adaptor
Dimension
Set Dimension with Stand (WxHxD)
614.7 x 571.1 x 244.8 mm
Set Dimension without Stand (WxHxD)
614.7 x 376.6 x 85.4 mm
Package Dimension (WxHxD)
685.0 x 168.0 x 469.0 mm
Weight
Set Weight with Stand
5.3 kg
Set Weight without Stand
3.6 kg
Package Weight
7.0 kg
OVERVIEW
Resolution
FHD (1,920 x 1,080)
Aspect Ratio
16:9
Brightness (Typical)
250cd/㎡
Contrast Ratio Static
3,000:1(Typ.)
Response Time
1ms(MPRT)
Refresh Rate
Max 144Hz
DISPLAY
Screen Size (Class)
24
Flat / Curved
Flat
Active Display Size (HxV) (mm)
527.04mm x 296.46mm
Aspect Ratio
16:9
Panel Type
VA
Brightness (Typical)
250 cd/㎡
Brightness (Min)
200 cd/㎡
Contrast Ratio Static
3,000:1(Typ.)
Contrast Ratio (Dynamic)
Mega
Resolution
FHD (1,920 x 1,080)
Response Time
1ms(MPRT)
Viewing Angle (H/V)
178°(H)/178°(V)
Colour Support
Max 16.7M
Refresh Rate
Max 144Hz
GENERAL FEATURE
Eye Saver Mode
Yes
Flicker Free
Yes
Game Mode
Yes
Windows Certification
Windows 10
INTERFACE
Wireless Display
No
D-Sub
1 EA
DVI
No
Dual Link DVI
No
Display Port
1 EA
Display Port Version
1.2
Display Port Out
No
Display Port Out Version
No
Mini-Display Port
No
HDMI
1 EA
HDMI Version
2.0
Audio In
No
Headphone
Yes
USB Hub
No
USB Hub Version
No
USB-C
No
AUDIO
Speaker
No
OPERATION CONDITIONS
Temperature
10~40 ℃
Humidity
10~80, Non-Condensing
DESIGN
Colour
BLACK
Stand Type
HAS PIVOT
HAS(Height Adjustable Stand)
110mm±5mm
Tilt
-5.0° (±2.0°) ~20.0° (±2.0°)
Pivot
-90.0° (±3.0°) ~ +90.0° (±3.0°)
Swivel
-30° (±2.0°) ~ +30.0° (±2.0°)
Wall Mount
100 x 100
POWER
Power Supply
AC 100~240V
Power Consumption (Max)
35W
Power Consumption (DPMS)
Less than 0.3 W
Power Consumption (Off Mode)
Less than 0.3 W
Type
External Adaptor
Dimension
Set Dimension with Stand (WxHxD)
541.9 x 494.0 x 265.7 mm
Set Dimension without Stand (WxHxD)
541.9 x 322.2 x 54.8 mm
Package Dimension (WxHxD)
611.0 x 406.0 x 200.0 mm
Weight
Set Weight with Stand
4.5 kg
Set Weight without Stand
2.8 kg
Package Weight
6.0 kg
Accessory
Power Cable Length
1.5 m
D-Sub Cable
No
DVI Cable
No
HDMI Cable
No
HDMI to DVI Cable
No
DP Cable
Yes
USB Type-C Cable
No
Thunderbolt 3 Cable
No
Mini-Display Gender
No
Install CD
No
Audio Cable
No
USB 2.0 Cable
No
USB 3.0 Cable
No
Remote Controller
No
THE LAST MILE FOR YOUR GAMING SYSTEM
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for
Technical Specifications:
Panel Size (diagonal):
31.5” SS IPS
Display Viewing Area (HxV):
697.3056 x 392.2344 (mm)
Panel Backlight/ Type:
Edge type
Display Surface (non-glare/ glare):
Non-glare
Color Saturation
90% DCI-P3/ 123% sRGB
True Resolution
3840 x 2160 (UHD)
Pixel Pitch
0.181 (H) x 0.181(V)
Brightness
350 cd/m2 (TYP)
Contrast Ratio
1000:01:00
Viewing Angle
178°(H)/178°(V)
Display Colors
10-bit (8-bit + FRC)
Response Time
1ms MPRT
Refresh Rate
144Hz120Hz for Console Game*
HDR
VESA Display HDR400
Flicker-free
Yes
HBR3
Yes
Signal Input
HDMI 2.1 x2Display port 1.4 (DSC) x1USB Type-C x1
Earphone Jack
Yes
Speaker
3W x2
Unique Features
OSD SidekickAim Stabilizer SyncBlack EqualizerDashboardCrosshairTimerCounterPiP/PbPAuto-UpdateKVM6 axis Color ControlSmart OD
USB port(s)
USB 3.0 x3
Power Type
Built-in
AC Input Max
140W
Power Saving Mode
0.5W
Power Off Mode
0.3W
Voltage
AC 100V~240V /50~60Hz
Tilt(angle)
-5°~+20°
Swivel(angle)
-30°~+30°
Pivot(angle/direction)
N/A
Height Adjustment (mm)
130mm
VESA Wall Mounting(mm)
100*100mm
Kensington lock
Yes
Phys. Dimension with Stand (WxHxD)
715.3*585.3*244.3 mm
Phys. Dimension w/o stand (WxHxD)
715.8*423.8*68.2 mm
Box Dimension (WxHxD)
990*536*192 mm
Net Weight with stand (Esti.)
10.35 kg
Net Weight without stand (Esti.)
7.25 kg
Gross Weight (Esti.)
13.75 kg
Accessories
Power cable/HDMI cable/DP cable/USB Cable/QSG
Note
*HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0)
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.
Specifications:
Panel Size (Diagonal):
27" SS IPS
Display Viewing Area (HxV):
596.74 x 335.66 mm
Panel Backlight/Type:
Edge
Display Surface:
Non-glare
Color Saturation:
100% sRGB
True Resolution:
2560 x 1440 (QHD)
Pixel Pitch:
0.2331 x 0.2331 mm
Brightness:
300 cd/m² (TYP)
Contrast Ratio:
1000:01:00
Viewing Angle:
178° (H) / 178° (V)
Display Colors:
16.7M
Response Time:
1 ms (MPRT)
Refresh Rate:
180Hz
HDR:
HDR Ready
Flicker-free:
Yes
Connectivity:
2 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x Earphone Jack
Earphone Jack:
Yes
Speaker:
N/A
Unique Features:
OSD Sidekick*, Aim Stabilizer, Black Equalizer, Crosshair, Timer, PiP/PbP
Earphone Jack:
Yes
Power Type:
Power Board Built-in
Power Consumption:
32W**
Power Saving Mode:
0.5W
Power Off Mode:
0.3W
Power Saving Mode:
0.5W
Voltage:
AC 100-240V ~ 50/60Hz
Tilt Angle:
-5° ~ +20°
Height Adjustment:
N/A
VESA Wall Mounting:
100 x 100 mm
Kensington Lock:
Yes
Physical Dimension with Stand (WxHxD):
619 x 447 x 172 mm
Physical Dimension w/o Stand (WxHxD):
619 x 365.5 x 50.2 mm
Box Dimension (WxHxD):
740 x 156 x 500 mm
Net Weight with Stand (Esti.):
5.26 kg
Net Weight without Stand (Esti.):
4.36 kg
Gross Weight (Esti.):
7.14 kg
Accessories:
Power cable, DP cable, QSG, Warranty card
Note:
*OSD Sidekick requires HDMI/DP cable connection; **Test conditions follow CEC standards.
