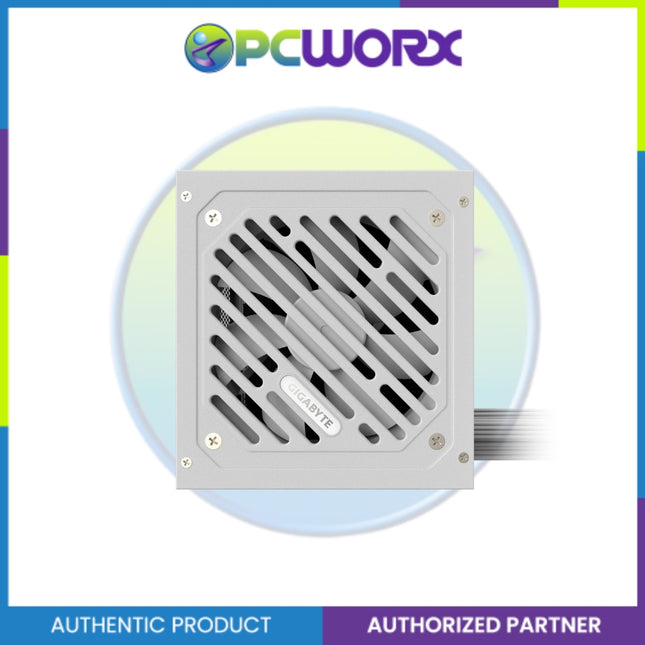

Ice white aesthetics 80 PLUS Silver certified (230V EU) Support Intel ATX 3.0 standard (compatible with ATX 3.1) 120mm Fluid Dynamic Bearing (FDB) Fan Flat cable design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection SPECIFICATION Model GP-P550SS ICE Type Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC Active PFC (>0.9 typical) Input Voltage 155-240 Vac Input Current 6.3A Input Frequency 50-60 Hz Output Capacity 550W Dimension 150 x 140 x 86 mm Fan Type 120mm Fluid Dynamic Bearing (FDB) fan 80 PLUS Silver Efficiency 90% at typical load (230V EU) MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 600mm*1CPU/EPS 4+4 Pin x 1 : 650mm*1PCI-e 6+2 Pin x 2 : 600mm+120mm*1SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1

Read more less

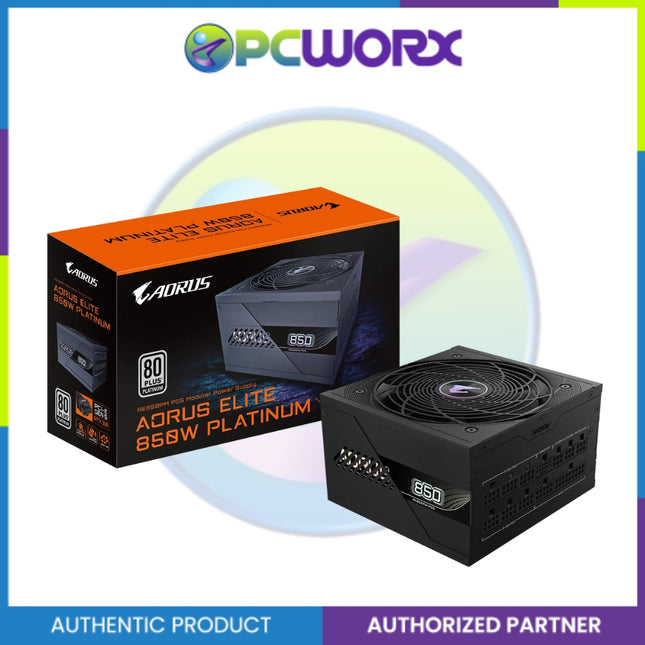

Aorus Elite P850W 80+ Platinum Modular Pcie 5.0 Power Supply The Gigabyte Aorus Elite P850W 80+ Platinum Modular PCIe 5.0 Power Supply is a high-performance PSU designed to meet the demanding needs of modern gaming and professional systems. Featuring an 80 Plus Platinum efficiency rating, it ensures minimal energy wastage and heat generation, contributing to both environmental conservation and long-term cost savings. SPECIFICATION Model GP-AE850PM PG5 Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity 850W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS Platinum Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black Connectors ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 :  700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 :500mm+150mm+150mm+150mm*1

Read more less

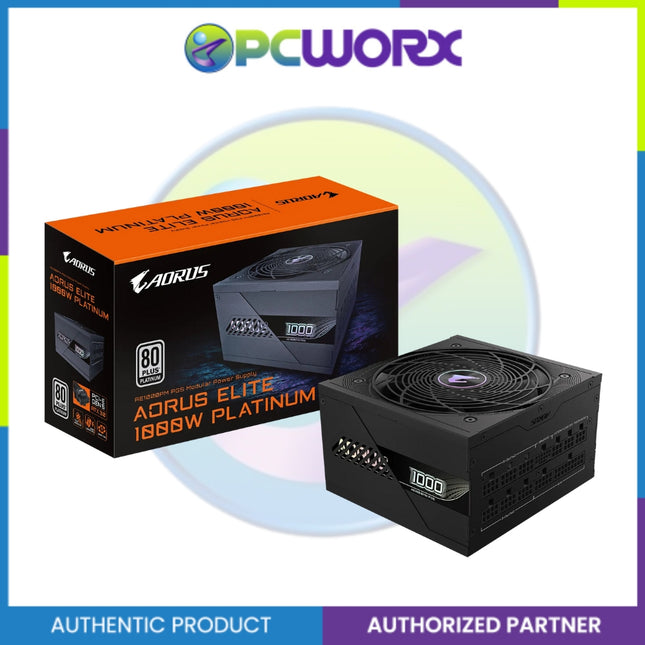

KEY FEATURE ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1) 80 PLUS Platinum certified 100% Japanese capacitors 120mm smart Fluid Dynamic Bearing (FDB) fan Compact design Fully modular design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection The AE1000PM PG5 ICE can sustain power excursions of up to 3 times the GPU power and 2 times the total power. It's fully compliant with the Intel ATX 3.0 standard, supporting up to 200% power excursions and achieving 70% efficiency at low loads. Additionally, the included high-quality, native 16-pin cable ensures compatibility with PCIe Gen 5.0 graphics cards, delivering up to 600 watts of power. AORUS magnetic plate design The unique AORUS magnetic plate can be attached to different sides of the power supply based on the user’s preference, presenting the best visual effect from any angle. Additionally, while the plate being moved on the case, its neon color printing with metallic sheen creates solid and hollow special effects for the AORUS logo. 80 PLUS Platinum certified 80 Plus Platinum certified ensures to deliver 92% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. 100% Japanese capacitors All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. 120mm smart Fluid Dynamic Bearing (FDB) fan High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 50% load). Compact design GIGABYTE's engineering expertise in heat dissipation and material selection has shrunk the length of the power supply to an impressive 140 mm, ensuring compatibility with even space-constrained chassis. Fully modular design All the flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. SPECIFICATIONS: Model: GP-AE1000PM PG5 ICE Type:    Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) PFC: Active PFC (>0.9 typical) Input Voltage: 100-240 Vac (full range) Input Current: 15-6.5A Input Frequency: 60-50 Hz Output Capacity: 1000W Dimension: 150 x 140 x 86mm Fan Type: 120mm Fluid Dynamic Bearing (FDB) Fan 80 PLUS: Platinum Efficiency: 92% at typical load MTBF: >100,000 hours Protection: OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal: 100-150ms Hold Up Time: >16ms Cable Type: Flat, All white Connectors: ATX/MB 20+4 Pin x 1 : 650mm*1 CPU/EPS 4+4 Pin x 2 : 700mm*2 PCI-e 16 Pin x 1: 700mm*1 PCI-e 6+2 Pin x 6: 650mm+150mm*2, 750mm*2 SATA x 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1

Read more less

GS650 Bronze Certified Full Modular Power Supply General specifications  Brand:  Darkflash Model:  GS 650 Form Factor:  ATX Standard Dimensions:  160×150×86160 cross 150 cross 86 160×150×86 mm ( W×D×Hcap W cross cap D cross cap H 𝑊×𝐷×𝐻 ) Efficiency:  80 PLUS Bronze Certified Fan:  140mm fan Input Voltage:  100-240VAC Input Frequency:  50/60Hz  Protection features  OVP  (Over-Voltage Protection) UVP  (Under-Voltage Protection) OCP  (Over-Current Protection) OPP  (Over-Power Protection) OTP  (Over-Temperature Protection) SCP  (Short-Circuit Protection)  Connector details  ATX 4-pin: 1 EPS 4+4-pin:  2 PCIe 6+2-pin:  4 SATA: 6 PATA:  3

Read more less

Product Description: Product Name: ASUS TUF Gaming 1000W 80+ Gold ATX Fully Modular PSU (TUF Gaming 1000W) Key Feature • Capacitors and chokes pass demanding tests to achieve Military-grade Certification. • Dual ball fan bearings can last up to twice as long as sleeve bearing designs. • A protective PCB coating protects against moisture, dust, and extreme temperatures. • An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components. • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. • Fully modular etched cables keep your rig neat and tidy. Cable Connectors: • MB 24/20-pin x 1 • CPU 4+4-pin x 2 • PCI-E 16-pin x 1 (both PSU & component side) • PCI-E 8-pin x 4 • SATA x 5 • PERIPHERAL x 4 Package Contents: • Power Cord x 1 • Motherboard Power Cable x 1 (610mm) • CPU Cable x 2 (650mm) • PCI-E Gen 5 16-pin Cable x 1 (675mm) • PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) • PCI-E 1-to-1 Cable x 2 (675mm) • SATA 1-to-2 Cable x 1 (400+120mm) • SATA 1-to-3 Cable x 1 (400+120+120mm) • Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) • TUF Gaming Cable Tie x 3 • User Manual x 1 Specifications: Model:  TUF Gaming 1000W Gold Intel Form Factor:  ATX12V PFC Type:   Active PFC ATX 3.0:  Yes Dimensions:  150 x 150 x 86 mm Efficiency:  80Plus Gold Protection Features:  OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials:  ROHS  AC Input Range:   100-240Vac DC Output Voltage:  +3.3V +5V +12V -12V +5Vsb  Maximum Load:  25A25A83.3A 0.8A 3A  Combined Load:  130W 1000W 9.6W 15W Total Output:  1000W Weight:  2.48kg (single PSU)

Read more less

Corsair CS-CP-9020264-NA RM1000e 1000w 80+ GOLD Certified Fully Modular PSU DescriptionFully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency. Core specifications Wattage:  1000W Efficiency:  80 PLUS Gold and Cybenetics Gold certified Modularity:  Fully modular with Type 4 cables Form Factor:  Compact 140mm depth  Compliance and features ATX Standard:  ATX 3.1 and PCIe 5.1 compliant GPU Connector:  Includes a native 12V-2x6 connector Fan:  120mm rifle bearing fan with Zero RPM mode for quiet operation at low loads Noise Level:  Cybenetics A- (low noise) rating Capacitors:  105°C-rated capacitors for reliability Standby:  Modern standby compatible for fast wake-from-sleep times  Connectors and cables ATX:  1x 24-Pin EPS/CPU:  2x 4+4-Pin PCIe:  3x 8-Pin (Note: Some listings specify one 16-pin (12VHPWR) and six 8-pin, but the provided information more consistently supports 3x 8-pin) SATA:  7x 15-Pin  Reliability and warranty MTBF:  100,000 hours About this item Fully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs. Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes. Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load. 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance. Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.

Read more less
