24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
Priority Mode ensures high priority of ports 1–8 to guarantee the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play, with no configuration and installation needed
CAMERA - VIGI C450
Image Sensor
1/2.7” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4 mm
Aperture
2.8 mm: F1.64 mm: F1.6
FOV
2.8mm:Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°4mm:Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount
M12*P 0.5
DORI Distance
2.8 mmDetect: 64 m (209 ft)Observe: 27 m (87 ft)Recognize: 13 m (42 ft)Identify: 6 m (21 ft)4 mmDetect: 80 m (262 ft)Observe: 33 m (109 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft)
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°, Tilt: 0° to 85°
ILLUMINATOR
IR LED
Quantity: 2Range: 30mWavelength: 850nm
White LED
Quantity: 2Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
2880 X 1620
Main Stream
Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:704x576,640x480, 352x288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile△
H.265+
Main Stream Supported△
Video Bit Rate
Main Stream: 256 Kbps to 6 MbpsSub-Stream: 64 Kbps to 512 Kbps
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR
≥ 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Yes
Audio Output
Yes
Audio Compression
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
Yes
API
Open Network Video Interface (Profile S)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, Web UI
Web Browser
Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method
N/A
Output Notification
Message Push
DEEP LEARNING FUNCTION
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture
N/A
Face Comparison
N/A
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
Audio
N/A
GENERAL
Operating Temperature
-30–60 °C
Storage Temperature
-40–60 °C
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Contents
VIGI Network CameraQuick Start GuideMounting Accessories
Material
Plastic
Net Weight
0.24 Kg
Gross Weight
0.4 Kg
Power Supply
12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power PlugPoE: 802.3af/at, class 0, Max. 10.5 W
Protection
N/A
Product Dimensions (L x W x H)
Φ123x84 mm
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IC

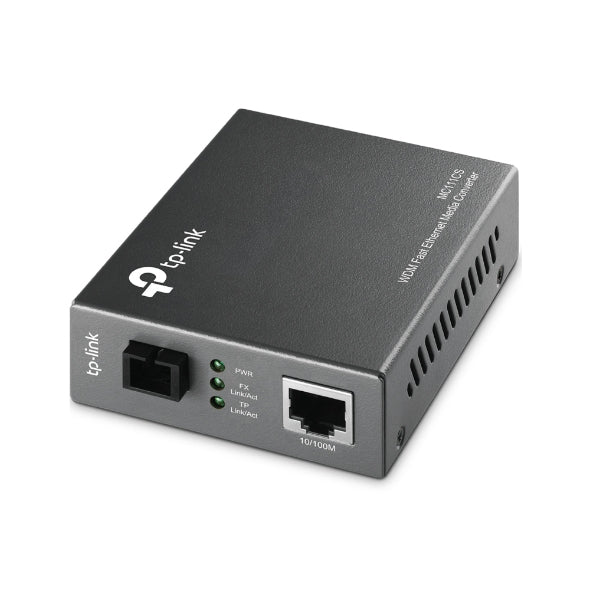

MEDIA CONVERTER & MODULE - MC111CS
Standards and Protocols
IEEE 802.3, IEEE 802.3u
Basic Function
Adopts WDM technologyHalf/Full-Duplex transfer mode for FX portminimize the loss caused by link failure timelyExtends fiber distance up to 20km (12.5 miles)
Ports
1 x 100M SC/UPC port1 x 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length
1550nm Tx/1310nm Rx
WDM TX
1550nm
WDM RX
1310nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX
Single-mode Fiber
LED Indicators
PWR, Link/Act
Dimensions (W*D*H)
3.7 x 2.9 x 1.1 in.(95 x 73 x 27 mm)
Power Supply
External Power Adapter
Max Power Consumption
2.49W
Safety & Emission
FCC, CE, RoHS
Package Contents
• Media Converter MC111CS• Power Adapter• Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
