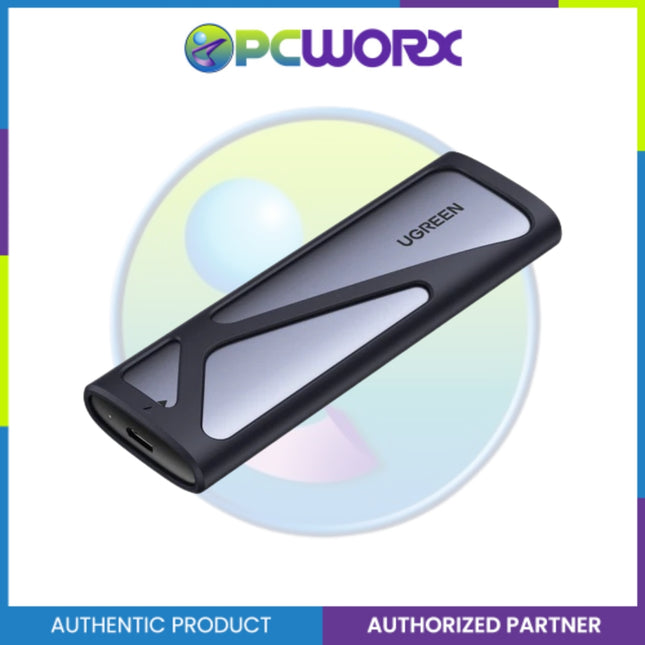

Portable M.2 NVMe & SATA SSD Enclosure
UGREEN M.2 enclosure is designed to house an M-Key& B+M Keys and size 2230/2242 /2260/2280 NVMe PCIe SSD and M.2 SATA SSD, which turns it into a portable USB 3.2 external drive for maximum utilization. Tool-free and no driver needed, just plug and play. Ideal for transferring files, backing up data, reusing old M.2 SSD, expanding storage space.
10Gbp SuperSpeed & UASP Supported
This M.2 SSD enclosure features the latest USB 3.2 Gen 2 and PCIe 3.0, which supports an amazing data transmission rate up to 10Gbp. It is faster enough to transfer 1GB of files in 1 second.
The USB 3.2 interface incorporates UASP & TRIM that enabling it to perform a 70% faster read speed and 40% faster write speed than the conventional USB 3.1 interface.
Note： Not support M-Key SATA, B-Key NGFF/SATA PCIe SSD
Working Display With the white LED indicator, you can learn the operational status of this M2 Case quickly. Flashing means processing data transmission.
Tool-free & Driver Free Plug and play, no driver needed. Use the included rubber fasteners to secure your M.2 SSD drives onto the board.
USB-C to C and USB-C to A Cable Included Comes with 50cm USB-C to USB-C Cable and USB-A to USB-C Cable for super-fast data transferring.
Specification
Details
Hardware Interface
USB 3.2 Gen 2
Color
Grey
Item Dimensions (L × W × H)
4.69 × 1.46 × 0.47 inches
Hardware Platform
Linux
Product Dimensions
4.69 × 1.46 × 0.47 inches
Item Weight
2.94 ounces (≈ 0.083 kg)

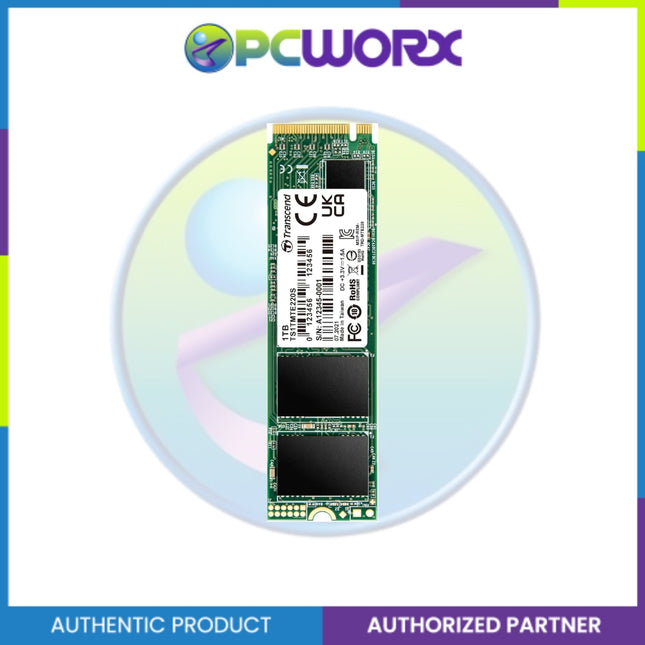

PCIe SSD 220S
Transcend's PCIe SSD 220S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, 3D NAND flash memory, an 8-channel controller, and a DRAM cache, the PCIe SSD 220S offers supreme transfer speeds that override others.
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Category
Specification
Type
M.2 2280
Dimensions
Double-sided 80 mm × 22 mm × 3.58 mm (3.15" × 0.87" × 0.14")
Weight
10 g (0.35 oz)
Bus Interface
NVMe PCIe Gen3 x4
Flash Type
3D NAND flash
Capacity
256 GB / 512 GB / 1 TB / 2 TB
Operating Temperature
0°C (32°F) ~ 70°C (158°F)
Operating Voltage
3.3V ± 5%
Sequential Read/Write (CrystalDiskMark)
2 TB: Up to 3,500 / 2,900 MB/s1 TB: Up to 3,500 / 3,200 MB/s512 GB: Up to 3,500 / 2,500 MB/s256 GB: Up to 3,300 / 1,250 MB/s
4K Random Read/Write (IOmeter)
2 TB: Up to 340,000 / 360,000 IOPS1 TB: Up to 330,000 / 370,000 IOPS512 GB: Up to 190,000 / 360,000 IOPS256 GB: Up to 190,000 / 300,000 IOPS
Terabytes Written (TBW)
2 TB: 4,400 TBW1 TB: 2,200 TBW512 GB: 1,100 TBW256 GB: 550 TBW
MTBF (Mean Time Between Failures)
2,000,000 hours
DWPD (Drive Writes Per Day)
1.2 (5 years)
Performance Notes
Speed may vary depending on hardware, software, usage, and capacity.DWPD workload may differ from actual usage.TBW represents endurance for highest capacity models.Some motherboards provide only PCIe x2 connections for M.2 slots, limiting performance.
Operating System Compatibility
Microsoft Windows 7 or laterLinux Kernel 2.6.31 or later
Compatibility Note
Systems must have an M.2 connector with an M key. B-key connectors are not compatible. Improper insertion may cause damage.
Technology Features
S.M.A.R.T.Advanced Garbage CollectionRAID EngineLDPC CodingDRAM Cache

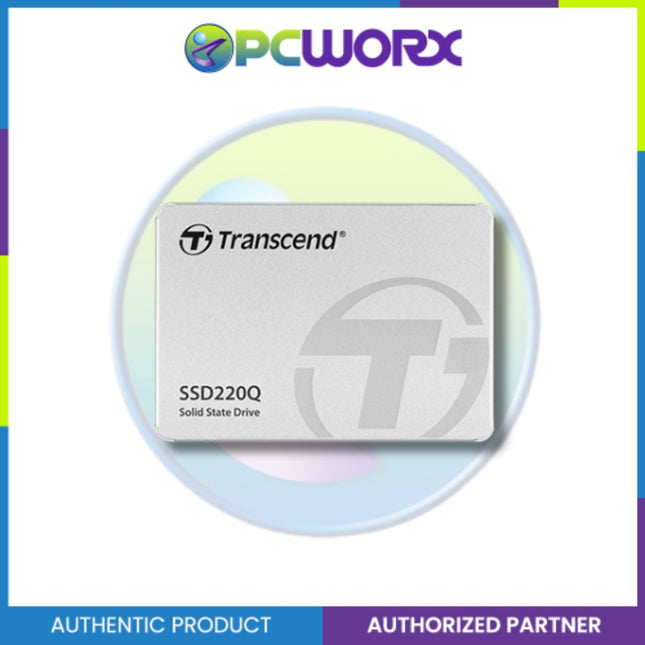

SATA III 6Gb/s SSD220Q
Transcend's SATA III 6 Gb/s SSD220Q uses the latest QLC NAND technology, which employs a higher density of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD220Q delivers greater performance and reliability.
Category
Specification
Appearance
Dimensions: 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")Weight: 45 g (1.59 oz)
Storage
Flash Type: QLC NAND flashCapacity: 500 GB / 1 TB / 2 TB
Operating Environment
Operating Temperature: 0°C ~ 70°C (32°F ~ 158°F)Operating Voltage: 5V ±5%
Performance
Sequential Read/Write (CrystalDiskMark):• 2 TB: Up to 550/500 MB/s• 1 TB: Up to 550/500 MB/s• 500 GB: Up to 550/500 MB/s4K Random Read/Write (IOmeter):• 2 TB: Up to 81,000/80,000 IOPS• 1 TB: Up to 57,000/79,000 IOPS• 500 GB: Up to 57,000/59,000 IOPS
Endurance
Terabytes Written (TBW): 2 TB → 400 TBW, 1 TB → 200 TBW, 500 GB → 100 TBWMean Time Between Failures (MTBF): 2,000,000 hoursDrive Writes Per Day (DWPD): 0.19 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage capacity.DWPD workload may vary by actual usage.TBW expresses endurance under the highest capacity.Mac users: visit Apple Solutions.
Package
Package Contents: Full unit
System Requirement
Operating System: Windows 7 or later, Linux Kernel 2.6.31 or later
Technology
TRIM & NCQ Command, S.M.A.R.T., DDR3 DRAM Cache: -, Advanced Garbage Collection, DevSleep Mode, RAID Engine: -, LDPC Coding, Awards
Key specifications
Interface:
PCIe Gen 3.0 x4, NVMe 1.4
Form Factor:
M.2 (2280)
Capacity:
500GB
Sequential Read Speed:
Up to 3,100 MB/s
Sequential Write Speed:
Up to 2,600 MB/s
Random Read Speed (4KB, QD32):
Up to 400,000 IOPS
Random Write Speed (4KB, QD32):
Up to 470,000 IOPS
Controller:
Samsung "Pablo" Controller
NAND Flash:
Samsung 128-layer 3-bit MLC (TLC) V-NAND
Cache:
DRAM-less, uses Host Memory Buffer (HMB)
Endurance:
300 TBW (Total Bytes Written)
Warranty:
5 years
Encryption:
AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)
Software:
Supports Samsung Magician for drive management
Feature
Description
Upgrade to impressive NVMe® speed
Harness your PC's potential with the 980. Whether you need a boost for gaming or a seamless workflow for heavy graphics, the 980 is a smart choice for outstanding SSD performance — backed by NVMe® interface and PCIe® 3.0 technology.
Keep moving with Full Power Mode
Keep your SSD running at its peak with Full Power Mode, which drives continuous and consistent high performance. Enable through Samsung Magician software to keep your SSD in active mode with no latency, so you can instantly jump back into large intensive work files or graphics-heavy games.
General specifications
Model:
A440 Lite
Capacity:
512GB
Interface:
PCIe Gen4x4 with NVMe
Controller:
Phison PS5027-E27T
NAND Type:
162-layer TLC NAND
DRAM Cache:
None (uses Host-Memory-Buffer (HMB))
Dimensions:
80.0(L)×22.0(W)×3.7(H) mm80.0 open paren cap L close paren cross 22.0 open paren cap W close paren cross 3.7 open paren cap H close paren mm
80.0(𝐿)×22.0(𝑊)×3.7(𝐻) mm
Weight:
7g
Endurance:
300 TBW
Warranty:
5 Years
Performance
Sequential Read:
Up to 7,000 MB/s
Sequential Write:
Up to 4,500 MB/s
Other specs
Shock Resistance:
1,500G/0.5ms
Vibration Resistance:
80Hz~2,000Hz/20G
MTBF:
1,500,000 Hours
Operating Temperature:
0∘C0 raised to the composed with power cap C
0∘𝐶
to
70∘C70 raised to the composed with power cap C
70∘𝐶
Storage Temperature:
-40∘Cnegative 40 raised to the composed with power cap C
−40∘𝐶
to
85∘C85 raised to the composed with power cap C
85∘𝐶
Heat Sink:
Pre-installed ultra-thin graphene heat sink
Ultimate Read/Write Performance
Storage Expandable across Platforms with Ultra-slim Size for Easy Installation
Preset Controller Solution for Optimal Quality
Optimized Performance Offers Reliability and Long Lifespan
S.M.A.R.T. Monitoring System
Be Eco-friendly and Conserve the Earth
Patented Graphene Heat SinkInvention patent number in the US: US11051392B2Invention patent number in Taiwan: I703921Utility model patent number in China: CN 211019739 U
Patented S.M.A.R.T. SoftwareInvention patent number in Taiwan: I751753
SA500 2.5" SSD
High Performance and Cost-Effective SSD Solution
FEATURE
High-speed Interface
With SATAⅢ 6 Gb/s high-speed interface, which can drastically reduce the boot time
Massive Expansion
Provide a variety of capacity options from 120GB-1TB to meet diverse storage needs
Wide Compatibility
It can easily upgrade the machine with wide compatibility for laptops, desktops and integrated computers
SPECIFICATIONS
Brand:
Netac
Model:
SA500
Interface:
2.5 inches SATA III
Capacity:
256GB/512GB/1TB
Seq. Read（MB/s) up to:
520 (256GB)/ 520 (512GB)/ 530 (1TB)
Seq. Write（MB/s）up to:
450 (256GB)/450 (512GB)/ 475 (1TB)
TBW:
120(256GB)/240 (512GB)/480 (1TB)
NAND Flash:
3D TLC/QLC
Operating Temperature:
0℃-70℃
Storage Temperature:
-40℃-85℃
Size:
100 x 69.85 x 7 mm
SA500 2.5" SSD
High Performance and Cost-Effective SSD Solution
FEATURE
High-speed Interface
With SATAⅢ 6 Gb/s high-speed interface, which can drastically reduce the boot time
Massive Expansion
Provide a variety of capacity options from 120GB-1TB to meet diverse storage needs
Wide Compatibility
It can easily upgrade the machine with wide compatibility for laptops, desktops and integrated computers
SPECIFICATIONS
Brand:
Netac
Model:
SA500
Interface:
2.5 inches SATA III
Capacity:
256GB/512GB/1TB
Seq. Read（MB/s) up to:
520 (256GB)/ 520 (512GB)/ 530 (1TB)
Seq. Write（MB/s）up to:
450 (256GB)/450 (512GB)/ 475 (1TB)
TBW:
120(256GB)/240 (512GB)/480 (1TB)
NAND Flash:
3D TLC/QLC
Operating Temperature:
0℃-70℃
Storage Temperature:
-40℃-85℃
Size:
100 x 69.85 x 7 mm
DESCRIPTIONS:
Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s.
Ideal for systems with limited space
Easily integrate into designs with M.2 connectors. Perfect for thin laptops and small form factor PCs.
Increased storage space
Available in a variety of high capacities up to 4TB providing ample space to store files, videos, documents, and games with room to spare.
Brand
Kingston
Series
SNV3S500G
SNV3S1000G
SNV3S2000G
Item model number
SNV3S/500G
SNV3S1000G
SNV3S2000G
Item Weight
0.232 ounces
Product Dimensions
3.15 x 0.15 x 0.89 inches
Item Dimensions LxWxH
3.15 x 0.15 x 0.89 inches
Color
blue
Computer Memory Type
DIMM
Flash Memory Size
500 GB
Hard Drive Interface
NVMe
CITY E100 Consumer SSD
CITY E100 2.5'' SATA SSD, set your computer boot in seconds.
3D Stacking Technology
Better Data Safety
High Performance
3D Stacking Technology
3D Nand Further Enhances Capacity, Performance and Stability
Safer Data Protection
Free of Mechanical Structure, Better Electronic Chip Control
SPECIFICATION
Product Size
2.5 inch
Capacity
512GB
Max. Seq. Read (MB/s)
550MB/s
Max. Seq. Write (MB/s)
520MB/s
Max. Ran. 4k read IOPS
65K
Max. Ran. 4K Write IOPS
70k
Max. Power Consumption
2.9W
TBW
240TB
Storage Medium
3D NAND
Interface
SATA III 6Gb/s
MTBF
2,000,000 hours
Operation Temperature
0-70℃
Storage Temperature
-40 °C to 85 °C
Weight
≤ 36.8 g
DRAM Cache Memory
/
TRIM
Supports
Performance and specifications
Capacity:
1TB
Sequential Read:
Up to 550 MB/s
Sequential Write:
Up to 500 MB/s
Terabytes Written (TBW):
800 TBW
Mean Time Between Failures (MTBF):
1,000,000 hours
Interface:
SATA Rev. 3.0 (6Gb/s)
Form Factor:
2.5-inch
Dimensions:
100mm×69.9mm×7mm100 mm cross 69.9 mm cross 7 mm
100mm×69.9mm×7mm
Weight: 45g
Durability and features
Shock Resistance:
1500G at 0.5ms
Vibration Resistance:
20G (non-operating)
Technology:
3D NAND TLC, SLC caching, S.M.A.R.T. technology, Windows TRIM, and ECC
Power Consumption:
Lower power consumption
Other:
Noise reduction, shock-resistant, and vibration-resistant
Operating conditions
Operating Temperature:
0∘C0 raised to the composed with power C
0∘C
to
70∘C70 raised to the composed with power C
70∘C
Storage Temperature:
-40∘Cnegative 40 raised to the composed with power C
−40∘C
to
8
5∘C85 raised to the composed with power C
85∘C
Humidity:
5% ~ 95% RH, non-condensing
Digital Storage Capacity
256 GB
Hard Disk Interface
PCIE x 4
Connectivity Technology
PCIe
Brand
TEAMGROUP
Special Feature
Portable
Hard Disk Form Factor
2280 Inches
Hard Disk Description
Solid State Drive
Compatible Devices
Laptop, Desktop
Installation Type
Internal Hard Drive
Hard Disk Size
512 GB
