SCREEN COOLING
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
OPTIMIZED THERMAL MODULE
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
THE LAST MILE FOR YOUR GAMING SYSTEM
As an unseen player, monitor is often being underestimated. The truth is monitors form as a synergistic effect and bring out the best performance of PC components. GIGABYTE gaming monitors offer the ultimate specifications and quality, users can truly enjoy upscale performance without the need for extravagance.
Characteristic
SIMPLE BUT STYLISH
The streamline appearance represents the simplicity of the GIGABYTE gaming series design philosophy, sturdy stand and matte finish built for functional and aesthetic features adding more to the characteristics.
SPECIFICATIONS
Panel Size (diagonal)
27" SS IPS
Display Viewing Area (HxV)
596.74 x 335.66 (mm)
Panel Backlight/ Type
Edge
Display Surface(non-glare/ glare)
Non-glare
Color Saturation
105% sRGB
True Resolution
1920 x 1080(FHD)
Pixel Pitch
0.3108*0.3108
Brightness
300 cd/m2 (TYP)
Contrast Ratio
1000:1
Viewing Angle
178°(H)/178°(V)
Display Colors
16.7M
Response Time
1ms (MPRT)
Refresh Rate
165Hz/OC 170Hz
HDR
HDR Ready
Flicker-free
Yes
Connectivity
2 x HDMI 2.01 x Displayport 1.41 x Earphone Jack
Earphone Jack
Yes
Speaker
N/A
Unique Features
OSD Sidekick *Aim StabilizerBlack EqualizerCrosshairTimer
Power Type
Power Board Build-in
Power Consumption
32W
Power Saving Mode
0.5W
Power Off Mode
0.3W
Voltage
AC 100-240V ~ 50/60Hz
Tilt(angle)
-5°~+20°
Swivel(angle)
N/A
Pivot(angle/direction)
N/A
Height Adjustment (mm)
N/A
VESA Wall Mounting(mm)
100*100mm
Kensington lock
Yes
Phys. Dimension with Stand(WxHxD)
619*447*172 mm
Phys. Dimension w/o stand (WxHxD)
619*365.5*50.2 mm
Box Dimension (WxHxD)
740*156*500 mm
Net Weight with stand (Esti.)
5.02 kg
Net Weight without stand (Esti.)
4.1 kg
Gross Weight (Esti.)
6.91 kg
Product Descriptions:

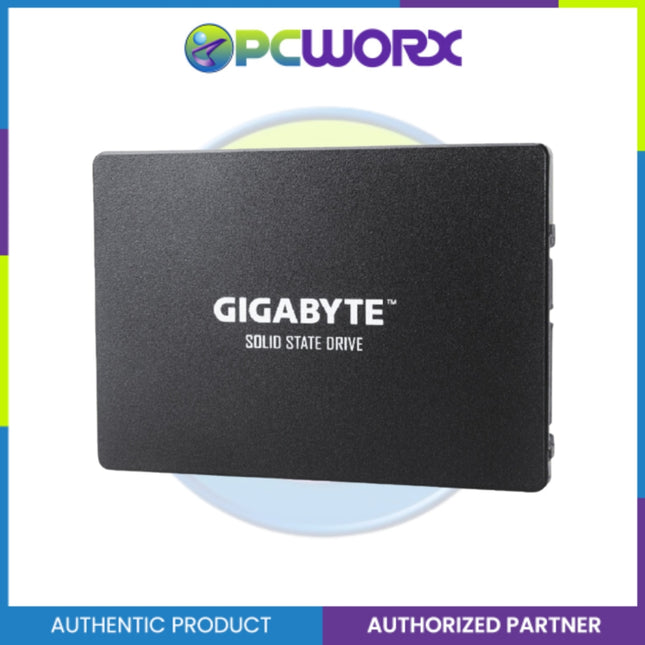

Maximize your storage potential with the Gigabyte GP-GSTFS31100TNTD 1TB SATA SSD. Experience blazing-fast data access in a compact 2.5" form factor. Elevate your system's speed and reliability for an unparalleled computing journey.
Features:
Form Factor:
2.5-inch internal SSD
Interface:
SATA 6.0Gb/s
Total Capacity:
1TB*
Sequential Read speed:
up to 550 MB/s**
TRIM & S.M.A.R.T supported
Product Specifications:
Brand:
Gigabyte
Model:
GP-GSTFS31100TNTD
Total Capacity:
1TB
Interface:
SATA 6.0Gb/s
Form Factor:
2.5-inch internal SSD
NAND:
3D NAND Flash
External DDR Cache:
N/A
Sequential Read speed:
Up to 550 MB/s
Sequential Write speed:
Up to 500 MB/s
Random Read IOPS:
up to 75k
Random Write IOPS:
up to 85k
Dimension:
69.85 x 7 x 100 mm
Mean time between failure (MTBF):
2M hours
Power Consumption (Active): Average:
R: 2240mW; W: 2610mW
Power Consumption (Idle):
AVG. 330mW
Temperature (Operating):
0°C to 70°C
Temperature (Storage):
40°C to 85°C

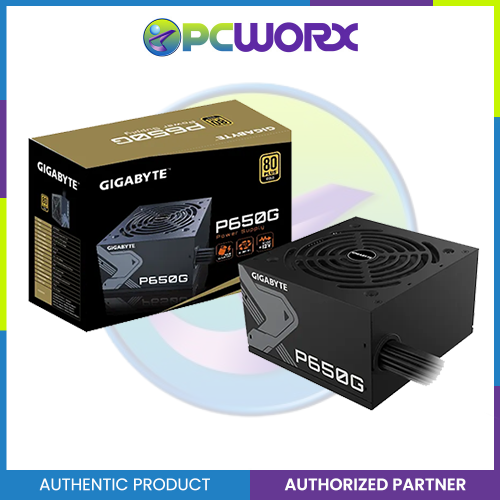

Gigabyte GP-P650G 650W 80+ Gold
KEY FEATURE
80 PLUS Gold certified
Main Japanese capacitors
120mm Silent Hydraulic Bearing (HYB) Fan
Powerful single +12V rail
OVP/OPP/SCP/UVP/OCP/OTP protection
Compact design
5 years warranty (Adjusted according to different regions)
Specification
Model
GP-P650G
Type
Intel Form Factor ATX 12V
PFC
Active PFC(>0.9 typical)
Input Voltage
100-240 Vac(full range)
Input Current
9-4A
Input Frequency
60-50 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) Fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1PCI-e 6+2 Pin x 4 : 500mm+150mm*2SATA x 6 : 500mm+150mm+150mm*24 Pin Peripheral x 3: 500mm+150mm+150mm*1
AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, CEC 2019 ready
Supports AMD Ryzen™ 5000 series/ Ryzen™ 5000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard Design
RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Simple Click
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
AMD StoreMI technology
GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.
The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy• Optimizing computer responsiveness from system boot to application launch• Offering SSD performance with HDD capacity at an affordable cost• Quickly accessing key files by automatically learning users' computing behaviors
Specification
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD B450
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 2933/2667/2400/2133 MT/s memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)* Support for HDMI 2.1 version and HDCP 2.2.(Note)
Maximum shared memory of 16 GB(Note) Actual support may vary by CPU.
Audio
Realtek® Audio codec
High Definition Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
1 x PCI Express x1 slot(The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)
(Note) Actual support may vary by CPU.
Storage Interface
1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support)* Actual support may vary by CPU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x CPU cooler LED strip/RGB LED strip header
1 x RGB LED strip header
2 x addressable LED strip headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control*Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootRGB FusionSmart BackupSystem Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Support for Windows 7 64-bit* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
Intel® Ultra Durable Motherboard with GbE LAN, Anti-Sulfur Resistor, Smart Fan 5
Supports 11th/10th Gen Intel® Core™ Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GbE LAN with Bandwidth Management
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4060 Ti (8GB)
Integrated with 8GB GDDR6 128bit memory interface
WINDFORCE cooling system
RGB Fusion
Dual BIOS
Protection metal back plate
CORE CLOCK
2655 MHz (Reference Card: 2535 MHz)
