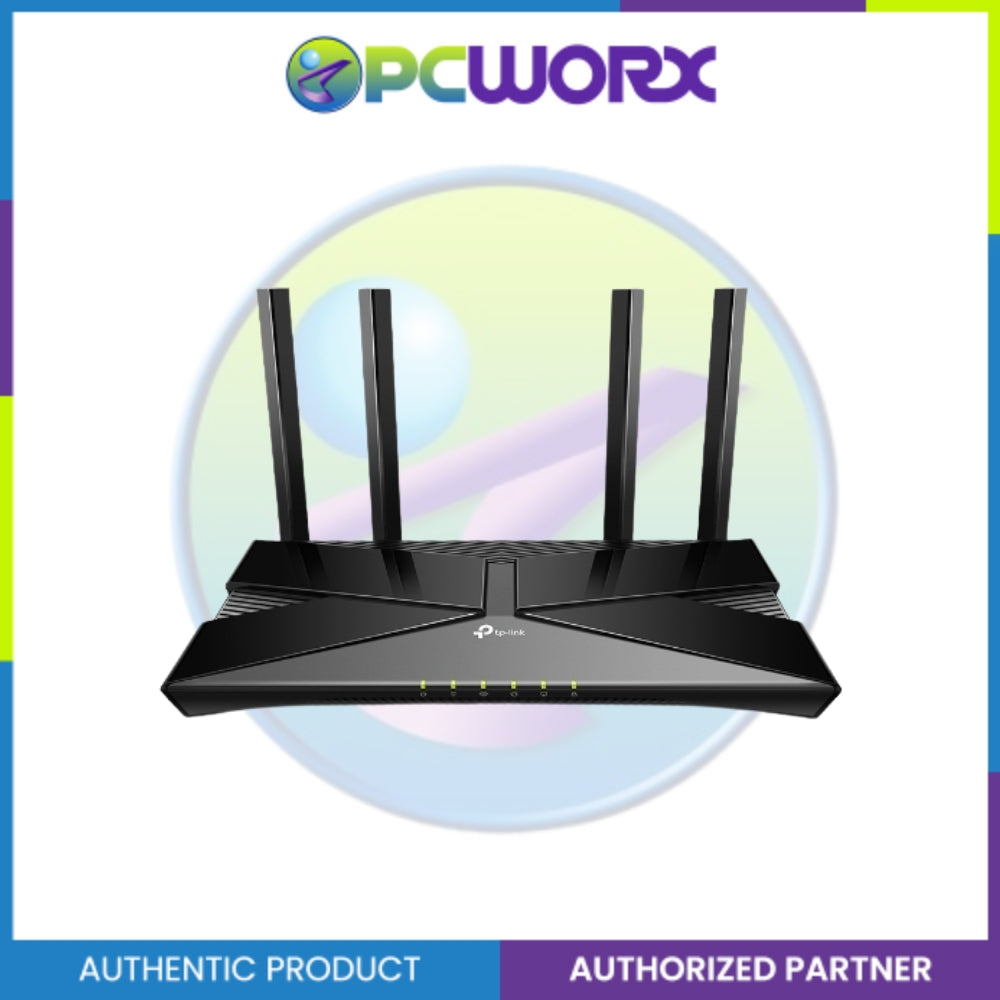

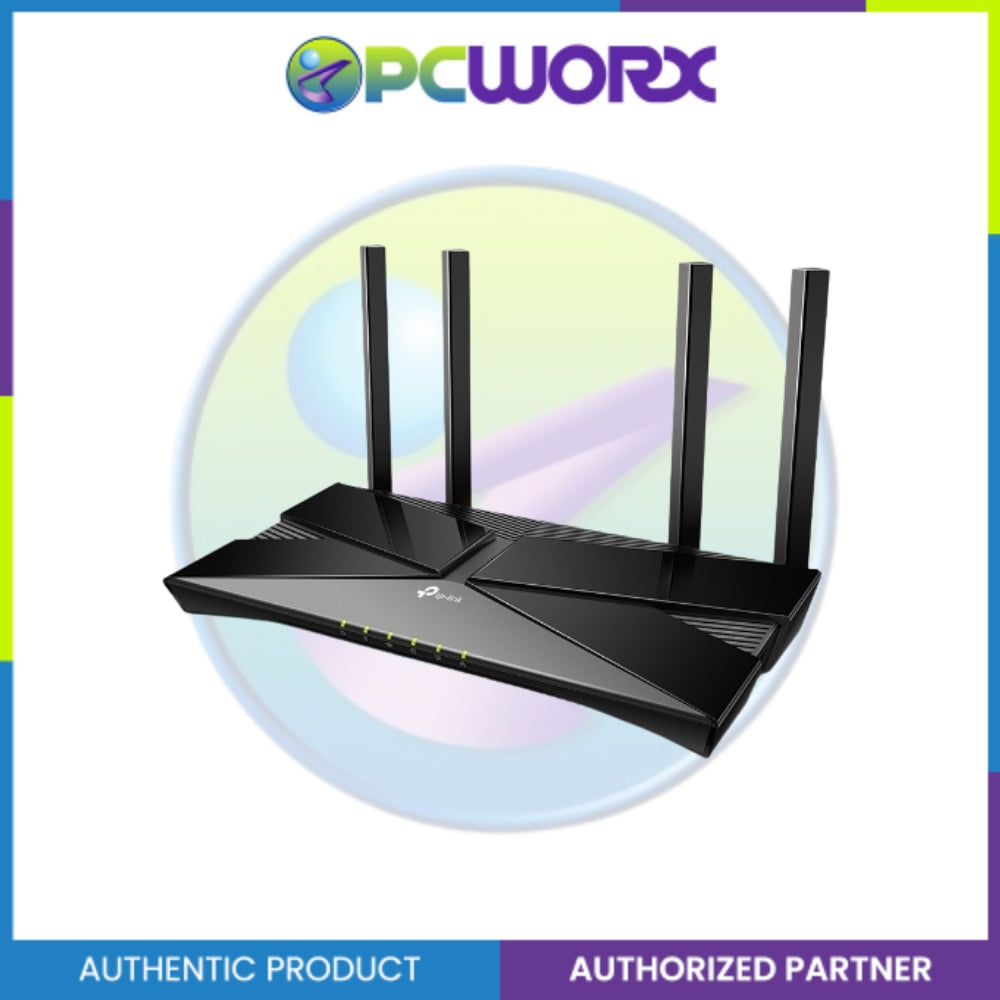

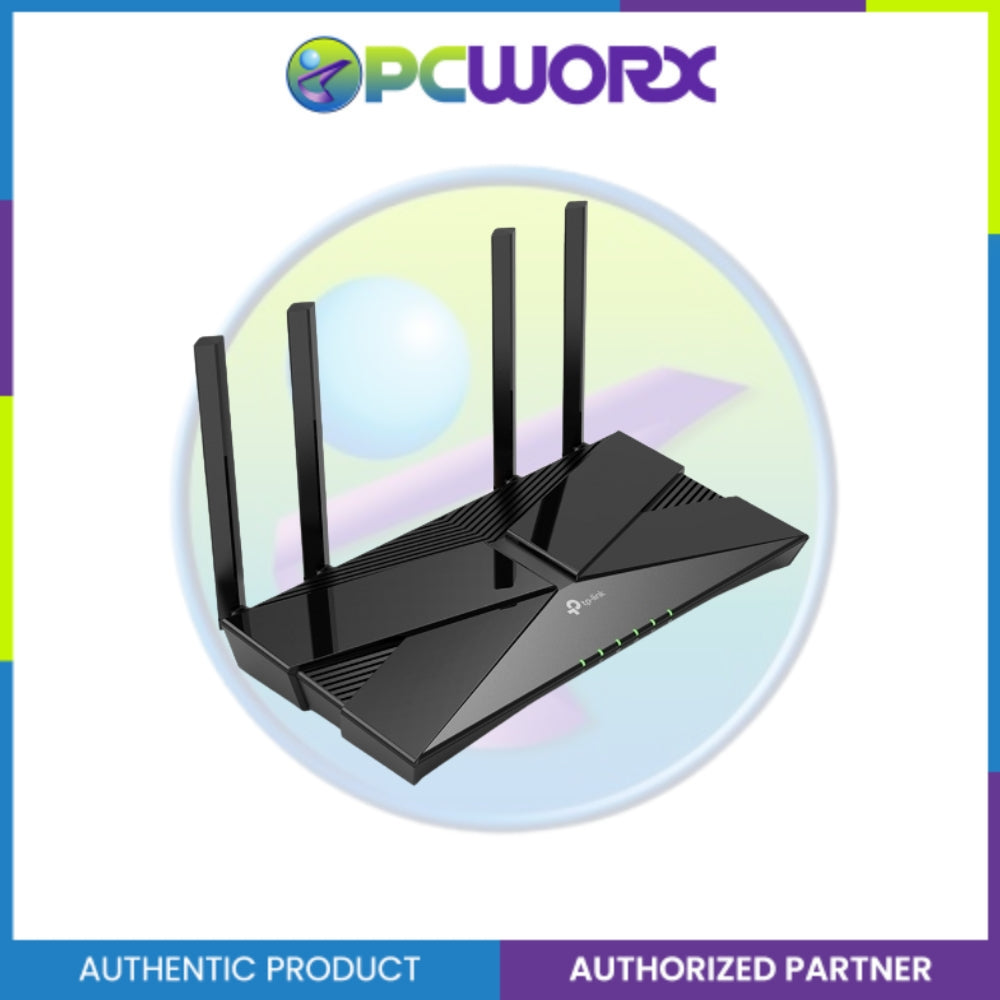

TP-LINK Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Description

Description

WIRELESS - Archer AX23
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP
WiFi Encryption WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
HARDWARE
Processor Dual-Core CPU

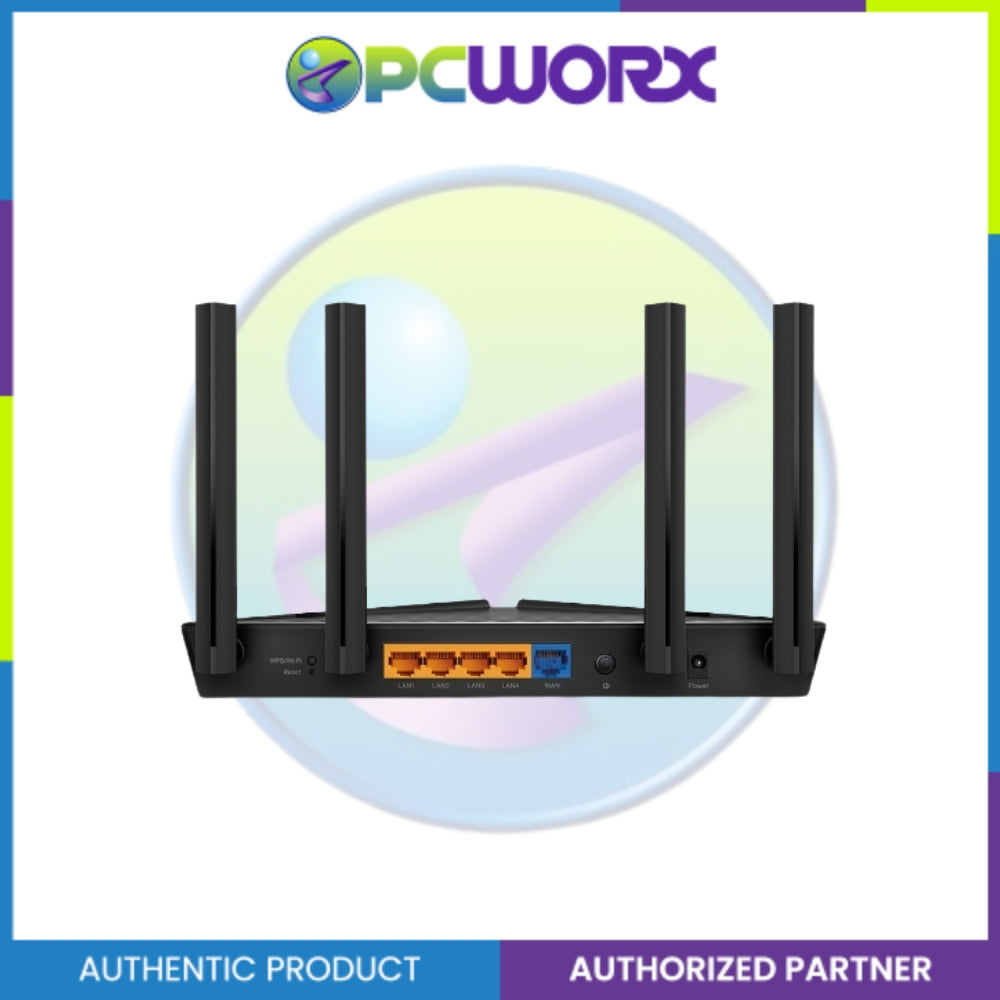

Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Buttons WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button
Power 12 V ⎓ 1.5 A
SOFTWARE
Protocols IPv4
IPv6
OneMesh™ OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products>
EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
Learn More>
Parental Controls URL Filtering
Time Controls
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator>
OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
Certifications FCC, CE, RoHS
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity EU Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT80_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

2.4G
11g 6Mbps:-96dbm
11g 54Mbps:-75dbm
11n HT20_MCS0:-95dbm
11n HT20_MCS7:-75dbm
11n HT40_MCS0:-92dbm
11n HT40_MCS7: -72dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm

US Version
5G
11a 6Mbps: -96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0: -95dbm
11ac VHT20_MCS8: -71dbm
11ac VHT40_MCS0: -92dbm
11ac VHT40_MCS9: -66dbm
11ac VHT80_MCS0: -89dbm
11ac VHT40_MCS9:-62dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -64dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -60dbm
11ax HE80_MCS0: -89dbm
11ax HE80_MCS11:-59dbm

2.4G
11g 6Mbps:-96dbm
11a 54Mbps:-75dbm
11ac VHT20_MCS0:-95dbm
11ac VHT20_MCS8:-72dbm
11ac VHT40_MCS0:-92dbm
11ac VHT40_MCS9: -67dbm
11ax HE20_MCS0:-95dbm
11ax HE20_MCS11: -65dbm
11ax HE40_MCS0: -92dbm
11ax HE40_MCS11: -62dbm
PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)

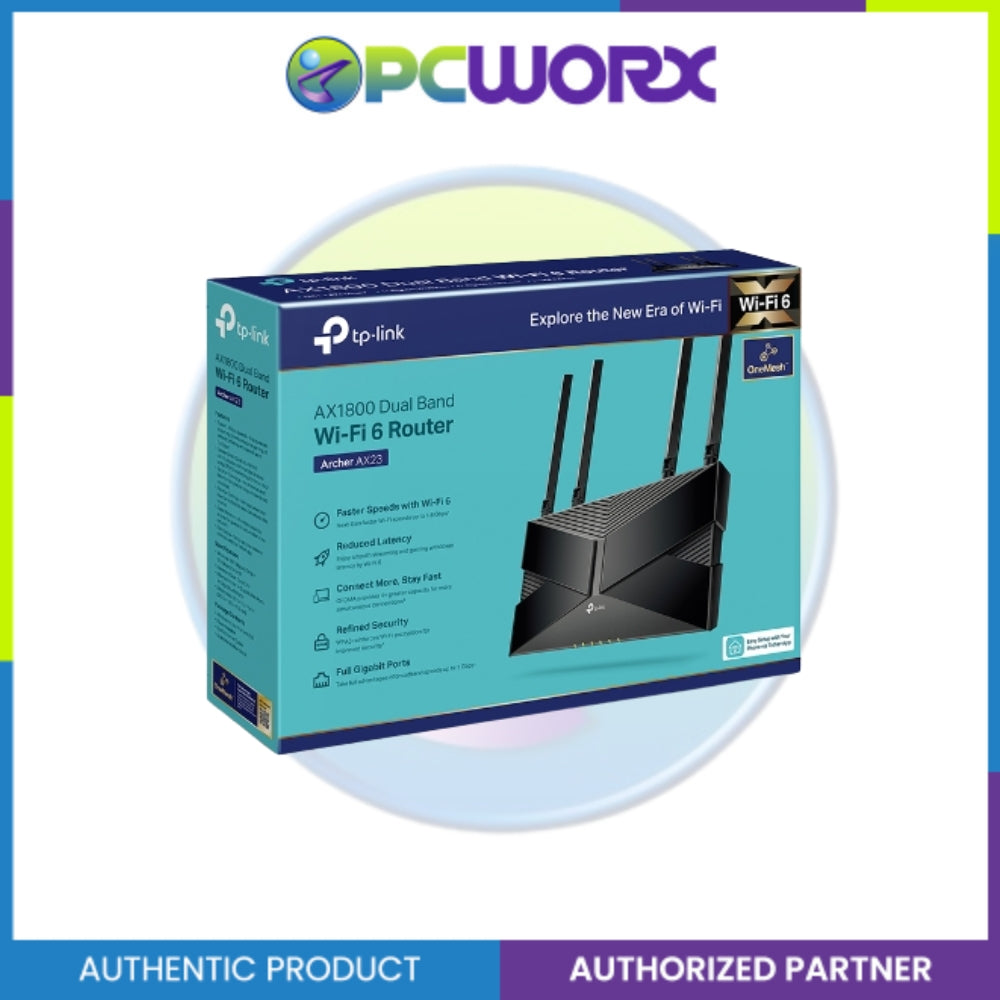

Package Contents Wi-Fi Router Archer AX23
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

TP-LINK Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

Product form

WIRELESS - Archer AX23 Standards Wi-Fi 6IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz WiFi Speeds AX18005 GHz: 1201 Mbps (802.11ax)2.4 GHz:... Read more

Free pickup in our shop(s)

SKU: 0000052370

2 in stock

₱2,242.00

    • Authorized Partner. Guaranteed Original Product
    • Available for SAME DAY DELIVERY for Metro Cities
    • Available for SAME DAY DELIVERY in DAVAO
    • Available for SAME DAY DELIVERY FOR PAID CUSTOMERS

    • Guaranteed secure & safe checkout.
    Description

    Description

    WIRELESS - Archer AX23
    Standards Wi-Fi 6
    IEEE 802.11ax/ac/n/a 5 GHz
    IEEE 802.11ax/n/b/g 2.4 GHz
    WiFi Speeds AX1800
    5 GHz: 1201 Mbps (802.11ax)
    2.4 GHz: 574 Mbps (802.11ax)
    WiFi Range 3 Bedroom Houses
    4× Fixed High-Performance Antennas
    Multiple antennas form a signal-boosting array to cover more directions and large areas

    Beamforming
    Concentrates wireless signal strength towards clients to expand WiFi range
    WiFi Capacity High
    Dual-Band
    Allocate devices to different bands for optimal performance

    OFDMA
    Simultaneously communicates with multiple Wi-Fi 6 clients

    Airtime Fairness
    Improves network efficiency by limiting excessive occupation

    4 Streams
    Connect your devices to more bandwidth
    Working Modes Router Mode
    Access Point Mode
    SECURITY
    Network Security SPI Firewall
    Access Control
    IP & MAC Binding
    Application Layer Gateway
    Guest Network 1× 5 GHz Guest Network
    1× 2.4 GHz Guest Network
    VPN Server OpenVPN
    PPTP
    WiFi Encryption WPA
    WPA2
    WPA3
    WPA/WPA2-Enterprise (802.1x)
    HARDWARE
    Processor Dual-Core CPU
    Ethernet Ports 1× Gigabit WAN Port
    4× Gigabit LAN Ports
    Buttons WPS/Wi-Fi Button
    Power On/Off Button
    LED On/Off Button
    Reset Button
    Power 12 V ⎓ 1.5 A
    SOFTWARE
    Protocols IPv4
    IPv6
    OneMesh™ OneMesh™ Supported
    Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
    Learn More>
    All OneMesh Products>
    EasyMesh Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
    Learn More>
    Parental Controls URL Filtering
    Time Controls
    WAN Types Dynamic IP
    Static IP
    PPPoE
    PPTP
    L2TP
    Quality of Service QoS by Device
    Cloud Service OTA Firmware Upgrade
    TP-Link ID
    DDNS
    NAT Forwarding Port Forwarding
    Port Triggering
    DMZ
    UPnP
    IPTV IGMP Proxy
    IGMP Snooping
    Bridge
    Tag VLAN
    DHCP Address Reservation
    DHCP Client List
    Server
    DDNS TP-Link
    NO-IP
    DynDNS
    Management Tether App
    Webpage
    Check Web Emulator>
    OTHER
    System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

    Cable or DSL Modem (if needed)

    Subscription with an internet service provider (for internet access)
    Certifications FCC, CE, RoHS
    Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
    Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    TEST DATA
    WiFi Transmission Power CE:
    <20dBm(2.4 GHz)
    <23dBm(5.15 GHz~5.25 GHz)
    FCC:
    <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
    WiFi Reception Sensitivity EU Version
    5G
    11a 6Mbps: -96dbm
    11a 54Mbps:-75dbm
    11ac VHT20_MCS0: -95dbm
    11ac VHT20_MCS8: -71dbm
    11ac VHT40_MCS0: -92dbm
    11ac VHT40_MCS9: -66dbm
    11ac VHT80_MCS0: -89dbm
    11ac VHT80_MCS9:-62dbm
    11ax HE20_MCS0:-95dbm
    11ax HE20_MCS11: -64dbm
    11ax HE40_MCS0: -92dbm
    11ax HE40_MCS11: -60dbm
    11ax HE80_MCS0: -89dbm
    11ax HE80_MCS11:-59dbm

    2.4G
    11g 6Mbps:-96dbm
    11g 54Mbps:-75dbm
    11n HT20_MCS0:-95dbm
    11n HT20_MCS7:-75dbm
    11n HT40_MCS0:-92dbm
    11n HT40_MCS7: -72dbm
    11ac VHT20_MCS0:-95dbm
    11ac VHT20_MCS8:-72dbm
    11ac VHT40_MCS0:-92dbm
    11ac VHT40_MCS9: -67dbm
    11ax HE20_MCS0:-95dbm
    11ax HE20_MCS11: -65dbm
    11ax HE40_MCS0: -92dbm
    11ax HE40_MCS11: -62dbm

    US Version
    5G
    11a 6Mbps: -96dbm
    11a 54Mbps:-75dbm
    11ac VHT20_MCS0: -95dbm
    11ac VHT20_MCS8: -71dbm
    11ac VHT40_MCS0: -92dbm
    11ac VHT40_MCS9: -66dbm
    11ac VHT80_MCS0: -89dbm
    11ac VHT40_MCS9:-62dbm
    11ax HE20_MCS0:-95dbm
    11ax HE20_MCS11: -64dbm
    11ax HE40_MCS0: -92dbm
    11ax HE40_MCS11: -60dbm
    11ax HE80_MCS0: -89dbm
    11ax HE80_MCS11:-59dbm

    2.4G
    11g 6Mbps:-96dbm
    11a 54Mbps:-75dbm
    11ac VHT20_MCS0:-95dbm
    11ac VHT20_MCS8:-72dbm
    11ac VHT40_MCS0:-92dbm
    11ac VHT40_MCS9: -67dbm
    11ax HE20_MCS0:-95dbm
    11ax HE20_MCS11: -65dbm
    11ax HE40_MCS0: -92dbm
    11ax HE40_MCS11: -62dbm
    PHYSICAL
    Dimensions (W×D×H) 10.2 × 5.3 ×1.5 in
    (260.2 × 135.0 × 38.6 mm)
    Package Contents Wi-Fi Router Archer AX23
    Power Adapter
    RJ45 Ethernet Cable
    Quick Installation Guide
