Description

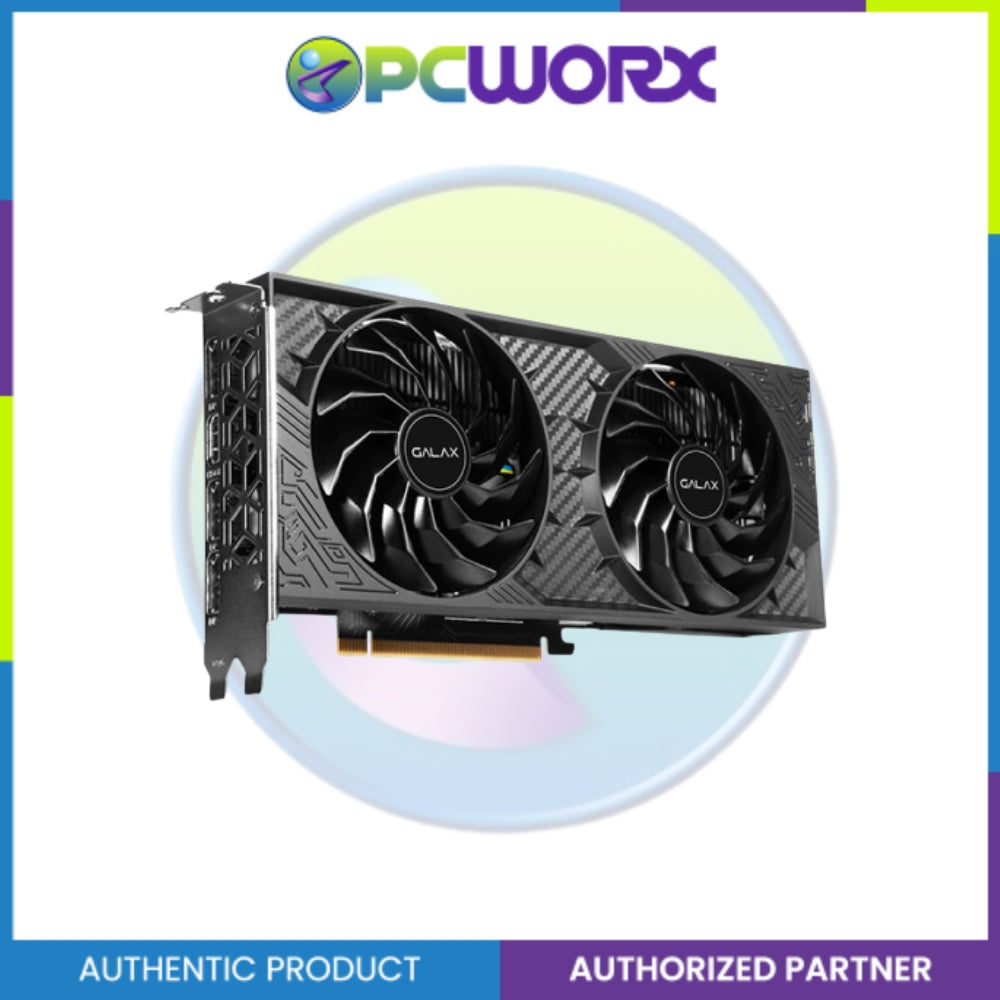

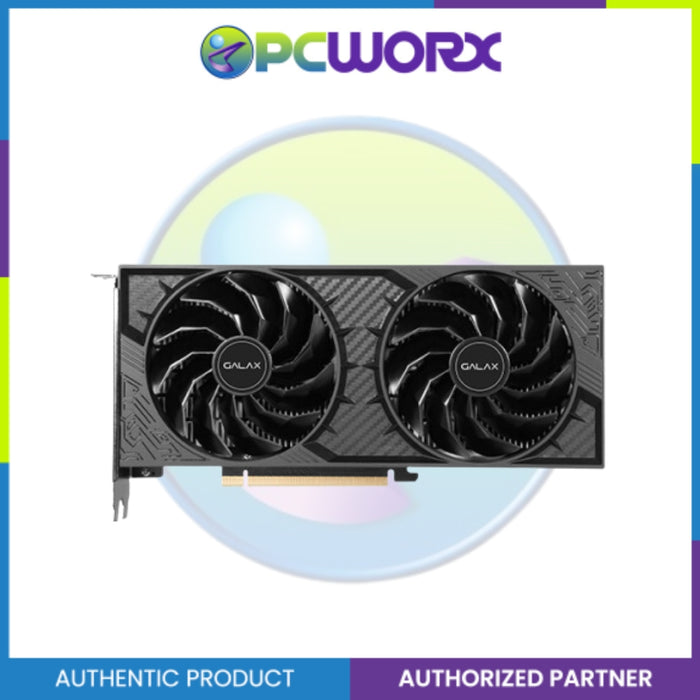

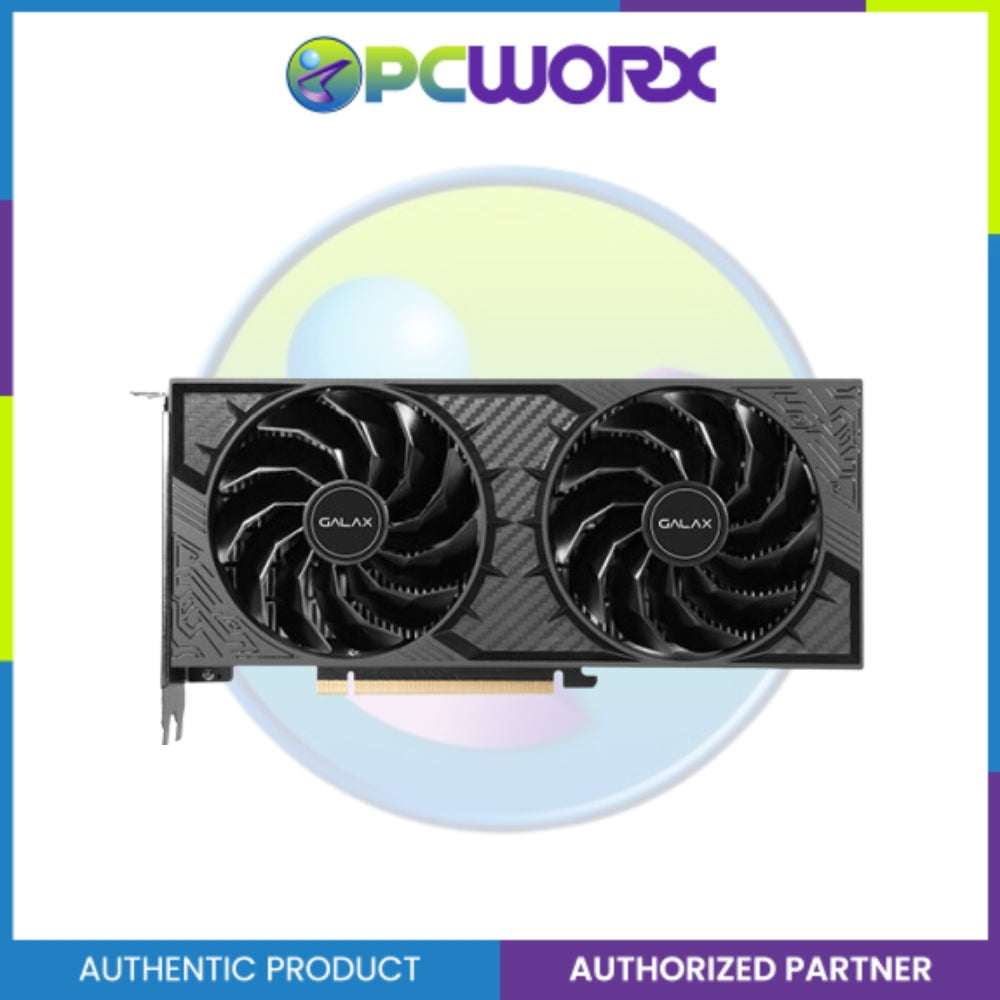

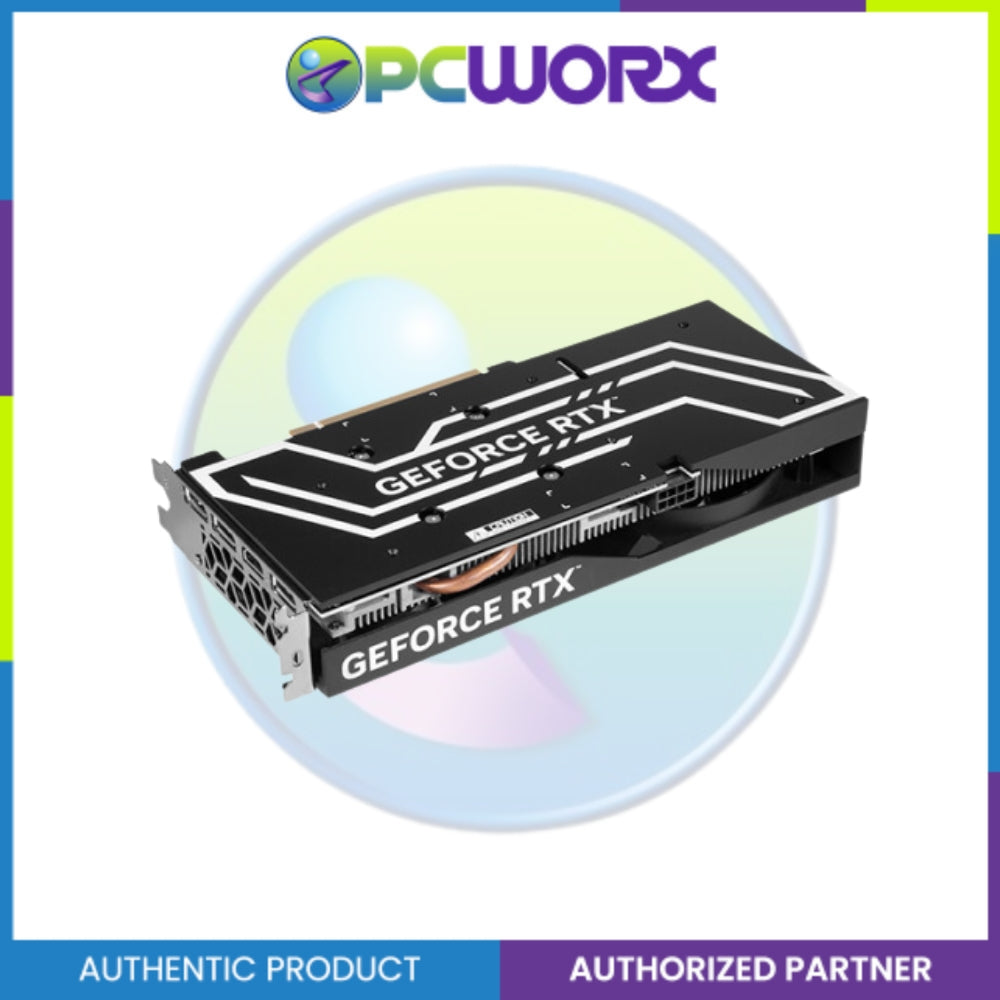

Equipped with a 17 Gbps 8GB 128-bit GDDR6 memory, GeForce RTX 4060 1-Click OC 2X supports up to 2490MHz for its exclusive 1-Click OC, featuring a lightweight dual slot cooler and the dual 92mm fans, making it the 2nd most compact design of the GALAX GeForce RTX 40 series graphics cards. With the ultra-efficient cooler design, it delivers impressive performances at optimal temperature while maintaining an extremely quiet operation.
Supported by Xtreme Tuner App for mobile 1-Click OC, GPU info on-screen display and advanced OC settings.
-
NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
-
4th Generation Tensor Cores: Up to 2X AI performance
-
3rd Generation RT Cores: Up to 2X ray tracing performance
- Microsoft DirectX® 12 Ultimate
- GDDR6 Graphics Memory
- NVIDIA DLSS
- NVIDIA® GeForce Experience™
- NVIDIA G-SYNC®
- NVIDIA GPU Boost™
- Game Ready Drivers
- Vulkan RT API, OpenGL 4.6
- DisplayPort 1.4a, HDMI 2.1
- HDCP 2.3
- VR Ready
- To 1-Click OC, overclock, control ARGB and monitor GPU info of your GALAX graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
SPECIFICATIONS:
| GPU ENGINE SPECS |
|
| CUDA Cores: |
3072 |
| Boost Clock:
|
2475MHz |
|
1-Click OC Clock: 2490MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC) |
| MEMORY SPECS
|
|
| Memory Speed: |
17 Gbps |
| Standard Memory Config: |
8GB |
| Memory Interface Width
|
128-bit GDDR6 |
| Memory Bandwidth: |
272 GB/sec |
| Feature Support: |
|
|
PCI-E 4.0 |
|
Windows 10/11 64-bit |
| Fan Feature: |
|
|
2 * 92mm |
|
WINGS with Fan stop @ Idle (All Fans) |
| Display Support: |
DisplayPort 1.4a x 3, HDMI 2.1a x 1 |
| Dimensions: |
Dimensions(with Bracket): 251 * 133 * 41mm |
|
Dimensions(without Bracket): 237 * 118 * 41mm |
