Up to 4TB expanded capacity and rapid Intelligent TurboWrite 2.0 with enlarged TurboWrite region.
Spectacular speed everyday
Blast through tasks faster. 990 EVO Plus with the latest NAND offers boosted sequential read/write speeds up to 7,250/6,300MB/s. huge files, instant transfer.
Increased power efficiency
Optimized efficiency, extended performance. The nickel-coated controller increases MB/s per Watt by 73%, compared to previous model, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.
Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data faster and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure SSD performance best fit for your unique needs. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.
SPECIFICATIONS

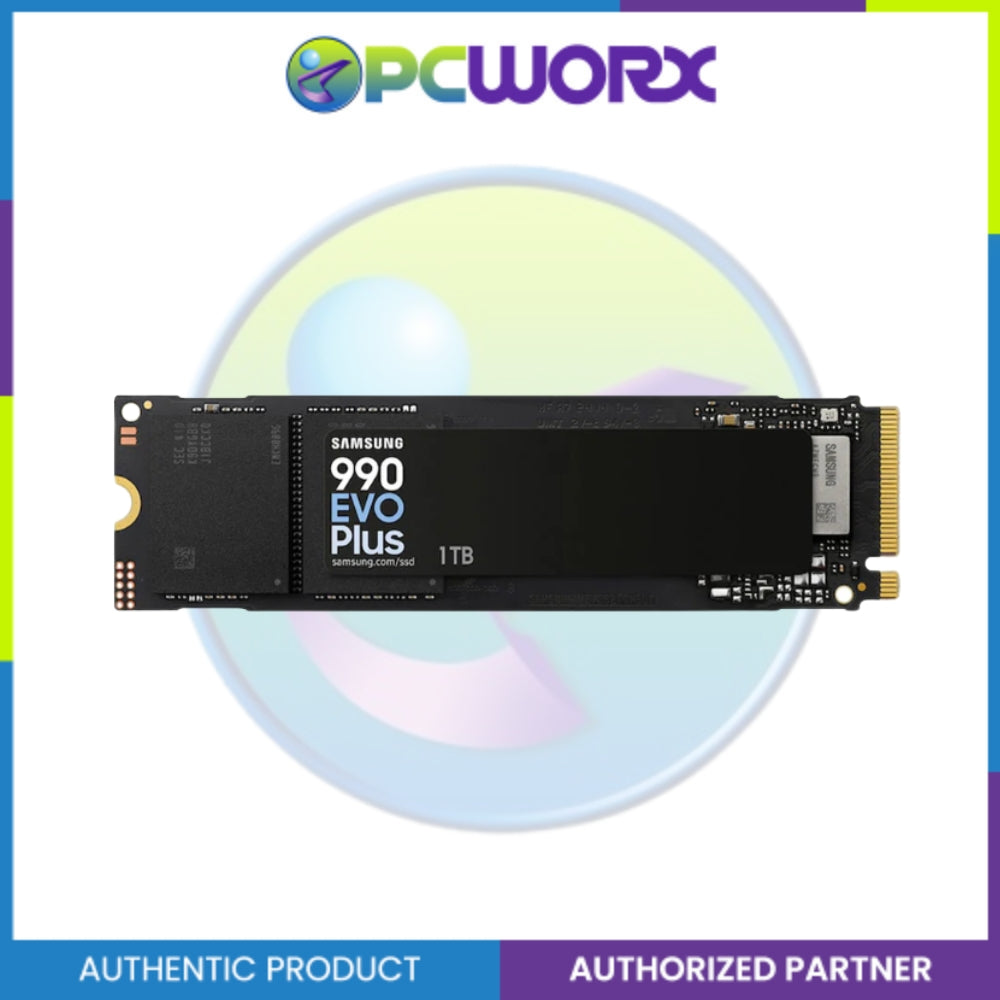

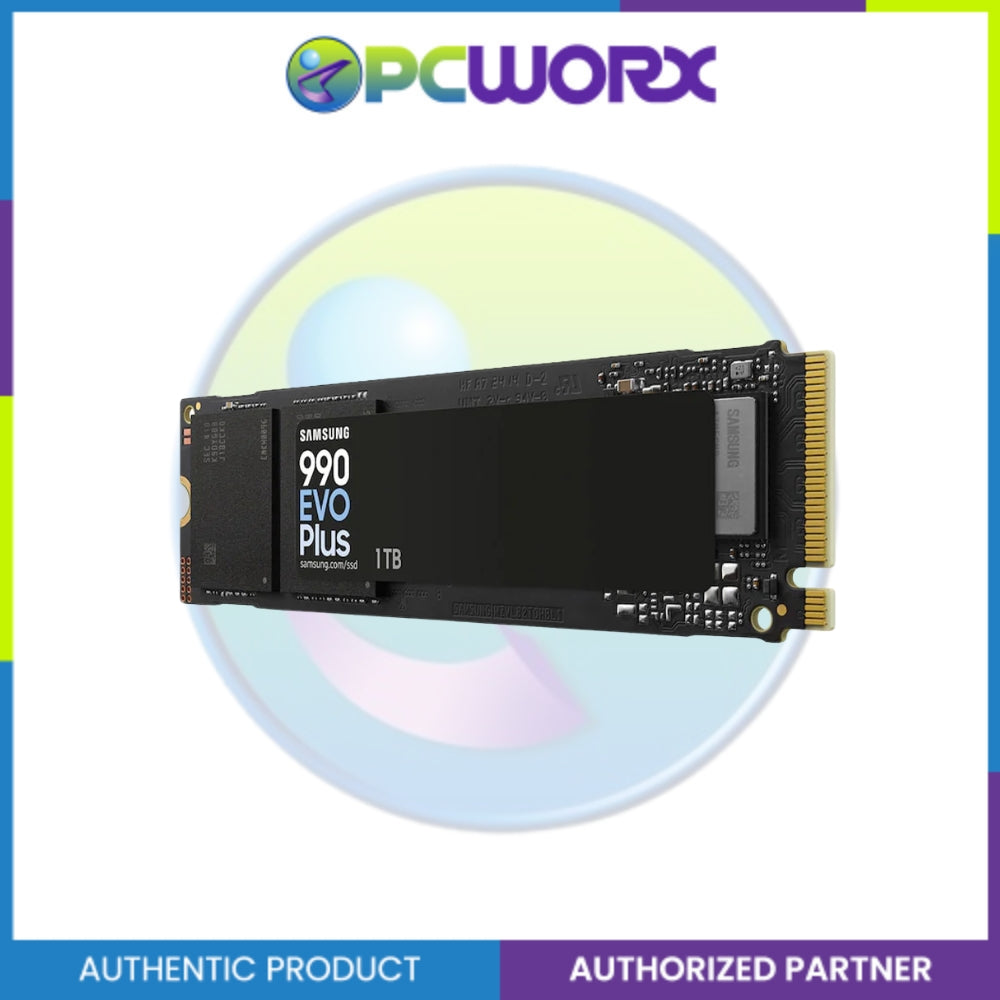

CAPACITY: 1TB
| OVERVIEW |
|
| Interface |
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Application
|
Client PCs |
| Weight
|
Max 9.0g Weight |
| Dimensions
|
Max 80.15 x Max 22.15 x Max 2.38 mm |
| GENERAL FEATURES |
|
| Application
|
Client PCs |
| Capacity |
1,000GB (1GB=1 billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise.
|
| Form Factor
|
M.2 (2280) |
| Interface |
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Storage Memory |
Samsung V-NAND TLC |
| Controller |
Samsung in-house Controller |
| Cache Memory |
HMB(Host Memory Buffer) |
| SPECIAL FEATURES |
|
| TRIM Support |
Supported |
| S.M.A.R.T. Support |
Supported |
| GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
| Encryption Support |
AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support |
Not supported |
| Device Sleep Mode Support |
Yes |
| PERFORMANCE |
|
| Sequential Read |
Up to 7,150 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write |
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration |
| Random Read |
Up to 850,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write |
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration |
| ENVIRONMENT |
|
| Average Power Consumption
|
Average: Read 4.3 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Idle)
|
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep)
|
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage |
3.3 V ± 5 % Allowable voltage |
| Reliability
|
1.5 million Hours Reliability (MTBF) |
| Operating Temperature |
0 - 70 ℃ Operating Temperature |
| Shock
|
1,500 G & 0.5 ms (Half sine) |

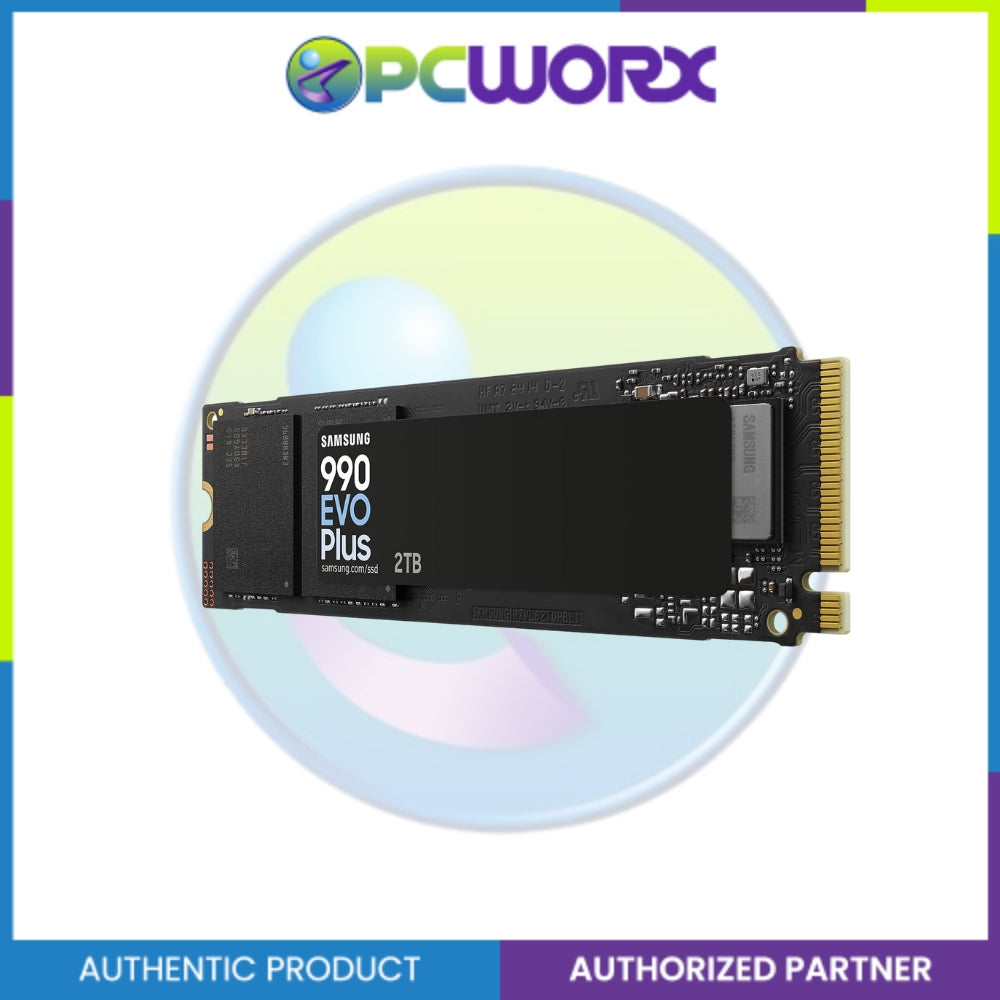

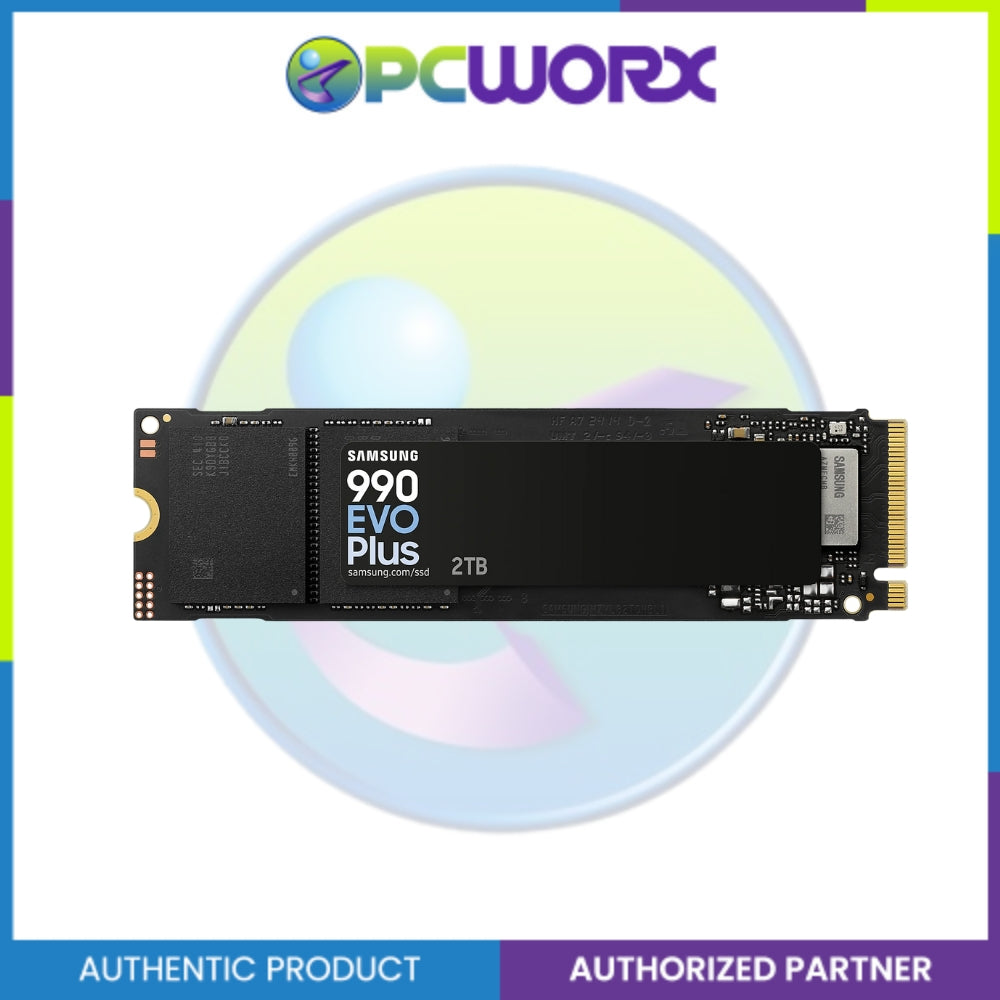

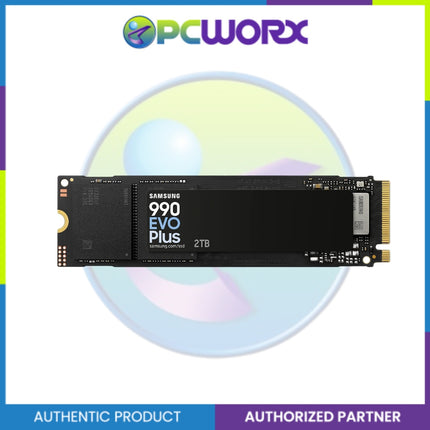

CAPACITY: 2TB
| OVERVIEW |
|
| Interface |
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Application
|
Client PCs |
| Weight
|
Max 9.0g Weight |
| Dimensions
|
Max 80.15 x Max 22.15 x Max 2.38 mm |
| GENERAL FEATURES |
|
| Application
|
Client PCs |
| Capacity |
2,000GB (1GB=1 billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor
|
M.2 (2280) |
| Interface |
PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0 |
| Storage Memory |
Samsung V-NAND TLC |
| Controller |
Samsung in-house Controller |
| Cache Memory |
HMB (Host Memory Buffer) |
| SPECIAL FEATURES |
|
| TRIM Support |
Supported |
| S.M.A.R.T. Support |
Supported |
| GC (Garbage Collection) |
Auto Garbage Collection Algorithm |
| Encryption Support |
AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support |
Not supported |
| Device Sleep Mode Support |
Yes |
| PERFORMANCE |
|
| Sequential Read |
Up to 7,250 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write |
Up to 6,300 MB/s * Performance may vary based on system hardware & configuration |
| Random Read |
Up to 1,000,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write |
Up to 1,350,000 IOPS * Performance may vary based on system hardware & configuration |
| ENVIRONMENT |
|
| Average Power Consumption
|
Average: Read 4.6 W / Write 4.2 W* Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Idle)
|
Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep)
|
Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage |
3.3 V ± 5 % Allowable voltage |
| Reliability
|
1.5 million Hours Reliability (MTBF) |
| Operating Temperature |
0 - 70 ℃ Operating Temperature |
| Shock
|
1,500 G & 0.5 ms (Half sine) |
