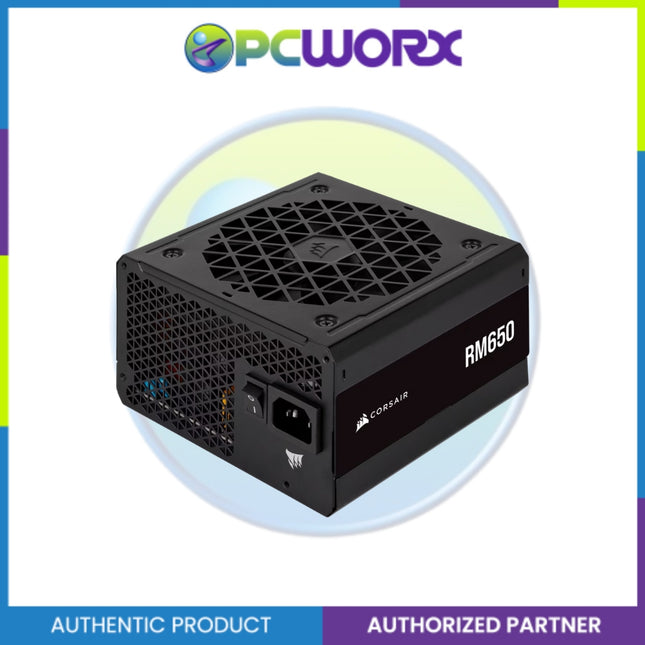

RM650 POWER SUPPLY FULLY MODULAR LOW-NOISE ATX POWER SUPPLIES STEADY  FULLY MODULAR
CABLING Keep cable clutter down by connecting only the cables your system needs and nothing else. Four universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs. LOW NOISE OPERATION IN A COMPACT SIZE A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.  TECHNOLOGY AND RELIABILITY For consistent, reliable power and superb electrical performance, each RM Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.With precise timings, RM supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency. 80 PLUS GOLD-CERTIFIED Steady power output at up to 90% efficiency for lower power consumption, less noise, and cooler temperatures. WORLD-CLASS SUPPORT Our award-winning service means you can enjoy your gear worry-free. SPECIFICATIONS ATX Connector 1 ATX12V Version 2.53 Cable Type Type 4 Continuous Power W 650 Watts EPS Connector 2 MTBF Hours 100,000 hours SATA Connector 7 PATA Connector 4 Modern Standby Yes Dimensions 140x150x86 Modular Fully PCIe Connector 2 Zero RPM Mode Yes 80 PLUS Efficiency Gold Warranty 7 Year Weight 2.258

Read more less

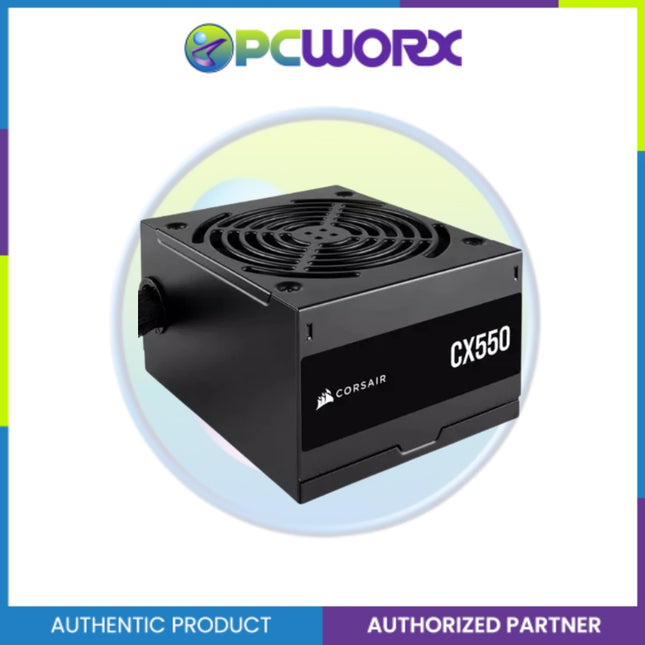

An ideal choice for value-conscious system builders and upgraders CX Series power supply units provide modern power supply technologies and 80 PLUS Bronze efficiency at a competitive price point. It is black with black cable sleeving and connectors and a thermally controlled 120mm fan. The LLC resonant topology with DC to DC ensures complete compatibility with all modern-day PCs. Low noise 80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation. Good looks The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look. Reliable and compatible CX Series is built and tested to strict standards for trouble-free installation and smooth operation. Corsair engineering and quality control Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget. Ample connectors and long cables Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices. Large-diameter, thermally controlled fan Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you’re pushing your system hard. PSU Compatibility ATX12V v2.4 and EPS12V 2.92 standards Cable Type Sleeved EPS Connector 1 Fan Bearing Technology Rifle Bearing SATA Connector 5 Dimensions 150mm x 86mm x 140mm Modular No PCIe Connector 2 ATX Connector 1 ATX12V Version v2.4 Continuous Power W 550 Watts Fan Size MM 140mm MTBF Hours 100,000 hours Multi GPU Ready No PSU Form Factor ATX Zero RPM Mode No Single Multiple 12V Rail Toggl No 80 PLUS Efficiency Bronze Weight 2.38

Read more less

Description CX Series CX650 – 650 Watt 80 PLUS Bronze ATX Power Supply CORSAIR CX Series Power Supplies feature low-noise cooling and a compact design for an easy fit in nearly any modern case. 80 PLUS Bronze efficiency up to 88% Guaranteed continuous power 120mm low-noise cooling fan Compact 125mm length SPECIFICATIONS Model CX650 ATX Connector 1 ATX12V Version v2.31 Cable Type Type 4 Continious Power W 650W EPS Connector 1 Fan Bearing Technology Sleeve Fan Size MM 120mm SATA Connector 3 Modular No PCIe Connector 2 MTBF Hours 100,000 hours PSU Form Factor ATX Weight  2.32

Read more less

CORSAIR CX750 ATX POWER SUPPLIES 80 PLUS BRONZE POWER Delivers consistent power to your PC with up to 88% operational efficiency, generating less heat and lowering your energy costs. 120mm LOW-NOISE FAN Fitted with a thermally controlled fan that only spins at high speed when your power supply is under heavy load, automatically slowing down for quieter operation at lower loads. AN EASY FIT A compact 125mm-long casing ensures an easy fit in almost all modern PC cases. WORLD-CLASS SUPPORT Our award-winning service means you can enjoy your gear worry-free. SPECIFICATIONS ATX Connector 1 ATX12V Version v2.31 Cable Type Type 4 Continuous Power W 750 Watts EPS Connector 1 Fan Bearing Technology Sleeve Fan Size MM 120mm SATA Connector 3 Modular No PCIe Connector 2 MTBF Hours 100,000 hours PSU Form Factor ATX 80 PLUS Efficiency Bronze Weight 2.335

Read more less

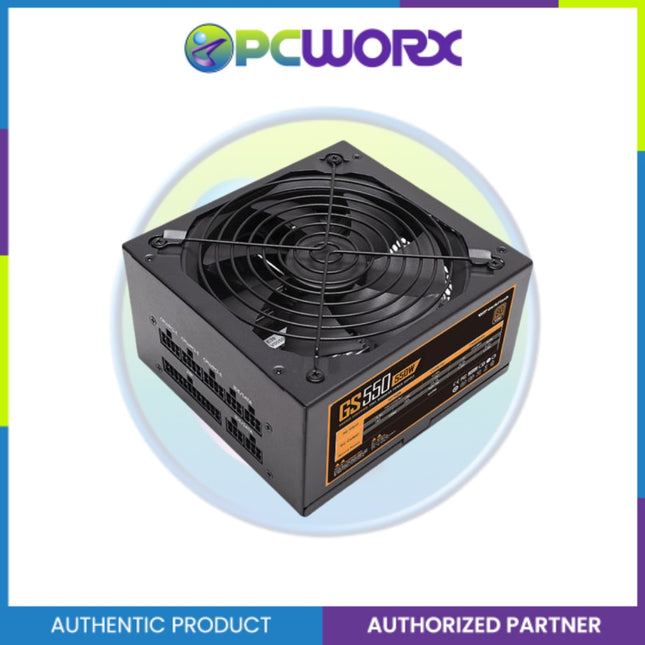

GS550 Bronze Certified Full Modular Power Supply SPECIFICATION MAIN SPECIFICATIONS PSU Size: 160 x 150 x 86 mm Input Voltage: 100-240VAC Input Frequency 50/60Hz

Read more less

HYPER K 700W Complies with ATX 12V v2.4 & EPS 12V v2.92 Meets 85% Efficiency Active PFC, Power Factor ≧ 99% +12V Single Rail Design PCI-Express 6+2 Pin Graphic Card Connectors SATA Array Cable 120mm Quiet Fan Complete Protections: OCP, OVP, SCP Meet ErP/EuP 2013 Standard Latest Intel Platform Ready Multiple Safety Approvals HYPER K series comes ranging from 500W, 600W to 700W for your choice. Enthusiasts of Gamer and hardware, you won't miss HYPER series this time, the high stable performance but affordable price will be your BEST choice.HYPER K series comes with the +12 single rail design and the SATA array cable, optimized the airflow in case, no-hassle with case side panel. Also, 120mm long lasting fan provides superior cooling, noise <19dBA at 50% loading. Multiple PCI-Express 6+2 pin connectors equipped also 8 units of SATA cable provided. Model No. HP700S AC Input 200-240Vac ~ 5A 50-60Hz DC Output +3.3V +5V +12V -12V +5Vsb Max Output Current 20A 20A 53A 0.3A 3.0A Max Combined Power 150W 636W 18.6W Total Power 700W   Specifications Model HP700S Rated Output Power 700W Form Factor ATX 12V V2.4 & EPS 12V V2.92 Input Voltage 200-240Vac Input Current 5A Input Frequency 50-60Hz PFC Active PFC (>0.9 typical) Efficiency ≥85% at typical load Fan Type 120mm Sleeved Fan Noise < 19dBA Dimensions (Lx W x H) 150 x 140 x 86 mm Weight 1752g Operation Temp. 0~40°C / 32°F~104°F Protection OVP/OCP/SCP Safety Approval CE/TUV/KC/RCM/EAC

Read more less

KEY FEATURES 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS BRONZE CERTIFIED 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. Reliable Flat Cable P450B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. The life of the Hydraulic Bearing fan is more than 4 years 120mm Silent Hydraulic Bearing (HYB) Fan 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. SPECIFICATIONS Model P450B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 8-4 A Input Frequency 60-50 Hz Output Capacity  450W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS Bronze Efficiency  85% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal  100-500ms  Hold Up Time >16ms Cable Type  Flat, All black Connectors ATX/MB 20+4 Pin x 1: 550 mm*1 CPU/EPS 4+4 Pin x1: 600 mm*1  PCI-e+2 Pin x2: 550 mm+150 mm*1 SATA x 6: 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1: 500mm+120mm+120mm+120mm*1

Read more less

KEY FEATURES 80 PLUS bronze certified: up to 89% efficiency 100% Japanese Capacitors 120mm Hydraulic Bearing (HYB) Fan Single +12V rail Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection 80 Plus Bronze Certified 80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency. Reliable Mesh Braided Cable P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case. 100% Japanese Capacitors All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability. Single +12V Rail Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for installation. 120mm Hydraulic Bearing (HYB) Fan 120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable lifetime. SPECIFICATIONS Model P650B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 9A-4A Input Frequency 50-60 Hz Output Capacity  650W Dimension D150 x W140 x H86 mm Fan Type 120 mm Hydraulic Bearing Fan Efficiency  up to 85% at typical load MTBF >100,000 hours Protection  OPP/UVP/OVP/SCP/OCP Regulatory CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE Connectors ATX/MB 20+4 Pin x 1 CPU/EPS 4+4 Pin x 1 PCI-e 6+2 Pin x 4, SATA x 6 4 Pin Peripheral x3  4 Pin Floppy x 1

Read more less

KEY FEATURE Ultra Durable  Main Japanese capacitors  Enhanced thermal solution  120mm smart hydraulic bearing (HYB) fan OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. SPECIFICATIONS Model GP-UD750GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac(full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity  750W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan Efficiency  90% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 610mm*1  CPU/EPS 4+4 Pin x 2: 600mm*2 PCI-e 6+2 Pin x 4: 600mm+150mm*2 SATA X 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+150mm*1

Read more less

KEY FEATURE Ultra Durable Main Japanese capacitors  Enhanced thermal solution 120mm smart hydraulic bearing (HYB) fan  OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact design ULTRA DURABLE Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply and can be used for a long time. HIGH QUALITY JAPANESE CAPACITORS The main capacitors use high quality Japanese capacitors to produce the efficient performance and ensure the longer reliability. ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components. 120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable lifetime. FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. 80 PLUS GOLD CERTIFIED 80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. COMPACT DESIGN With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints. SPECIFICATIONS Model GP-UD850GM Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 12-6A Input Frequency 60-50 Hz Output Capacity  850W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS  Gold Efficiency  90% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 610mm*1  CPU/EPS 4+4 Pin x 2: 600mm*2 PCI-e 6+2 Pin x 4: 600mm+150mm*2 SATA X 8: 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+150mm*1

Read more less

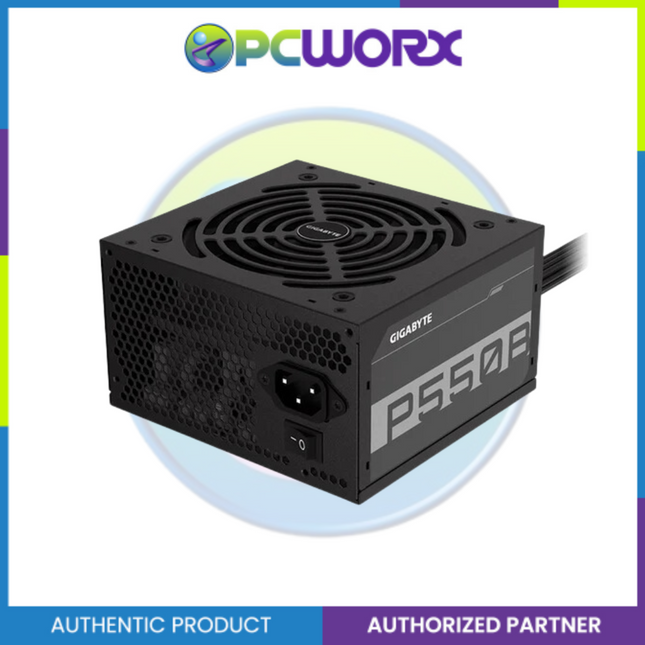

KEY FEATURES 80 PLUS Bronze certified 120mm Silent Hydraulic Bearing (HYB) Fan Reliable flat cable Single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS BRONZE CERTIFIED 80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. Reliable Flat Cable P550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case. 120mm Silent Hydraulic Bearing (HYB) Fan 120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable lifetime. SINGLE +12V RAIL Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking. PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries. SPECIFICATIONS Model P550B Type Intel Form Factor ATX 12V v2.31 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 8-4A Input Frequency 60-50 Hz Output Capacity  550W Dimension 150 x 140 x 86 mm Fan Type 120 mm Hydraulic Bearing (HYB) Fan 80 PLUS  Gold Efficiency  85% at typical load MTBF >100,000 hours Protection  OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All black  Connectors ATX/MB 20+4 Pin x 1: 550mm*1  CPU/EPS 4+4 Pin x 1: 600mm*2 PCI-e 6+2 Pin x 2: 550mm+150mm*1 SATA X 6: 500mm+120mm+120mm*2 4 Pin Peripheral x 3+4- Pin floppy x1: 500mm+120mm+120mm+120mm*1

Read more less

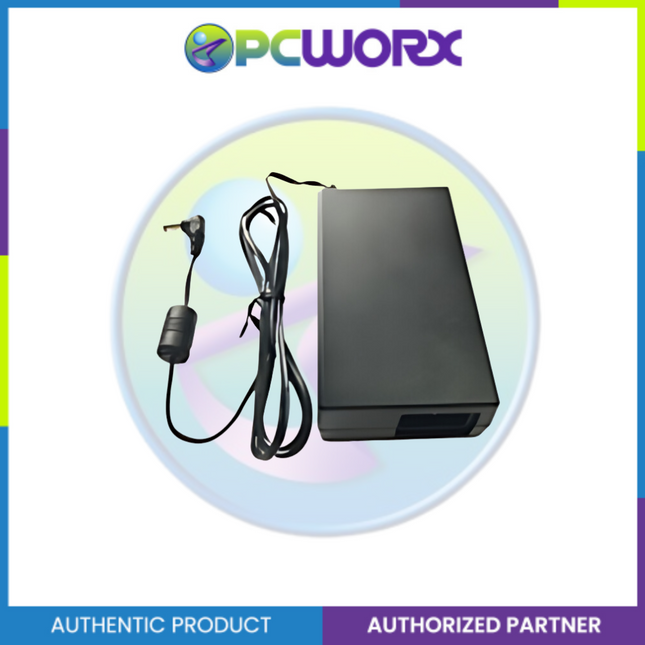

Item Specification Size（L×W×H） 110mm × 62mm × 31.5mm Weight 220g Input Voltage 90V AC～264V AC; 47~63Hz Input Current 1.5A Max, at 115Vac, Full load 0.8A Max, at 230Vac, Full load Input Connector* IEC320 C14 Output Voltage 54V Output rated current 0.74A Output Power 40W Output Connector Power Efficiency Level VI Protection OCP,OVP,SCP Temperature Operation: -10℃～45℃ Non-operation: -40℃～70℃ Humidity（Non-condensing） 5%～95% Altitude Up to 5000m EMC EN 55032: RE,CE CISPR 32: RE,CE IEC 61000-4-2: ESD IEC 61000-4-3: RS IEC 61000-4-4: EFT IEC 61000-4-5: Surge IEC 61000-4-6: CS IEC 61000-4-11: DIPS Safety Approvals CE,TUV,UL,CCC

Read more less
