6-Core, 12-Thread architecture for exceptional multitasking Base clock speed of 3.6 GHz with Max Boost Clock of up to 4.2 GHz 65W TDP, offering energy-efficient performance Compatible with AM4 socket motherboards Supports DDR4 Memory for faster data processing Advanced cooling options with included cooler

Read more less

Essentials Product Collection Intel® Core™ i9 Processors (14th gen) Code Name Products formerly Raptor Lake Vertical Segment Desktop Processor Number i9-14900K Lithography Intel 7 CPU Specifications Total Cores 24 # of Performance-cores 8 # of Efficient-cores 16 Total Threads 32 Max Turbo Frequency 6 GHz Intel® Thermal Velocity Boost Frequency 6 GHz Intel® Turbo Boost Max Technology 3.0 Frequency ‡ 5.8 GHz Performance-core Max Turbo Frequency 5.6 GHz Efficient-core Max Turbo Frequency 4.4 GHz Performance-core Base Frequency 3.2 GHz Efficient-core Base Frequency 2.4 GHz Cache 36 MB Intel® Smart Cache Total L2 Cache 32 MB Processor Base Power 125 W Maximum Turbo Power 253 W Supplemental Information Marketing Status Launched Launch Date Q4'23 Embedded Options Available No Memory Specifications Max Memory Size (dependent on memory type) 192 GB Memory Types Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 89.6 GB/s ECC Memory Supported   ‡ Yes GPU Specifications GPU Name‡ Intel® UHD Graphics 770 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.65 GHz Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1 Execution Units 32 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Multi-Format Codec Engines 2 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0xA780 Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020A TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director Yes Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Speed Shift Technology Yes Intel® Adaptive Boost Technology Yes Intel® Thermal Velocity Boost Yes Intel® Turbo Boost Max Technology 3.0 ‡ Yes Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel® Standard Manageability (ISM) ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 12th Generation Intel® Core™ i5 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i5-12400F Lithography Intel 7 CPU Specifications Total Cores 6 # of Performance-cores 6 # of Efficient-cores 0 Total Threads 12 Max Turbo Frequency 4.40 GHz Performance-core Max Turbo Frequency 4.40 GHz Performance-core Base Frequency 2.50 GHz Cache 18 MB Intel® Smart Cache Total L2 Cache 7.5 MB Processor Base Power 65 W Maximum Turbo Power 117 W Supplemental Information Marketing Status Launched Launch Date Q1'22 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director No Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Optane™ Memory Supported ‡ Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel® Standard Manageability (ISM) ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 12th Generation Intel® Core™ i5 Processors Code Name Products formerly Alder Lake Vertical Segment Desktop Processor Number i5-12400 Lithography Intel 7 CPU Specifications Total Cores 6 # of Performance-cores 6 # of Efficient-cores 0 Total Threads 12 Max Turbo Frequency 4.40 GHz Performance-core Max Turbo Frequency 4.40 GHz Performance-core Base Frequency 2.50 GHz Cache 18 MB Intel® Smart Cache Total L2 Cache 7.5 MB Processor Base Power 65 W Maximum Turbo Power 117 W Supplemental Information Marketing Status Launched Launch Date Q1'22 Embedded Options Available Yes Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s Max # of Memory Channels 2 Max Memory Bandwidth 76.8 GB/s GPU Specifications GPU Name‡ Intel® UHD Graphics 730 Graphics Base Frequency 300 MHz Graphics Max Dynamic Frequency 1.45 GHz Graphics Output eDP 1.4b |  DP 1.4a |  HDMI 2.1 Execution Units 24 Max Resolution (HDMI)‡ 4096 x 2160 @ 60Hz Max Resolution (DP)‡ 7680 x 4320 @ 60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 5120 x 3200 @ 120Hz DirectX* Support 12 OpenGL* Support 4.5 OpenCL* Support 3 Multi-Format Codec Engines 1 Intel® Quick Sync Video Yes Intel® Clear Video HD Technology Yes # of Displays Supported ‡ 4 Device ID 0x4692 / 0x4682 Expansion Options Direct Media Interface (DMI) Revision 4 Max # of DMI Lanes 8 Scalability 1S Only PCI Express Revision 5.0 and 4.0 PCI Express Configurations ‡ Up to 1x16+4 |  2x8+4 Max # of PCI Express Lanes 20 Package Specifications Sockets Supported FCLGA1700 Max CPU Configuration 1 Thermal Solution Specification PCG 2020C TJUNCTION 100°C Package Size 45.0 mm x 37.5 mm Advanced Technologies Intel® Gaussian & Neural Accelerator 3 Intel® Thread Director No Intel® Deep Learning Boost (Intel® DL Boost) on CPU Yes Intel® Optane™ Memory Supported ‡ Yes Intel® Speed Shift Technology Yes Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Volume Management Device (VMD) Yes Security & Reliability Intel® Threat Detection Technology (TDT) Yes Intel® Standard Manageability (ISM) ‡ Yes Intel® Control-Flow Enforcement Technology Yes Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Mode-based Execute Control (MBEC) Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Essentials Product Collection 10th Generation Intel® Core™ i5 Processors Code Name Products formerly Comet Lake Vertical Segment Desktop Processor Number i5-10400 Lithography 14 nm CPU Specifications Total Cores 6 Total Threads 12 Max Turbo Frequency 4.30 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.30 GHz Processor Base Frequency 2.90 GHz Cache 12 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Marketing Status Launched Launch Date Q2'20 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max # of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.10 GHz Graphics Video Max Memory 64 GB 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096 x 2160@30Hz Max Resolution (DP)‡ 4096 x 2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x9BC8 / 0x9BC5 Expansion Options Scalability 1S Only PCI Express Revision 3 PCI Express Configurations ‡ Up to 1x16 |  2x8 |  1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C TJUNCTION 100°C Package Size 37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Thermal Velocity Boost No Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

Product Collection 10th Generation Intel® Core™ i3 Processors Code Name Products formerly Comet Lake Vertical Segment Desktop Processor Number i3-10105 Lithography 14 nm Use Conditions PC/Client/Tablet CPU Specifications Total Cores 4 Total Threads 8 Max Turbo Frequency 4.40 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 4.40 GHz Processor Base Frequency 3.70 GHz Cache 6 MB Intel® Smart Cache Bus Speed 8 GT/s TDP 65 W Supplemental Information Marketing Status Launched Launch Date Q1'21 Embedded Options Available No Datasheet View now Memory Specifications Max Memory Size (dependent on memory type) 128 GB Memory Types DDR4-2666 Max # of Memory Channels 2 Max Memory Bandwidth 41.6 GB/s ECC Memory Supported   ‡ No GPU Specifications GPU Name‡ Intel® UHD Graphics 630 Graphics Base Frequency 350 MHz Graphics Max Dynamic Frequency 1.10 GHz Graphics Video Max Memory 64 GB 4K Support Yes |  at 60Hz Max Resolution (HDMI)‡ 4096 x 2160@30Hz Max Resolution (DP)‡ 4096 x 2304@60Hz Max Resolution (eDP - Integrated Flat Panel)‡ 4096 x 2304@60Hz DirectX* Support 12 OpenGL* Support 4.5 Intel® Quick Sync Video Yes Intel® InTru™ 3D Technology Yes Intel® Clear Video HD Technology Yes Intel® Clear Video Technology Yes # of Displays Supported ‡ 3 Device ID 0x9BC8 Expansion Options Scalability 1S Only PCI Express Revision 3 PCI Express Configurations ‡ Up to 1x16 |  2x8 |  1x8+2x4 Max # of PCI Express Lanes 16 Package Specifications Sockets Supported FCLGA1200 Max CPU Configuration 1 Thermal Solution Specification PCG 2015C TJUNCTION 100°C Package Size 37.5mm x 37.5mm Advanced Technologies Intel® Optane™ Memory Supported ‡ Yes Intel® Thermal Velocity Boost No Intel® Turbo Boost Max Technology 3.0 ‡ No Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® SSE4.1 |  Intel® SSE4.2 |  Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Thermal Monitoring Technologies Yes Intel® Identity Protection Technology ‡ Yes Security & Reliability Intel® AES New Instructions Yes Secure Key Yes Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ No Execute Disable Bit ‡ Yes Intel® Boot Guard Yes Intel® Stable IT Platform Program (SIPP) No Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes

Read more less

SKU MODEL CPU Intel® Core™ i5-12400 Processor MOBO Asus B760M-Plus TUF Gaming Wi-Fi DDR4 m-ATX GPU Asus NVIDIA® GeForce RTX™ 4060 Dual OC 8GB GDDR6 RAM Adata XPG D50 16GB (2X8G) 3200Mhz RGB Tungsten Gray Dimm SSD Adata Legend 710 512GB M.2 NVME SSD PSU Corsair CX750 750Watts 80+ Bronze Certified PSU CPU COOLER Cooler Master Hyper 212 120mm Spectrum V3 CPU Cooler CASING Asus A21 m-ATX Gaming Case Black CASE FAN Darkflash DR12 Pro 3-in-1 120mm ARGB Case Fan     CASH PRICE 12% INSTALLMENT     55,795.00             5,074.58

Read more less

AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors DesignSupports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors​Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs​PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support​GbE LAN with Bandwidth Management​8-Channel HD Audio with High Quality Audio Capacitors​Rear HDMI and D-sub for Multi-display SupportSmart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​GIGABYTE APP Center, Simple and Easy Use​​------------------------------------------------------------------------------------Gigabyte GA-A320M-S2HSupports AMD 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Gen A-series/ Athlon X4 ProcessorsDual Channel Non-ECC Unbuffered DDR4, 2 DIMMsUltra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode supportHigh Quality Audio Capacitors and Audio Noise GuardRealtek® Gigabit LAN with cFosSpeed Internet Accelerator SoftwareSmart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan HeadersGIGABYTE™ UEFI BIOSAll New GIGABYTE™™ APP Center, Simple and Easy Use

Read more less

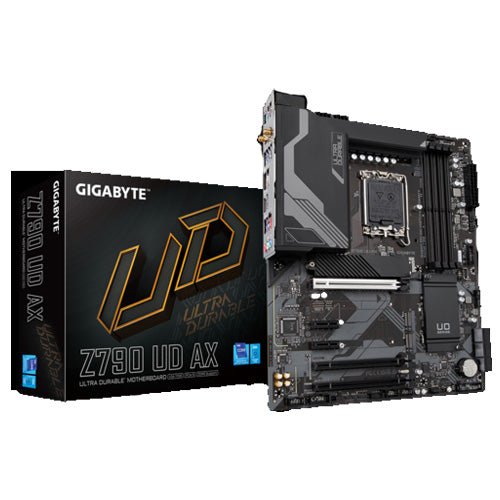

CPU Chipset Memory Onboard Graphics Audio LAN Wireless Communication module Expansion Slots Storage Interface USB Internal I/O Connectors Back Panel Connectors I/O Controller H/W Monitoring BIOS Unique Features Bundled Software Operating System Form Factor   Z790 UD AX 1.0/1.1 LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Intel® Z790 Express Chipset Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX210 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4) CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks iTE® I/O Controller Chip Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Norton® Internet Security (OEM version) LAN bandwidth management software Support for Windows 11 64-bit Support for Windows 10 64-bit ATX Form Factor; 30.5cm x 24.4cm

Read more less

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) Chipset Intel® Z790 Express Chipset Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60* Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Intel® Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2) Storage Interface CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x DisplayPort 1 x HDMI 2.0 port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm

Read more less

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)ChipsetIntel® Z790 Express ChipsetMemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)AudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleIntel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.USBChipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksI/O ControlleriTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorATX Form Factor; 30.5cm x 24.4cm

Read more less

CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer "CPU Support List" for more information.)ChipsetIntel® B760 Express ChipsetMemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)Onboard GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same timeAudioRealtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLANRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication moduleAMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX211 (For PCB rev. 1.2)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate(Actual data rate may vary depending on environment and equipment.)Expansion SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Storage InterfaceCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSBChipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksI/O ControlleriTE® I/O Controller ChipH/W MonitoringVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique FeaturesSupport for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusBundled SoftwareNorton® Internet Security (OEM version)LAN bandwidth management softwareOperating SystemSupport for Windows 11 64-bitSupport for Windows 10 64-bitForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm
