Appearance
Dimensions
11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Weight
0.4 g (0.01 oz)
Storage
Capacity
· 64 GB/ 128 GB/ 256 GB/ 512 GB
Flash Type
· 3D NAND flash
Operating Environment
Operating Temperature
-25°C (-13°F) ~ 85°C (185°F)
Operating Voltage
· 2.7V ~ 3.6V
Performance
Speed Class
UHS-I U3Class 10V30A2
Sequential Read/Write (CrystalDiskMark)
512 GB Up to 160/125 MB/s
256 GB Up to 160/125 MB/s128 GB Up to 160/90 MB/s
64 GB Up to 160/80 MB/s
Insertion/Removal Cycles
10,000
Note
· Speed may vary due to host hardware, software, usage, and storage capacity.
· Speeds based on internal testing. Advanced technology implemented to reach R/W speeds beyond UHS-I 104 MB/s. Full performance achieved only when paired with Transcend HUB5C card reader with the latest firmware update.

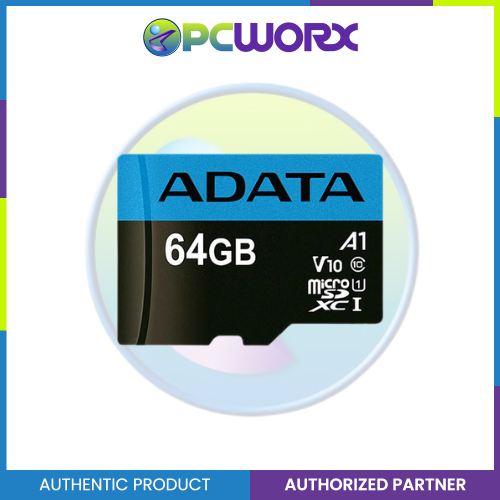

SPECIFICATIONS:
Category
Details
Capacity
64GB
Standard
SD 5.1
Speed Class
UHS Speed: Class 1Speed Class: Class 10Video Speed Class: V10
Working Voltage
2.7V–3.6V
R/W Performance
up to 100MB / 25MB per sec*Read / Write speed based on ADATA internal testing, actual performance may vary
Operating Temperature
-25°C to 85°C
Dimensions (L × W × H)
15 × 11 × 1mm
Weight
0.25g
Certifications
FCC, CE, VCCI, CTICK, EAC
Compatibility
Smartphones / Tablets / Dash Recorders
P500 EXTREME PRO MEMORY CARD
Support 4K UHD and FHD high-resolution, up to 100MB/s reading speed
FEATURE
Suitable for outdoor and home surveillance cameras, smooth recording of Full HD Video and 4K Ultra HD Video
Video transfer speed reach V30 and UHS-I U3 class
Data read speed is up to 100MB/s and support fluent recording full HD video and 4K ultra HD video
Simple to use, powerful compatible
Professional adapt for Video Recording, Nintendo-Switch, Tablets, GoPro, Dash Cam, Action Camera, DJJ Drone, UHS-I, U3, C10, V30, A1
SPECIFICATION
Brand
Customized
Model
P500 Extreme PRO
Capacity
16GB/32GB/64GB/128GB/256GB/512GB
Speed Level
A1/V10/U1(16-32GB)、A1/V30/U3(64-512GB)
Reading Speed
90MB/s(16-32GB)、100MB/s(64-512GB)
Storage Temperature
25℃-85℃
Working Temperature
0℃-70℃
Reliability
IP×7 waterproof, up to 500G acceleration inpact, etc,
Applications equipment
Smart phone, car DVR, digital camera, surveillance, tablet, drone, speaker, GoPro, laptop, etc

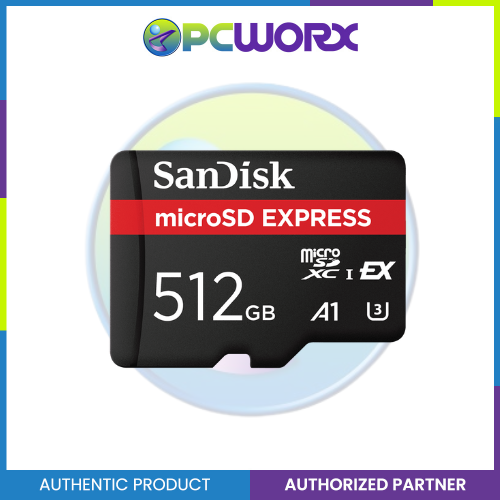

Key Specifications
Model Number
SDSQXFN-512G-GN4NN
Capacity
512 GB
Interface
PCIe® Gen 3 NVMe™ (performs at UHS-I speeds with current UHS-I/UHS-II devices)
Read Speed
Up to 880 MB/s
Write Speed
Up to 650 MB/s
Sustained Write Speed
220 MB/s
Form Factor
microSDXC™ (14.99mm x 10.92mm x 1.02mm)
Speed Class Rating
Class 10, U3, A1
Durability
Waterproof, temperature-proof, humidity-proof, drop-proof, shock-proof, magnetic-proof, x-ray-proof, and wear-out proof
Operating Temperature
-13°F to 185°F (-25°C to 85°C)
Compatible Devices
Cameras, gaming consoles (e.g., compatible with Nintendo Switch 2 systems), personal computers, Android™ smartphones and tablets, action cams, and drones
Warranty
Lifetime Limited Warranty (check with specific sellers for details)
Included Components
Typically comes with an SD adapter

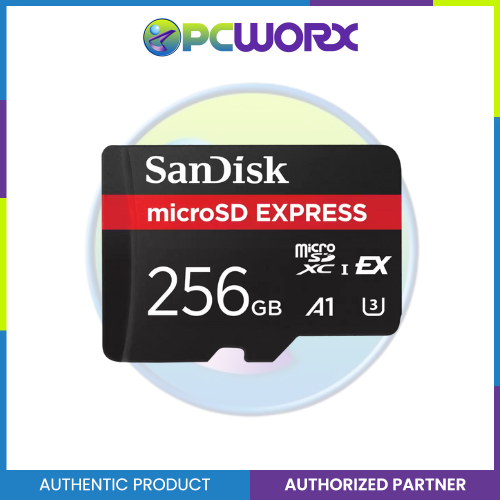

Specifications
Capacity
256GB
Form Factor
microSDXC™
Sequential Read Performance
Up to 880MB/s
Sequential Write Performance
Up to 650MB/s
Interface
PCIe Gen 3
Dimensions (L x W x H)
14.99mm x 10.92mm x 1.02mm
Warranty
Lifetime Limited Warranty
Weight
0.26gms
Model Number
SDSQXFN-128G-GN4NN
Operating Temperature
-13°F to 185°F
Non-Operating Temperature
-40°F to 185°F

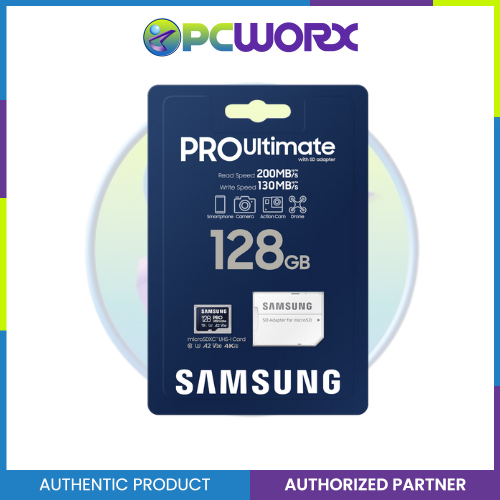

Key specifications
Storage Capacity:
128GB
Card Type:
microSDXC
Interface:
UHS-I, compatible with UHS interface
Read Speed:
Up to 200 MB/s
Write Speed:
Up to 130 MB/s
Performance Ratings:
UHS Speed Class:
U3
Video Speed Class:
V30
App Performance Class:
A2
Durability:
6-proof durability (water, temperature, X-ray, magnet, drop, and wear resistant)
Dimensions:
15 x 11 x 1 mm
Weight:
Approximately 0.25g
Included Accessory:
microSD to SD adapter
Operating Temperature:
-25 °C to 85 °C [-13 °F to 185 °F]
Memory card specially made for mobile devices and 4K video recording
TEAMGROUP releases the ELITE A1 Card, a memory card specially made for ANDROID™ devices and 4K. The all new UHS Speed Class 3 (U3) and UHS Video Speed Class 30 (V30) allow you to record video in 4K UHD. The ELITE A1 Card is an A1 Class memory card that allows consumers to possess equipment with high speed application performance and fully enjoy an excellent smartphone experience.
Running apps fast and smoothly with powerful performance
Mobile phone memory card’s “Secure Digital 5.1” spec is ideal for ANDROID™ smartphones and pads. The performance can be improved according to A1 Card’s read/write speed. The random read speed is up to 1500 IOPS(input/output operations per second), and the random write speed is up to 500 IOPS. The purpose is to allow consumers to execute apps quickly and process the related follow-up work, and install more apps.
4K Ultra-HD high quality video compatible
The ELITE A1 Card offers the required performance for filming 4K Ultra HD high quality video, which allows users to capture precious moment. Wonderful moments in life can be recorded with pictures, but video images are needed as well when looking back. Using the ELITE A1 Card, consumers can feel the smoothness when filming and playback without any lag. You can freely capture wonderful moments of life as you like, and enjoy the treasured memories of the past anytime, anywhere.
All-around data protection. Long-lasting and durable
The ELITE A1 Card is an A1 memory card that made to endure rough conditions. It is extremely high and low temperature resistant, waterproof, dustproof and x-ray proof, offering your data an all-around protection.
Preserving the planet with an eco-friendly product
ELITE A1 Card is adopting eco-friendly printing technology and eco-friendly inks to contribute to preserving our planet.
Specification
Details
Voltage
2.7V ~ 3.6V
Operation Temperature
-25˚C ~ 85˚C
Storage Temperature
-40˚C ~ 85˚C
Weight
1g
Dimensions
Micro SD: 15.0 (L) × 11.0 (W) × 1.0 (H) mmSD Adapter: 32.0 (L) × 24.0 (W) × 2.1 (H) mm
Operating System / Format
exFAT format
Compatibility
Supports only products with the Micro SDXC logo or slots complying with Micro SDXC cards.Supports only products with the SDXC logo or slots complying with SDXC cards (adapter required).
Write Protect
Micro SD: NoSD Adapter: Yes
Capacity:
128GB
Max Read Speed:
Up to 190MB/s
Max Write Speed:
Up to 90MB/s
Speed Class:
A2, V30, U3, Class 10
App Performance:
A2-rated for faster mobile app loading and performance
Video Performance:
Supports 4K UHD video recording (V30/U3)
Durability:
Water, shock, temperature, and X-ray proof
Compatibility:
Compatible with microSDXC supporting host devices, including smartphones and consoles
Dimensions:
10.92mm x 14.99mm x 1.02mm
