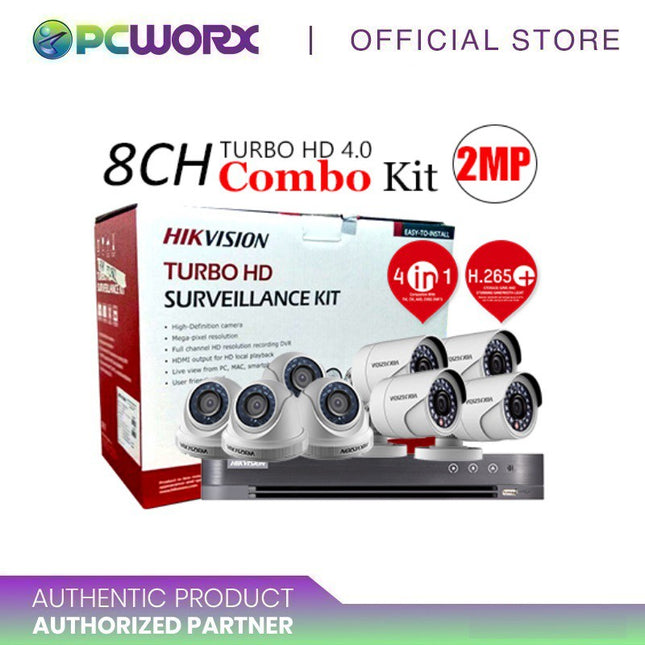

TVI-8CH4D4B-2MP HIKVISION 1080P 8CH HDTVI Combo Kit [DS-7208HQHI-K1, DS-2CE56D0T-IRPF x 4, DS-2CE16D0T-IRPF
H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
Up to 3 MP resolution for recording
HDMI output at up to 4K (3840 × 2160) resolution for DS-7216HQHI-K1
Long distance transmission over UTP and coaxial cable
Easy DIY Installation
2mp 1080p High Definition HDTvi Cameras
8pcs 18 meters Siamese Cables
1pc Centralize Power Supply for Whole kit
With capability to view via Smart PhonesHik-connect available at Apple Store and Google play
TVI-8CH4D4B-2MP-Eco
DS-2CE56D0T-IRPF features:
2.0 Megapixel high performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
Smart IR
Up to 20m IR distance
IP66 weatherproof
Switchable TVI/AHD/CVI/CVBS
DS-2CE16D0T-IRPF features:
2.0 Megapixel high performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
Smart IR
Up to 20m IR distance
OSD menu
Up the Coax (HIKVISION-C Protocol)
Switchable TVI/AHD/CVI/CVBS
DS-7204HQHI-K1 Analog Kit features:
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Max. 6/12/24 IP cameras input (up to 6 MP)
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
Up to 10 TB capacity per HDD
PACKAGE INCLUSIONS FOR Turbo HD TVI-8CH4D4B-2MP KIT
1 x 8-ch 1080p LITE 1U h.265 DVR
4 x 2MP Indoor Turret Camera
4 x 2MP POC Fixed Mini Bullet Camera

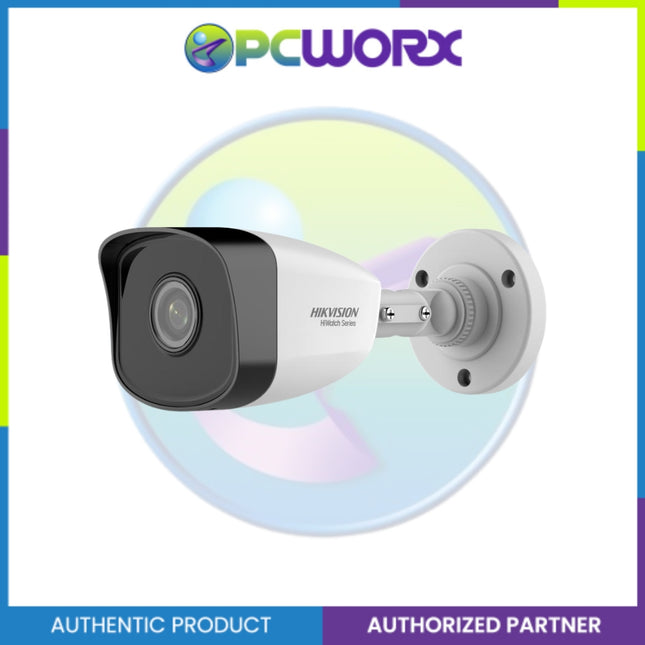

HWI-B121H
Camera
Appearance
Bullet
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
Lens
Focal Length
2.8 mm, 4 mm
Aperture
F2.0
Focus
Fixed
Angle of view
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest
1 fixed region for main stream
Resolution
2MP
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plugPoE (802.3af, class 3)
Power Consumption
12 VDC, 0.3 A, Max: 3.5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Ingress Protection level
IP67
Material
Front cover: metal, camera body: plastic, bracket: plastic
Dimensions
Ø 70 mm × 181.6 mm (Ø 2.8" × 7.1")
Weight
Camera: Approx. 270 g (0.6 lb.)With package: Approx. 510 g (1.1 lb.)
Product Description
Product Description
• Starter package for CCTV
• Easy DIY installation
• User-friendly GUI
• Remote-viewing anytime, anywhere with HIK-Connect
• Live view from PC, smartphone, or tablet
• High Definition Camera
• Full channel HD resolution recording DVR
• Turbo HD has ultra low light chromatic night vision
DS-2CE56D0T-IRPF features
2.0 Megapixel high performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
Smart IR
Up to 20m IR distance
IP66 weatherproof
Switchable TVI/AHD/CVI/CVBS
DS-2CE16D0T-IRPF features
2.0 Megapixel high performance CMOS
Analog HD output, up to 1080P resolution
True Day/Night
Smart IR
Up to 20m IR distance
OSD menu
Up the Coax (HIKVISION-C Protocol)
Switchable TVI/AHD/CVI/CVBS
DS-7204HQHI-K1 Analog Kit features
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Max. 6/12/24 IP cameras input (up to 6 MP)
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
Up to 10 TB capacity per HDD

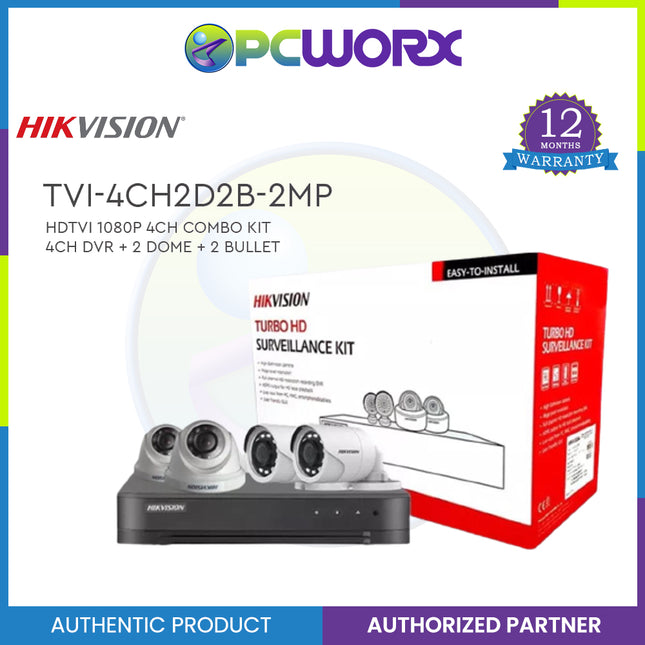

PACKAGE INCLUSIONS FOR Turbo HD TVI-4CH2D2B-2MP KIT
1 x 4 -ch 1080p LITE 1U H.265
2 x 2MP Indoor Turret Camera
2 x 2MP POC Fixed Mini Bullet Camera
HWI-D121H
Camera
Appearance
Dome
Image Sensor
1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed
1/3 s to 1/100, 000 s
Slow Shutter
Yes
Auto-Iris
No
Day & Night
IR cut filter
Digital Noise Reduction
3D DNR
WDR
DWDR
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355°
Lens
Focal Length
2.8 mm, 4 mm
Aperture
F2.0
Focus
Fixed
Angle of view
2.8 mm, horizontal FOV 114.8°, vertical FOV 62°, diagonal FOV 135.5°4 mm, horizontal FOV 86°, vertical FOV 46.5°, diagonal FOV 102.5°
Lens Mount
M12
IR
IR Range
Up to 30 m
Wavelength
850 nm
Compression Standard
Video Compression
Main stream: H.265+/H.265/H.264+/H.264Sub stream: H.265/H.264/MJPEG
H.264 Type
Main Profile/High Profile/Baseline Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 8 Mbps
Smart Feature-Set
Region of Interest
1 fixed region for main stream
Resolution
2MP
Main Stream Max. Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream Max. Frame Rate
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Image Enhancement
BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch
Auto, scheduled, day, night
Network
Alarm Trigger
Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API
ONVIF (PROFILE S), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users3 levels: Administrator, Operator, and User
Client
iVMS-4200, Hik-Connect
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51
Interface
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plugPoE (802.3af, class 3)
Power Consumption
12 VDC, 0.4 A, Max: 5 WPoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
Ingress Protection level
IP67
Impact Protection
IK10
Material
Bubble: plastic, front cover: plastic, bottom base: metal
Dimensions
Camera: Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight
Camera: Approx. 400 g (0.9 lb.)With package: Approx. 600 g (1.3 lb.)
DS-2CE56D0T-IRPF(C)
Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12
Image Parameters SwitchSTD/HIGH-SAT
Image SettingsBrightness, Sharpness, Smart IR
Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementBLC, HLC
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionΦ 89.9 mm × 70.1 mm (Φ 3.54" × 2.76")
WeightApprox. 130 g (0.29 lb.)
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply12 VDC ± 25%
ConsumptionMax. 2.2 W
IR RangeUp to 20 m
