AX1800 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system New-Gen WiFi Standard – WiFi 6(802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput. Ultra-fast WiFi Speed – RT-AX1800HP supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band. Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously Protection for Your Home Network – Aiprotection powered by Trend Micro™, blocks internet security threats for all your connected smart devices. Better Partner with Mesh System- Compatible with ASUS AiMesh WiFi system for seamless whole-home coverage. Get Your Home Ready for WiFi 6 (802.11ax) The growing number of connected personal and IoT devices has led to an overall increase in network density that is pushing the limits of the current WiFi standard. The latest WiFi 6(802.11ax) standard provides future-proof technologies, higher network efficiency, faster WiFi speeds, greater coverage and improved battery life for connected devices, providing a significantly better networking experience for users.*It requires 802.11ax-compatible devices to enjoy the benefits brought by WiFi 6(802.11ax) standard. Next-Gen WiFi Speed RT-AX1800HP is a 2x2 dual-band WiFi router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps — 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band — RT-AX1800HP is 1.5X faster than 802.11ac 2x2 dual-band routers. Built for Multi-device Households With a revolutionary combination of OFDMA and MU-MIMO technology, 802.11ax technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac WiFi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the WiFi 6(802.11ax) standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive WiFi experience. Protection for your Home Network RT-AX1800HP incorporates ASUS AiProtection, a commercial-grade network security system powered by Trend Micro™ Smart Home Network. With AiProtection, all connected devices are protected, even if they have no antivirus capability of their own — such as IoT devices. AiProtection blocks common internet-based attacks before they reach the network, and if an infected device is detected on the network, AiProtection instantly blocks it to prevent it sending any personal information to malicious servers. Powerful Whole-home WiFi System.The Way You Want. In most cases, your RT-AX1800HP can deliver smooth, reliable WiFi to every part of your home. But WiFi coverage can be affected by many factors — room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home WiFi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models — protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on — for all your devices, all the time! Turn your ASUS routers into whole-home Wi-Fi system with a simple firmware update Mix and match preferred models from selected ASUS routers Create a Wi-Fi network with either a single SSID or multiple SSIDs All router features work across the entire Wi-Fi system SPECIFICATIONS Model Name RT-AX1800HP Network Standard IPv6IPv4WiFi 6 (802.11ax)WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a WIFI DATA RATE WiFi 6 (802.11ax) (5GHz) : up to 1201 MbpsWiFi 6 (802.11ax) (2.4GHz) : up to 574 MbpsWiFi 5 (802.11ac) : up to 867 MbpsWiFi 4 (802.11n) : up to 300 Mbps802.11g : up to 54 Mbps802.11b : up to 11 Mbps802.11a : up to 54 Mbps Antenna External antenna x 4 Transmit/ Receive 5GHz 2x22.4GHz 2x2 Processor Dual core (4 VPE) Memory 128 MB Flash256 MB RAM Boosts Speed OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal1024-QAM high data rate20/40/80 MHz bandwidth Operating Frequency 2.4G Hz / 5 GHz Operating Mode Access Point, Media Bridge, Repeater, Router I/0 PORTS RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 Buttons WPS Button, Reset Button, Power Switch LED Indicator   Power x 12.4G x 15G x 1LAN x 1WAN x 1 Power Supply AC Input : 100V~240V(50~60Hz)DC Output : 12 V with max. 1.5A current Product Weight (G) 390g / 0.86lb Package Content RT-AX1800HPRJ45 x1Adapter x1QSG x1Warranty Card x1 AiMesh • AiMesh Node• Primary AiMesh RouterAiMesh Parental Control Customized Internet Schedule"Allow you to block access to unwanted websites and apps." Guest Network "The Guest Network provides Internet connection for guests but restricts access to your local network." Security SSHFirewallLet's EncryptWPSOpen system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal AiProtection • Infected Device Prevention and Blocking• Malicious Site Blocking VPN VPN Server PPTPVPN Server Open VPNVPN Server IPSecVPN Client PPTPVPN Client Open VPNVPN Client L2TP Traffic Control • Wireless Traffic Monitor• Wired Traffic Monitor• Real-time Traffic MonitorTraffic MonitorTraditional QoS• Bandwidth Limiter WAN DDNSDMZPort forwardingDual WANInternet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP LAN Manually Assign IP AddressWake on LAN (WOL)IPTVIGMP SnoopingDHCP Server Wireless RADIUS ClientExplicit BeamformingUniversal BeamformingAirtime FairnessWireless SchedulerWiFi MAC Address FilterUTF-8 SSID Administration Configuration Backup and RestoreDiagnosis toolsFeedback SystemSystem Log

Read more less

Water Block • Water Block Dimension:  80 x 80 x 45 mm • Block Material (CPU plate):  Copper • CPU Socket Support:  AMD: AM4, TR4*; Intel: LGA 115x,1366, 2011, 2011-3, 2066 Radiator • Radiator Dimension:  272 x 122 x 27 mm • Radiator Material:  Aluminum • Tube:  Sleeved Rubber tube • Tube Length:  380 mm Fan • Fan:  2 x ROG Designed A-RGB radiator FAN • Fan size:  3 Fan Slots (120mm) • Fan Dimension:  120 x 120 x 25 mm • Fan Speed:  800 ~ 2500 RPM +/- 10 % • Fan Static Pressure:  5.0 mmH2O • Fan Air Flow:  80.95 CFM / 137.5 m3h • Fan Noise:  37.6 dB(A) • Control Mode:  PWM • Special Features • AURA Sync Support:  Yes • RGB FAN type:  Addressable RGB • AURA Addressable Gen 2 support:  Yes Package Content • 1 x ROG STRIX LC 240 Liquid Cooler • Accesory Pack of Scews and brackets • 2 x 120mm ROG Designed A-RGB Radiator Fan • USB Cable for Software control • 1 to 2 Y-cable for Fan connection • 1 to 4 A-RGB spliter cable • Thermal compound (pre-applied) • Quick Start Guide     Warranty Information: •     Item compatibility is buyer’s responsibility. •     For security purposes: Kindly secure unboxing video incase wrong item and defective upon received. •     Check all items upon receipt. •     All items/claims for warranty are carry-in. •     Tampered warranty sticker voids the warranty. •     Overclocking may void the warranty. •     Items for warranty must be complete with original contents/packaging and accompanied by warranty receipt. •     Defective items for warranty are subject for pull out and RMA services. (Shipping fee should be shoulder by customer)

Read more less

Usage Scenario Gaming Multimedia Interface Wireless Connector BT Support Platform PC MAC Nintendo Switch iOS Android Bluetooth device Driver Material Neodymium magnet Driver Size 10 mm Headphones Impedance 32 ohm Headphones Frequency Response 20Hz - 20KHz Microphone Pick-up Pattern Omnidirectional Microphone Sensitivity -38 dB Microphone Frequency Response 100Hz - 10KHz AI Noise Cancelling Microphone No Active Noise Cancellation Yes Channel Stereo Aura No Battery 4.8 + 17 hours (ANC On) 5.5 + 21.5 hours (ANC Off) Foldablility No Weight Headphone(each side) 5g Charging case 42 g Carry bag/box No Extra ear-cushion No Color Black Accessories 2 pairs of eartips Charging cable(60 cm) Quick Start Guide Note Support SBC & AAC Audio Codec

Read more less

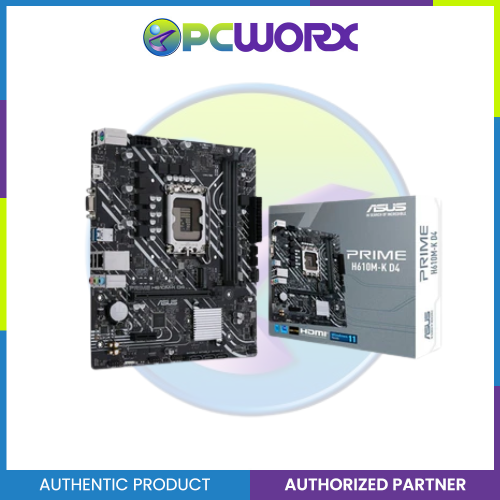

Model PRIME H610M-K D4   Key Specifications Form Factor:  Micro-ATX Socket:  LGA 1700 Compatible Processors:  12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors Memory: 2 x DIMM slots Max. 64GB DDR4 (up to 3200MHz) Non-ECC, Un-buffered memory Expansion Slots: 1 x PCIe 4.0 x16 (SafeSlot Core) 1 x PCIe 3.0 x1 Storage: 1 x M.2 slot (supports PCIe 3.0 x4 and speeds up to 32 Gbps) 4 x SATA 6Gb/s ports Rear I/O Ports: 2 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A D-Sub, HDMI Realtek 1Gb Ethernet Internal Connectors: Front panel USB 3.2 Gen 1 and USB 2.0 headers COM header RGB header Cooling: PCH heatsink Fan Xpert   )

Read more less

Core specifications CPU Socket:  LGA 1700 Chipset:  Intel H610 Chipset Supported Processors:  12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors Form Factor:  Micro-ATX  Memory Slots:  2 x DIMM Max Capacity:  Up to 64GB Type:  DDR4, Dual Channel, up to 3200 MHz  Expansion and Storage PCIe Slots: 1 x PCIe 4.0 x16 slot (from CPU)  1 x PCIe 3.0 x1 slot (from chipset)  M.2 Slot:  1 x M.2 slot (Key M) supporting 2242/2260/2280 drives with PCIe 3.0 x4 and SATA modes  SATA:  4 x SATA 6Gb/s ports  Connectivity and I/O Networking:  Realtek 1 Gb Ethernet  Rear Panel Ports: 2 x USB 3.2 Gen 1 (Type-A)  4 x USB 2.0 (Type-A)  1 x HDMI  1 x VGA  1 x PS/2 Keyboard/Mouse combo port  3 x Audio jacks  Internal Connectors: 1 x USB 3.2 Gen 1 header (for 2 additional ports)  1 x USB 2.0 header (for 2 additional ports)  1 x RGB header  1 x COM port header  1 x LPT header  Other Features Cooling:  PCH heatsink and Fan Xpert Protection:  5X Protection III (includes SafeSlot Core) BIOS:  UEFI BIOS with ASUS features like CrashFree BIOS 3 and EZ Flash 3

Read more less

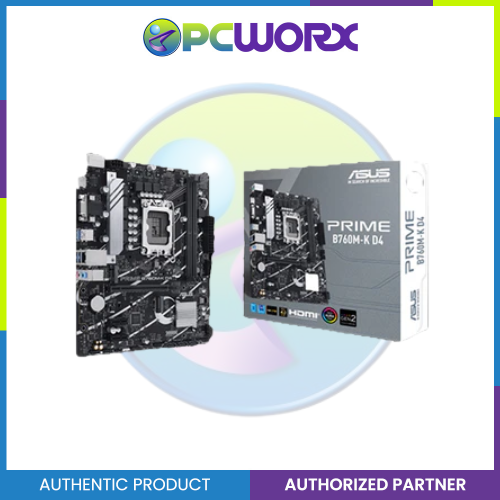

Specification Detail CPU Socket LGA 1700 (for 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors) Chipset Intel B760 Memory 2 x DDR4 DIMM, max. 64GB, up to 5333(OC)/5000(OC) MT/s Expansion Slots 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1 Storage 2 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s Networking Realtek 2.5Gb Ethernet Video Output 1 x HDMI, 1 x VGA Rear I/O 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x Ethernet, 3 x Audio Jacks Form Factor Micro-ATX (mATX) BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Read more less

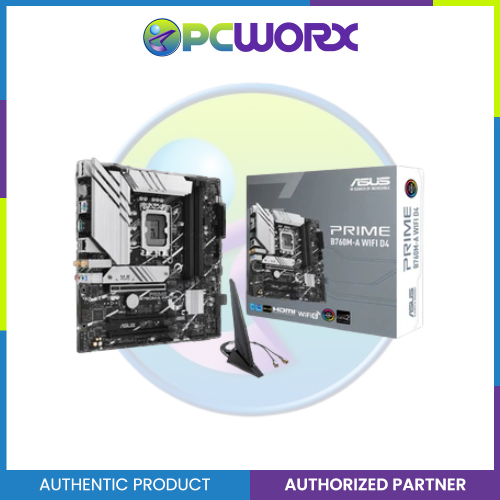

Core specifications CPU Socket:  LGA1700 for 12th, 13th, and 14th Gen Intel processors Chipset:  Intel B760 Memory:  4 x DDR4 DIMM slots, supporting up to 128GB with speeds up to 5333MHz (OC) Form Factor:  Micro-ATX  Connectivity and expansion Storage:  2 x M.2 slots (Key M) and 4 x SATA 6Gb/s ports  PCIe:  1 x PCIe 4.0 x16 slot, plus additional slots at x4 and x1 modes  Networking: Realtek 2.5Gb Ethernet  Wi-Fi 6 (802.11ax) and Bluetooth 5.2  Rear I/O: 2 x USB 3.2 Gen 2 Type-A ports  4 x USB 2.0 Type-A ports  1 x DisplayPort  2 x HDMI ports  Wi-Fi module and antenna connectors  Realtek 2.5Gb Ethernet port  3 x Audio jacks  1 x PS/2 Keyboard/Mouse combo port  Internal I/O: Front panel USB 3.2 Gen 1 headers (supporting Type-C)  Multiple fan headers (CPU, OPT, Chassis)  Aura RGB and Addressable Gen 2 headers  Features Cooling:  VRM heatsinks, M.2 heatsink, PCH heatsink, and hybrid fan headers  Lighting:  Aura Sync RGB lighting with support for addressable Gen 2 headers  Protection:  Includes ASUS 5X PROTECTION III features for enhanced durability

Read more less
